Summary of Contents for Minuteman FR20115-DC

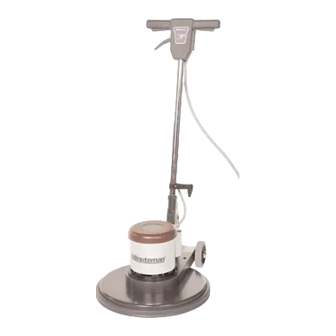

- Page 1 Front Runner Model: Floor Machines FR17115, FR17220 FR20115, FR20220 FR20115-2S, FR20220-2S FR20115-DC OPERATION SERVICE PARTS CARE Revised 04/06...
- Page 2 FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock, or injury: • Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. WARNING To reduce the risk of electrical shock - Do not expose to rain.
-
Page 3: Grounding Instructions
INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. WARNING Read Instruction Manual before operating this piece of equipment. •... - Page 4 POUR USAGE COMMERCIAL SEULEMENT MODE D’EMPLOI SECURITAIRE Lorsque l’on utilise un appareil électrique, des précautions de base doivent toujours être suivies telles que: BIEN LIRE LE MODES D’EMPLOI AVANT USAGE AVERTISSEMENT Pour réduire les risques de feu, choc électrique ou blessure: Ne pas quitter l’appareil lorsque la prise de courant est branchée.
- Page 5 INSPECTION D éballer soigneusement en constatant s’il y, a lieu tout dommage apparent. Chacune des pièces d’équipement est entièrement inspectée à l’usine et tout dommage de transit est la responsabilité de la compagnie de transport qui devrait être prévenue immédiatement. AVERTISSEMENT •...
-
Page 6: User Maintenance Instructions
USER MAINTENANCE INSTRUCTIONS A qualified electrician should perform all service and repair. No user serviceable components are employed in this equipment. No lubrication of the motor is required. CORD STORAGE While not in use, storage can be accomplished by winding cord around handle assy. Cord should be completely unwound during operation. -
Page 7: Wiring Diagram
WIRING DIAGRAM MODEL FR17220, FR20220, (FR20220-2S) MODEL FR17115, FR20115, (FR20115-2S) - Page 8 Item 25 can be be purchased as an assembly (includes items 24, 25, 26, 27, 28, 29, 14, 31, 32, 33) Use part number 195040...
- Page 9 FR20115-DC Uses: Floating Skirt Option 172499 Brush Deck 172384 Skirt...
-
Page 10: Part List
RET RING-E TYPE M12 X 24 X 1.2 STL ZINC 715459 DECAL, FR MOTOR COVER 714205 WSR-WAVE M14 715382 DECAL, MINUTEMAN xxxxxxx DECAL, MINUTEMAN, LIGHT GRAY 715062 DECAL, WARNING GENERAL FM 195039 PIN, FRONT PIVOT 714000 SC-SHCS M6 X 1.0 X 25 STL ZINC 195038... - Page 11 Complete handle assembly part number 195120 (Everything shown below)
- Page 12 195060 CORD HOOK ASSY 195072 STEEL BALL, SAFETY BUTTON 714050 SCR-ST M4.8 X 25 STL ZINC 715175 DECAL, MINUTEMAN RUNNER 741502 SWITCH, PUSHBUTTON 150002 CORD SET, 14-3 STW X 50’ (120V) 740600 CORD SET, 16-3 SJT X 50’ (240V) 741503 CORD SET,HANDLE,14-3 SJT X 43"...
- Page 13 195009 Capacitor Cover 195009 Capacitor Cover...
- Page 14 PART LIST ITEM PART NO. REQ’D DESCRIPTION 741701 STATIONARY SWITCH 741704 CENTRIFUGAL SWITCH, 200025 & 200025-1 GM 741705 CENTRIFUGAL SWITCH, 750571 & 750571-11 GM 741706 START CAPACITOR, 200025 & 200025-1 GM 741707 START CAPACITOR, 750571 & 750571-11 GM 741708 RUN CAPACITOR, 200025 & 200025-1 GM 741709 RUN CAPACITOR, 750571 &...
- Page 16 Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and maintained in accordance with the applicable operation and instruction manuals. All warranty claims must be submitted through and approved by factory authorized repair stations.
