Minuteman Mirage 27” Parts And Instruction Manual
  1. Manuals
  2. Brands
  3. Minuteman Manuals
  4. Floor Machine
  5. Mirage 27"
  6. Parts and instruction manual

Minuteman Mirage 27” Parts And Instruction Manual

Propane burnisher
Hide thumbs

Advertisement

Quick Links

Download this manual
Parts and Instruction Manual - Mirage 27" Propane Burnisher

Advertisement

loading

Related Manuals for Minuteman Mirage 27”

Summary of Contents for Minuteman Mirage 27”

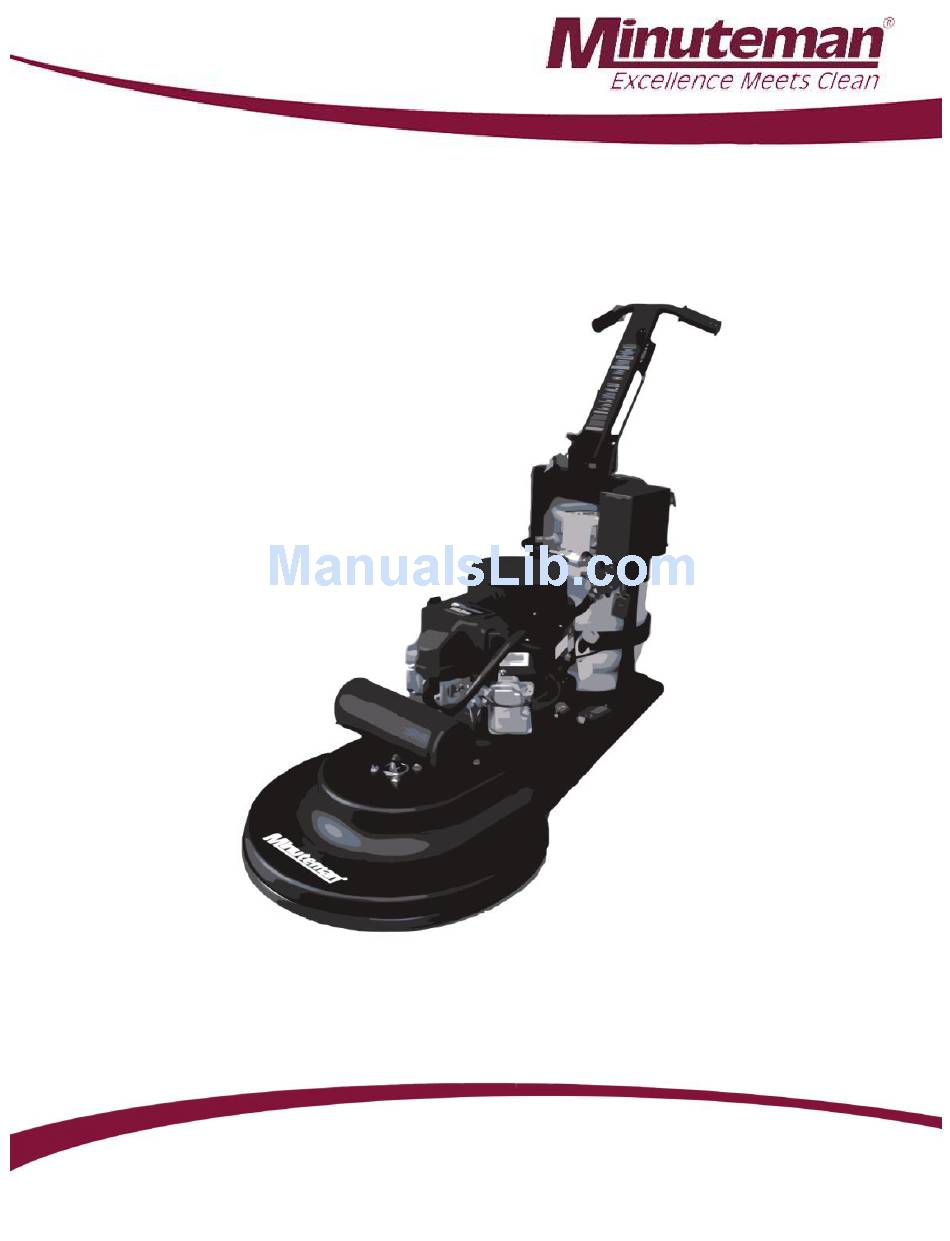

  • Page 1 Parts and Instruction Manual - Mirage 27” Propane Burnisher...
  • Page 2 IMPORTANT MACHINE INFORMATION DATE OF PURCHASE: _________________________________________________________ PURCHASED FROM: __________________________________________________________ ADDRESS: __________________________________________________________________ CITY: ____________________________STATE:_____________________ZIP:____________ PHONE: __________________________ CONTACT: ________________________________ MACHINE MODEL #:___________________ SERIAL #:_______________________________ ENGINE MODEL #:_______________________ SERIAL #:_____________________________ OWNERS INFORMATION NAME: ___________________________BUSINESS NAME: __________________________ PHONE #:________________________EMAIL ADDRESS: ____________________________ Parts and Instruction Manual - Mirage 27” Propane Burnisher Page I...

  • Page 3: Introduction

    El no leer este manual antes de utilizar o de realizar cualquier servicio o procedimiento de mantenimiento a su máquina Minuteman podría causar lesiones a usted oa otros miembros del personal, daños a la máquina u otros bienes pueden ocurrir también. Usted debe tener entrenamiento en la operación de esta máquina antes de usarla.
  • Page 4 MACHINE SPECIFICATIONS MODEL 27” Mirage Propane Burnisher PART NUMBER M220028K17X PAD SIZE 27” (68cm) ENGINE 18hp EnviroGard Kawasaki 603cc V-Twin Propane Engine CATALYTIC MUFFLER Standard EMISSION SHUTDOWN Optional CLUTCH Optional PAD SPEED 1800rpm PROPANE CYLINDER 20lb. (9.1kg) Capacity, 80% Safety Fill Vertical Vapor Cylinder SAFETY FUEL LOCKOFF Standard LOW OIL SHUTDOWN...
  • Page 5 DANGER: Failure to read the Owner's Manual prior to operating or attempting any service or maintenance procedure to your MINUTEMAN machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the operation of this machine before using it. If you or your operator(s) cannot read English, please have this manual explained fully before attempting to operate this machine.
  • Page 6 OPERATOR SAFETY INSTRUCTIONS (cont’d.) DANGER: Propane is highly flammable. If you smell propane gas, shut off the machine and move it outside. Determine the source of the leak before using it again. NEVER vent propane gas inside a building. It is UNLAWFUL to store a propane bottle inside a building.

  • Page 7: Table Of Contents

    Table of Contents Important Machine Information Introduction Specifications Operator Safety Information Table of Contents How to Operate the Machine Maintenance and Adjustments Machine Troubleshooting Propane Engine Introduction Propane Safety Information Refilling & Storing Propane Cylinders Engine Emissions and CO Safety Maintenance &...

  • Page 8: How To Operate The Machine

    OPERATION INSTRUCTIONS Floor Care Machine Introduction MINUTEMAN Propane Burnishers are best defined as ultra-high speed buffers with the staying power to produce superior high gloss floor surfaces. Upon contact with the floor, the burnisher should always be kept moving. The speed at which you walk will determine the results obtained.
  • Page 9 Starting the Engine: 1. Propane powered engines are designed to be started in the IDLE throttle position. This creates the vacuum necessary to open the lock-off valve inside the regulator. Actuation of the throttle lever will keep the lock-off valve from opening and the engine from getting propane so the engine will not start.

  • Page 10: Maintenance And Adjustments

    General Machine Maintenance and Adjustments 1. Pad replacement. Tilt the machine back on its rear bumper to reach the pad centering device. Turn the outer ring counterclockwise to remove it. Remove the old pad. Install the new pad by carefully centering it against the "harpoon hook"...

  • Page 11: Machine Troubleshooting

    Machine Troubleshooting When troubles occur, be sure to check simple causes which at first may seem too obvious to be considered. For example, a starting problem could be caused by fuel starvation due to an empty propane cylinder or an unopened service valve.
  • Page 12 PROPANE POWERED ENGINE SUPPLEMENTAL OPERATORS MANUAL INTRODUCTION HAZARD INTENSITY LEVEL The following symbols are used throughout this guide as indicated in their descriptions: DANGER means: Severe bodily injury or death can occur to you or other personnel if the DANGER statements found on this engine or in this Owner's Manual are ignored or are not adhered to.
  • Page 13 DANGER:  Long or continuous exposure to high noise levels may cause permanent hearing loss. Always wear hearing protection while using this engine.  Injury to the eyes and/or body can occur if protective clothing and/or equipment is not worn while using this engine. Always wear safety goggles and safety clothing while using this engine.

  • Page 14: Propane Safety Information

    PROPANE SAFETY INFORMATION Facts about LP Gas Propane As a fuel, Propane gas is unmatched for both safety and dependability; it has been used as a domestic household fuel for over half a century, and for over thirty years as an internal combustion engine fuel. Propane is a highly flammable fuel that is contained under pressure as a liquid.

  • Page 15: Refilling & Storing Propane Cylinders

    REFILLING & STORING PROPANE CYLINDERS The NFPA Technical Committee prohibits the storage of such containers in buildings. There are few exceptions to this rule. In other words, propane cylinders should NOT be stored in buildings used by the public or frequented by anyone passing through or who is working in the building.
  • Page 16 Limits for permissible exposure to CO vary substantially from region to region, City, State, and Industry requirements should be consulted prior to use of any equipment. The current Occupational Safety and Health Administration (OSHA) Permissible Exposure Limit (PEL) for CO is 50 ppm, as an 8-hour time-weighted-average (TWA), This is computed by making measurements at intervals over 8 hours, then adding the sums of the concentrations and the intervals, and dividing by 8 hours, For example: Time...
  • Page 17  Air Exchange and CO Diffusion - CO does not mix with air on its own. Air currents can stir the CO and dilute the concentration values by mixing it with the available air. When using equipment over a large area in a short time stirring occurs as you walk.
  • Page 18 The direct reading instruments are frequently equipped with audio and/or visual alarms and may be used for area and/or personal exposure monitoring. Some have microprocessors and memory for storing CO concentration readings taken during the day. It is significant to note that some of the devices mentioned for workplace CO monitoring are not capable of monitoring TWAs, and not all are equipped with alarms.
  • Page 19 8 Hour Time Weighted Average (OSHA Method) 1.5% CO 500,000cf Hours of Operation TWA (OSHA Method) 0 Change/hr 1/2 Change/hr 1 Change/hr 2 change/hr Based on the CO production rates shown above the TWA would be exceeded in a 100 x 500 x 10 foot (empty) space after 6 hours with 2 air changes per hour.
  • Page 20 MAINTENANCE OF THE ENGINE The proper maintenance of your propane powered engine is vital to safe operation. LPG engines are dependent on engine tune up, and air filter replacement. CO concentration (production) increases significantly when the air to propane ratio becomes propane rich. Follow the recommended maintenance schedule for the engine found in the engine operator/owner manual as well as the maintenance and adjustments schedule found in the engine operator/owner manual that was supplied with the equipment.
  • Page 21 MAINTENANCE EMISSION CONTROL INFORMATION To protect the environment in which we will live, the manufacturer has incorporated (1) crankcase emission and (2) exhaust emission control systems (EM) in compliance with applicable regulations of the United States Environmental Protection Agency and California Air Resources Board. Crankcase Emission Control System.

  • Page 22: Parts And Instruction Manual - Mirage 27" Propane Burnisher

    TROUBLESHOOTING GUIDE Note: When trouble occurs be sure to check for simple causes, which at first may seem too obvious to be considered. For example, a starting problem could be caused by propane starvation due to an empty propane cylinder or an unopened service valve.
  • Page 23 Parts and Instruction Manual - Mirage 27” Propane Burnisher Page 16...
  • Page 24 18HP 603cc Engine Parts List ITEM NO. PART NUMBER DESCRIPTION QTY. GKFS600ABCOV KAWASAKI 603cc 18HP 12V PROPANE ENGINE ASSY W1324 7/8 NYLON HOSE STRAP W2606 N51-5A-C-3.0-NT REGULATOR W2608 12V A152 LP FUEL LOCKOFF W2628 PROPANE CARBURETOR, 603CC ENGINE W2648-10.5 3/8 X 10.5” LP350 PSI HOSE W/ REGO MAIL FITTINGS W2650 REGO COUPLING, FEMALE, RT-HAND W2660...
  • Page 25 Parts and Instruction Manual - Mirage 27” Propane Burnisher Page 18...
  • Page 26 5/16 – 18 SELF-LOCKING HEX JAM NUT W2040 PULLEY, 4”, BK40-1 W/2 SS W1220 CLUTCH WASHER W2502 PROPANE TANK P#5461TC – 20LB. RT W5021A 27” MINUTEMAN DECK ASSY W5027-1 27” FRAME CAST ALUMINUM W1060A-1 FRONT END BEARING ASSY 7.2.1 W1060-1 FRONT END BEARING HOUSING 7.2.2...
  • Page 27 Mirage 27” Propane Burnisher Parts List Cont’d. ITEM NO. PART NUMBER DESCRIPTION QTY. W1200 MINUTEMAN DECK DECAL W1199 MINUTEMAN NAME PLATE W/ SERIALIZATION W4241 REAR CASTER W4210 DELUXE WHEEL BRACKET (5-HOLE) W4220 RUBBER WHEEL, 6” X 1 ½” 7.10 W4218 3/8”...
  • Page 28 Parts and Instruction Manual - Mirage 27” Propane Burnisher Page 21...
  • Page 29 Notes Parts and Instruction Manual - Mirage 27” Propane Burnisher Page 22...
  • Page 30 Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and maintained in accordance with the applicable operation and instruction manuals.
  • Page 31 Model Parts Labor Poly Travel** Cord Electric Group 5yrs 12yrs 90 days Battery Auto Scrubbers (incl. on board 5yrs 3yrs 12yrs 90 days charger) Battery and Manual Sweepers 3yrs 3yrs 12yrs 90 days Exceptions……. Model Parts Labor Poly Travel** Port A Scrub, all models (incl. on board 6months 12yrs 90 days...
  • Page 32 “Excellence Meets Clean” Minuteman is a Full Line Manufacturer of Sweepers and Scrubbers, for Industrial Facilities. Minuteman International, Inc. 14N845 U.S. Route 20 Pingree Grove, Illinois 60140 Phone: 800-323-9420 www.Minutemanintl.com Email: tech@minutemanintl.com A Member of the Hako Group 988747 REV B 05/17...
