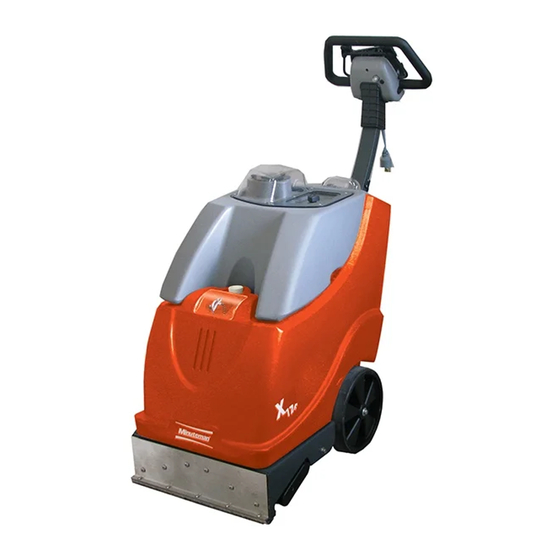

- Page 1 User Manual X17 ECO Carpet Extractor...
- Page 2 This manual is furnished with each new Minuteman X17. This provides the necessary operating and preventive maintenance instructions. Operators must read and understand this manual before operating or servicing this machine. This machine was designed to give you excellent performance and efficiency. For best results and minimal cost, please follow the general guidelines below: ·...
-
Page 3: Technical Specifications
Technical Specifications Model Model No. X17115 Current Max. 12 Amps Voltage 115V Vacuum motor power 1250W Brush motor power 100W Pump motor power 50PSI Working width 17” (43cm) Gross Weight 110 lbs. Sound Level 72dB Solution tank 10 Gallon (37.8 LITERS) Recovery tank 7 Gallon (26.5 LITERS) Cable... -
Page 4: Ce Declaration
CE Declaration... -
Page 5: Table Of Contents
Solution Tank Drain Hose ..............................17 Solution Level Indicator ..............................17 Brush Pressure Gauge ............................... 18 Handle Adjustment ................................19 Accesories ..................................20 Operating Instructions ..............................21 Maintenance ..................................22 Troubleshooting ................................24 Minuteman International Made Simple Commercial Limited Warranty................ 26... -
Page 6: Safety Instructions
Safety Instructions FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock, or injury: •... -
Page 7: For Safety During Operation
Safety Instructions • Do not handle plug or appliance with wet hands. • Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow. •... -
Page 8: Unpacking Instructions
Unpacking Instructions INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. ELECTRICAL This machine is designed to operate on a standard 112 amp. 115 volt, 60 hz, AC circuit. Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the motor. -
Page 10: Assemby
Assembly HANDLE ASSEMBLY The X17 Handle Assembly (D) is not assembled on the machine when shipped. Follow the instruction on page 13 to connect the handle assembly to the machine. A HANDLE ADJUSTMENT KNOB B SHOULDER BOLT C COVER D HANDLE ASSEMBLY E SCREW... - Page 11 Assembly Insert handle assembly in Unpack machine. Use philips screwdriver to Align the teeth on the bushing between bushings. Insert the unscrew 4 screws and and handle assembly before shoulder bolt through the remove cover. tightening the adjustment bushing and screw into the knob.
-
Page 12: Machine Overview
Machine Overview X17 Front HANDLE RECOVERY DOME LID RECOVERY TANK SOLUTION TANK SOLUTION TANK LID WHEEL RECOVERY WINDOW CHASIS ASSEMBLY FAUCET FILL HOSE Vacuum Connection VACUUM MOTOR INTAKE VACUUM INTAKE CONDUIT UMBRELLA CONNECTION RECOVERY INLET... -
Page 13: Back
Machine Overview X17 BACK & Bottom TWIST LOCK POWER CONNECTOR HANDLE ADJUSTMENT KNOB AUXILLIARY POWER OUTLET RECOVERY TANK DUMP HOSE BRUSH PRESSURE ADJUSTMENT KNOB OFF AISLE WAND WATER FEMALE QUICK-CONNECT VACUUM HOSE IN-LINE FILTER VAC SHOE BRUSH BRUSH SHOE COVER M. -
Page 14: Handle\Control Panel
Machine Overview Handle/ Control Panel A MOMENTARY SPRAY BAIL B BRUSH SWITCH C VACUUM SWITCH D SPRAY JET \AUXILLIARY SWITCH Circuit Breakers The circuit breakers are located on bottom and rear of the handle assembly. 1 BRUSH MOTOR BREAKER - 3amp 2 VACUUM PUMP BREAKER - 12amp 3 SPRAY JET PUMP\AUX POWER &... - Page 15 Machine Overview Momentary Handle (A) When handle is pushed forward the spray jets shutoff. Brush Switch (B) ON\OFF switch for brush. Flip switch up to (I) position to power on the brush motor. Flip switch to (o) position to shut off brush motors. Note: Brush switch must be turned ON for to use spray jets. Vacuum Switch (C) ON\OFF switch for vacuum pump.
-
Page 16: Solution Tank In-Line Filter
Machine Overview Solution Tank In-line Filter The In-line Filter (B) should be cleaned regularly. To remove, turn the Shut-off Valve (C) closed by turning it clockwise. Next, twist the Filter Cap (A) counter-clockwise and pull the filter out to clean. -
Page 17: Solution Tank Drain Hose
Machine Overview Solution Tank Drain Hose The solution tank may be drained by removing the Solution Tank Drain Hose (A) from the Hose Barb (B) and routing the hose to a floor drain. Solution Level Indicator The solution Tank Drain Hose also serves as a water level indicator for the solution tank. -
Page 18: Brush Pressure Gauge
Machine Overview Brush Pressure Gauge The brush pressure gauge informs the operator if the brush pressure setting is in optimum range. The machine operates best in the green area. If the machine reaches the yellow or red range the brush pressure can be lowered by raising the brush by turning the brush pressure adjustment knob counter-clockwise. -
Page 19: Handle Adjustment
Machine Overview Handle Adjustment The X17 handle was designed with operator comfort in mind. The angle position of the handle can be adjusted to suit the needs of the operator. Angle Adjustment The handle can be adjusted without tools by loosening the Handle Adjustment Knob (A) and rotating the handle to the desired position. -
Page 20: Accesories
Machine Overview Accessories C46300-00 - Motorized Tool Only this tool may plug into the Auxiliary Power (B). The vacuum hose as shown on Page 13 Item (G) must be first disconnected from the machine before the motorized tool can be connected. Connect the tools Suction Hose (D) to the machines Vacuum Inlet (A) Then connect the motorized tool Power Cord (E) to the Auxiliary Power (B). -
Page 21: Operating Instructions
Remove clear solution cover lid from front of machine, page 12 item D,or use the supplied faucet fill hose, item J. Fill solution tank with desired amount of warm water and add liquid cleaning chemical, Minuteman Extraction Shampoo order #902163. (See instructions on container for proper dilutions.) DO NOT USE powdered cleaning chemicals. -
Page 22: Maintenance
Maintenance USER MAINTENANCE INSTRUCTIONS All service and repair should be performed by qualified vacuum service representative or electrician. No user serviceable components are employed in the electrical vacuum lid head assembly. No lubrication of the motor is required. Before cleaning or maintaining the machine unplug the electrical supply plug. -
Page 23: Cord Storage
Maintenance CORD STORAGE The X17 is supplied with a detachable cord for ease of storage. • Regularly inspect cord for signs of damage. If cord is damaged replace immediately. • Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return to service center. -
Page 24: Troubleshooting
Troubleshooting... - Page 25 Troubleshooting...
-
Page 26: Minuteman International Made Simple Commercial Limited Warranty
Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and maintained in accordance with the applicable operation and instruction manuals. - Page 27 If a difficulty develops with this machine, you should contact the dealer from whom it was purchased. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Some states do not allow the exclusion or limitation of special, incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions and limitations may not apply to you.
- Page 28 Excellence Meets Clean Minutman International · 14N845 U.S. Route 20 · Pingree Grove, Illinois 60140 USA Phone 800- 237-3192 E-Mail, www.minutemanintl.com A Member of the Hako Group 988725UM Rev * 01/09...
