Summary of Contents for Minuteman Ambassador C46000-00

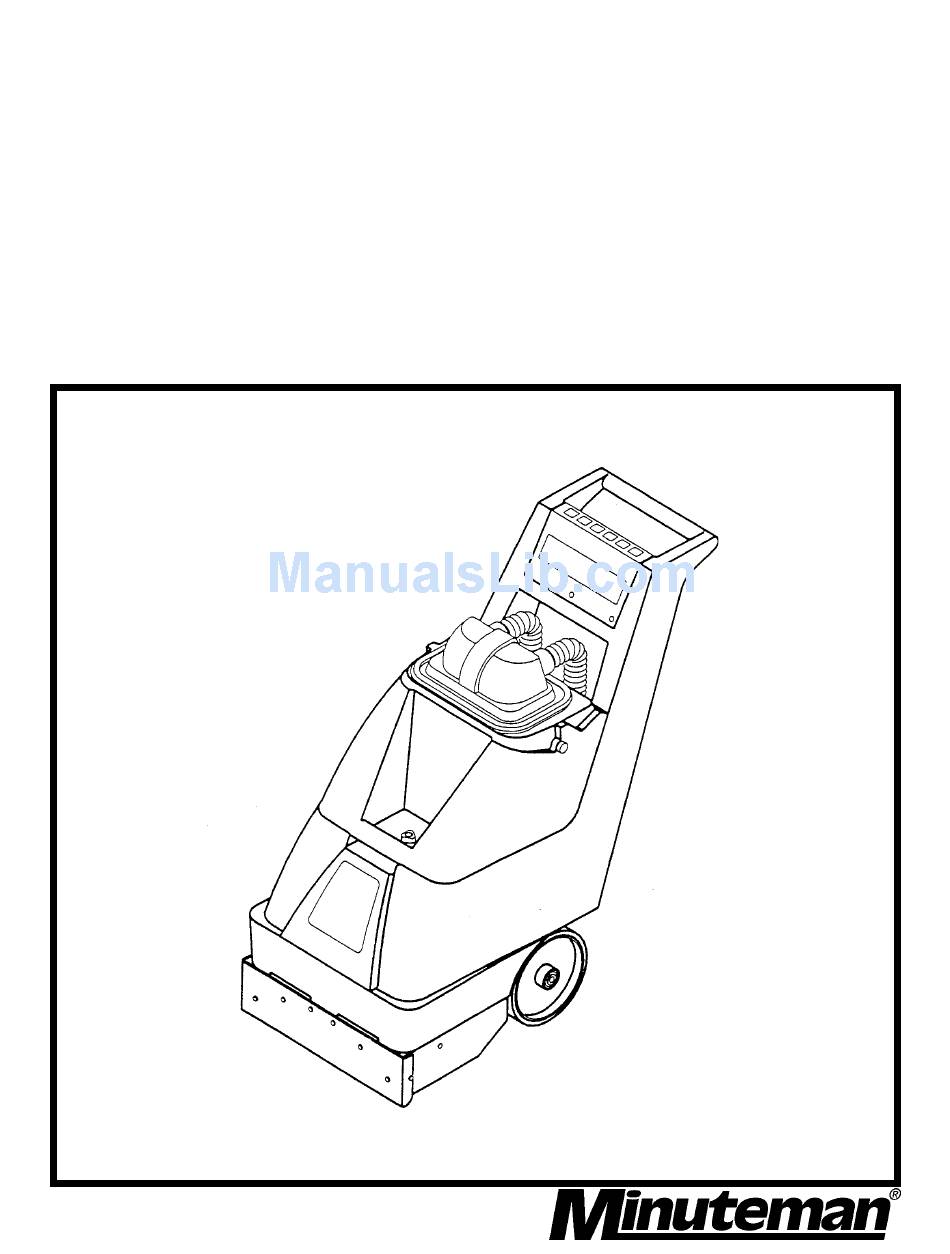

- Page 1 Ambassador Model: C46000-00 C46100-00 OPERATION CARE SERVICE PARTS Revised 9/03...
-
Page 2: Important Safety Instructions
FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock, or injury: • Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. -
Page 3: Grounding Instructions
INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. ELECTRICAL This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit. Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the motor. -
Page 4: User Maintenance Instructions
USER MAINTENANCE INSTRUCTIONS All service and repair should be performed by qualified vacuum service representative or electrician. No user serviceable components are employed in the electrical vacuum lid head assembly. No lubrication of the motor is required. Before cleaning or maintaining the machine unplug the electrical supply plug. -
Page 5: Filling The Ambassador
This can reduce or stop solution flow to the pump and spray jets. Carpet should be thoroughly vacuumed and obstacles relocated before beginning the cleaning cycle. Heavy traffic lane areas should be pre-treated or spotted with Minuteman Pre-Treat order #902183 for best results. -
Page 6: Operator View Of Control Panels
OPERATOR VIEW OF CONTROL PANELS Main power switch. Vacuum switch Brush switch Pump spray switch, Continuous operation position. Pump supplies solution to spray bar for cleaning in large open areas. Center position is “off”. Momentary position is for intermittent spray for cleaning in smaller more confined areas. When released, switch will return to center off position. -
Page 7: Cord Strain Relief
INSTRUCTIONS FOR CONNECTING E.T. MOTORIZED HAND TOOL TO CORD STRAIN RELIEF AMBASSABOR EXTRACTOR OPERATOR VIEW VISIBLE RECOVERY SYSTEM 1. Waste Water Recovery Hose (Grey hose cuff to grey fitting) 2. Recovery Waste Water Diffuser 3. Vac Hose White Cuff (White hose cuff to white fitting) 4. -
Page 10: Parts List
Decal Brush Adjustment 450071 3/8 Barb x 1/4 MPT Branch T 715061 General Warning Decal 450028 Front Squeegee Plate 715634 Decal Minuteman ID 450029 Front Plate Neo Gasket 450030 Wheel Well Plate - RH 450031 Wheel Well Plate - LH 740089... -
Page 12: Limited Warranty
Minuteman International, Inc. warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of three years from date of purchase. In addition, Minuteman International, Inc. will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.
