User Manual
X17 ECO CFS Carpet Extractor
115V/230V with High Pressure
Minuteman®, Minuteman International, Inc.
A Member of the Hako Group
#988751UM Rev. * 04/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X17 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Minuteman X17

Summary of Contents for Minuteman X17

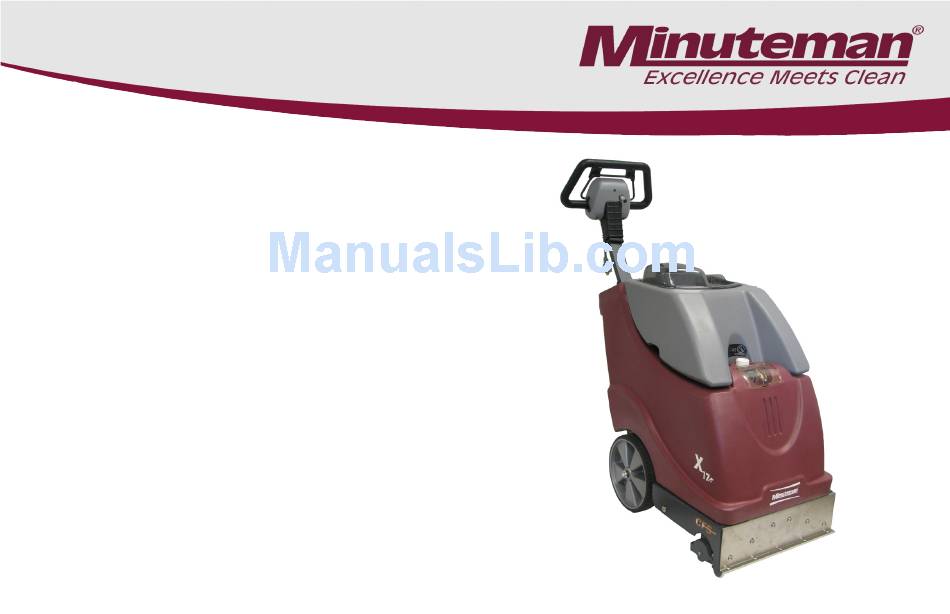

  • Page 1 User Manual X17 ECO CFS Carpet Extractor 115V/230V with High Pressure Minuteman®, Minuteman International, Inc. A Member of the Hako Group #988751UM Rev. * 04/15...

  • Page 2: Technical Specifications

    Technical Specifications This manual is furnished with each new Minuteman X17 ECO CFS. This provides the necessary operating and preventive maintenance instructions. Operators must read and understand this manual before operating or servicing this machine. This machine was designed to give you excellent performance and efficiency. For best results and minimal cost, please follow the general guidelines below: ·...
  • Page 3 1,8 dB (A) *The frequency weighted acceleration measured according to DIN EN ISO 5349 which have an effect upon the upper limbs (hand-arm-system) amounts under normal working conditions. X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 4: Table Of Contents

    Brush Pressure Adjustment Knob ................................17 Removable Recovery Tank ..................................18 Handle Adjustment ....................................19 Cord Relief ........................................19 Accessories ......................................20 Maintenance ....................................21 Operating Instructions ................................24 Troubleshooting ..................................26 Warranty ....................................28 X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 5: Safety Instructions

    • Do not put any object into openings. Do not use with any opening blocked; – X17230Z / X17230HPZ: Power Cord #748613CE keep free of dust, lint, hair, and anything that may reduce air flow. SAVE THESE INSTRUCTIONS X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 6: Unpacking Instructions

    Never connect this wire to other than the grounding pin of the attachment Figure 1 Figure 2 plug. X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 7: Handle Assembly

    Assembly Handle Assembly The X17 CFS Handle Assembly (D) is not assembled on the machine when shipped. Follow the instruction on the next page to connect the handle assembly to the machine. A HANDLE ADJUSTMENT KNOB B SHOULDER BOLT C COVER...
  • Page 8 4. Align the teeth on the bushing and handle 2. Use philips screwdriver to unscrew 4 screws assembly before tightening the adjustment knob. and remove cover. X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.
  • Page 9 7. The wire harness must be aligned with the patterns on the connector to fit. 8. Screw the cover back with the 4 screws. 6. Attach the wire harness to the machine. X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 10: Machine Overview

    K. VACUUM MOTOR INTAKE COVER VACUUM CONNECTION TUBE M. RECOVERY INLET N. RECOVERY TANK HANDLE VACUUM FLOAT SHUT-OFF Q. RECOVERY WINDOW EXTENSION HOSE R. VACUUM MOTOR GASKET X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 11: X17 Cfs Back & Bottom

    VACUUM HOSE CONNECTION POINT IN-LINE SOLUTION FILTER VAC SHOE BRUSH BRUSH END COVER M. SPRAY JETS (2) BRUSH MOTOR SOLUTION TANK DRAIN HOSE CFS CONTROL BOX (ON/OFF) X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 12: Handle/ Control Panel

    See page 20 for OAW connection details. Warning: When in Auxiliary Mode, confirm Brush Switch is in the OFF position or damage to carpet may occur. X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 13: Circuit Breakers

    2. VACUUM PUMP BREAKER - (X17115) 12 amp power ON and power OFF. This switch is also used to (X17230) 7.5 amp reset the CFS function of the X17 CFS machine. SPRAY JET PUMP\AUX POWER & PUMP BREAKER - (X17115) 1.5 amp (X17230) 1.0 amp...

  • Page 14: Solution Tank In-Line Filter

    5. Rinse and clean filter with water. Allow filter to air dry. 5. Open the Shut-off Valve (C) by turning the handle 90 6. Insert filter back into original location. counterclockwise. Figure 2 Figure 3 Figure 1 X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 15: Solution Tank Drain Hose

    (See Figure 4) remaining in the solution tank can be seen through the clear drain hose. (See Figure 5) Figure 4 Figure 5 X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 16: Brush Removal

    5. While holding the housing door closed, re-install flat-head screw from the underside of the housing. Figure 2 X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 17: Brush Pressure Gauge

    To INCREASE brush pressure: Turn the adjustment knob COUNTER-CLOCKWISE (in the ‘+’ direction) until the desired pressure range is achieved. Figure 3 Figure 4 X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 18: Removable Recovery Tank

    2. Lower tank into place. Recovery vacuum inlet will rest on vacuum connection tube (See pg 10, items L & M) 3. Clip dump hose to solution tank. X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 19: Handle Adjustment

    Machine Overview Handle Adjustment Cord Relief The X17 handle was designed with operator comfort in mind. Use cord relief to prevent cables from disconnecting. The angle position of the handle can be adjusted to suit the Using the Cord Relief needs of the operator.

  • Page 20: Accessories

    • 828924 or 830750 - Hose assemblies for non-motorized tools. Does not require QC coupler (Item G) • 831019 - Pump-Out Hose Figure 2 • 17603 - Vac Out Hose X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 21: Maintenance

    Filter. Place lid upside-down when storing machine, for ventilation to prevent odor build-up. 4. Vacuum shoe should be cleaned of any debris. X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.
  • Page 22 1. Have a qualified service technician check the vacuum 4. Rinse off the Dome Lid Filter. motor carbon motor brushes once a year or after every 500 operating hours. X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 23: Cord Storage

    Maintenance Cord Storage The X17 CFS is supplied with a detachable cord for ease of storage. • Regularly inspect cord for signs of damage. If cord is damaged replace immediately. • Do not use with damaged cord or plug. If appliance is...

  • Page 24: Operating Instructions

    - MAX water temperature is 120˚F / 50˚C (Ref. C). See Decal 17262197 below. - DO NOT add Chemicals or Detergents; WATER ONLY when filling the X17 CFS solution tank (Ref. A). See Decal 715474 below. Adding chemicals or detergents will prematurely reduce the life of the CFS system.
  • Page 25 To Begin Cleaning: recovery dome. The X17 CFS has a float ball shut off located in the recovery tank that cuts off suction to the vacuum 1. Always work away from the cord.

  • Page 26: Troubleshooting

    Do not clean out the hole in The spray jets may be clogged. the jet with a pin or wire. This may cause permanent damage. X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.
  • Page 27 Vacuum motor does not start. Motor carbon brush may be warn. Contact a qualified service technician. Switch is in OFF (O) position. Flip switch to ON (I) position. X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.

  • Page 28: Warranty

    Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and maintained in accordance with the applicable operation and instruction manuals.
  • Page 29 Not to exceed two hours Battery Chargers: One year replacement Replacement Ninety days Parts: Batteries: 0-3 months full replacement, 4-12 months pro-rate Polypropylene 10yr warranty, no additional labor Plastic Tanks: X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15 © 2015 Minuteman International, Inc.
  • Page 30 Excellence Meets Clean Minuteman International, Inc. · 14N845 U.S. Route 20 · Pingree Grove, Illinois 60140 USA Phone 800-323-9420 www.minutemanintl.com A Member of the Hako Group 988751UM Rev * 04/15...
