Advanced Network Protocol Support
The DVR is UPnP compatible, and includes functionality for use with PPPoE, and DDNS protocols to allow
remote and local connection with a large variety of network hardware.
Note: There may be slight differences in functionality due to the existence of different product series.

2. Overview and Controls

This section provides information about the physical design and controls for the HDCVI DVR. Please refer to the
diagrams below to become acquainted with the DVR and its physical features.

2.1 Front Panel

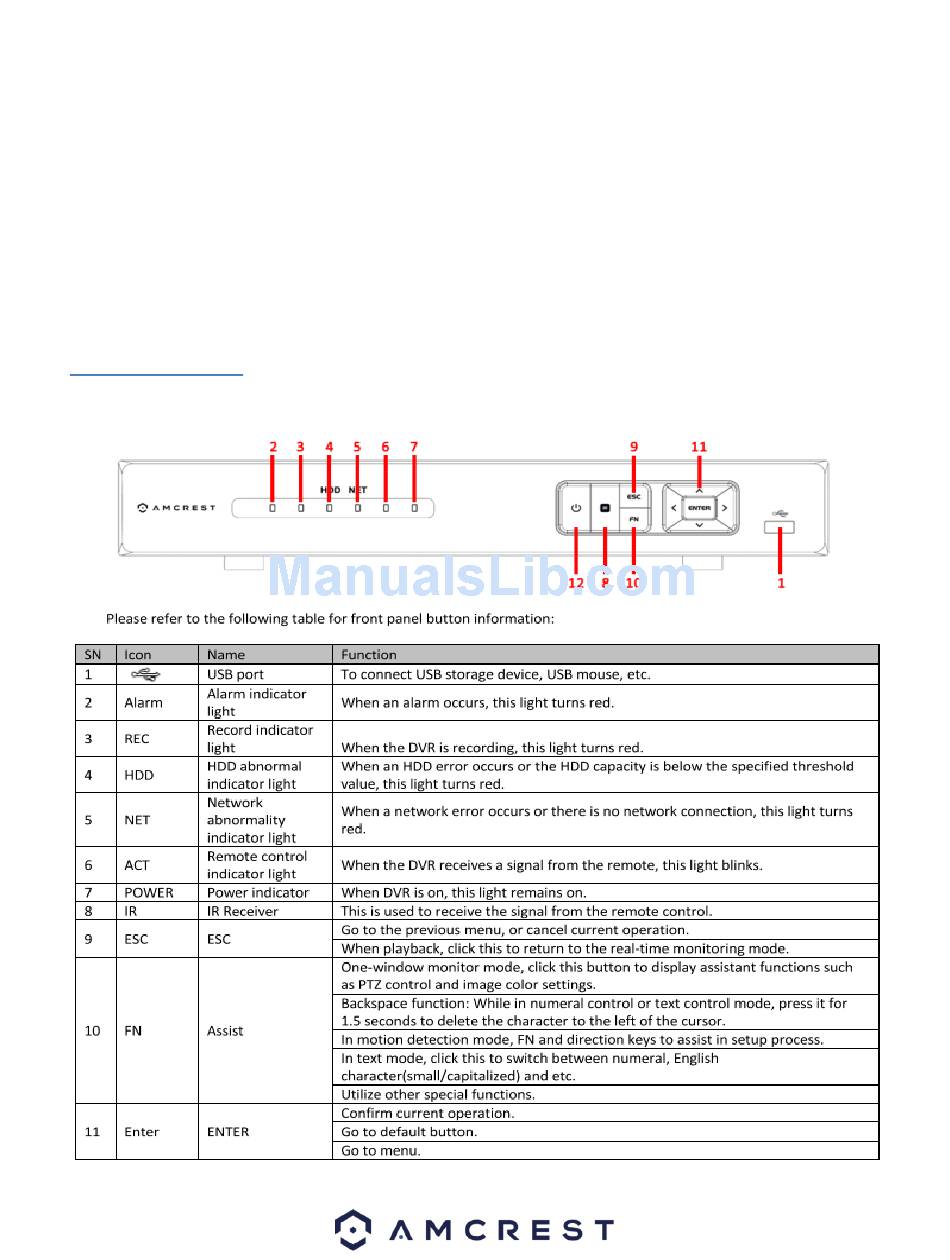

2.1.1 4-Channel Front Panel
7
