  • Page 1 OPERATION INSTRUCTIONS Lennox Mini-Split Systems ©2017 Lennox Industries Inc. Wireless Indoor Unit Dallas, Texas, USA Controller CONTROLS 507560-03 5/2017 Supersedes 1/2017 This manual must be left with the owner for future reference. IMPORTANT! Frequent changes to operating mode cause system malfunction.

  • Page 2: Specifications

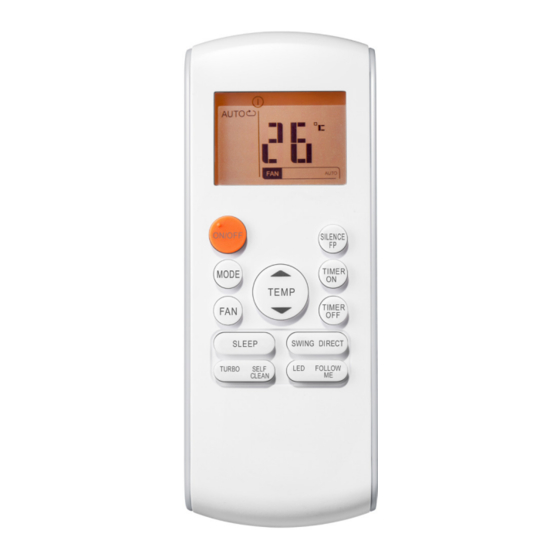

    General The M0STAT60Q-1 mini-split wireless controller is a wireless local controller for Lennox mini-split indoor units. Requirements Using the remote controller Using the remote control holder • Point the remote controller directly at • Use field-provided fasteners to at- the indoor unit.

  • Page 3: Function Buttons

    Function Buttons • Up arrow button. Press to increase indoor unit will resume the previous the temperature setpoint or to scroll operating conditions. through settings options. • Self Clean button. Press to activate • On/Off button. Press to turn the in- self cleaning mode.
  • Page 4 evaporate, and then will return to the previous operating conditions. • Down arrow button. Press to de- crease the temperature setpoint or scroll through settings options. • Silence button. Press and release to activate quiet mode operation. The indoor unit will change operation to provide the quietest sound possible.
  • Page 5 vers remain in place where stopped. must be within 26 feet (8m) of the unit. Not available in all indoor unit models. Do not remove the controller from the • Direct (Direction) button. Press to room or obstruct the signal of the re- move louvers up &...
  • Page 6 Display Timer OFF Remote controller on Timer ON Not used Transmitting display Battery charge status Night mode Follow me Operation mode Not used Setpoint or Room Fan speed temperature Not used • Timer ON/OFF. These icons light up • Remote controller On. Icon displays to indicate that the indoor unit has a to indicate that the remote controller timed auto-start or auto-stop set up.
  • Page 7 Operation Instructions Start/stop operation Batteries Press the LED power button. 1. Remove battery cover from back of • Controller ON: LED power button lit remote. brightly. 2. Insert batteries into battery compart- • Controller OFF: LED power button not ment. lit.
  • Page 8 3. Adjust the temperature setpoint using • Heat – System operates in heating up and down arrow buttons. mode. NOTE – Fan speed is not adjustable. • Fan – Fan only, no heating or cooling. Timer operation To set (or change) the room tempera- Timer ON and Timer OFF are used to ture setting (setpoint) turn on and turn off the indoor unit at se-...
  • Page 9 buttons to change the timed operation intervals. 3. Set the timer to 0.0 to turn off timed operation.

  • Page 10: Troubleshooting

    Troubleshooting Fault Codes (indoor unit) Indoor unit EEPROM error Communication error between indoor unit and outdoor unit Indoor fan speed error Indoor return air temperature sensor error Indoor coil temperature sensor error Low refrigerant High water level alarm Outdoor current overload sensed Outdoor ambient temperature sensor error Outdoor coil temperature sensor error Compressor discharge temperature sensor error...
