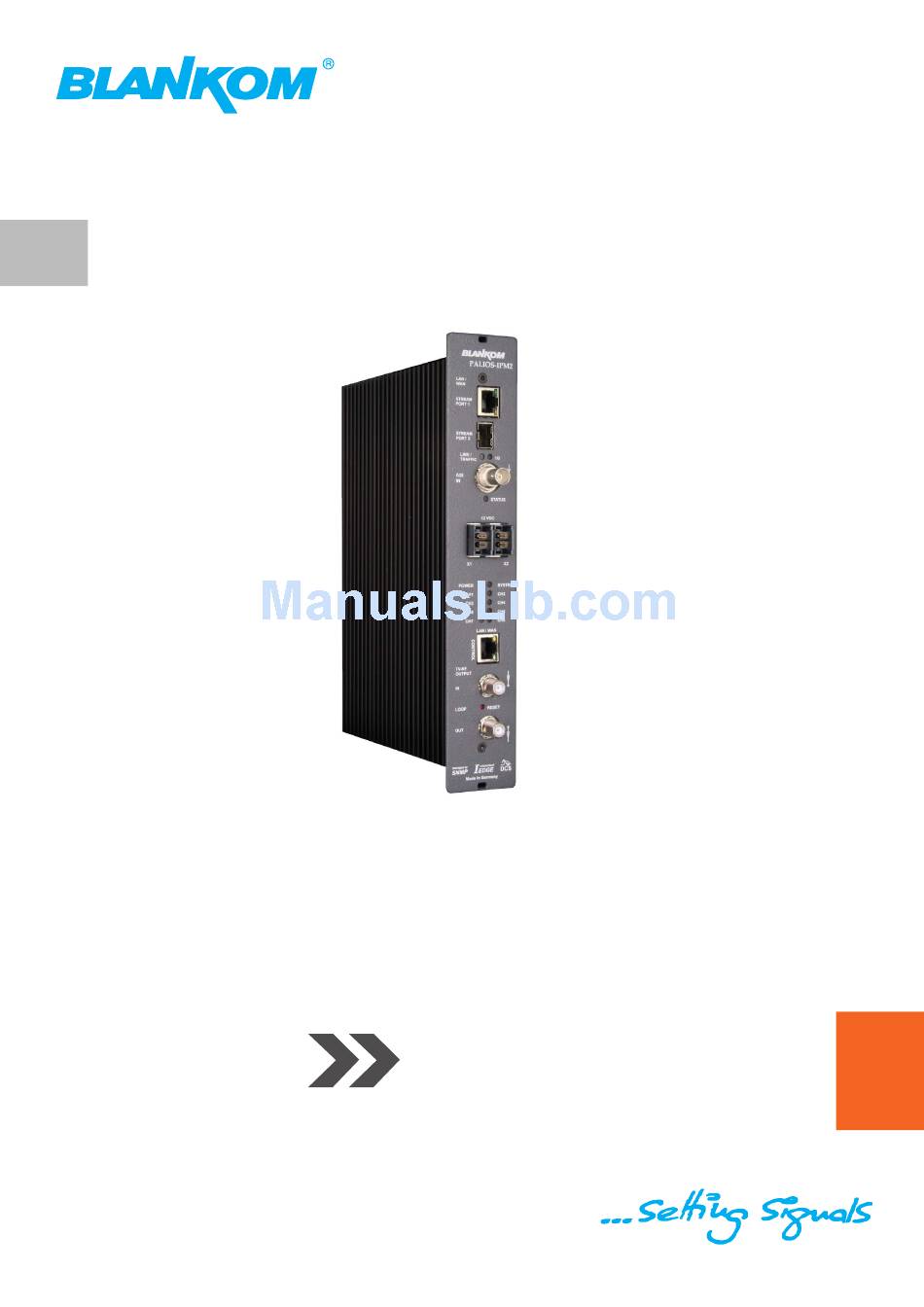

Page 1: Operating Instructions
Professional Headend Solutions Operating instructions 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (MPEG2) → ATV (8x AM) PALIOS-IPM2 Part N : 5105.01... -
Page 2: Table Of Contents
PALIOS-IPM2 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (MPEG2) → ATV (8x AM) Part N : 5105.01 Contents 1. Safety and operating instructions ......................3 2. Device variants ............................3 3. General ..............................3 4. -
Page 3: Safety And Operating Instructions
The PALIOS-IPM2 module selects 8 programs from up to 8 adjacent IP transport streams or from an ASI transport stream and converts these into analoge TV signals to transmit it in cable networks. In this case, a maximum of 8 analog television channels... -
Page 4: Front View
PALIOS-IPM2 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (MPEG2) → ATV (8x AM) Part N : 5105.01 4. Front view Stream port 1 (RJ 45) incl. LED‘s Stream port 2 (SFP) Stream port 2 LED‘s “LINK/ TRAFFIC“ + “1G“... -
Page 5: Led's At The 10/ 100/ 1000 Mbit Stream Port 2
PALIOS-IPM2 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (MPEG2) → ATV (8x AM) Part N : 5105.01 6.2 LED’s at the 10/ 100/ 1000 Mbit stream port 2 Designation Colour Status Meaning of display green permanently on only illuminated when the cable connection is a GbE connection (does not light... -
Page 6: Adjusting By Web Server
Setup the connection: The PALIOS-IPM2 module has to be connected to PC network using an Ethernet cable.The IP address of the PALIOS-IPM2 module is 192.168.1.100 on delivery. If several SBL modules should be controlled or adjusted via an Ethernet switch, each module must first be configured individually to its provided IP address within the network. -
Page 7: Setting Of Individual Parameters
PALIOS-IPM2 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (MPEG2) → ATV (8x AM) Part N : 5105.01 7.2 Setting of individual parameters Using the website, you can set certain parameters of the module or perform configurations on the module or the user interface. The various setting menus can be selected in the navigation tree on the left side. -
Page 8: Menu "Overview
Settings with the selection box or input fields are taken over by pressing the “send“ button and stored permanently, and the PALIOS-IPM2 module is set on these values after a restart too. Settings with the click box are usually performed immediately but not stored in memory, so they would be lost on a possible restart of the module. -
Page 9: Menu "Ip Input
PALIOS-IPM2 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (MPEG2) → ATV (8x AM) Part N : 5105.01 7.2.2 Menu “IP Input” This menu contains the network configuration for the streaming port and for the 8 IP transport streams from which then the 8 desired programs for transmitting can be selected. -
Page 10: Sfp Option
The SFP option allows the connection of different modules for the IP input. Depending on the SFP module thus various management and media types can be connected to the PALIOS-IPM2. The IP input can be expanded to another IP data source. The SFP module figures as the stream port 2, so that either “Stream port 1“... -
Page 11: Menu "Transponders
In this menu the program selection is done for all output channels. After call up of the menu at first the actual channel allocation of the PALIOS-IPM2 module is listed. The following settings respective changes per channel are possible: in the column “IP“ there can be selected the transponder, which contains the program to be transferred. - Page 12 PALIOS-IPM2 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (MPEG2) → ATV (8x AM) Part N : 5105.01 The following parameters are adjustable: Program list (Transponder) If “Program selection with select box“ in chapter “GUI settings“ is deactivated (see also chapter 7.2.6), the form at the left appears for program selection. All programs of the selected transponder are listed with name and service ID.
- Page 13 PALIOS-IPM2 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (MPEG2) → ATV (8x AM) Part N : 5105.01 PCR for current service Use PCR PID adjustment range: 0..8190 Manual PID settings PCR PID adjustment range: 0..8190 Video PID adjustment range: 0..8190 Audio PID adjustment range: 0..8190...
- Page 14 **** Test lines The PALIOS-IPM2 offers the opportunity to output test signals on up to 4 image lines from the following selection: Off, CCIR 17, CCIR 18, CCIR 330, CCIR 331, Sin(x)/ x, Ramp. As a default, the image lines 17, 18, 330 and 331 are selected.
-
Page 15: Menu "Language
PALIOS-IPM2 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (MPEG2) → ATV (8x AM) Part N : 5105.01 7.2.5 Menu ”Language” In this menu, the selection of the user interface language is executed. You can choose between German and English. The transition can be made either to the left in the navigation tree in the subtree of the point “language“... - Page 16 PALIOS-IPM2 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (MPEG2) → ATV (8x AM) Part N : 5105.01 Specifically, the following can be configured: GUI settings Help information within the status line of the browser By default, the online help is displayed in an orange text box at the bottom of the page.
- Page 17 Thus, it is possible, for example in a simple way to copy the system files from a PALIOS-IPM2 module to another. If under “GUI setup“ “Dis- play all system files“ is selected, the system files can also be loaded or saved separately (see figure below).
- Page 18 “Send“ button the option will be activated. Activated options are displayed in black, inactive are grayed out. note To convert a PALIOS-IPM2 into a QAMOS-IP , the option “PAL roll back“ must be active to perform the update process (see System administration → update). Date and time Clicking on the “Set“...
- Page 19 PALIOS-IPM2 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (MPEG2) → ATV (8x AM) Part N : 5105.01 SNMP option The SNMP adjustment is only available after the “SNMP“ option was enabled (see chapter “Enabling of“). In the first section, the SNMP functionality, including the sending of traps is enabled or disabled with the “Mode“...
-
Page 20: Menu "Service
7.2.7 Menu ”Service” In this menu you will find all information about the service for the PALIOS-IPM2 module in particular the BLANKOM service hotline and the service email address. In addition, the implemented operating instructions may be downloaded or viewed as PDF. If there is an Internet connection the BLANKOM homepage can be started, offering the latest software release or descriptions. -
Page 21: Menu "Status
PALIOS-IPM2 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (MPEG2) → ATV (8x AM) Part N : 5105.01 7.2.9 Menu ”Status” It presents an overview of the status of the various components per channel, it is updated every 5 seconds. It lists only the current va- lues, the naming of the parameter appears in the help box in the lower part of the user interface or in the status bar of the browser (as adopted configuration), if you hover the mouse cursor above the parameter. -
Page 22: Factory Settings
PALIOS-IPM2 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (MPEG2) → ATV (8x AM) Part N : 5105.01 8. Factory settings A short pressing of the reset button on the front of the module causes a reboot, i.e. the module restarts and all stored values are adjusted. -
Page 23: Block Diagram
PALIOS-IPM2 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (MPEG2) → ATV (8x AM) Part N : 5105.01 9. Block diagram Stream port 1 (RJ 45) GigE Frontend Stream port 2 (SFP) 8x TS MPEG 2 Decoder Stratix IV FPGA Eth. -
Page 24: Technical Data
PALIOS-IPM2 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (MPEG2) → ATV (8x AM) Part N : 5105.01 11. Technical data IP input (stream port) Total level settings Network connection (LAN/ WAN) Ethernet,10/ 100/ 1000 Base-T without loop 76 ... 94 dBµV (1 dB steps) -
Page 25: Bibliography
Options available upon request. Subjects to changes due to technical progress. BLANKOM Antennentechnik GmbH Hermann-Petersilge-Straße 1 • 07422 Bad Blankenburg • Germany • Phone +49 (0) 3 67 41 / 60-0 • Fax +49 (0) 3 67 41 / 60-100... -
Page 26: Declaration Of Conformity
Declaration of Conformity The Manufacturer BLANKOM Antennentechnik GmbH ∙ Hermann-Petersilge-Str. 1 ∙ 07422 Bad Blankenburg ∙ Germany herewith declares the conformity of the product IP-/ ASI-TV Transmodulator Product name: PALIOS-IPM2 Type: 5105.01 Product number: according to the following regulations EN 50083-2 [3] EN 60728-11 [2] (as far as relevant) and additional device-specific regulations, enclosed above, which this product is subjected to.
