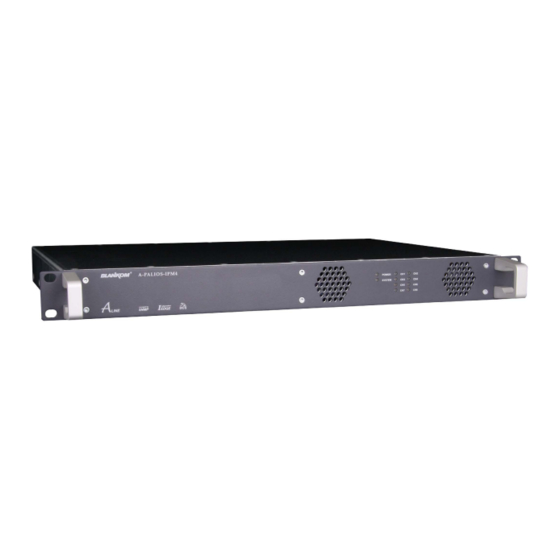

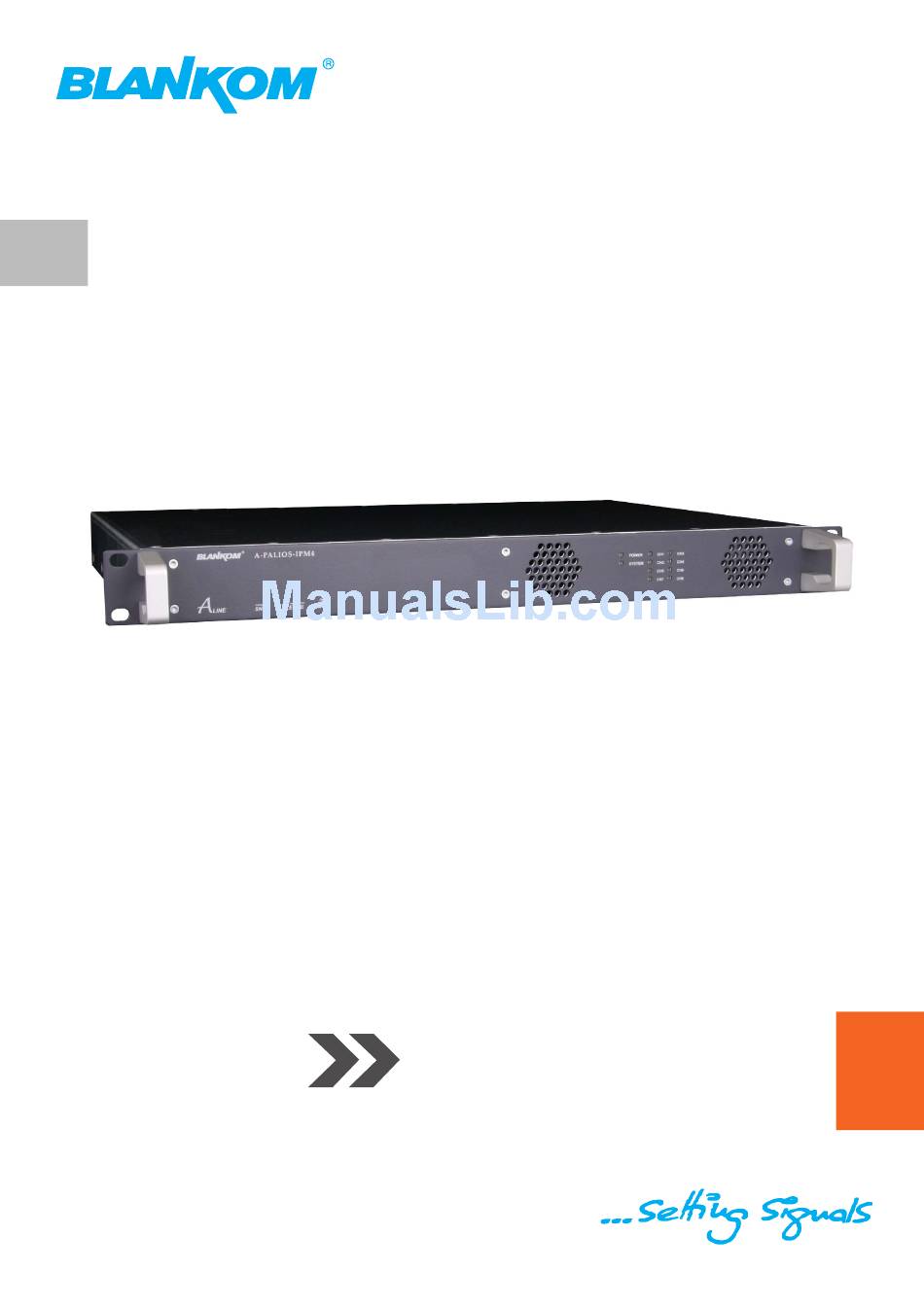

- Page 1 Professional Headend Solutions Device manual 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) A-PALIOS-IPM4 Part N : 5105.82...
-
Page 2: Table Of Contents
A-PALIOS-IPM4 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE Contents 1. Safety and operating instructions ......................3 2. Device variants ............................3 3. General ..............................3 4. -
Page 3: Safety And Operating Instructions
WEEE-Reg.-Nr. DE 50389067 2. Device variants 5105.82 IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) A-PALIOS-IPM4 3. General The 8 pole IP-/ ASI-TV Modulator A-PALIOS-IPM4 is a device of the head end system A-LINE, which is conceived as a complete system for big and middle sized networks. -
Page 4: Explanation Of The Operating Elements
A-PALIOS-IPM4 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE 6. Explanation of the operating elements 6.1 Front view Status LED “POWER“ Status LED‘s channel 2, 4, 6, 8 Status LED “SYSTEM“... -
Page 5: Meaning Of The Led's On Rear
8 pole IP-/ ASI-TV Modulator A-PALIOS-IPM4 IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE 6.4 Meaning of the LED‘s on rear 6.4.1 LED’s at the 10/ 100/ 1000 Mbit stream port 1 Designation, colour... -
Page 6: Adjusting By Web Server
A-PALIOS-IPM4 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE 7. Adjusting by web server 7.1 Network connection to the computer System requirements: - PC/ laptop with 10/ 100 Mbit Ethernet interface - Internet browser (e.g. -
Page 7: Setting Of Individual Parameters
A-PALIOS-IPM4 IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE 7.2 Setting of individual parameters Using the web site, you can set certain parameters of the device or perform configurations on the device or the user interface. The various setting menus can be selected in the navigation tree on the left side. -
Page 8: Menu "Overview
8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE A transparent LED symbol means that the channel is not configured yet, or the RF output is turned off. Status information about the system is mirrored in the same way. -
Page 9: Menu "Ip Input
A-PALIOS-IPM4 IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE 7.2.2 Menu “IP Input” This menu contains the network configuration for the streaming port and for the 8 IP transport streams from which then the 8 desired programs for transmitting can be selected. -
Page 10: Sfp Option
8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE 7.2.2.1 SFP option The SFP option allows the connection of different modules for the IP input. Depending on the SFP module thus various management and media types can be connected to the A-PALIOS-IPM4. -
Page 11: Menu "Transponders
A-PALIOS-IPM4 IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE 7.2.3 Menu ”Transponders” In this menu the program selection is done for all output channels. After call up of the menu at first the actual channel allocation of the A-PALIOS-IPM4 device is listed. - Page 12 A-PALIOS-IPM4 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE The following parameters are adjustable: Program list (Transponder) If “Program selection with select box“ in chapter “GUI settings“ is deactivated (see also chapter 7.2.6), the form at the left appears for program selection.
- Page 13 8 pole IP-/ ASI-TV Modulator A-PALIOS-IPM4 IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE Audio setting of the audio parameters Audio gain adjustment range: +6...-20 dB Audio mode selection 1: mono L, mono R, dual, dual invers,...
-
Page 14: Menu "Language
8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE 7.2.5 Menu ”Language” In this menu, the selection of the user interface language is executed. You can choose between German and English. The transition can be made either to the left in the navigation tree in the subtree of the point “language“... - Page 15 8 pole IP-/ ASI-TV Modulator A-PALIOS-IPM4 IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE Specifically, the following can be configured: GUI settings Help information within the status line of the browser By default, the online help is displayed in an orange text box at the bottom of the page.
- Page 16 A-PALIOS-IPM4 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE System administration The default is displaying of the shortened list of files (top). Backup Here the system files can be loaded or saved as a package (except Logbook and Status).
- Page 17 8 pole IP-/ ASI-TV Modulator A-PALIOS-IPM4 IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE Enabling of In this field, possible software options for the A-PALIOS-IPM4 can be enabled. The registration code must be entered in the input field and by pressing the “Send“...
- Page 18 A-PALIOS-IPM4 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE SNMP option In the first section, the SNMP functionality, including the sending of traps is enabled or disabled with the “Mode“ selection field. With the selector “Version“...
-
Page 19: Menu "Service
7.2.7 Menu ”Service” In this menu you will find all information about the service for the A-PALIOS-IPM4 device in particular the BLANKOM service hotline and the service email address. In addition, the implemented operating instructions may be downloaded or viewed as PDF. If there is an Internet connection the BLANKOM homepage can be started, offering the latest software release or descriptions. -
Page 20: Menu "Status
8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE 7.2.9 Menu ”Status” It presents an overview of the status of the various components per channel, it is updated every 5 seconds. It lists only the current values, the naming of the parameter appears in the help box in the lower part of the user interface or in the status bar of the browser (as adopted configuration), if you hover the mouse cursor above the parameter. -
Page 21: Factory Settings
A-PALIOS-IPM4 IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE 8. Factory settings A short pressing of the reset button on the rear of the device causes a reboot, i.e. the device restarts and all stored values are adjusted. -
Page 22: Block Diagram
A-PALIOS-IPM4 8 pole IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE 9. Block diagram Stream port 1 (RJ 45) GigE Frontend Stream port 2 (SFP) 8x TS MPEG 2/4 Decoder Stratix IV FPGA Eth. -
Page 23: Glossary
8 pole IP-/ ASI-TV Modulator A-PALIOS-IPM4 IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.82 LINE 11. Technical data IP input (stream port) Total level settings Network connection (LAN/ WAN) Ethernet,10/ 100/ 1000 Base-T without loop 76 ... -
Page 24: Bibliography
14. Notes on the device software Device Software of the A-PALIOS-IPM4 Copyright (C) BLANKOM Antennentechnik GmbH Bad Blankenburg This device software based on top of Linux 3.6.8 is free software: you can redistribute it and/ or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 2 of the License, or (at your option) any later version. -
Page 25: Declaration Of Conformity
Declaration of Conformity The Manufacturer BLANKOM Antennentechnik GmbH ∙ Hermann-Petersilge-Str. 1 ∙ 07422 Bad Blankenburg ∙ Germany herewith declares the conformity of the product IP-/ ASI-TV Transmodulator Product name: A-PALIOS-IPM4 Type: 5105.82 Product number: according to the following regulations EN 50083-2 [3] EN 60728-11 [2] (as far as relevant) and additional device-specific regulations, enclosed above, which this product is subjected to.
