Page 1: Operating Instructions
Professional Headend Solutions Operating instructions 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) PALIOS-IPM4 Part N : 5105.10... -
Page 2: Table Of Contents
PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 Contents 1. Safety and operating instructions ......................3 2. Device variants ............................3 3. Software options ............................ 3 4. -
Page 3: Safety And Operating Instructions
PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 1. Safety and operating instructions When installing, starting-up and adjusting the modules, it is necessary to consider the system specific references in the instruction manual. -

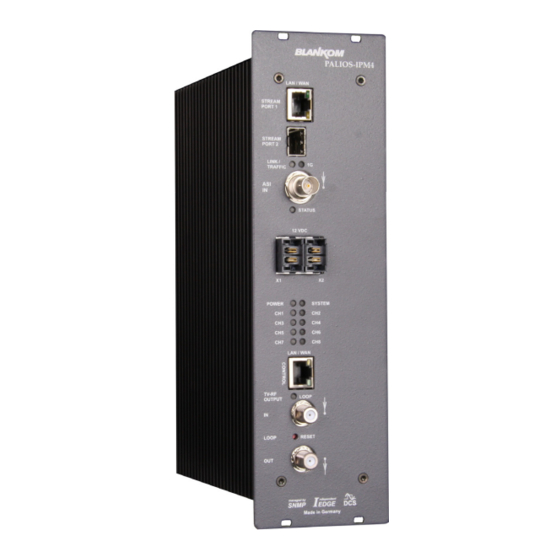

Page 4: Front View
PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 6. Front view Stream port 1 (RJ 45) incl. LED‘s Stream port 2 (SFP) Stream port 2 LED‘s “LINK/ TRAFFIC“ + “1G“ ASI input ASI LED “Status“... -
Page 5: Led's At The 10/ 100/ 1000 Mbit Stream Port 2
PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 8.2 LED’s at the 10/ 100/ 1000 Mbit stream port 2 Designation Color Status Meaning of display green permanently on only illuminated when the cable connection is a GbE connection (does not light up at a 10/ 100 Mbit connection) no GbE connection LINK/... -
Page 6: Adjusting By Web Server
PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 9. Setting by web interface To use all functions of the module activate Java Script in your browser settings. Settings via checkbox are applied immediatelly, but not stored in memory! So they would be lost on a possible restart of the module. -
Page 7: Setting Of Individual Parameters
PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 9.2 Setting of individual parameters Here you can set certain parameters of the module or perform configurations. The various setting menus can be selected in the navigation tree on the left side. -
Page 8: Menu "Overview
PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 9.2.1 Menu ”Overview” This page provides a status overview of the eight channels. If a channel is working without errors, “SYNC“ is displayed. If the RF power is turned off, the display “Off“... -
Page 9: Menu "Ip Input
PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 9.2.2 Menu “IP input” This is the menu for the network configuration of the streaming port and the eight IP transport streams, from which the eight desired programs for transmitting can be selected. -
Page 10: Sfp Option
PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 9.2.2.1 SFP option The SFP option allows the connection of different modules to the IP input. Depending on the SFP module various management and media types can be connected to the PALIOS-IPM4. -
Page 11: Menu "Transponders
PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 9.2.3 Menu ”Program” This is menu for the program selection of the output channels. The current channel allocation of the PALIOS-IPM4 module is listed. The following settings per channel are available: •... - Page 12 PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 The following parameters are adjustable: Program list (Transponder) If “Program selection with select box“ in Setup → GUI settings is deactivated ( »chapter 9.2.6), the screen at the left for program selection is displayed.
- Page 13 PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 Audio setting of the audio parameters Audio gain adjustment range: +6...-20 dB Audio mode selection 1: mono L, mono R, dual, dual invers, stereo, auto selection 2: mono L, mono R, mono L+R, auto if sound carrier 2 is set to “On“...
-
Page 14: Menu "Language
PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 9.2.5 Menu ”Language” In this menu the user interface language can be set. You can choose between German and English. The adjustment can be made either in the navigation tree at the point “language“... - Page 15 PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 Specifically, the following can be configured: GUI settings help information in the status line of the browser By default, the online help is displayed in an orange colored text box at the bottom of the page.
- Page 16 PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 System administration The default is to save or load the complete configuration (see first picture). Backup Here the system files can be loaded or saved as a package (except logbook. txt and status.xml).
- Page 17 PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 Date and time Clicking the “Set“ button, the date and time will be set to that of the PC. Web interface The PALIOS-IPM4 supports the DHCP functionality.
- Page 18 PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 SNMP option The SNMP settings are only available after the “SNMP“ option was enabled (»Enabling of). First section: The “Mode“ selection field enables or disables the SNMP functionality, including the sending of traps.
-
Page 19: Menu "Service
9.2.7 Menu ”Service” Here you‘ll find all service information for the PALIOS-IPM4: the BLANKOM service hotline and e-mail address, the manual as pdf file and a link to the BLANKOM homepage where the latest software release is available. Also the currently installed software release is displayed. -
Page 20: Menu "Status
PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 8.2.9 Menu ”Status” It shows an overview of the status of the various components per channel, updated every 5 seconds. Listed are only the current values. mouse over the parameter to display its name in the help box or in the status bar of the browser (according to your configuration). -
Page 21: Factory Settings
PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 10. Factory settings A short pressing of the reset button on the front of the module causes a reboot, i.e. the module restarts and all stored values are restored. -
Page 22: Block Diagram
PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 11. Block diagram Stream port 1 (RJ 45) GigE Frontend Stream port 2 (SFP) 8x TS MPEG 2/4 Decoder Stratix IV FPGA Eth. -
Page 23: Technical Data
PALIOS-IPM4 8-fold IP-/ ASI-TV Modulator IP/ SFP/ ASI (H.264/ AVC, MPEG2) → ATV (8x AM) Part N : 5105.10 13. Technical data IP input (stream port) Total level settings Network connection (LAN/ WAN) Ethernet,10/ 100/ 1000 Base-T without loop 74 ... 94 dBµV (1 dB steps) Connector 1x RJ 45, 1x SFP with loop... -
Page 24: Bibliography
16. Notes on the device software Device Software of the PALIOS-IPM4 Copyright (C) BLANKOM Antennentechnik GmbH Bad Blankenburg This device software based on top of Linux 3.6.8 and is a free software: You can redistribute and / or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 2 of the License or (at your option) any later version. -
Page 25: Declaration Of Conformity
Declaration of Conformity The Manufacturer BLANKOM Antennentechnik GmbH Hermann-Petersilge-Str. 1 07422 Bad Blankenburg ∙ Germany herewith declares the conformity of the product IP-/ ASI-TV Transmodulator Product name: PALIOS-IPM4 Type: 5105.10 Product number: according to the following standards electromagnetic compatibility (2004/ 108/ EC)
