- Page 1 Professional Headend Solutions Device manual QAM Modulator ASI-TS → DVB-C/ ITU-T J.83 Annex B, C AMA 299 Part N : 9859.8x...
-
Page 2: Table Of Contents
AMA 299 QAM Modulator ASI-TS → DVB-C/ ITU-T J.83 Annex B, C Part N : 9859.8x LINE Contents 1. Safety and operating instructions ......................3 2. Device variants ............................3 3. General ..............................3 4. Functional description ..........................3 5. -
Page 3: Safety And Operating Instructions

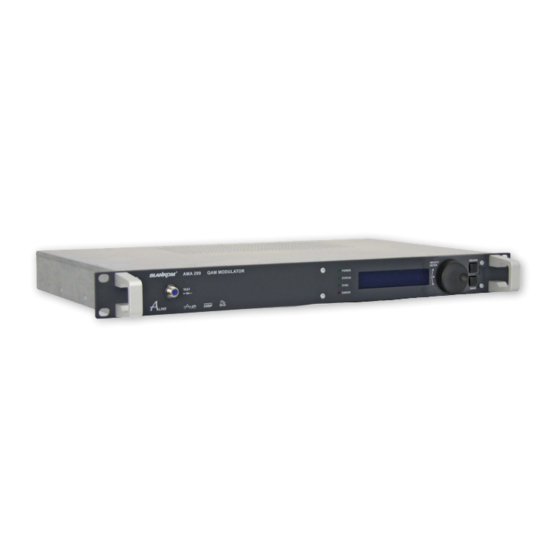

3. General The QAM Modulator AMA 299 is a module of the head end system A-LINE which is conceived as a complete system for big and middle-sized networks.The module converts one digital transponder into the digital cable standard DVB-C, ITU-T J.83 Annex B or C. -
Page 4: Explanation Of The Operating Elements
AMA 299 QAM Modulator ASI-TS → DVB-C/ ITU-T J.83 Annex B, C Part N : 9859.8x LINE 5. Explanation of the operating elements 5.1 Front view POWER-LED STATUS-LED SYNC.-LED ERROR-LED Tuning wheel Test (-30 dB) Display Keypad 5.2 Meaning of the LED Signals... -
Page 5: Rear View
AMA 299 QAM Modulator ASI-TS → DVB-C/ ITU-T J.83 Annex B, C Part N : 9859.8x LINE 5.4 Rear view ALARM LAN/ WAN Power Factory set RF out ASI-IN ASI-OUT IF-IN IF-OUT only in device variant 9859.82 available 5.5 9-pin D-SUB connector configuration (alarm contact) -
Page 6: Programming By Web Server
IP address of the AMA 299 (subnet mask: 255.255.255.0, IP address: 192.168.2.XXX). Don`t be use the same combination lock for XXX like the IP address of the AMA 299. The IP address of the AMA 299 is entered onto the browser interface. -
Page 7: Device Status
AMA 299 QAM Modulator ASI-TS → DVB-C/ ITU-T J.83 Annex B, C Part N : 9859.8x LINE 6.2 Device status Choose language german, english ASI input ASI-Input ASI status display SYNChronisation or noSYNChronisation with the input Packet size in byte... -
Page 8: Extended Settings
AMA 299 QAM Modulator ASI-TS → DVB-C/ ITU-T J.83 Annex B, C Part N : 9859.8x LINE 6.4 Extended settings Choose language german, english Output Frequency adjustment range 45000...862000 kHz QAM-Symbol rate adjustment range 1000...7200 kSps Spectrum selection: normal/ invers QAM-Standard selection: DVB-C (Annex A), ITU-T/J.83... -
Page 9: Program Filter
AMA 299 QAM Modulator ASI-TS → DVB-C/ ITU-T J.83 Annex B, C Part N : 9859.8x LINE 6.7 Program filter Choose language german, english Program filter configuration Program filter function activate or deactivate Other transponder information pass or drop of additional informations (e.g. -
Page 10: Ip Network
AMA 299 QAM Modulator ASI-TS → DVB-C/ ITU-T J.83 Annex B, C Part N : 9859.8x LINE 6.9 IP network Selecting this menu at first the administrator log-in window will be open automatically. Following successful log-in the network and log-in settings can be changed. -
Page 11: Snmp Management
Choose language german, english The complete MIB for an AMA 299 can be downloaded like descriped under “Instructions“ on this website and clicking the “MIB Download” link. With the aid of an MIB browser, the relevant one can be decided upon and... -
Page 12: Menu Structure Of Display Handling
AMA 299 QAM Modulator ASI-TS → DVB-C/ ITU-T J.83 Annex B, C Part N : 9859.8x LINE 8. Menu structure of display handling RF output → Configuration RF signal: Level monitoring: Level variat. (dBm): ± 1 IF input/ output: Deactivated... -
Page 13: Block Diagram
AMA 299 QAM Modulator ASI-TS → DVB-C/ ITU-T J.83 Annex B, C Part N : 9859.8x LINE 9. Block diagram Multiplexer with PCR-correct. RF measurement socket 10. Technical data ASI input Max. output level 14 dBm (123 dBµV) Level range 200 …... -
Page 14: Glossary
AMA 299 QAM Modulator ASI-TS → DVB-C/ ITU-T J.83 Annex B, C Part N : 9859.8x LINE 11. Glossary Asynchronous Serial Interface Bandwidth Conditional Access Conditional Access Table Digital Video Broadcasting (-C Cable, -S Satellite, -S2 Satellite 2, -T Terrestrial) - Page 15 Declaration of Conformity The Manufacturer BLANKOM Antennentechnik GmbH ∙ Hermann-Petersilge-Str. 1 ∙ 07422 Bad Blankenburg ∙ Germany herewith declares the conformity of the product group QAM Modulator Product name: AMA 299 Type: 9859.8x Product number: according to the following regulations...
