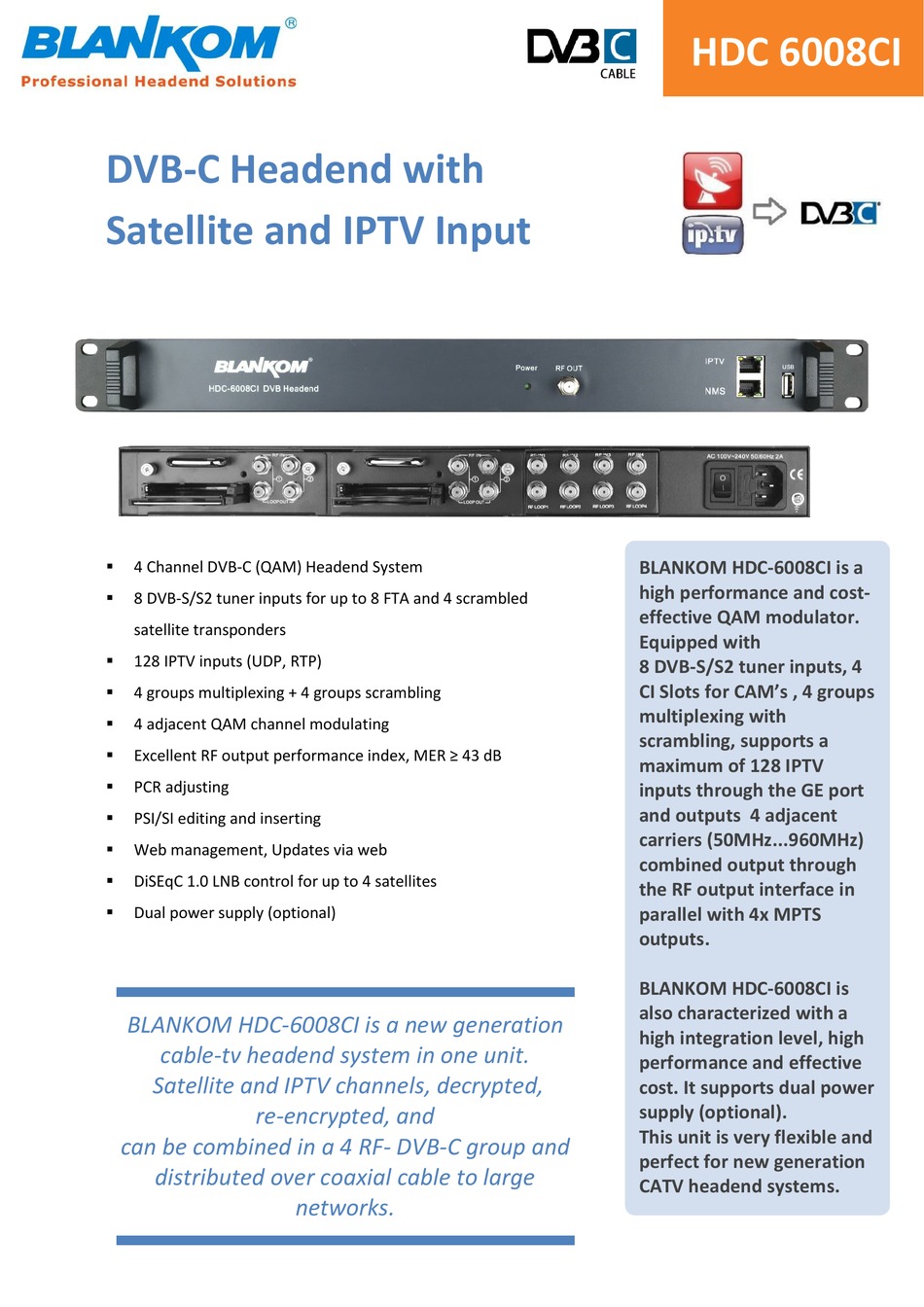

Blankom HDC 6008CI Manual

DVB-C Headend with
Satellite and IPTV Input

4 Channel DVB-C (QAM) Headend System

8 DVB-S/S2 tuner inputs for up to 8 FTA and 4 scrambled
satellite transponders

128 IPTV inputs (UDP, RTP)

4 groups multiplexing + 4 groups scrambling

4 adjacent QAM channel modulating

Excellent RF output performance index, MER ≥ 43 dB

PCR adjusting

PSI/SI editing and inserting

Web management, Updates via web

DiSEqC 1.0 LNB control for up to 4 satellites

Dual power supply (optional)

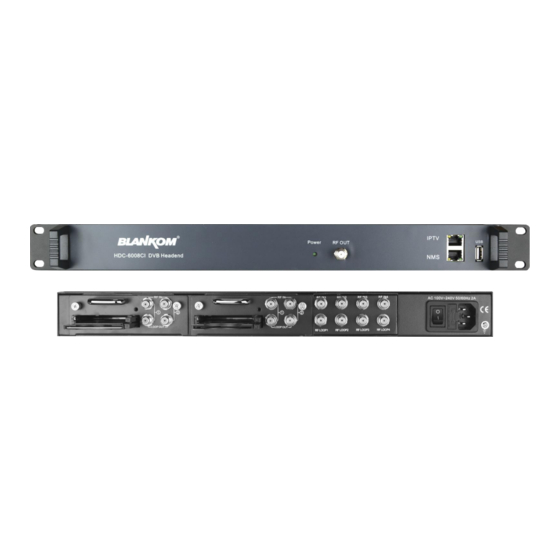

BLANKOM HDC-6008CI is a new generation
cable-tv headend system in one unit.
Satellite and IPTV channels, decrypted,
re-encrypted, and
can be combined in a 4 RF- DVB-C group and
distributed over coaxial cable to large
networks.
HDC 6008CI
BLANKOM HDC-6008CI is a
high performance and cost-
effective QAM modulator.
Equipped with
8 DVB-S/S2 tuner inputs, 4
CI Slots for CAM's , 4 groups
multiplexing with
scrambling, supports a
maximum of 128 IPTV
inputs through the GE port
and outputs 4 adjacent
carriers (50MHz...960MHz)
combined output through
the RF output interface in
parallel with 4x MPTS
outputs.
BLANKOM HDC-6008CI is
also characterized with a
high integration level, high
performance and effective
cost. It supports dual power
supply (optional).
This unit is very flexible and
perfect for new generation
CATV headend systems.
