HDC 5016
IP to QAM Modulator
User Manual
SW Version: 1.02, HW version: 0.70.0.0, Web NMS version: 1.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDC 5016 and is the answer not in the manual?

Questions and answers

Related Manuals for Blankom HDC 5016

Summary of Contents for Blankom HDC 5016

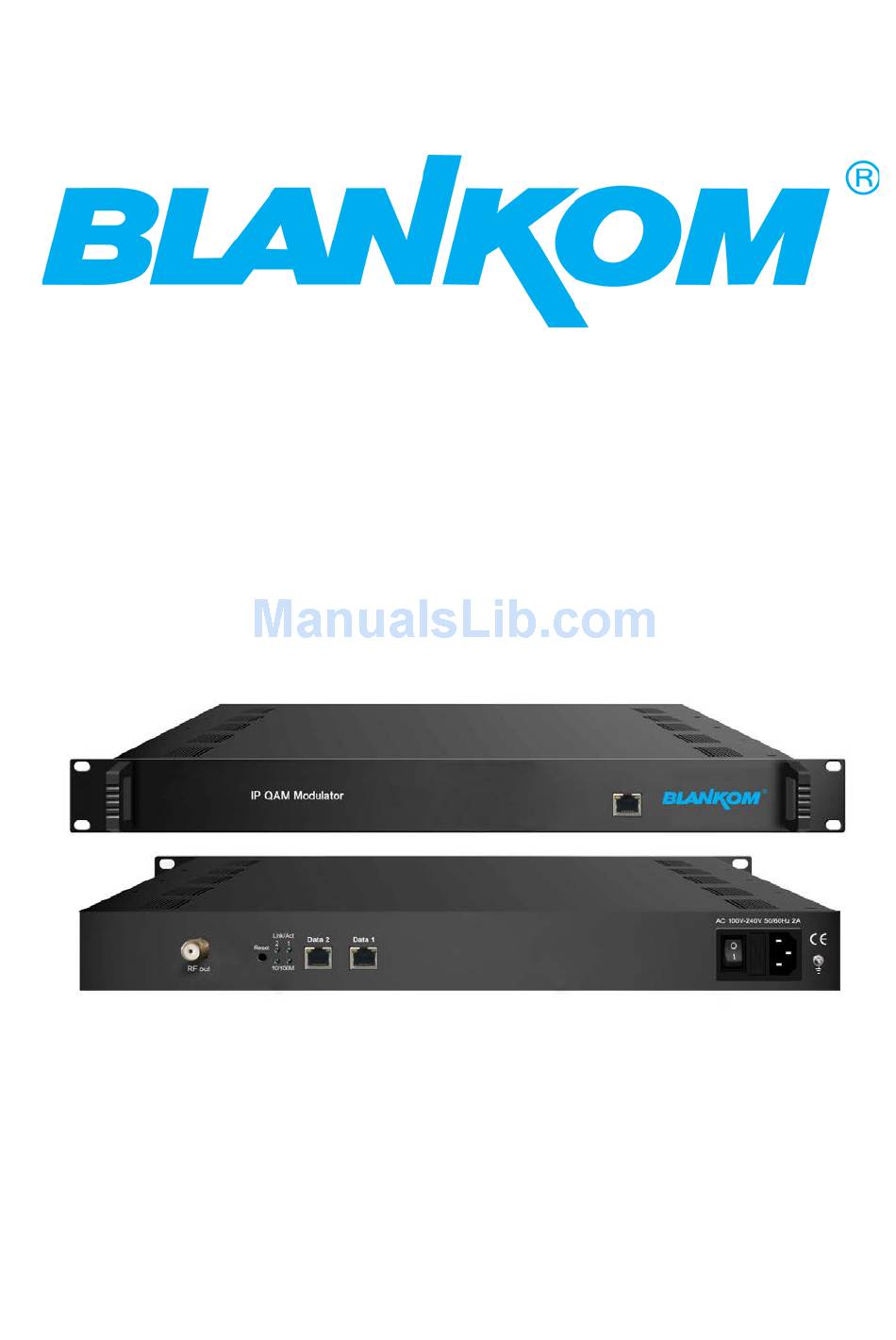

  • Page 1 HDC 5016 IP to QAM Modulator User Manual SW Version: 1.02, HW version: 0.70.0.0, Web NMS version: 1.02...

  • Page 2: About This Manual

    About This Manual Intended Audience This user manual has been written to help people who have to use, to integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards. Disclaimer No part of this document may be reproduced in any form without the written permission of the copyright owner.

  • Page 3: Table Of Contents

    Table of Content Chapter 1 Product Overview 1.1 OUTLINE 1.2 KEY FEATURES 1.3 BLOCK DIAGRAM 1.4 AGILE CARRIER SETTING EXAMPLE 1.5 SPECIFICATIONS Chapter 2 Connection Description 2.1 FRONT & REAR PANEL Chapter 3 Installation Guide 3.1 ACQUISITION CHECK 3.2 INSTALLATION PREPARATION 3.2.1 DEVICE’S INSTALLATION FLOW CHART ILLUSTRATED AS FOLLOWS：...

  • Page 4: Chapter 1 Product Overview

    Chapter 1 Product Overview 1.1 Outline The BLANKOM HDC-5016 IP to QAM Modulator is the 5th generation Mux-scrambling- modulating all-in-one device developed by us. It has 16 multiplexing channels, 16 scrambling channels and 16 QAM (DVB-C) modulating channels, and supports maximum 1024 IP input through the GE port and 16 non-adjacent carriers (50MHz...960MHz) output through the RF...

  • Page 5: Agile Carrier Setting Example

    HDC-5016 IP to QAM Modulator User Manual 1.4 Agile Carrier setting example 1.5 Specifications Input 512×2 IP input, 2 100/1000M Ethernet Port (SFP) TS over UDP/RTP/RTSP, unicast and multicast, Input Transport Protocol IGMP V2/V3 Transmission Rate Max 840Mbps for each GE input Input Channel 1024 Output Channel...
  • Page 6 HDC-5016 IP to QAM Modulator User Manual 16 IP output over UDP/RTP/RTSP, unicast/multicast, 2x100/1000M TS output Ethernet Ports System Network management software (NMS) support Dimensions 420×440×44.5mm (WxLxH) Weight Temperature 0...45℃ (operation), -20...80℃ (storage) General AC 100V±10%, 50/60Hz or AC 220V±10%, Power Supply 50/60Hz Consumption...

  • Page 7: Chapter 2 Connection Description

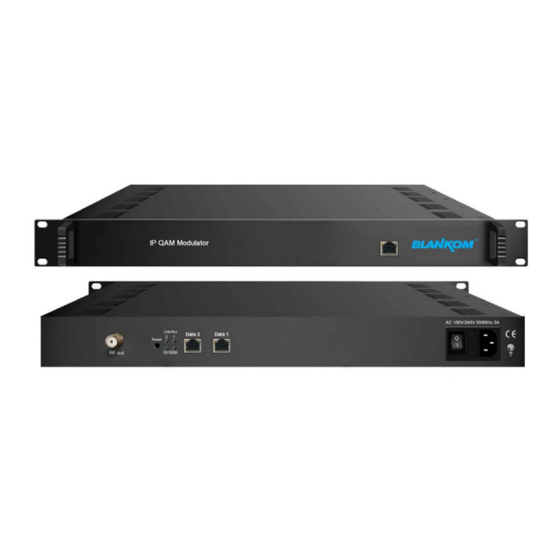

    HDC-5016 IP to QAM Modulator User Manual Chapter 2 Connection Description 2.1 Front & Rear panel NMS/CAS: network management port and CA data port RF output port Reset IP: Reset webmaster IP address, recover it to default IP address Link/Act Indicators Data Input/Output 1/2 (SFP) Power switch AC Power Socket...

  • Page 8: Chapter 3 Installation Guide

    When you opens the package of the device, it is necessary to check items according to packing list. Normally it should include the following items:  HDC-5016 IP QAM Modulator  User’s Manual (online download from www.blankom.de)  Power Cord (depending on country) 3.2 Installation Preparation When you install the device, please follow the steps below.

  • Page 9: Environmental Conditions

    HDC-5016 IP to QAM Modulator User Manual 3.2.2 Environmental Conditions Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2...1.5m and the distance against wall should be no less than 0.8m. Electric Isolation, Dust Free 10Ω...

  • Page 10: Frame Grounding

    HDC-5016 IP to QAM Modulator User Manual  Users should make sure the 2 ends of grounding wire well electric conducted and be antirust.  It is prohibited to use any other device as part of grounding electric circuit  The area of the conduction between grounding wire and device’s frame should be no less than 25mm 3.2.4 Frame Grounding All the machine frames should be connected with protective copper strip.

  • Page 11: Chapter 4 Web Nms Management

    HDC-5016 IP to QAM Modulator User Manual Chapter 4 Web NMS Management This device does not support the LCD operation, and the modification can only be operated with Web NMS by using a standard web-browser. We recommend to use Firefox – latest version.

  • Page 12: Parameters

    HDC-5016 IP to QAM Modulator User Manual User can click any item here to enter the corresponding interface to check information or set the parameters. Figure-2 4.2.2 Parameters Parameters → TS Config: Click “TS Config”, it displays the interface where users can configure the output TS parameters in this interface.
  • Page 13 HDC-5016 IP to QAM Modulator User Manual  Output TS X From the menu on up side of the webpage, clicking “Output TS X”, it displays the interface as Figure-4. Users can select the output TS channels. To select output TS channel 1-16 Figure-4 ...
  • Page 14 HDC-5016 IP to QAM Modulator User Manual below: ：Enable/disable the CA Filter function. Clicking the box, user can filter the input CA to avoid disturbing with the device scrambling function. : To enable/disable the PID remapping To refresh the input program information To refresh the output program information Select one input program first and click this button to transfer the selected program to the right box to output.
  • Page 15 HDC-5016 IP to QAM Modulator User Manual Add description Figure-7 Users click the interface is display as below, and click to apply the modified parameters.(Figure-8) Figure-8  PID Pass From the menu on up side of the webpage, clicking “PID Pass”, it displays the interface where to add the PIDs which need pass through.
  • Page 16 HDC-5016 IP to QAM Modulator User Manual Figure-9 Parameters → Scrambler: From the menu on left side of the webpage, clicking “Scrambler”, it displays the interface where users can choose the programs to scramble. (Figure-10) Scramble channel select CA channel select EMMG and ECMG working state, green...
  • Page 17 HDC-5016 IP to QAM Modulator User Manual Parameters → Modulator: From the menu on left side of the webpage, clicking ‘Modulator’, it will display the interface as Figure-11 where to set RF output parameters. Click to set all channels RF QAM output parameters Click to set each...
  • Page 18 HDC-5016 IP to QAM Modulator User Manual Figure-12 System → Network: Click ‘Network’, it will display the interface as Figure-13 where to set network parameters. Figure-13 System → Password: From the menu on left side of the webpage, clicking “Password”, it will display the screen as...
  • Page 19 HDC-5016 IP to QAM Modulator User Manual Figure-14 where to set the login account and password for the web NMS. Figure-14 System → Configuration: From the menu on left side of the webpage, clicking “Configuration”, it will display the screen as Figure-15 where to set your configurations for the device.
  • Page 20 HDC-5016 IP to QAM Modulator User Manual Figure-16 System → Log: From the menu on left side of the webpage, clicking “Log”, it will display the screen as Figure-17 where to check the “Log”. To select “Kernel log” and “System Log” Figure-17...

  • Page 21: Chapter 5 Troubleshooting

    HDC-5016 IP to QAM Modulator User Manual Chapter 5 Troubleshooting Our ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All of our products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by us.

  • Page 22: Chapter 6 Packing List

    GmbH may improve this manual or make changes in the products described herein at any point of time. Installation Notes All types of the IRENIS-BLANKOM family are 19“devices with 1 RU height designed for installation in 19” racks. In addition to the front panel screws an internal module support is required at the rack.

  • Page 23: Contact

    For example, if the scope range is 239.16.32.0 - 239.16.33.255, then 239.16.33.255 is used for SAP Announcements. Contact: IRENIS GmbH Owiesenkehre 1 D-22177 Hamburg - Germany Managing Director: Dipl.Ing. Riccardo Rossini Commercial Register: HRB 130657 / District Court Hamburg Web: www.blankom.de E-Mail: info@blankom.de Irenis-Direct Phone: +49 40 459747 Technical Hotline: +49 40 22864848...
