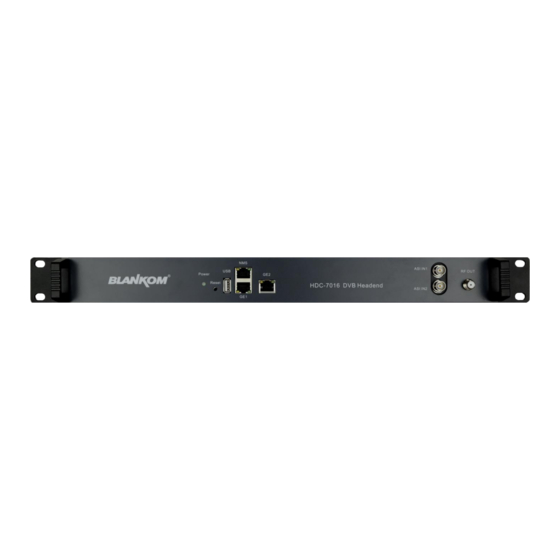

- Page 1 HDC 7016 16 DVB S2 Tuner / 2 ASI-IN / IP-IN to 16 DVB-C & IP out Data sheet and Instruction Manual V 1.1 0 / 29...
-
Page 2: Table Of Contents
16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual Table of content: TABLE OF CONTENT: ..........................1 INTRODUCTION: ............................. 2 FEATURES: ..............................2 TECHNİCAL DATA: ..........................3 LET'S START WITH THE WEB-INTERFACE:..................4 NETWORK SETTINGS: ........................... 4 SAFE &... -
Page 3: Introduction
2 ASI input ports which selected services can be mixed (remultiplexed) to the output channels. The BLANKOM HDC-7016 is also characterized with an high integration level, high performance and very cost effective. This is very adaptable to new generations of CATV headend systems i.e. in hospitality environments. -
Page 4: Technical Data
16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual Technical Data: Function 16 channel DVB-C Headend with Satellite, IPTV and ASI input 16 DVB-S/S2 FTA Tuner INPUT 512 IPTV channels over UDP and RTP protocol 2 ASI input, BNC interface OUTPUT 16 DVB-C groups which can be multiplexed from any combination of input channels 16 DVB-S/S2 tuners with input frequency range:... -
Page 5: Let's Start With The Web-Interface
16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual Let's start with the Web-Interface: The user can control and set the configuration of the device with any computer by connecting to the webserver by the 100BaseT NMS Port. The user should ensure that the computer’s IP address is different from other device’s IP address;... -
Page 6: Safe & Restore, Backup & Load Configs
16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual We assume that the user is familiar with IP settings and already knows his own system to connect the unit to. If you use the Output Streaming feature: We recommend using 2 separate Switches! At least a 100BaseT for the Management NMS RJ45 port and a second one with Gigabit Ethernet 10/100/1000BaseT with at least Layer 2+ with IGMP V2 features. - Page 7 16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual Safe/Store the config.bin file on your local PC. Restoring this config: Select the file and start the upload: than LOAD config Author: Ralf Riedel May 8, 2020 Filename: BlankomHDC-7016-ManualV1.1-RR.docx Page 6...
-
Page 8: Logfiles
16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual confirm it please… Remark: Time & Date Settings like in our other units is actually not implemented. So the unit currently acquires this information from your logged in browser/PC settings. Future releases may enable these settings. -
Page 9: Firmware Upgrade
16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual Firmware upgrade: Self explaining… Username/Password changing: The default username / PW can be changed to your needs. Please make sure you do not lose it or a complete factory Reset (Front panel RESET button) must be initiated. And the configuration would get lost ->... -
Page 10: Tuner Configuration Dvb S/S2
16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual Tuner configuration DVB S/S2: We start this configuration with an Example by combining Inputs and even loop some out- to next In-puts. We recommend not using this method, because the extra attenuation of the LOOP-OUT Ports may cause a too weak Signal-Input to the next RF-IN as shown here. - Page 11 16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual Now we check Sat-Pos. 2 = Hotbird 13° East by DiSEqC: Assure before, that all 13/18V settings from tuner 9-16 @ the splitter are off: and DiSEqC is set to the same sattelite: e Voila: Now better to change the first 8 inputs and use a 1:8 active splitter with DC Pass (sourced from the H/V- DC supplied to the coax-cable):...
- Page 12 16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual and 9-10 keeping as it was for Hotbird: Signal quality of 1…8 are much better now. Now that we have setup 16 SAT-Inputs, I have additional connected the 2x ASI ports from an external source to the unit: Author: Ralf Riedel May 8, 2020...
- Page 13 16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual Now we parse the inputs to collect each TS data: If the parsing wasn't sufficient, maybe increase the time-out value for the demultiplexer to 100s or more… depending on how many information might be detectable but 60 sec are usually OK.
- Page 14 16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual So importing them now, SET IGMP to V2 or V3 please (depending on your GbE Switch you are using, this makes a lot of sense). We recommend to use HP 2530 24G or 48G- sufficient, easy to operate and not that expensive like Cisco.
- Page 15 16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual Passing all of Input 1to out TS1: isn't that simple? Just some hints: If the content is FTA not encrypted and no CI-Flag set in the TS, you can skip set the CA-Filter: and PID remapping is often not necessary.
- Page 16 16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual PSI-SI multiplexer already assigns LCN's to the NIT which is Logical Channel Number Sorting for your TV/STB if it supports LCN's. These can be re-numbered in a later step manually. compare it: Author: Ralf Riedel May 8, 2020...
- Page 17 16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual Change single output TS values by clicking right the service opens a popup: Another hint: we have some space left in this stream: because I previous have set the output QAM-channel to 256QAM / 6900 SR, …...
- Page 18 16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual we stay @ DVB-C Annex A/C not using J83B (ITU) Annex B which is used in US and Korea… Lets test the GAP: changed to start all from 666MHz and used the first on reducing – 8MHz, so we will get a GAP in the bandwidth: Result: Also this is possible: Adjusted an 8MHZ at the end of the 15...
-
Page 19: Create 16X Qam-Channels
16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual So now we are able to Create 16x QAM-Channels: Almost with Free to Air TV and Radio Services: As you can see, the almost max. data rate in a QAM-DVB-C Annex A/C channel is: 50.9 Mb/s. Because TV services usually do not use constant bitrates (see Sports, they increase bitrates per service)…... - Page 20 16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual Looks promising: So we see, we have 8Mbit space… to less for another HD channel… Now checking the CA-Filter feature: and whoops, the CA-PIDs are gone … great!!!: Next step: Author: Ralf Riedel May 8, 2020...
- Page 21 16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual That setting with Mux needs to be done if the output QAM exists by mixing different sources. The DVB-Tables need to be re-created. Useful for passing In to Out Tuner to QAM… Here is the possibility shown to create the NIT according to your setup manually: Author: Ralf Riedel May 8, 2020...
- Page 22 16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual Otherwise an external PSI editor can be used and the NIT-file uploaded to the unit. Disadvantage: If you change something, you need to create/correct and upload that again. PID bypass can be used if some selective particular Input PID need to be passed to the QAM channel.
- Page 23 16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual no CA filter necessary, neither PID remapping. The easiest way to do DVB-S(2) into QAM…: Setting up all 16 QAM channels and lets tune the TV… Just passing in to output : Author: Ralf Riedel May 8, 2020 Filename: BlankomHDC-7016-ManualV1.1-RR.docx...
- Page 24 16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual If you are muxing with IP MPTS Inputs, you have to start "+" action for every TS In to out again…: Author: Ralf Riedel May 8, 2020 Filename: BlankomHDC-7016-ManualV1.1-RR.docx Page 23...
- Page 25 16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual and first use the tuner services, than the IP ones… Author: Ralf Riedel May 8, 2020 Filename: BlankomHDC-7016-ManualV1.1-RR.docx Page 24...
-
Page 26: Scrambling
16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual Scrambling: Select which and what to encrypt and connect the unit to the IP-Address of the CA-Server. The values need to be set according to that system. Author: Ralf Riedel May 8, 2020 Filename: BlankomHDC-7016-ManualV1.1-RR.docx Page 25... -
Page 27: Final Dvb-C Qam Setup Ready
16x DVB S2 Tuner to 16x DVB-C & IP Gateway User’s Manual Final DVB-C QAM Setup ready Anyway, we should adjust the QAM Channels according to the ITU Cenelec Channel line ups, so that TV sets can easier tune by using the default channel lists: Example starting with That’s enough for 16 channels. -
Page 28: Important Notes
Installation Notes All types of the IRENIS-BLANKOM family are 19“devices with 1 RU height designed for installation in 19” racks. In addition to the front panel screws an internal module support is required at the rack. Depending on the Frontend used and the operating adjustments, the RF-input port carries DC Voltage (13V /18V, max. -
Page 29: Contact
Phone: +49 5069 4809781 IRENIS technical hotline VoIP +49 5069 4399 -860 or -8601 Managing Director: Dipl.Ing. Murad Önol WEEE: DE 54333499 Commercial Register: HRB 206370 / District Court Hildesheim, Web: www.blankom.de E-Mail: info@blankom.de Author: Ralf Riedel May 8, 2020 Filename: BlankomHDC-7016-ManualV1.1-RR.docx...
