Blankom HDC 6012 User Manual & Datasheet

DVB-C Headend Transmodulator
with Satellite and IP Stream Input

4 Channel DVB-C (QAM) Headend System

12 DVB-S/S2 tuner inputs for 12 FTA satellite transponders

128 IPTV inputs (UDP, RTP, MPTS & SPTS)

4 groups multiplexing +4 groups scrambling

4 adjacent QAM channels (DVB-C / ITU Annex-B)

Excellent RF output performance index, MER ≥ 43 dB

Accurate PCR adjusting

PSI/SI, NIT editing and inserting

Web management, Updates via web

DiSEqC 1.0 LNB control for up to 4 satellite positions

Dual power supply (optional)

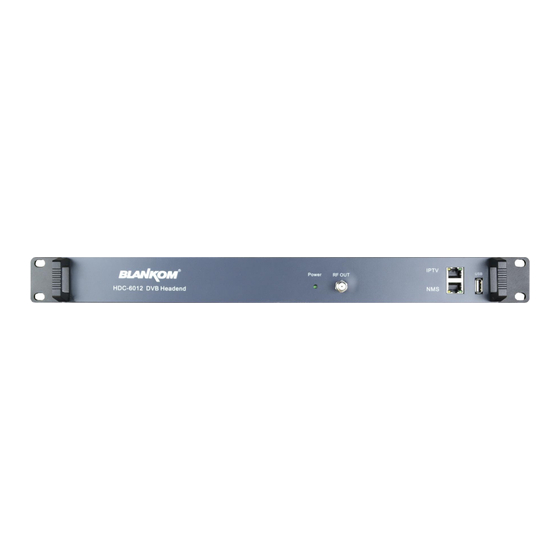

HDC 6012
The BLANKOM HDC-6012 is
a high performance and
cost-effective QAM
Transmodulator.
It has 12 DVB-S/S2 FTA
tuner inputs, 4 groups
multiplexing, 4 groups
scrambling, 4 groups QAM
modulating and supports
a maximum of 128 IPTV
inputs through GE port.
4 adjacent carriers
(50MHz...960MHz)
combined output through
the RF output interface.
BLANKOM HDC-6012 is
also characterized with
high integration level, high
performance and low cost.
It supports dual power
supply (optional).
