Baroness GM2800B Owner's Operating Manual
5-unit rotary mower
Hide thumbs
Also See for GM2800B:
- Owner's operating manual (75 pages) ,
- Owner's operating manual (89 pages)
Related Manuals for Baroness GM2800B
Summary of Contents for Baroness GM2800B

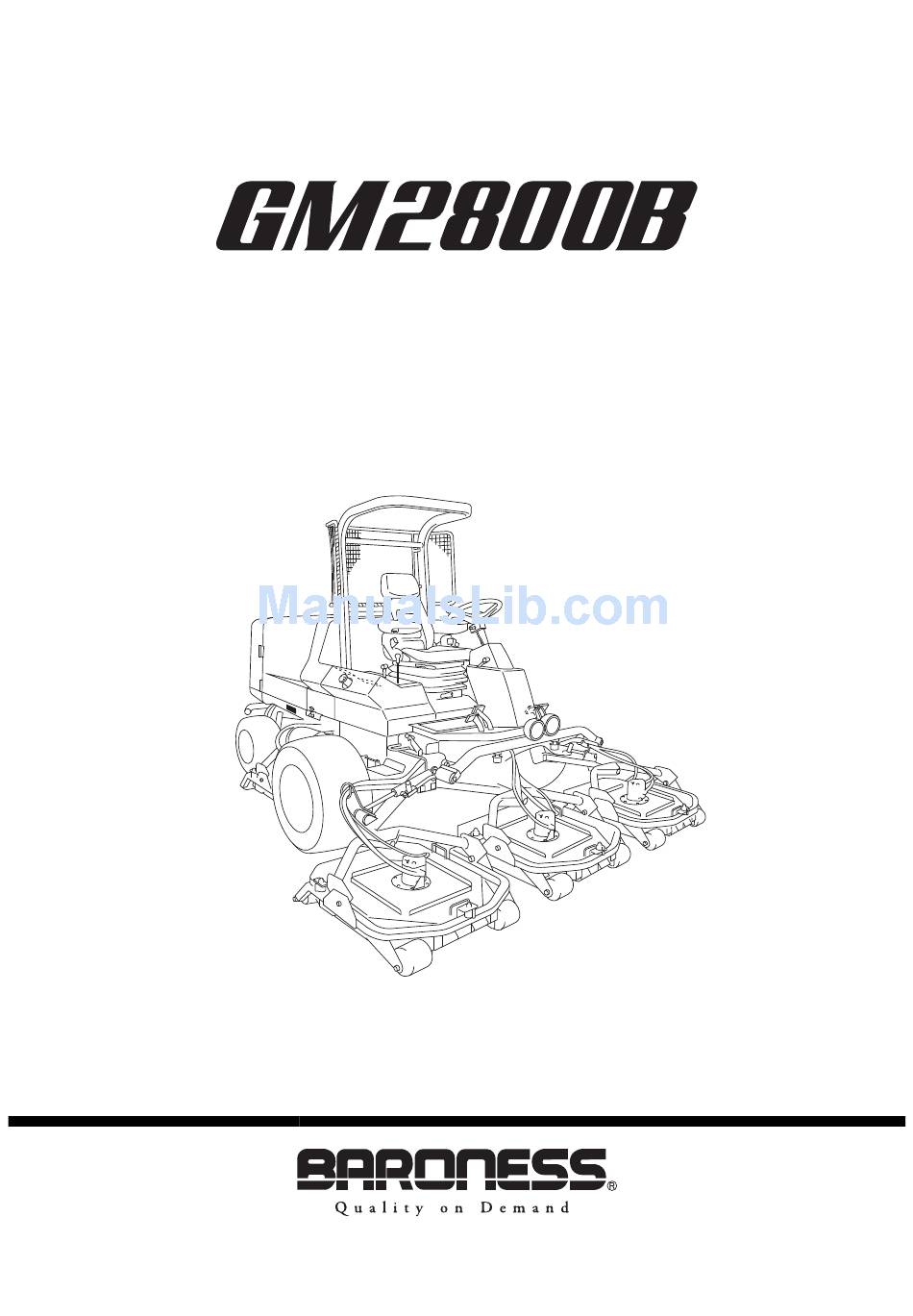

- Page 1 5-Unit Rotary Mower Owner's Operating Manual "Required reading" Read this manual and the Owner's Manual for the engine before using the machine. Serial No.12213- Original Instructions Ver.1.2...
- Page 2 GM2800B Greeting Greeting Thank you for purchasing the Baroness machine. This manual explains proper handling, adjustment, and inspection of your machine. Prior to use, carefully read this manual to thoroughly understand the contents for safe and correct operation. We hope you will use the machine safely, and take advantage of its best performance.
- Page 3 The information described in this manual is subject to change for improvement without prior notice. When replacing parts, be sure to use genuine Baroness parts or parts designated by Kyoeisha. Note that the Baroness product warranty may not apply to defects caused by the use of parts from other companies.
- Page 4 GM2800B Introduction Purpose This machine is intended for cutting turf grass at golf courses. Do not use this machine in any way other than its intended purpose, and do not modify the machine. Operating this machine for other purposes and modifying it may be very dangerous and may cause damage to the machine.
-
Page 5: Table Of Contents
Contents GM2800B Contents Safety............... Page 1-1 Safe Operating Practices........Page 1-2 Disposal............Page 2-1 Waste Disposal..........Page 2-2 Product Overview........... Page 3-1 Specifications..........Page 3-2 Names of Each Section........Page 3-3 Safety Signs and Instruction Signs....Page 3-5 Handling Instructions........Page 4-1 Inspection Before Use........Page 4-2 Tightening torques........ - Page 6 GM2800B Contents...
-
Page 7: Safety
GM2800B Safety Safety Safe Operating Practices....... Page 1-2 Training...........Page 1-2 Preparation..........Page 1-2 Operation..........Page 1-3 Maintenance and storage....... Page 1-4 Page 1-1... -
Page 8: Safe Operating Practices
GM2800B Safety Failure to adequately follow these safety Lack of awareness of the effect of precautions may cause an accident resulting in ground conditions, especially slopes injury or death. Incorrect hitching and load distribution Never allow children or people unfamiliar... - Page 9 GM2800B Safety If fuel is spilled, do not attempt to start the Stay alert for humps and hollows and engine but move the machine away from other hidden hazards. the area of spillage and avoid creating any Never operate across the face of the...
- Page 10 GM2800B Safety Look behind and down before backing up to When machine is to be parked, stored, or left be sure of a clear path. unattended, lower the cutting units unless a positive mechanical lock is provided. Do not carry passengers.
- Page 11 GM2800B Safety Disconnect battery before making any repairs. Disconnect the negative terminal first and the positive last. Reconnect positive first and negative last. Make sure that parts such as wires are not touching each other and that their covers have not come off.
- Page 12 GM2800B Safety Page 1-6 Safe Operating Practices...
-
Page 13: Disposal
GM2800B Disposal Disposal Waste Disposal........Page 2-2 About the Waste disposal....... Page 2-2 Page 2-1... -
Page 14: Waste Disposal
GM2800B Disposal Waste Disposal About the Waste disposal Make sure that waste generated when servicing or repairing the machine is disposed of in accordance with local regulations. (e.g. waste oil, antifreeze batteries, rubber products, and wires etc.) Page 2-2 Waste Disposal... -
Page 15: Product Overview
GM2800B Product Overview Product Overview Specifications......... Page 3-2 Specifications..........Page 3-2 Sound pressure level......Page 3-2 Sound power level........Page 3-2 Vibration level......... Page 3-3 Names of Each Section......Page 3-3 Serial Number Plate........Page 3-3 Specification Decal......... Page 3-4 Noise Emission Decal......Page 3-4 Year of Manufacture Decal..... -
Page 16: Specifications
GM2800B Product Overview Specifications Specifications Model GM2800B Total length 370 cm During operation 300 cm Total width Dimensions During transport 230 cm Roof 230 cm Total height Handle 165 cm Weight (exc lipids) 1,975 kg (incl ROPS, ROOF) Minimum turning radius... -
Page 17: Names Of Each Section
GM2800B Product Overview Vibration level Mower unit up/down lever Seat Hand-arm vibration Diff-lock switch This machine was confirmed to transmit a Tilt lever maximum vibration level of less than 2.5 m/s Forward pedal to hands and arms by measuring identical... -
Page 18: Specification Decal
GM2800B Product Overview Specification Decal Maintenance Decal The Specification decal indicates the CE logo, The maintenance decal indicates the model name, and weight, etc. necessary inspection and maintenance items for this machine. QUICK REFERENCE AID kj8jic-001 CHECK/SERVICE(DAIRY) Decal, Specifications_001 1.ENGINE OIL 6.RADIATOR SCREEN... -
Page 19: Safety Signs And Instruction Signs
6iul4h-040 Positions of Safety Decals and Instruction Decals_002 Part numbers for decals that need to be replaced are listed in the parts catalog. Order them from a Baroness dealer or Kyoeisha. Positions of Safety Decals and Instruction Decals 6iul4h-049... -
Page 20: Explanation About Safety Decals And Instruction Decals
GM2800B Product Overview Explanation about Safety Decals and Instruction Decals GM2800-0941Z0 Decal, operation Warning Read the Owner's Operating Manual. Warning Apply the parking brake, stop the engine, remove the ignition key, and then leave the machine. Danger Danger Flying objects - All persons other than the operator must keep a safe distance from the machine. - Page 21 GM2800B Product Overview K4205001600 Decal, caution for severe injury Danger Danger May cut your hand or leg - Stop the rotation and engine. Otherwise you may get injured. qigqnx-010 K4205001540 Decal, caution for high temperature Caution High temperature - Do not touch. Otherwise, you will be K 4 2 0 5 0 0 1 5 4 0 burned.
- Page 22 GM2800B Product Overview K4205001940 Decal, fire prohibited Danger Danger Keep away from fire. qigqnx-041 K4205001900 Decal, caution for mower lock Ｋ４２０５００１９００ qigqnx-067 K4205001970 Decal, caution for spouting coolant Caution Caution for spouting coolant - Do not open while hot. qigqnx-045...
- Page 23 GM2800B Product Overview K4205001950 Decal, caution to exhaust gas Warning Be careful of exhaust emissions. qigqnx-039 Safety Signs and Instruction Signs Page 3-9...
- Page 24 GM2800B Product Overview Page 3-10 Safety Signs and Instruction Signs...
-
Page 25: Handling Instructions
GM2800B Handling Instructions Handling Instructions Inspection Before Use......Page 4-2 Traction Assist Switch......Page 4-32 Mower Lock Lever (Latch)....Page 4-32 Rotary Knife..........Page 4-2 Mower Unit Up/Down Lever....Page 4-33 Radiator Cover........Page 4-2 Throttle Lever........Page 4-33 Radiator..........Page 4-3 Diff-Lock Switch........Page 4-34 Coolant........... -
Page 26: Inspection Before Use
GM2800B Handling Instructions Make sure that there are no cracks or tears Inspection Before Use between the sail and flat part of the rotary knife. Be sure to perform an inspection before you start using the machine so that you will be able to take advantage of its optimum performance for a long period of time. -
Page 27: Radiator
GM2800B Handling Instructions Unlock the rubber catches on the left and Radiator cover right of the oil cooler, and then tilt the oil Carefully clean the front and back of the cooler. radiator cover with water or compressed air. Radiator... -
Page 28: Coolant
GM2800B Handling Instructions Coolant Coolant Supply Inspection of Coolant For details on handling the engine, please refer to the separate Engine Operating For details on handling the engine, please Manual. refer to the separate Engine Operating Warning Manual. Do not touch the radiator or coolant during... - Page 29 GM2800B Handling Instructions If the coolant level in the reserve tank is Change of Coolant lower than the "LOW" mark, open the reserve tank cap and fill the tank with clean For details on handling the engine, please water up to the "FULL" mark.
-
Page 30: Oil Cooler
GM2800B Handling Instructions Oil cooler Hydraulic Oil Inspection of Oil Cooler Inspection of Hydraulic Oil Make sure that there is no damage to the Raise the mower units and maintain that oil cooler. position on a level surface. Make sure that the oil cooler is not Make sure that the oil level is at the middle contaminated. - Page 31 GM2800B Handling Instructions Start the engine, raise and lower the mower Wind new sealing tape on the drain plug, units, and turn the steering wheel left and and then attach it to the hydraulic tank. right. Move forward and reverse repeatedly several times.
-
Page 32: Air Cleaner
GM2800B Handling Instructions While paying close attention not to Air Cleaner damage the air cleaner element, tap a solid portion of the air cleaner element or Inspection of Air Cleaner blow compressed air from its inside to For details on handling the engine, please remove dust and dirt. - Page 33 GM2800B Handling Instructions Change of Air Cleaner For details on handling the engine, please refer to the separate Engine Operating Manual. A contaminated air cleaner element may cause malfunction of the engine. To maximize the life of the engine, replace the air cleaner element at the appropriate times.
-
Page 34: Battery
GM2800B Handling Instructions Make sure that the battery fluid level is Battery between the UPPER LEVEL (maximum fluid level line) and the LOWER LEVEL Inspection of Battery (minimum fluid level line). For details on handling the battery, please refer to the separate Battery Instruction Manual. -
Page 35: Tire
GM2800B Handling Instructions Supply of Battery Fluid Tire size Pneumatic pressure Front wheel (29 x 14.00 - For details on handling the battery, please 150 kPa (1.5 kgf/cm refer to the separate Battery Instruction Rear wheel (20 x 12.00 - Manual. -
Page 36: Around The Engine
GM2800B Handling Instructions The appropriate oil level should be between Around the Engine the upper and lower limit lines on the gauge. Inspection of Engine-Associated Parts For details on handling the engine, please refer to the separate Engine Operating Manual. - Page 37 GM2800B Handling Instructions Supply of Engine Oil Change of Engine Oil For details on handling the engine, please For details on handling the engine, please refer to the separate Engine Handling Manual. refer to the separate Engine Handling Manual. Important Warning Do not supply too much engine oil.
-
Page 38: Fuel
GM2800B Handling Instructions Through the oil filling port, supply new Fuel Supply engine oil until the oil reaches a level in between the upper and lower limit lines on Danger Danger the oil level gauge. Do not supply fuel above F (FULL) level of the Engine oil quantity is approximately 9.7 dm... -
Page 39: Oil Leakage
GM2800B Handling Instructions Air Bleeding of Fuel System Important The air-bleed cock should normally be in the fully open position. Using the machine with the air-bleed cock in the closed position may cause the engine to stall. Air bleeding is not a required operation since it occurs automatically. -
Page 40: Tightening Torques
GM2800B Handling Instructions Tightening torques Standard tightening torques Bolts and Nuts Important A number of bolts are used in each part of this machine. Be sure to re-tighten the bolts and nuts, because they may be loosened at the earlier stage of the use. - Page 41 GM2800B Handling Instructions Heat-treated bolt Strength classification 8.8 Strength classification 10.9 Nominal diameter 10.9 tib3yb-002 tib3yb-003 kgf-cm lb-in kgf-cm lb-in 5 - 7 50.99 - 71.38 44.26 - 61.96 7 - 10 71.38 - 101.97 61.96 - 88.51 8 - 11 81.58 - 112.17...
-
Page 42: Principal Tightening Torques
GM2800B Handling Instructions Principal tightening torques Tightening Torque by Model GM2800B Tighten the following bolts and nuts at the torque specified in the table. For thread locking adhesive, apply a middle strength thread locker (ThreeBond 1322 anaerobic adhesives). Tightening torque... - Page 43 GM2800B Handling Instructions Tightening torque Thread locking Location Code Part name adhesive kgf-cm lb-in K1610000020 Tie rod end slotted nut 458.87 398.30 － Tie rod K1611000020 Tie rod end slotted nut 458.87 398.30 － 67 - 683.20 - 593.02 -...
-
Page 44: Adjustment Before Operating
GM2800B Handling Instructions Use the backrest tilt adjustment lever to Adjustment Before Operating adjust the angle of the backrest. Adjustment of Steering Wheel Turn the suspension adjustment handle to adjust the firmness of the seat suspension. Observe the suspension adjustment scale Warning while making adjustments. -
Page 45: Adjustment Of Cutting Height
GM2800B Handling Instructions Adjustment of Cutting Height Adjustment With Adjusting Collars Cutting Height Table Adjusting collars are installed at three locations on each mower unit. The adjustment range for the cutting height is Important 20.0 - 91.5 mm. The length of grass cut off at any one time must be no more than 30 mm. - Page 46 GM2800B Handling Instructions To decrease cutting height: Adjustment With Cutting Height Adjusting Plates Remove a lower adjusting collar and insert it above. Cutting height adjusting plates are installed at three locations on each mower unit. Important The length of grass cut off at any one time must be no more than 30 mm.
-
Page 47: Procedure To Start / Stop Engine
GM2800B Handling Instructions Lower the mower unit to change the Procedure to Start / Stop Engine hole positions, and then temporarily secure it with the two bolts. Start / Stop of Engine Procedure to Start Engine Warning Before starting the engine, make sure that there are no other people or obstacles around the machine. - Page 48 GM2800B Handling Instructions Make sure that the charge lamp and engine Important oil pressure lamp turn off. If they do not turn off, stop the engine and The thermo-start lamp turns off at the specified time. However, the lamp turning off inspect the machine.
-
Page 49: Safety Mechanisms
GM2800B Handling Instructions Procedure to Stop Engine Set the traveling pedal to the neutral position. Apply the parking brake. Set the knife rotation switch to the "OFF" position. Shift the throttle lever to the turtle icon (low speed), and then idle the machine for 1-2 minutes. -
Page 50: Operation Of Each Section
GM2800B Handling Instructions Operation of Each Section Precautions for Operating the Machine Caution Under any circumstances drive the machine at such a speed that you can stop it immediately for emergencies. Cautions for when You Leave the Machine 6n6oux-066 Instruction Decals_002... - Page 51 GM2800B Handling Instructions STOP Decal, Key switch It illustrates the positions of the key switch. 1. OFF 2. ON 3. GLOW 4. START 6n6oux-054 Decal, knife rotation switch This illustrates rotation/stopping of the rotary knife. 1. Rotate 2. Stop O F F...
- Page 52 GM2800B Handling Instructions Decal, light switch It illustrates ON/OFF of the light. 1. ON 2. OFF O F F 6n6oux-069 Decal, pilot lamp This illustrates the positions of the pilot lamp. 1. Charge lamp 2. Thermo-start lamp 3. Oil pressure lamp...
- Page 53 GM2800B Handling Instructions K4203001350 Tilt steering decal This shows the steering tilt directions and how to lock and release the FREE position. LOCK 6n6oux-065 K4203001340 Parking brake decal This shows how to lock and release the parking brake. 1. Locked 2.
-
Page 54: Proximity Sensors
GM2800B Handling Instructions Proximity Sensors Relays There are two proximity sensors on mower arm The relay box is at the front of the right hood. fulcrums #4 and #5. These relays control operation of the diff-lock These sensors detect the raised or lowered... -
Page 55: Knife Rotation Switch
GM2800B Handling Instructions Knife Rotation Switch 2WD/4WD Selector Switch Caution Caution Before you start cutting work, set the knife When working on a slope, be sure to use the rotation switch to the "ON" position. At all machine in 4WD. -
Page 56: Light Switch
GM2800B Handling Instructions Light Switch Warning The lights provide auxiliary lighting. Do not travel or operate the machine at night or under poor visibility. The light switch is located in the operation panel. When the switch is set to the "ON" position, the b9ycf8-001 lights turn on. -
Page 57: Mower Unit Up/Down Lever
GM2800B Handling Instructions Mower Unit Up/Down Lever Throttle Lever The throttle lever is located to the right of the Caution driver's seat and enables you to adjust the Before raising or lowering the mower units, engine rpm. make sure that there are no people around... -
Page 58: Diff-Lock Switch
GM2800B Handling Instructions Diff-Lock Switch Traveling Pedal Caution Warning Do not operate the diff-lock switch unless it is This machine is not authorized as a special necessary. motor vehicle. Do not drive it on public roads. It may result in the hydraulic system malfunction. -
Page 59: Brake Pedal
GM2800B Handling Instructions Brake Pedal Change of Braking Method Follow the procedure below to change the Warning braking method from linked to independent. Link the brake pedals, except when operating Swing up the pedal link bar, and then pull it the machine. -
Page 60: Parking Brake Lever
GM2800B Handling Instructions Parking Brake Lever Hood Caution Caution Be sure to release the parking brake before Do not open the hood in strong winds. driving. It may result in the brakes or hydraulic system Caution malfunction. Be careful not to pinch your fingers when you open or close the hood. -
Page 61: Instruments
GM2800B Handling Instructions Underseat Cover Tachometer/Hour Meter The tachometer and hour meter are located in Caution the operation panel. Be careful not to pinch your fingers when you The tachometer indicates the engine rpm. open or close the underseat cover. -
Page 62: Water Temperature Gauge
GM2800B Handling Instructions Water Temperature Gauge Pilot Lamps The water temperature gauge is located in the Charge Lamp operation panel. The charge lamp is the left pilot lamp located This instrument indicates the water in the operation panel. temperature inside the engine. - Page 63 GM2800B Handling Instructions Thermo-start Lamp Oil Pressure Lamp The thermo-start lamp is the middle pilot lamp The oil pressure lamp is the right pilot lamp located in the operation panel. located in the operation panel. When the ignition key is set to the "GLOW"...
-
Page 64: Travel Of Machine
GM2800B Handling Instructions Pull up the lever behind the seat to unlock it, Travel of Machine and then tilt the seat forward to open the cover. Moving the Machine Start the engine. (See "Procedure to Start Engine" (Page 4-23) .) -
Page 65: Cutting Work
GM2800B Handling Instructions Shift the mower unit up/down lever to the Cutting Work "DOWN" position to lower the mower units. Cutting Operation Warning Do NOT start to move or stop the machine abruptly. To do so is very dangerous. In addition, it may damage the hydraulic system or result in oil leakage. -
Page 66: Transporting
GM2800B Handling Instructions Transporting Transporting Procedure When loading the machine into a trailer or a truck to transport it, drive the machine forward. When unloading, drive the machine in reverse. If the roof is installed on the machine, remove The roof may be damaged by wind pressure. -
Page 67: Maintenance
GM2800B Maintenance Maintenance Maintenance Precautions...... Page 5-2 Maintenance Schedule......Page 5-3 Specified Values........Page 5-4 Main Consumable Parts......Page 5-5 Jacking up the machine......Page 5-5 About the Jacking up the machine..Page 5-5 Jack-up Points........Page 5-5 Greasing..........Page 5-6 About Greasing........Page 5-6... -
Page 68: Maintenance Precautions
Use tools appropriate for each maintenance operation. Caution For the safe and best performance of your machine, use Baroness genuine parts for replacement and accessories. Please note that our product warranty may be void if you use non-genuine parts for replacement or accessories. -
Page 69: Maintenance Schedule
GM2800B Maintenance Maintenance Schedule GM2800B Follow the maintenance schedule below. ○・・・Inspect, adjust, supply, clean ●・・・Replace (first time) △・・・Replace Maintenance Item Tightening the parts ○ Fuel ○ Air cleaner Engine Oil Engine oil filter Ignition plug Radiator ○ Oil cooler ○... -
Page 70: Specified Values
GM2800B Maintenance Maintenance Item Transmission oil Hydraulic hose (moving part) ○ △ Hydraulic hose (fixed part) ○ △ Air cleaner Electromagnetic pump filter ○ △ Fuel strainer ○ △ Fuel pipe ○ Cleaning the exterior ○ 50 hrs Engine Oil ○... -
Page 71: Jacking Up The Machine
GM2800B Maintenance Main Consumable Parts Jack-up Points Part Name Code Fan belt PF17266-9701-0 Oil element PF16414-3243-4 Air cleaner element PF59800-2611-0 ELEMENT, FUEL FILTER PF15221-4317-0 Suction filter K3413000040 Hydraulic cartridge filter K3410000030 Hydraulic oil (20 L can) K2913100200 Throttle wire K1110168020... -
Page 72: Greasing
GM2800B Maintenance Front right frame Greasing About Greasing Since there may be adhesion or damage due to lack of grease on moving parts, they must be greased. Add urea-based No. 2 grease in accordance with the Maintenance Schedule. Other locations where the specified grease or lubricant is used are indicated in "Greasing... - Page 73 GM2800B Maintenance Greasing Points No. of Portion Greasing Grease nipples are installed in the following Points locations. Rear roller Add grease every 50 hours of operation. Mower arm fulcrum Lift arm fulcrum Lift arm cylinder fulcrum Pivot Neutral position area...
- Page 74 GM2800B Maintenance Mower units #2 and #3 Mower unit #5 8bq62b-026 8bq62b-029 Greasing Points_004 Greasing Points_007 Lift arm fulcrum Lift arm cylinder fulcrum There is one greasing point on the arm This is on each cylinder of the arms connected to each mower unit.
- Page 75 GM2800B Maintenance Pivot Neutral position area There are two locations. Middle between the rear wheels 8bq62b-035 8bq62b-032 Greasing Points_013 Greasing Points_010 Traveling pedal shaft fulcrum Rear left wheel There are two locations. 8bq62b-033 8bq62b-036 Greasing Points_011 Greasing Points_014 Rear right wheel Foot brake There are three locations.
- Page 76 GM2800B Maintenance Maintenance (Mower) Total width Blade edge Change of Rotary Knife Blade base Sail Danger Danger less than 2/3 The rotary knife is an edged tool. 30 - 40° Take extra care in handling since they could 0.5 - 1.0 mm cut your hands or legs.
- Page 77 GM2800B Maintenance Remove the cotter pin and hardened Important roundhead pin inserted at a, and then insert them at b. The tightening torque for the knife mounting bolt is 67 - 85 N-m (683.20 - 866.75 kgf-cm). Install the rotary knife.
- Page 78 GM2800B Maintenance Install the grip pin and clip pin in the Follow the steps below to remove the rotary mounting hole for maintenance. knife. Use the square pipe from the included tools to secure the rotary knife so that it does not turn.
- Page 79 GM2800B Maintenance Remove the rotary knife. Mower Units #4/#5 Start the engine, and then raise the mower units. to41g1-007 Mower Units #4/#5_003 Square pipe yze531-002 Rotary knife Mower Units #4/#5_001 Bolt Mower unit Spring washer Washer Stop the engine, and then remove the key.
-
Page 80: Grinding Of Rotary Knife
GM2800B Maintenance Grinding of Rotary Knife Total width Blade edge Danger Danger Blade base Sail The rotary knife is an edged tool. 2/3 or more Take extra care in handling since they could cut your hands or legs. 30 - 40°... -
Page 81: Balancing Of Rotary Knife
GM2800B Maintenance Follow the steps below to grind the rotary knife. Balancing of Rotary Knife Remove the rotary knife from the machine. (See "Change of Rotary Knife" (Page 5-10) .) Danger Danger Important The rotary knife is an edged tool. -
Page 82: Maintenance (Main Body)
Caution Remove the tire from the wheel mounting Refer to the Tightening Torque table. seat. Note that the Baroness product warranty may Caution not apply to defects caused by incorrect or overtorque tightening, etc. Refer to the Tightening Torque table. -
Page 83: Adjustment Of Belt Tension
GM2800B Maintenance Adjustment of Belt Tension Adjustment of Brake Caution Danger Danger Be sure to stop the engine before adjusting Make sure that the brake wire is not cracked the belts. or damaged. Important Important Make sure that the belt has the specified If the brake is not sufficiently effective due to a amount of tension. - Page 84 GM2800B Maintenance Caution Danger Danger Make sure that the lever is maintained in the Too narrow clearance gap between the brake open position (neutral). disc and brake lining may cause heat generation and fire. For each wheel, fully tighten the adjustment bolt on the brake disc side.
-
Page 85: Adjusting The Neutral Position Of The Piston Pump
GM2800B Maintenance Make sure that no tires come into contact Danger Danger with the jack stand. It would be extremely dangerous and may Pull up the forward/backward adjustment result in an unexpected accident if the left and lever, and then slide the seat backward right brakes are not equally effective. -
Page 86: Change Of Fuse
GM2800B Maintenance If the front tires rotate in reverse, loosen the lock nuts, and then turn the neutral adjustment rod to extend it. A B C D E H I J pkm25s-003 Fuse Box_002 Timer hsn2jo-006 Thermo-start lamp Adjusting the Neutral Position of the Piston Pump_003... -
Page 87: Long-Term Storage
GM2800B Maintenance Long-Term Storage Before Long-Term Storage Remove dirt, grass clippings, debris, oil ･ stains etc. completely. ･ Supply oil and apply grease to appropriate parts. ･ Remove the battery. Long-Term Storage Page 5-21... - Page 88 GM2800B Maintenance Page 5-22 Long-Term Storage...
- Page 91 Head Office 1-26, Miyuki-cho, Toyokawa, Tel : (0533) 84 - 1390 Fax : (0533) 89 - 3623 Aichi-Pref. 442-8530 Japan. GM2800B-UM--GBZ/15D-00-S.K...
