4.3 Clearing Paper Jams

Occasionally, paper can be jammed during a print job. Some of the causes include:
• The tray is loaded improperly or overfilled.
• The tray has been pulled out during a print job.
• The front cover has been opened during a print job.
• Paper was used that does not meet paper specifications.
• Paper that is outside of the supported size range was used.
If a paper jam occurs, the Jam status will be displayed on LCD panel. Find and remove the jammed paper. If
you don't see the paper, open the covers.
Do not use a pinset or a sharp metal tool when removing a jam.
The covering of a metal part can be removed which can cause an electric leakage.

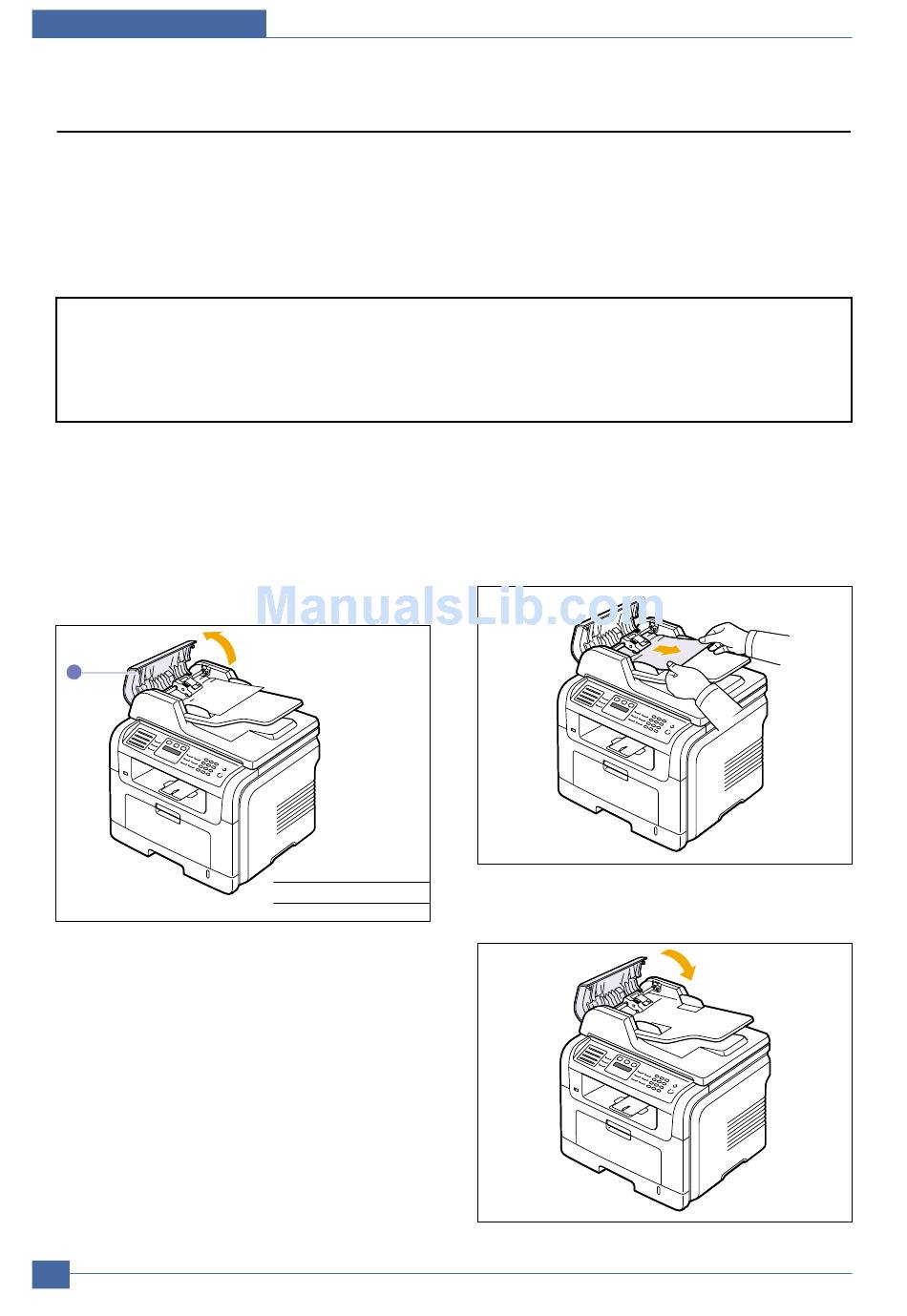

4.3.1 Clearing document jams
When an original jams while passing through the ADF, Document Jam appears on the display.
1. Remove any remaining pages from the ADF.
2. Open the ADF cover.
1
Service Manual
4-4
1
ADF cover
3. Pull the jammed paper gently out of the ADF.
4. Close the ADF cover. Then load the removed pages,
if any, back into the ADF.
