DVC2000 Digital Valve Controller
2
LINE UP WITH LOWER
EXTREME OF VALID
TRAVEL RANGE
W9221

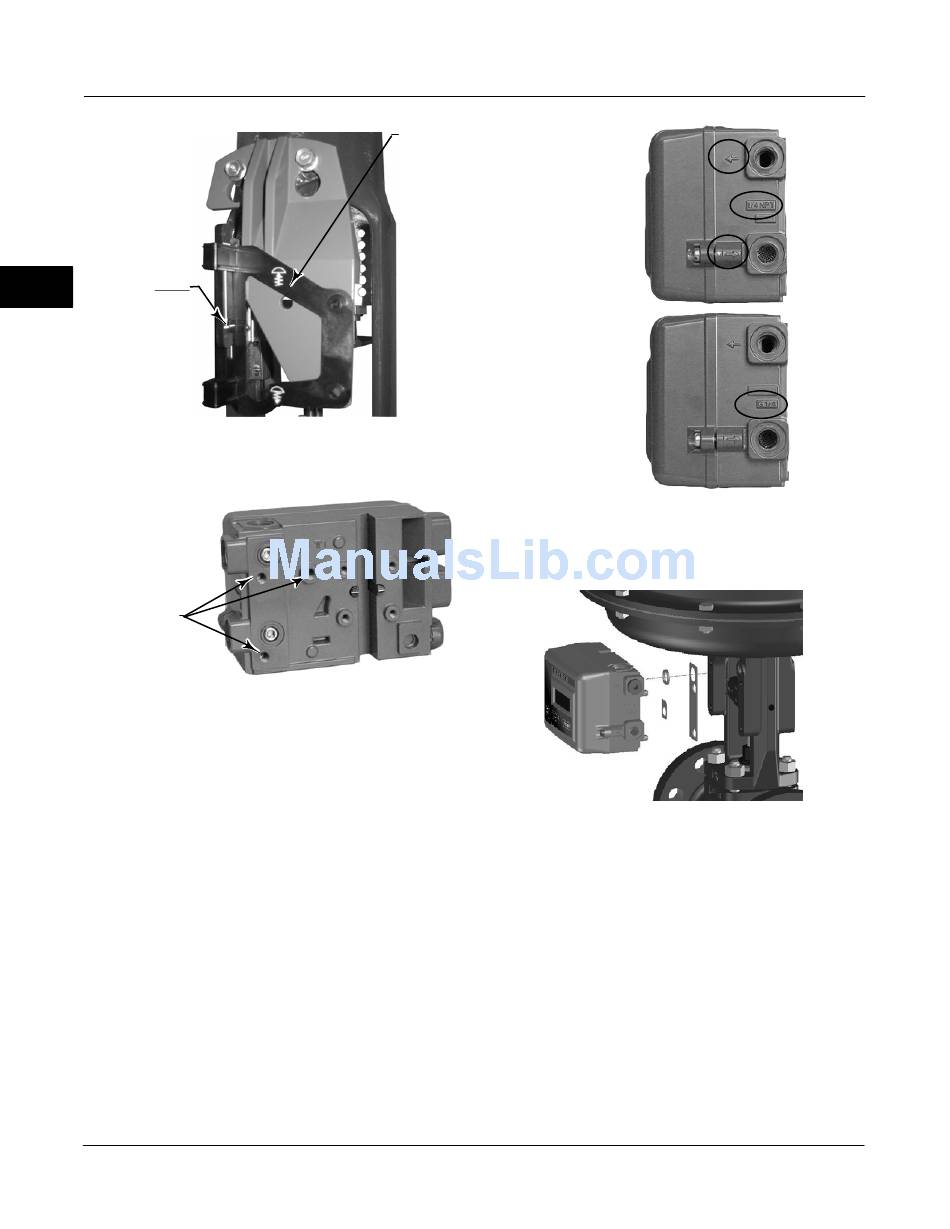

Figure 2-5. Air-to-Close Magnet Array Alignment
M8 THREADED
MOUNTING HOLES
W9015
Figure 2-6. Mounting Holes for Linear Actuators
in the feedback slot of the DVC2000 housing is
between the valid range on the magnet assembly
throughout the range of travel. See figure 2-2.
9. Install tubing between the actuator casing and the
pneumatic positioner output connection that has the
arrow pointing away from the opening. See figure 2-7.

Mounting on GX Actuators

The DVC2000 digital valve controller mounts directly
on the GX actuator without the need for a mounting
bracket.
However, in applications where the process
temperature exceeds 80_C (176_F), it may be
necessary to apply an insulating gasket between the
2-6
ALIGNMENT
TEMPLATE ARROW P0INTING AWAY FROM
PORT = OUTPUT TO ACTUATOR
ARROW P0INTING TOWARDS
THE PORT = AIR SUPPLY IN
Figure 2-7. Conduit and Pneumatic Thread Variations
Figure 2-8. Mounting to Fisher GX Actuator with Insulating
actuator yoke and the DVC2000, as shown in figure
2-8, The heat conducted from the process line will
transmit through the valve body and actuator and
ultimately to the DVC2000. Temperature seen at the
DVC2000 is a function of the ambient temperature as
well as the process temperature. Guidelines on when
to apply the high temperature gasket set are shown in
figure 2-9.
1/4 NPT
PNEUMATIC
CONNECTIONS
G1/4
PNEUMATIC
CONNECTIONS
W9016
Gasket and O-Ring.
