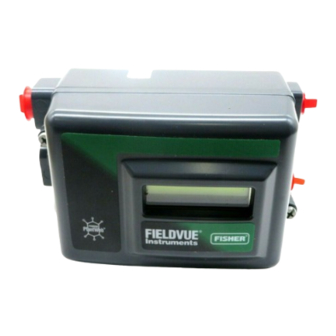

Emerson Fisher FIELDVUE DVC2000 Instruction Manual Supplement

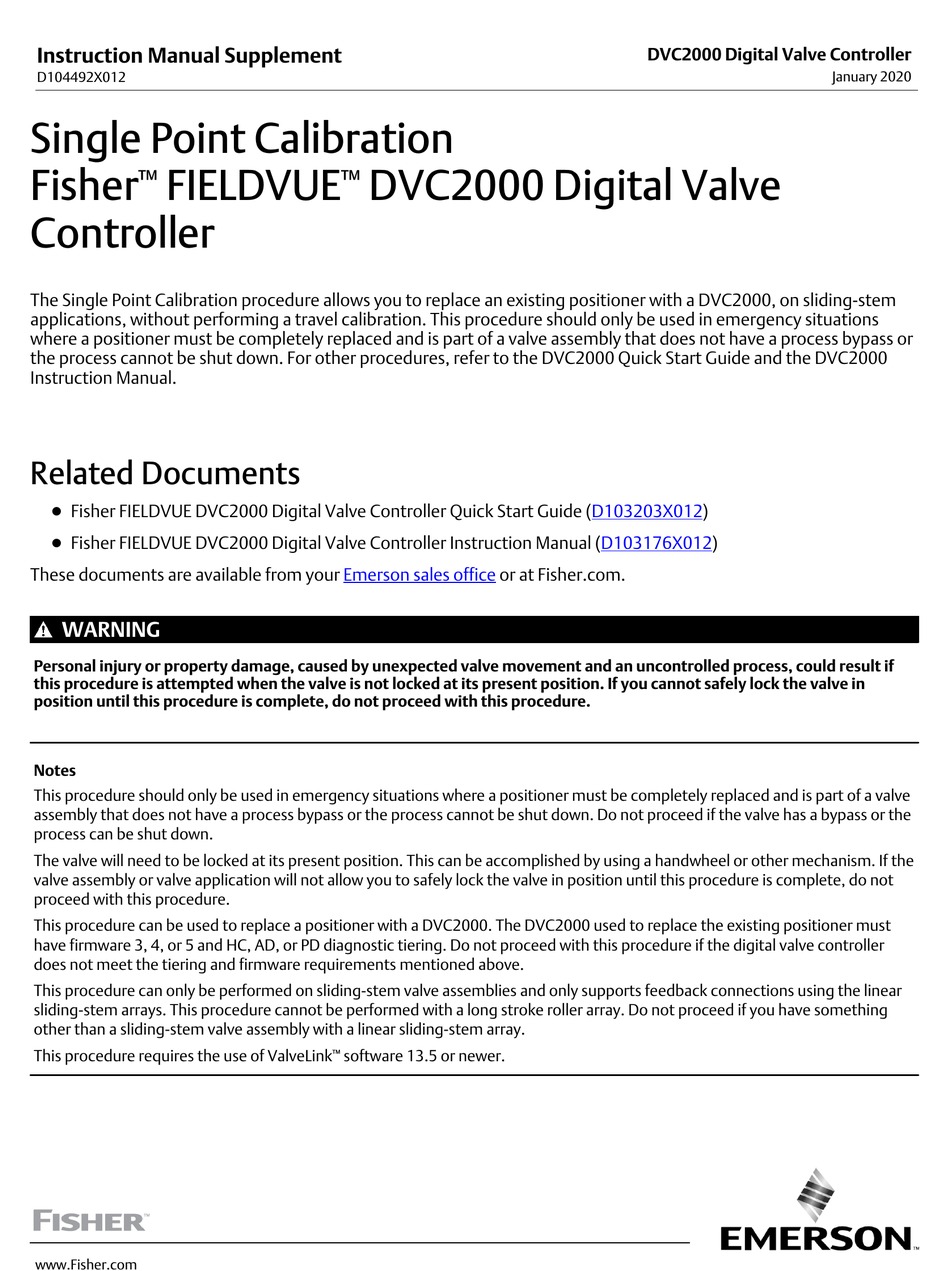

Instruction Manual Supplement
D104492X012

Single Point Calibration

Fisher FIELDVUE
™
Controller
The Single Point Calibration procedure allows you to replace an existing positioner with a DVC2000, on sliding-stem
applications, without performing a travel calibration. This procedure should only be used in emergency situations
where a positioner must be completely replaced and is part of a valve assembly that does not have a process bypass or
the process cannot be shut down. For other procedures, refer to the DVC2000 Quick Start Guide and the DVC2000
Instruction Manual.
Related Documents
D Fisher FIELDVUE DVC2000 Digital Valve Controller Quick Start Guide (D103203X012)
D Fisher FIELDVUE DVC2000 Digital Valve Controller Instruction Manual (D103176X012)
These documents are available from your
WARNING
Personal injury or property damage, caused by unexpected valve movement and an uncontrolled process, could result if
this procedure is attempted when the valve is not locked at its present position. If you cannot safely lock the valve in
position until this procedure is complete, do not proceed with this procedure.
Notes
This procedure should only be used in emergency situations where a positioner must be completely replaced and is part of a valve
assembly that does not have a process bypass or the process cannot be shut down. Do not proceed if the valve has a bypass or the
process can be shut down.
The valve will need to be locked at its present position. This can be accomplished by using a handwheel or other mechanism. If the
valve assembly or valve application will not allow you to safely lock the valve in position until this procedure is complete, do not
proceed with this procedure.
This procedure can be used to replace a positioner with a DVC2000. The DVC2000 used to replace the existing positioner must
have firmware 3, 4, or 5 and HC, AD, or PD diagnostic tiering. Do not proceed with this procedure if the digital valve controller
does not meet the tiering and firmware requirements mentioned above.
This procedure can only be performed on sliding-stem valve assemblies and only supports feedback connections using the linear
sliding-stem arrays. This procedure cannot be performed with a long stroke roller array. Do not proceed if you have something
other than a sliding-stem valve assembly with a linear sliding-stem array.
This procedure requires the use of ValveLink
www.Fisher.com
DVC2000 Digital Valve
™
Emerson sales office or at Fisher.com.
™ software 13.5 or newer.
DVC2000 Digital Valve Controller
January 2020
