2-4.Desktop CCD Camera Installation

This section describes how to connect a CCD camera and install the driver.
Follow the steps to connect a CCD camera.
1.Connect the optional AC adapter(sold separately) to the CBFW3.
2.Connect a CCD camera to the CBFW3 with an IEEE1394 6pin-6pin cable.
3.You can connect the CCD camera without turning off the PC or CCD camera.
When your Windows version is Windows 98 SE(Second Edition), go to the Chapter 2-4-1.
When your Windows version is Windows 2000, go to the Chapter 2-4-2.
When your Windows version is Windows Me(Millennium Edition), go to the Chapter 2-4-1.
NOTE
1.The 6 pin to 6 pin cable is not included in the CBFW3 package. You can order this cable.
Refer to the Chapter 10.
2.The CCD camera doesn't work without a power source, typically DC +12V, 1.2A.
You can use our optional AC power adapter, DC +12V, 1.2A. You can order this AC
power adapter. Refer to the Chapter 10.

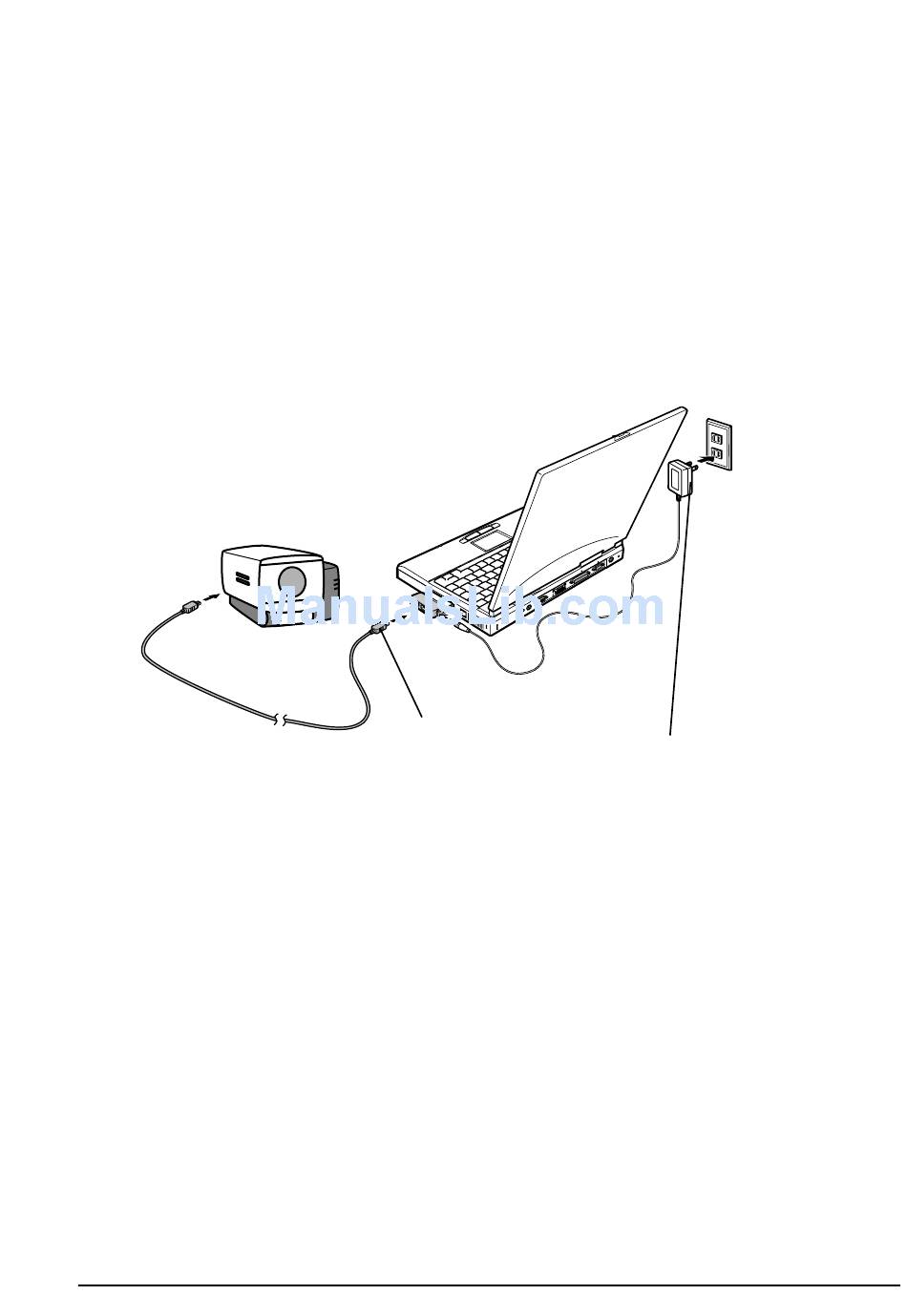

6pin-6pin cable
(Not include)
AC Adapter
(Not include)
