USB2.0 CardBus Host PC Card
CBU2
User's Manual
March 2003
Rev.4.0

Advertisement

Table of Contents
loading

Related Manuals for Ratoc Systems CBU2

Summary of Contents for Ratoc Systems CBU2

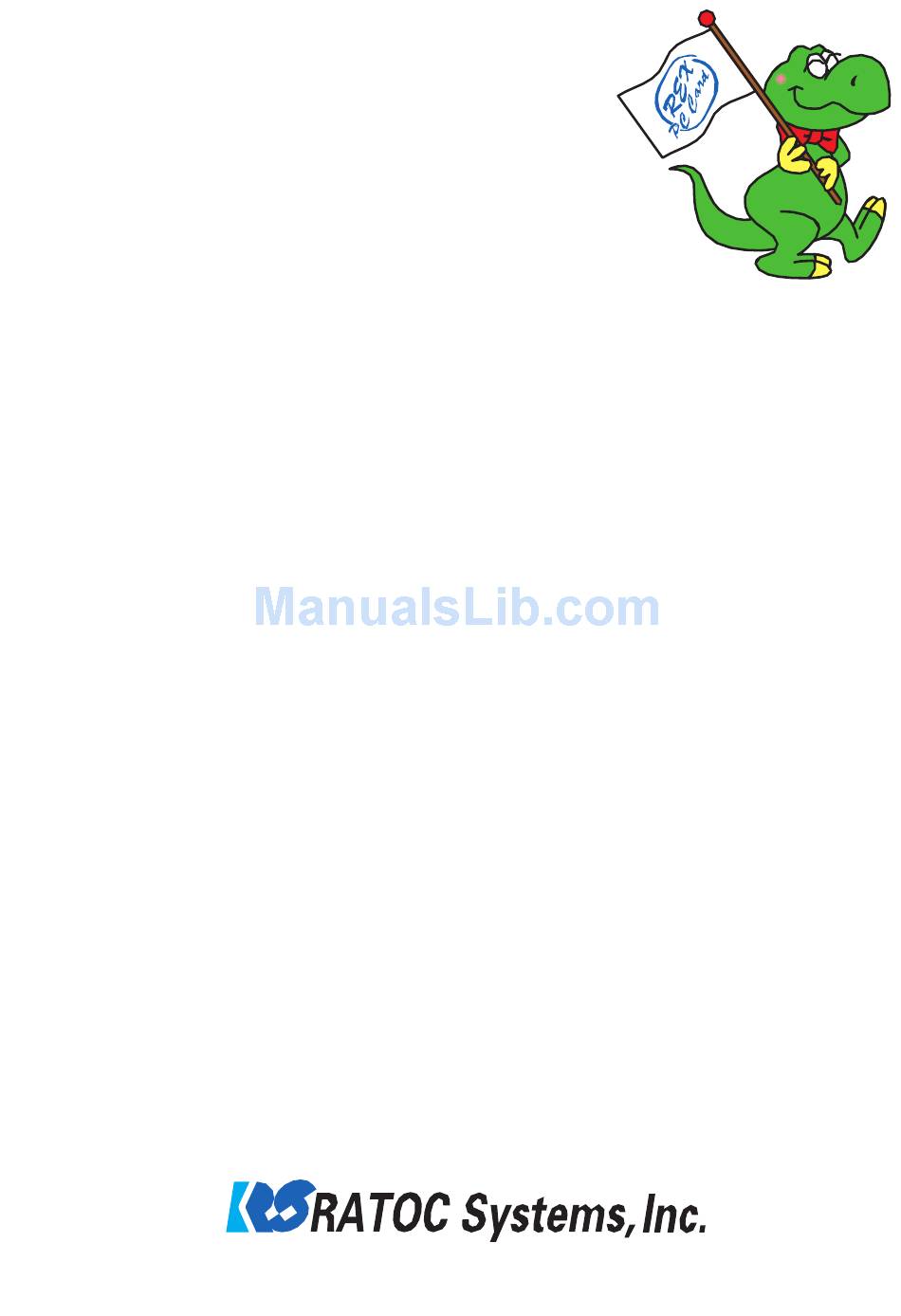

  • Page 1 USB2.0 CardBus Host PC Card CBU2 User’s Manual March 2003 Rev.4.0...

  • Page 2: Table Of Contents

    4. Connecting a USB device ............ 22 4-1. Self-power device/Bus-power device ............ 22 4-2. Connecting a Bus-powered type of USB device to the CBU2 ... 22 4-3. Confirming a USB device is recoginzed ..........23 5. Removing the CBU2U ............24 5-1.

  • Page 3: Introduction

    1. Introduction This User’s Guide describes how to install the RATOC USB2.0 CardBus PC Card (called CBU2 in this User’s Guide). The information in the README.TXT file on the CD-ROM may include the latest information. Be sure to read the file as well.

  • Page 4: Before Installing

    Check the package contents: •CBU2 CardBus PC Card •Software CD-ROM •User’s manual NOTE If any of these items are missing from the CBU2 retail package, contact your supplier immediately. 3. Setting up A)If you are a Windows 98SE user-------------------------------------------- Proceed to Chapter 3-1.

  • Page 5: Installing The Driver(Windows 98Se)

    3-1. Installing the driver(Windows 98SE) When you use Windows 98SE, follow the steps to install the driver. Insert the CBU2 CD-ROM into the CD-ROM drive. The installer will start up automatically. If the installer won’t start up automatically, run [Setup.exe] at the CD-ROM.
  • Page 6 Select the [Search for the best driver for your device(Recommended)] option and click [Next]. Click [Next]. Uncheck all the options. Select the [The updated driver(Recommended) NEC USB Open Host Controller] option and click [Next].
  • Page 7 Click [Next]. If you are prompted to insert the Windows 98 CD-ROM, insert the CD-ROM and click [OK] and insert the Windows 98 CD-ROM Click the [Browse] button and specify a [Win98] folder at the CD-ROM and click [OK]. Click [Finish].
  • Page 8 To verify that the driver is installed correctly, right-click on [My Computer], select [Properties], and then select the [Device Manager] tab. If you can find two [NEC USB Open Host Controller] strings and a [RATOC CB USB Enhanced Host Controller] string under the [Universal Serial Bus controllers], the driver is installed correctly.

  • Page 9: Installing The Driver(Windows 2000)

    After verifying Service Pack 3 is installed, follow the steps: Insert the CBU2 CD-ROM into the CD-ROM drive. The installer will start up automatically. If the installer won’t start up automatically, run [Setup.exe] at the CD-ROM.
  • Page 10 Insert the CBU2 PC Card. The following Hardware Wizard will open. Click [Finish]. You will be prompted to restart to your PC. Click [No], and then click [Next] on the wizard shown in Step 1. Select the [Yes, I want to restart my computer now] option and click [Finish].
  • Page 11 [Properties], and then select the [Hardware] tab. Then, click the [Device Manager] button. If you can find two [NEC PCI to USB Open Host Controller] strings and a [RATOC CB USB Enhanced Host Controller] string under the [Universal Serial Bus controllers], the driver is installed correctly.

  • Page 12: Installing The Driver(Windows Me)

    3-3. Installing the driver(Windows Me) When you use Windows Me, follow the steps to install the driver. Insert the CBU2 CD-ROM into the CD-ROM drive. The installer will start up automatically. If the installer won’t start up automatically, run [Setup.exe] at the CD-ROM.
  • Page 13 To verify that the driver is installed correctly, right-click on [My Computer], select [Properties], and then select the [Device Manager] tab. If you can find two [NEC USB Open Host Controller] strings and a [RATOC CB USB Enhanced Host Controller] string under the [Universal Serial Bus controllers], the driver is installed correctly.

  • Page 14: Installing The Driver(Windows Xp)

    A. Installing the driver in Windows XP with Service Pack 1 If the Service Pack 1 is already installed in your system, insert the CBU2 CD-ROM into the CD-ROM drive. The installer will start up automatically. If the installer won’t start up auto- matically, run [Setup.exe] at the CD-ROM.
  • Page 15 Insert the CBU2. Because some drivers will be installed automatically, wait a few minutes, and then click [Next] on the wizard shown on Step 1. Select the [Yes, I want to restart my computer now] option and click [Finish]. To verify that the driver is installed correctly, right-click on [My Computer], select [Properties], and then select the [Hardware] tab.
  • Page 16 [Universal Serial Bus controllers] as shown Fig1 or Fig2, the driver is installed correctly. Fig1 Fig2 To connect a USB device, proceed to Chapter 4.Connecting a USB device. To remove the CBU2 from the PC Card slot, proceed to Chapter 5.Removing the CBU2.

  • Page 17: Installing The Driver In Windows Xp Without Service Pack 1

    B. Installing the driver in Windows XP without Service Pack 1 Insert the CBU2. The following wizard will open. Select the [Install the software automatically (Recommended)] option and insert the bundled CD-ROM.
  • Page 18 The following wizard will open. Click [Continue Anyway]. The following wizard will open. Click [Finish]. You will be prompted to restart your PC. Click [Yes].
  • Page 19 [Properties], and then select the [Hardware] tab. Then, click the [Device Manager] button. If you can find two [NEC PCI to USB Open Host Controller] strings and a [RATOC CB USB Enhanced Host Controller] string under the [Universal Serial Bus controllers], the driver is installed correctly.

  • Page 20: Confirming The Driver(Macintosh)

    3-5. Confirming the driver(Macintosh) The CBU2 doesn’t support USB2.0 High speed on Mac. The CBU2 works as the USB1.1 compatible host adapter. Please confirm your Mac is ready to use the CBU2 by following the steps: A. When you use MacOS 9.x...
  • Page 21 The window saying [Installation was successful] will open.Click the [Quit] button. Your Mac now has been ready to use the CBU2. To connect a USB device, proceed to Chapter 4.Connecting a USB device. To remove the CBU2U from the PC Card slot,...

  • Page 22: When You Use Macos X

    B. When you use MacOS X... Open [Applications], [Utilities] folder, and then start [Apple System Profiler]. If you can find a “USB” string as shown below, you can use the CBU2U. To connect a USB device, proceed to Chapter 4.Connecting a USB device. To remove the CBU2U from the PC Card slot, proceed to Chapter 5.Removing the CBU2U.

  • Page 23: Connecting A Usb Device

    4-2. Connecting a Bus-powered type of USB device to the CBU2 The CBU2 has two USB ports and these ports can provide 300mA in total. If you connect our AC Adapter(Solf Separately) to the CBU2U, the two ports can provide 500mA at each port.

  • Page 24: Confirming A Usb Device Is Recoginzed

    4-3. Confirming a USB device is recoginzed If you connect a USB storage device such as a Hard Disk Drive, Compact Flash Adapter, SmartMedia Adapter, MO drive on Windows, you can find its icon in [My Computer]. (Windows) If you connect such a device on Mac, its icon will be mounted on desktop. (Mac OS 9.x) (Mac OS X)

  • Page 25: Removing The Cbu2U

    (Windows XP) (Windows 2000) 2.The following pop-up menu will appear. Select [NEC PCI to USB Enhanced Host Con troller] or [RATOC CB USB Enhanced Host Controller]. (Windows XP) (Windows 2000) 3.The following window will appear. You can now safely remove the CBU2U.

  • Page 26: Macintosh

    5-3. Macintosh If you remove the CBU2 on Mac OS 9.x, you need to follow the steps: 1.If a USB device icon is mounted on the desktop, move it to the Trash icon. 2.Move the CBU2 icon to the Trash icon.

  • Page 27: Registration And Tech-Support

    You can download the latest version from our web site. (http://www.ratocsystems.com/english/) -Technical Support- You can get a Tech support from RATOC at the following. (Open Monday - Friday, 9:30A.M. to 5:00P.M(PST)) RATOC Systems International,Inc. Tech support Address: 1933 O’Toole Avenue Suite A109 SanJose, CA 95131, U.S.A.

  • Page 28: Options

    Option is available (sold separately) at the web site: 1. http://www.ratocsystems.com/english/ 2. http://www.firewireshop.com -USB2-01 (USB2.0 cable(3 feet)) -AC05 (AC adapter) If you have any questions about the option, contact to: RATOC Systems Insternational, Inc. Tech Support TEL : (408)955-9400 FAX: (408)955-9402 E-mail: int-support@rexpccard.co.jp...

  • Page 29: Specifications

    8. Specifications CBU2 M o d e l N a m e USB2.0 CardBus PC Card C a r d T y p e USB2.0 I n t e r f a c e 480/12/1.5 Mbps(HS/FS auto-detection) USB data transfer rate Operating temperature0°C/32°F - 55°C/131°F...

  • Page 30: Appendix

    Appendix Copyright ©2001 RATOC Systems,Inc. All rights reserved. No part of this publication may be reproduced, store in a retrieval system, or transmitted in any form or by any means(electronic, mechanical, photocopying, recording or otherwise) without the prior written consent of RATOC Systems,Inc.
