Main Landing Gear Installation - Model Tech Sukhoi SU-31 Assembly Instructions Manual

❑ (2) Aluminum Landing Gear Brackets
❑ (2) Main Gear Wheels
❑ (3) M3 x 25mm Machine Screws
❑ (2) M3 x 35mm Machine Screws
❑ # 2 Phillips Head Screwdriver
❑ 5.5mm Nut Driver
Step 1: inStallinG the landinG Gear BraCketS
Step 2: inStallinG the aXleS
Step 3: inStallinG the WheelS

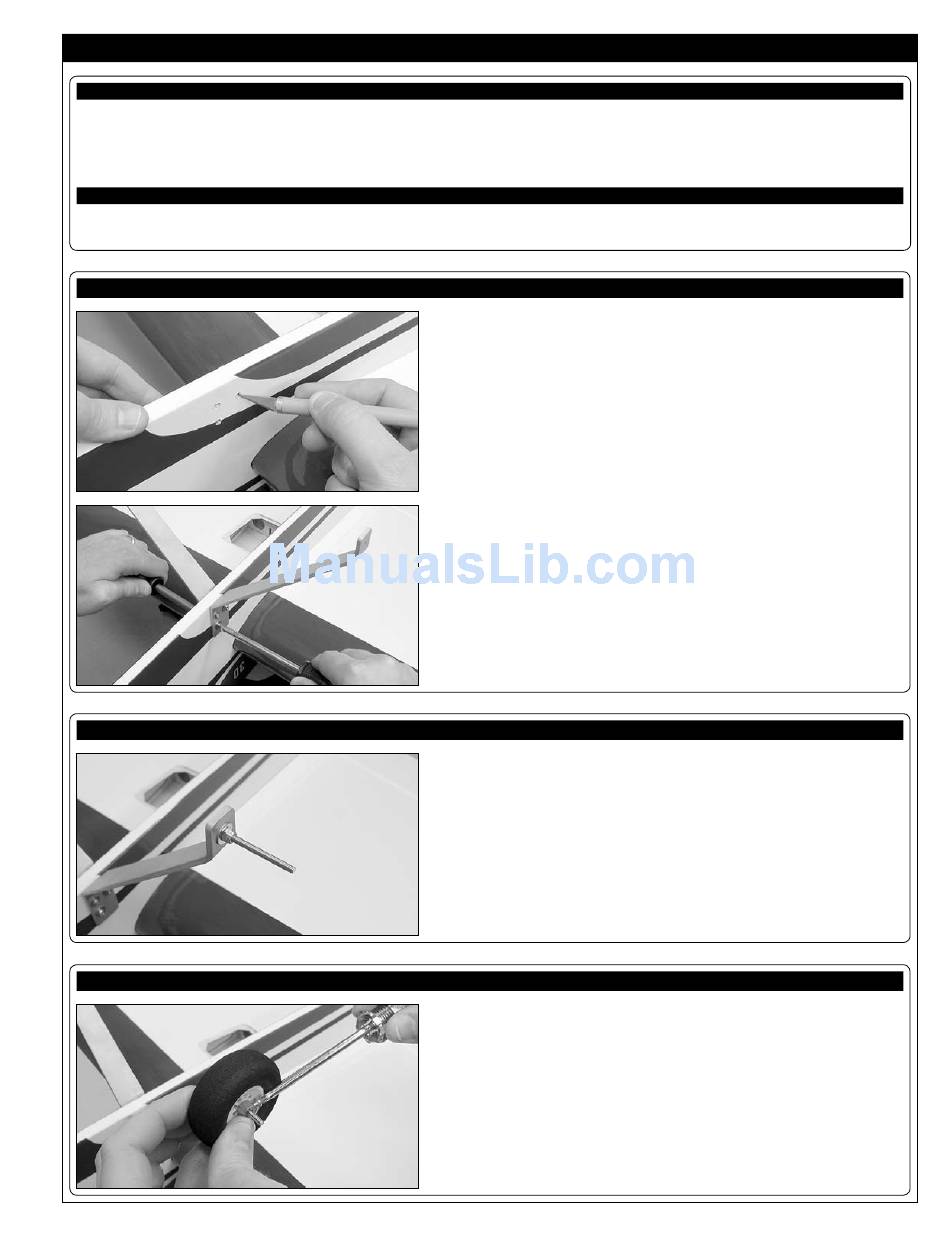

Main landinG Gear inStallation

YoU'll neeD The FolloWing PARTS FRoM The KiT:
❑ (5) M3 Lock Nuts
❑ (2) Wheel Collars with Machine Screws
❑ (12) M3 Flat Washers
YoU'll neeD The FolloWing ToolS AnD SUPPlieS:
❑ Modeling Knife
❑ Airplane Stand
❑ Cut away the covering material from over both sides of the three predrilled
landing gear mounting holes in the fuselage.
❑ Install the two landing gear brackets, using three M3 x 25mm machine
screws, six M3 flat washers and three M3 lock nuts.
❑ Install one M3 x 35mm axle screw onto each landing gear bracket, using
two M3 flat washers and one M3 lock nut per axle screw.
❑ Slide one M3 flat washer onto each axle screw, followed by one wheel.
❑ Secure the wheels onto the axle screws, using two wheel collars and
machine screws. After tightening the machine screws, make sure that the
wheels spin freely.
