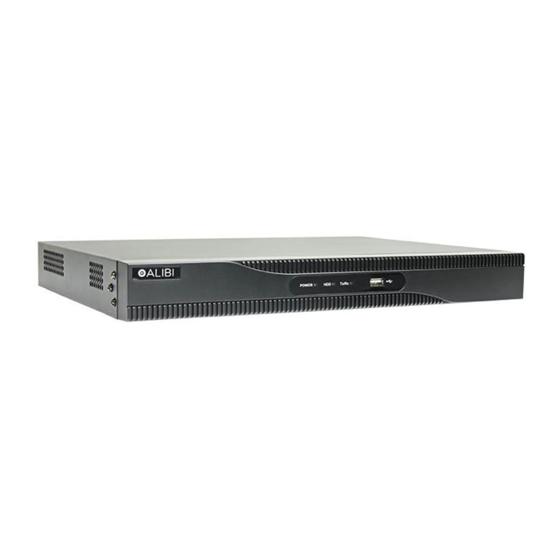

ALI-QVR4100H Series Digital Video Recorder Quick Setup Guide
This guide provides instructions to initially setup the ALI-QVR4104H (4 channel), ALI-QVR4108H (8 channel) and ALI-QVR4104H (16 channel)
digital video recorders (DVR). The DVR supports these advanced features:
Self-adaptive HD-TVI / HD-CVI / AHD / CVBS signal input
•
H.265+/H.265/H.264+/H.264 encoding
•
Supports up to 2 × 6 MP IP cameras, and 5 MP and 4 MP HD-TVI video input and live view
•
Simultaneous HDMI / VGA monitor output, CVBS output
•
4/8/16-channel synchronous playback
•
Supports VCA (Video Content Analytics) events for both analog and smart IP cameras, plus video quality diagnostics
•
DDNS and Guarding Vision P2P remote connectivity
•
For more information, refer to these documents - available at http://www.alibisecurity.com/resources.html:
ALIBI Embedded Digital Video Recorder Firmware V3.4.x User Manual
•
ALIBI™ Tools Utility Installation and User Manual
•
ALIBI™ Witness 2.0 Smartphone App - Quick Start Guide
•

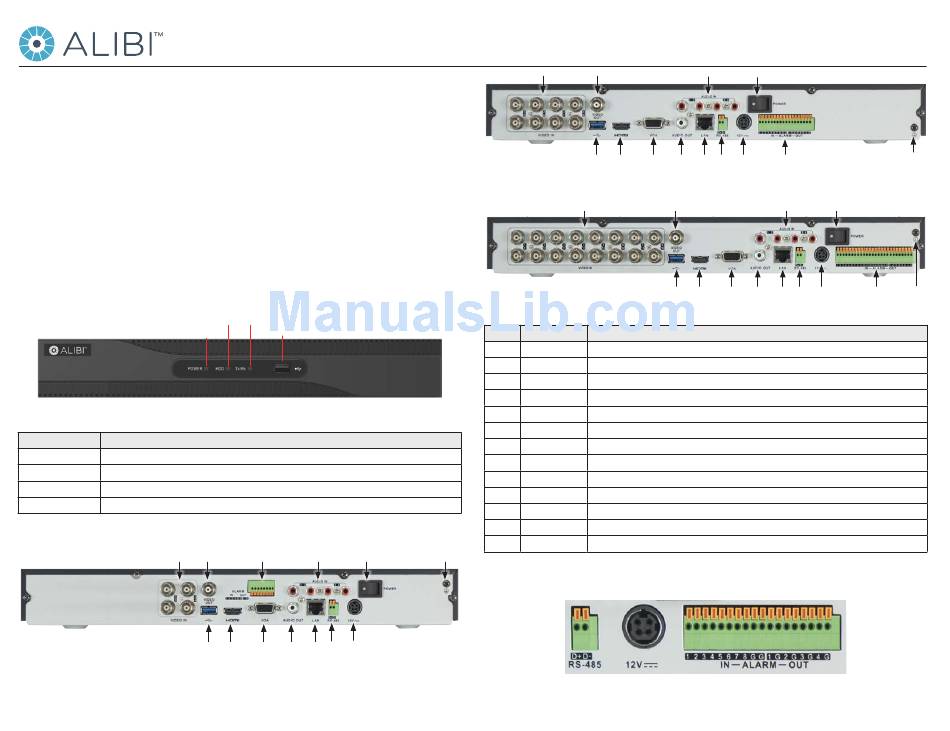

DVR Front Panel
Power LED
ALI-QVR4104H, ALI-QVR4108H, ALI-QVR4116H front panel
Item
Usage
Power LED
Indicator turns green when DVR is powered up.
Status
Indicator turns red when HDD is reading / writing.
TX / RX
Indicator blinks green when network connection is functioning properly.
USB Interface
This port can be used for a USB mouse or USB flash memory devices.
DVR Back panels
1
1
Status TX / RX
USB Interface
2
12
3
4
10
11
5
6
7
8
9
ALI-QVR4104H backpanel
1
2
5
6
1
Item
Description
1
VIDEO IN
BNC connectors for camera video channels in. Number of channels is dependent on the model of the DVR.
2
VIDEO OUT
BNC connector for CVBS video monitor
3
AUDIO IN
RCA connector for audio in cable.
4
ON / OFF switch
Switch for powering the DVR on and off
5
USB
Use for a USB mouse or USB memory device such as a flash drive or DVD burner. A USB port is also located on the front panel.
6
HDMI
Connector HDMI monitor cable.
7
VGA
Connector VGA monitor cable.
8
AUDIO OUT
RCA connector for audio out cable.
9
LAN
RJ-45 connector for Ethernet drop cable.
10
RS-485 terminations
Connector for RS-485 devices. Connect the D+ and D- terminals to T+ and T- of PTZ receiver respectively.
11
12 Vdc
Plug for 12 Vdc power adapter (provided).
12
Alarm terminations
See Alarm terminations below.
13
GND terminal
Ground terminal post.
13
Alarm terminations
RS-485, power , alarm in/out terminations for ALI-QVR4108H
3
4
7
8
9
10
11
12
ALI-QVR4108H backpanel
2
3
5
6
7
8
9
10
11
ALI-QVR4116H backpanel
13
4
12
13
ALI-QVR41xxH_SQ
170627
