Maintenance - Altronix AL300ULM Installation Manual

Unit should be tested at least once a year for the proper operation as follows:
Output Voltage Test: Under normal load conditions, the DC output voltage should be checked for proper voltage level
(Output Voltage and Stand-by Specification Charts, pg. 4).
Battery Test: Under normal load conditions check that the battery is fully charged, check specified voltage at
the battery terminals and at the board terminals marked [+ BAT-- ] to insure that there is no break in the battery
connection wires.
Note: AL300ULXB, AL400ULXB, AL600ULXB and AL1012ULXB (Power Supply Board) maximum charge
current is .7 amp.
AL1024ULXB (Power Supply Board) maximum charge current is 3.6 amp.
Expected battery life is 5 years, however it is recommended to change batteries within 4 years or less if necessary.

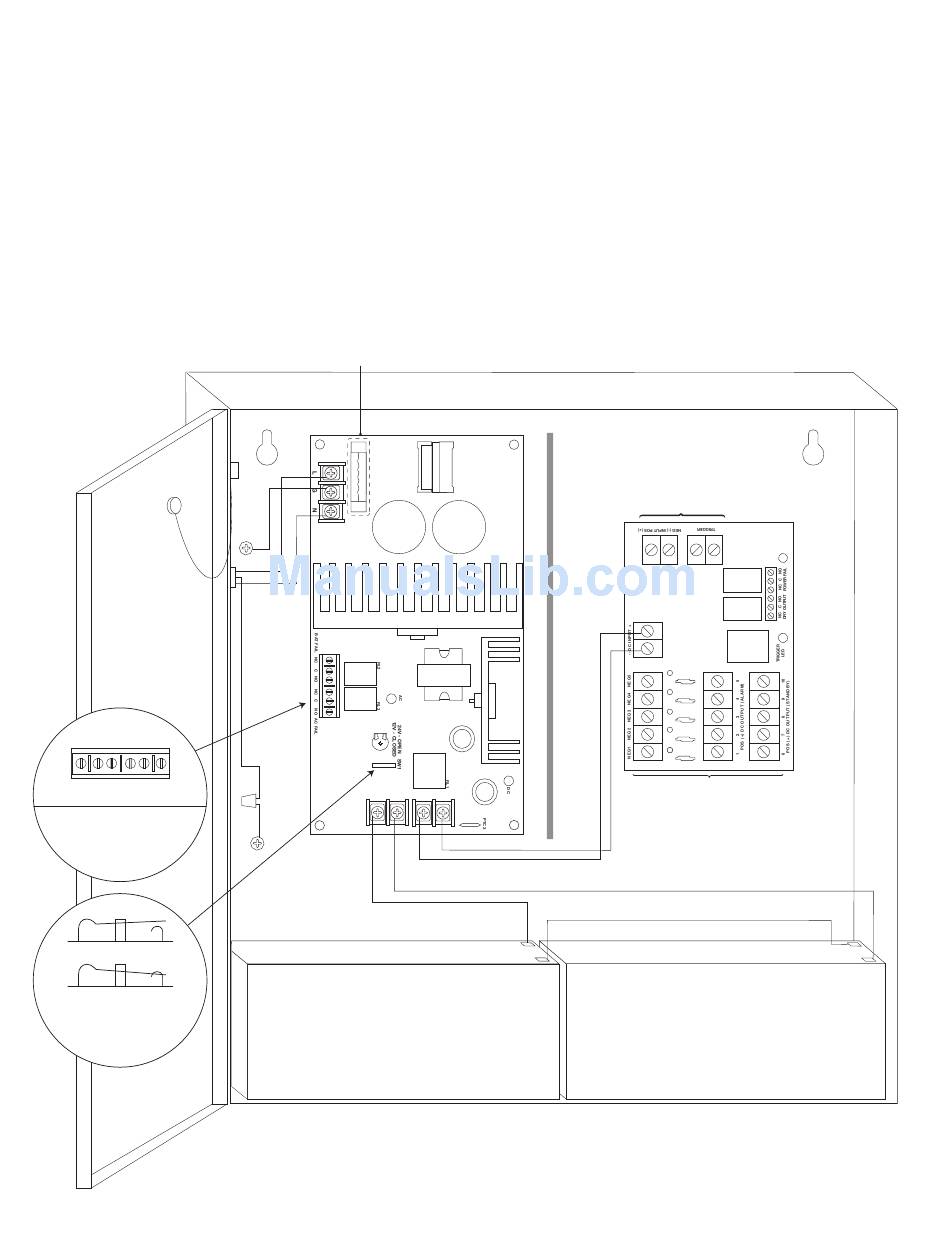

Fig. 1
AL300ULM
AL400ULM
Wire
Strap
(from
Enclosure
to Door)
Fig. 1A
BAT FAIL NC C NO NC C NO AC FAIL
Battery & AC
Supervision Circuit
(power limited)
Fig. 1B
OPEN SWITCH
CLOSED SWITCH
Switch Detail
Mseries

Maintenance:

CAUTION: De-energize unit prior to servicing. For continued protection
against risk of electric shock and fire hazard replace fuses with the same type
and rating (see marking on the board). Replace fuse cover before energizing.
Do not expose to rain or moisture.
Green
Lead
115VAC
power mains
non-power
limited
Class 1
Green
+ BAT ---
Lead
12VDC Rechargeable Battery
(optional)
CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC
stand-by battery.
Keep power limited wiring separate from non-power limited. Use minimum .25" spacing.
Divider
+
--- DC
non-power limited
Fire Alarm
Interface
Power Limited
DC Outputs to devices
(power limited)
Battery connection (non power limited)
12VDC Rechargeable Battery
(optional)
- 5 -
