Altronix AL300ULM Installation Manual page 7

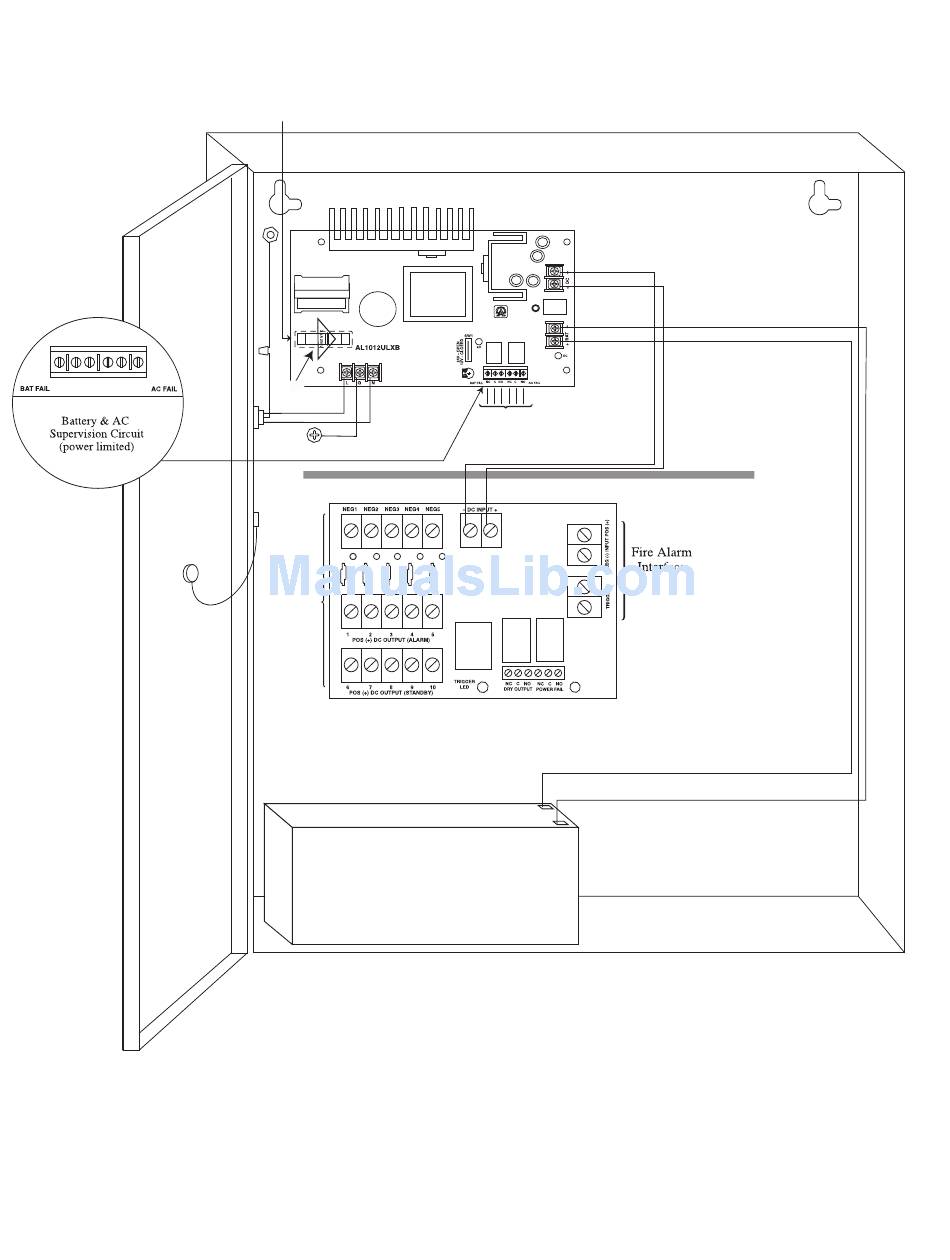

Fig. 3
AL1012ULM
Door
Fig. 3A
NC C NO NC C NO
Wire Strap
(from
Enclosure
to Door)
Mseries
CAUTION: De-energize unit prior to servicing. For continued protection
against risk of electric shock and fire hazard replace fuses with the same type
and rating (see marking on the board). Replace fuse cover before energizing.
Do not expose to rain or moisture.
Fuse
Cover
115VAC
power mains
non-power limited
Class 1
Green Lead
DC Outputs
to devices
(power limited)
12VDC Rechargeable Battery
(optional)
Keep power limited wiring separate from non-power limited. Use minimum .25" spacing.
Battery and AC
Supervision Circuit
(power limited).
Power
Limited
Battery connection (non power limited)
Divider
- 7 -
