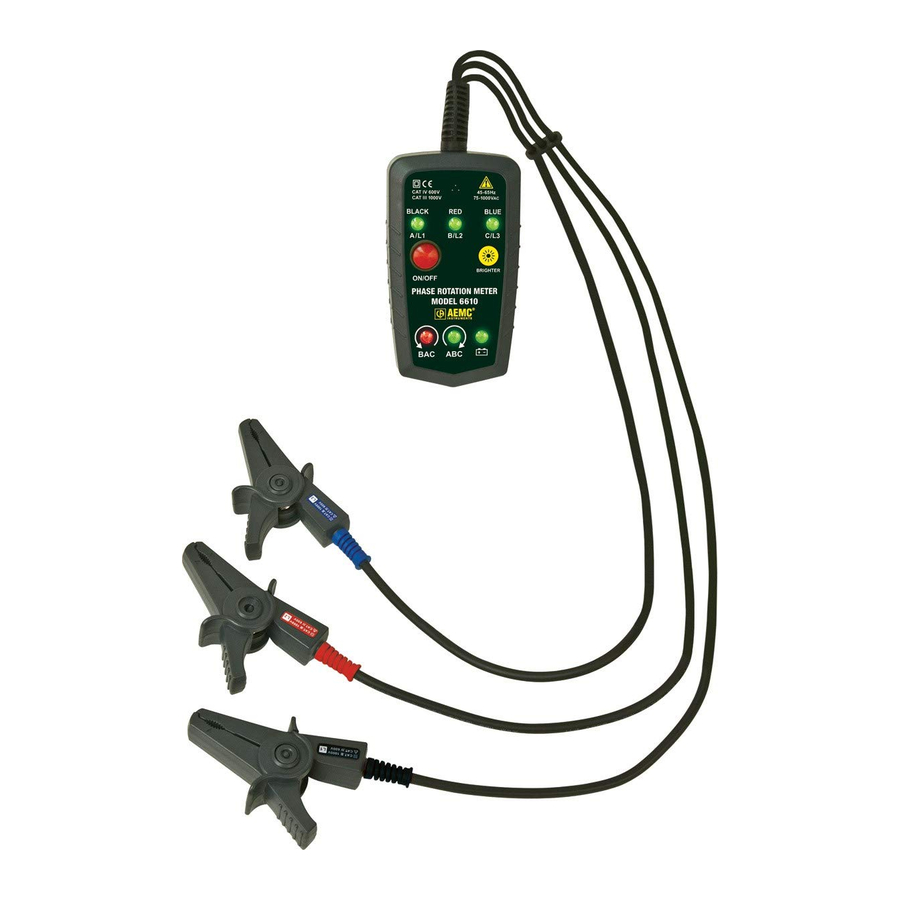

AEMC 6610 User Manual

Phase rotation meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

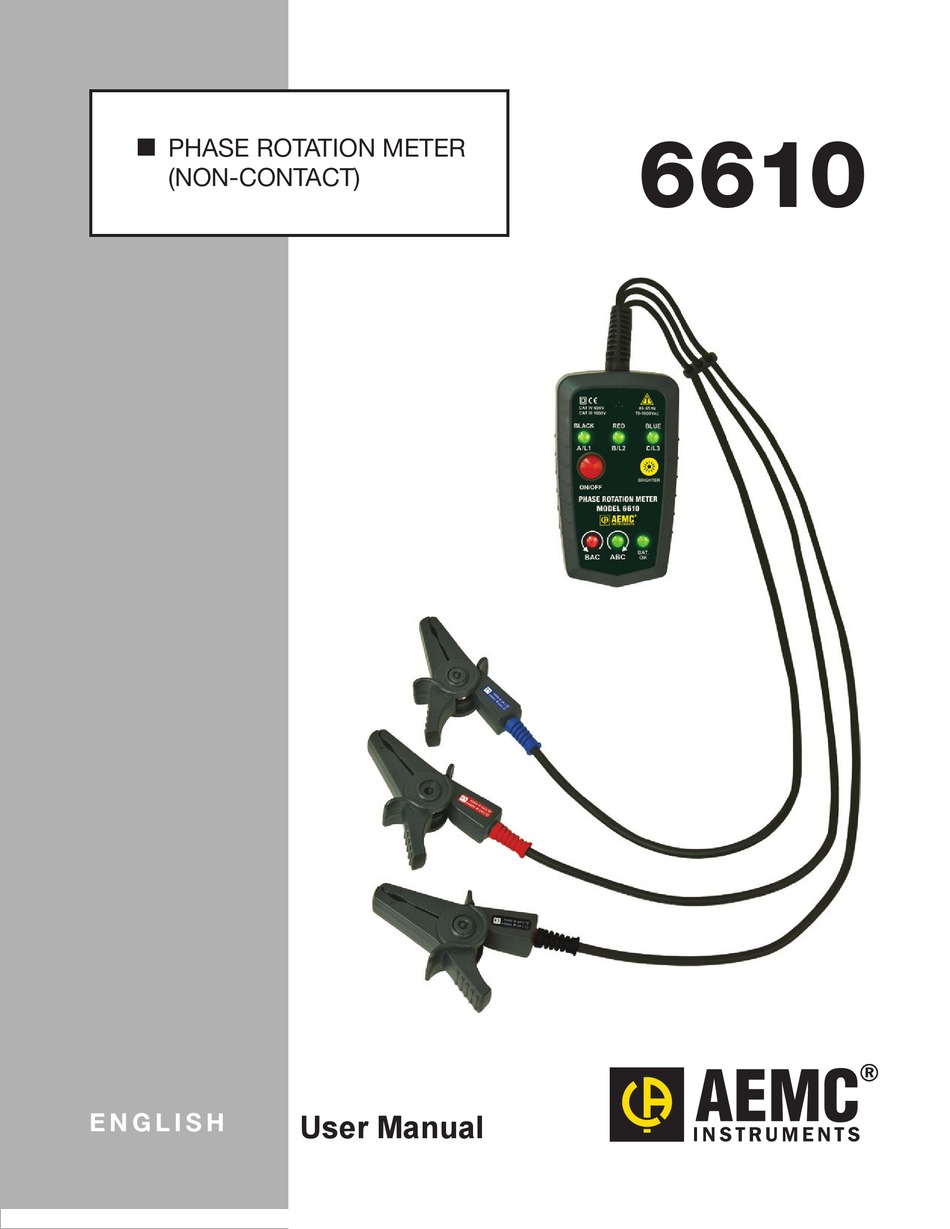

6610
PHASE ROTATION METER
(NON-CONTACT)
User Manual
E N G L I S H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AEMC 6610

Summary of Contents for AEMC 6610

  • Page 1 6610 PHASE ROTATION METER  (NON-CONTACT) User Manual E N G L I S H...
  • Page 2 The recommended verification interval for this instrument is 12 months and begins on the date of receipt by the customer. For verification, please use our calibration services. Refer to our repair and calibration section at www.aemc.com. Serial #: ______________________________ Catalog #: 2121.12 Model #:...

  • Page 3: Table Of Contents

    2.2 Features .................5 2.3 Applications ................5 2.4 Control Features ..............6 3. OPERATION 3.1 Making Measurements ............7 3.2 Live Wire Check ..............9 4. MAINTENANCE 4.1 Replacing the Battery ............10 4.2 Cleaning ................10 5. SPECIFICATIONS Repair and Calibration ..............12 Technical and Sales Assistance ...........12 Limited Warranty ................13 Warranty Repairs ................13 Phase Rotation Meter Model 6610...

  • Page 4: Introduction

    • Exercise extreme caution when measuring voltage >50V and current >10mA. • Never open the battery compartment while measuring. • Do not operate in a manner not specified or the instrument’s protec- tion may be impaired. Phase Rotation Meter Model 6610...

  • Page 5: International Electrical Symbols

    CAT IV: For measurements performed at the primary electrical supply (<1000V) such as on primary overcurrent protection devices, ripple control units, or meters. Phase Rotation Meter Model 6610...

  • Page 6: Receiving Your Shipment

    Save the damaged packing container to substantiate your claim. Ordering Information Phase Rotation Meter Model 6610 ........Cat. #2121.12 Includes meter with attached test leads (black, red and blue) with large alligator clips, soft carrying case, one 9V battery and user manual.

  • Page 7: Product Features

    CHAPTER 2 PRODUCT FEATURES Description The Phase Rotation Meter Model 6610 is an essential tool for any instal- lation, inspection and maintenance facility. The Model 6610 is designed to identify phase rotation on 3-phase systems and identify live and open/de-energized phases. The phase order is determined as soon as the leads are connected.

  • Page 8: Applications

    A /L1 B/L2 C/L3 BRIGHTER ON/OFF PHASE ROTATION METER MODEL 6610 BAT. 1. Live/ Open LED phase indicators 2. ON/OFF power button 3. LED brightness button 4. Phase sequence LEDs 5. Battery LED (flashes if low) Phase Rotation Meter Model 6610...

  • Page 9: Operation

    Do not use the instrument if any of the LEDs do not function properly. 2. Position the clamp on each conductor to be measured so that the point of the triangle mark “▼” on each jaw of the measurement clip is centered on each measured conductor. Phase Rotation Meter Model 6610...
  • Page 10 6. A, B and C LEDs are always lit up when the instrument detects a live phase. 7. ABC Green LED ON = correct phase sequence BAC Red LED ON = incorrect phase sequence 8. The maximum cable diameter that the measurement clips can connect to is 1.18 inches (30mm). Phase Rotation Meter Model 6610...

  • Page 11: Live Wire Check

    A, B, C LEDs ON = Indicates a live phase. LEDs OFF = Indicates an open or de-energized phase. Detection Indicators Green ABC LED ON = Correct phase sequence. Red BAC LED ON = Incorrect phase sequence. Phase Rotation Meter Model 6610...

  • Page 12: Maintenance

    CHAPTER 4 MAINTENANCE Use only factory specified replacement parts. AEMC will not be held ® responsible for any accident, incident, or malfunction following a repair done other than by its service center or by an approved repair center. Disconnect the instrument from any electrical source before replacing the battery or cleaning the instrument.

  • Page 13: Specifications

    14° to 122°F (-10°C to 50°C) Storage Temperature -4° to 140°F (-20° to 60°C) Humidity 80% RH SAFETY IEC61010-1; 1000V CAT III; Safety Rating 600V CAT IV; EN61326-1 CE Mark Specifications are subject to change without notice Phase Rotation Meter Model 6610...

  • Page 14: Repair And Calibration

    , Inc. d.b.a. AEMC Instruments ® ® 200 Foxborough Boulevard Foxborough, MA 02035 USA Phone: (800) 343-1391 (508) 698-2115 Fax: (508) 698-2118 E-mail: techsupport@aemc.com www.aemc.com NOTE: Do not ship Instruments to our Foxborough, MA address. Phase Rotation Meter Model 6610...

  • Page 15: Limited Warranty

    Limited Warranty The Phase Rotation Meter Model 6610 is warranted to the owner for a period of one year from the date of original purchase against defects in manufacture. This limited warranty is given by AEMC Instruments, not by the distributor from whom ®...
  • Page 16 10/15 99-MAN 100375 v5 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
