Summary of Contents for AEMC 6550

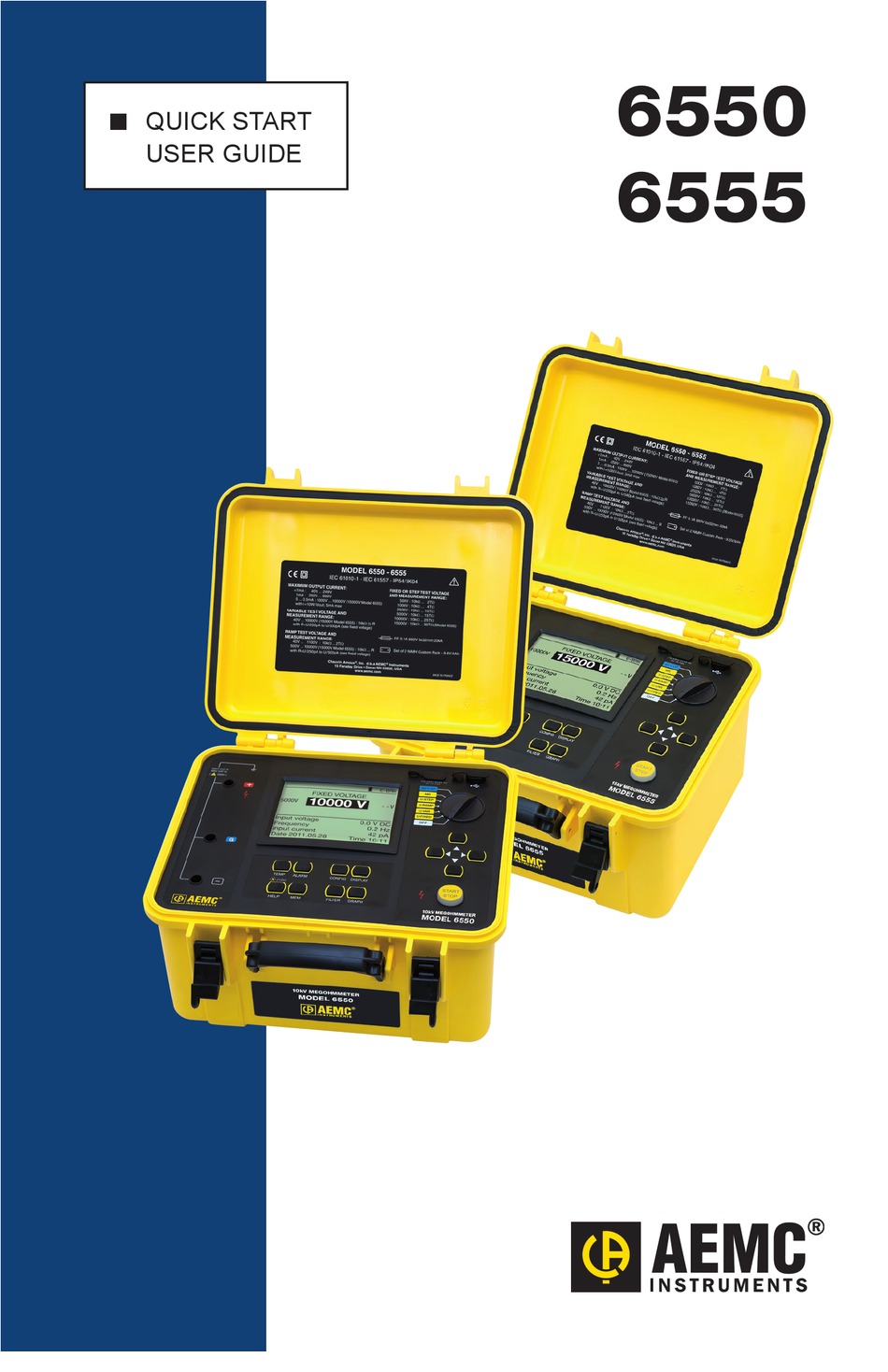

  • Page 1 6550 QUICK START  USER GUIDE 6555...
  • Page 2: Statement Of Compliance

    12 months and begins on the date of receipt by the customer. For recalibration, please use our calibration services. Refer to our repair and calibration section at www.aemc.com. Serial #: ________________________________ Catalog #: 2130.31 / 2130.32 Model #:...
  • Page 3: Product Packaging

    4 GB USB Stick (DataView /User Manual) ® • 2x9.6V NiMH batteries (Cat. #2140.19 each) USB STICK: DataView software and complete user manual for the Model 6550 ® & 6555 can be located on the USB stick supplied with the instrument.
  • Page 4 Thank you for purchasing a Megohmmeter Model 6550/6555. For best results from your instrument and for your safety, read the enclosed operating instructions carefully and comply with the precautions for use. These products must be only used by qualified and trained users.
  • Page 5: Precautions Before Use

    Precautions Before Use This instrument and its accessories comply with safety standards IEC 61010-1, IEC 61010- 031, and IEC 61010-2-030 for voltages of 1000V in Category IV at an altitude of less than 2000m, indoors, with a degree of pollution of not more than 2. Failure to observe the safety instructions may result in electric shock, fire, explosion, and destruction of the instrument and of the installations.
  • Page 6: Charging The Battery

    Charging the Battery Fully charge the battery before the first use. Charging must be conducted at a temperature between 32° and 86°F (0° and 30°C). The batteries automatically begin recharging when the instrument is connected to AC power. Only use the supplied AC power adapter to recharge the batteries. NOTE: A full recharge of a completely discharged battery takes 6 to 10 hrs approx.
  • Page 7: Button Functions

    Button Functions ICON DESCRIPTION Enters temperature and humidity information and calculate temperature TEMP corrected resistance Enables/Disables the alarms ALARM Displays Help information; Enables/Disables the backlighting of the display HELP / Stores the measurements Configuration of the measurement parameters CONFIG DISPLAY Switch between screens FILTER Smoothing of the measurements...
  • Page 8: Instrument Configuration (Set-Up)

    ® program. NOTE: For more information on using DataView , refer to the Model 6550 & 6555 user manual ® that is supplied on the USB stick or the Help file within the software. Updating Software & Firmware Free software and firmware updates are available on our website: www.aemc.com DataView can also be updated by selecting “Update”...
  • Page 9: Repair And Calibration

    Please write the CSA# on the outside of the shipping container. If the instrument is returned for calibration, we need to know if you want a standard calibration, or a calibration traceable to N.I.S.T. (Includes calibration certificate plus recorded calibration data). Ship To: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive...
  • Page 10: Limited Warranty

    Limited Warranty The Model 6550 & 6555 is warranted to the owner for a period of one year from the date of original purchase against defects in manufacture. This limited warranty is given by AEMC ® Instruments, not by the distributor from whom it was purchased. This warranty is void if the...
  • Page 12 11/13 99-MAN 100399 v1 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
