Disassembling Procedure - Sharp AH-N45DP2 Service Manual

Split system room air conditioners, indoor / outdoor units
Hide thumbs

Advertisement

AH-N45DP2
AU-N45DP2
AH-N56DP2
AU-N56DP2
FOR INDOOR UNIT MODEL [AH-N45DP2 / AH-N56DP2]
CAUTION:DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY SERVICING
1.

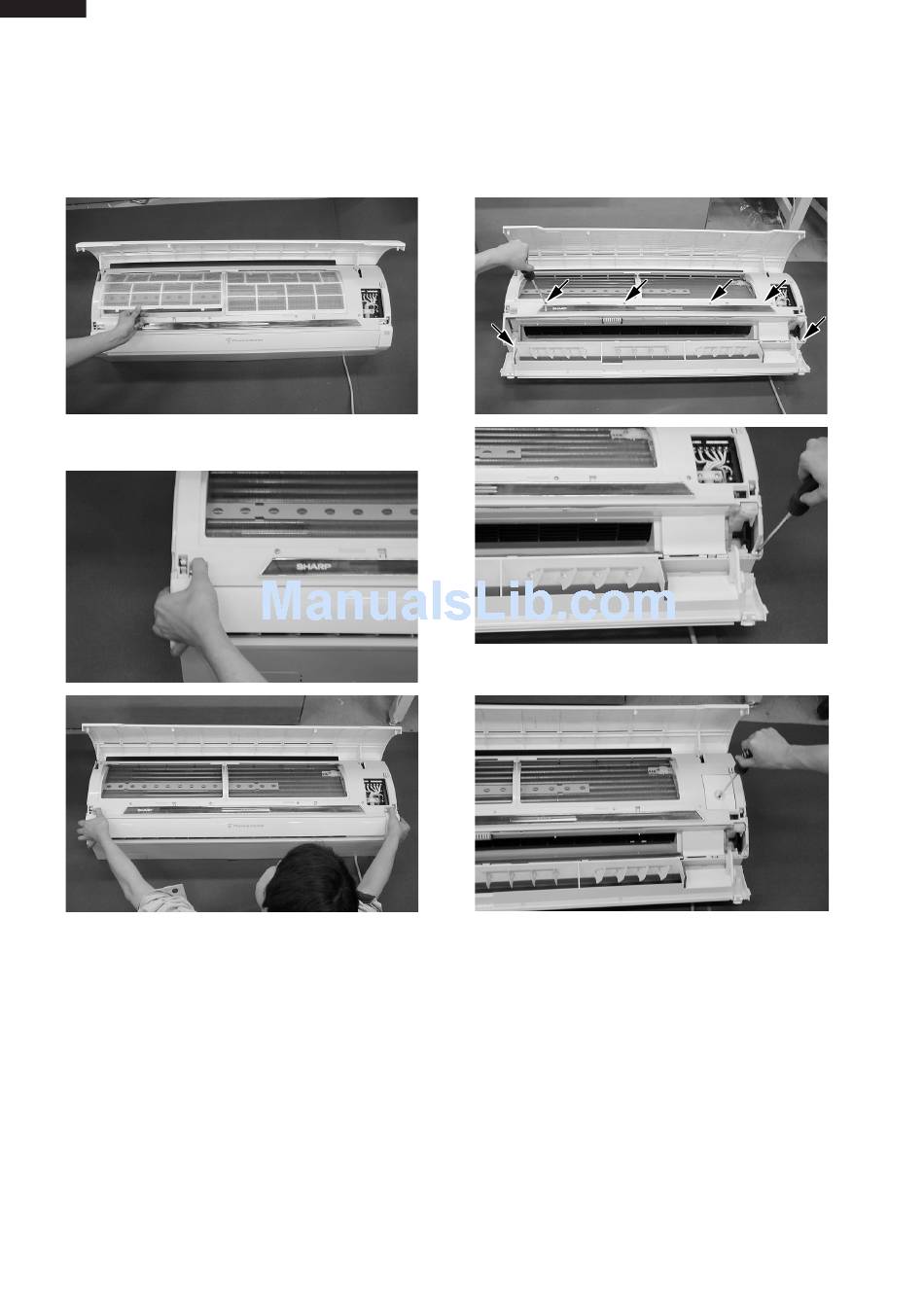

Open the Opne panel, remove 2 Air Filters.
2.
Open the Louver frame.unlook the hooks,and pull
the unit.

DISASSEMBLING PROCEDURE

3.
4.
22
Remove 6 screws fixing the Front panel.
Remove the screw fixing the Cord holder.
