Baileigh STS-14120DRO Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

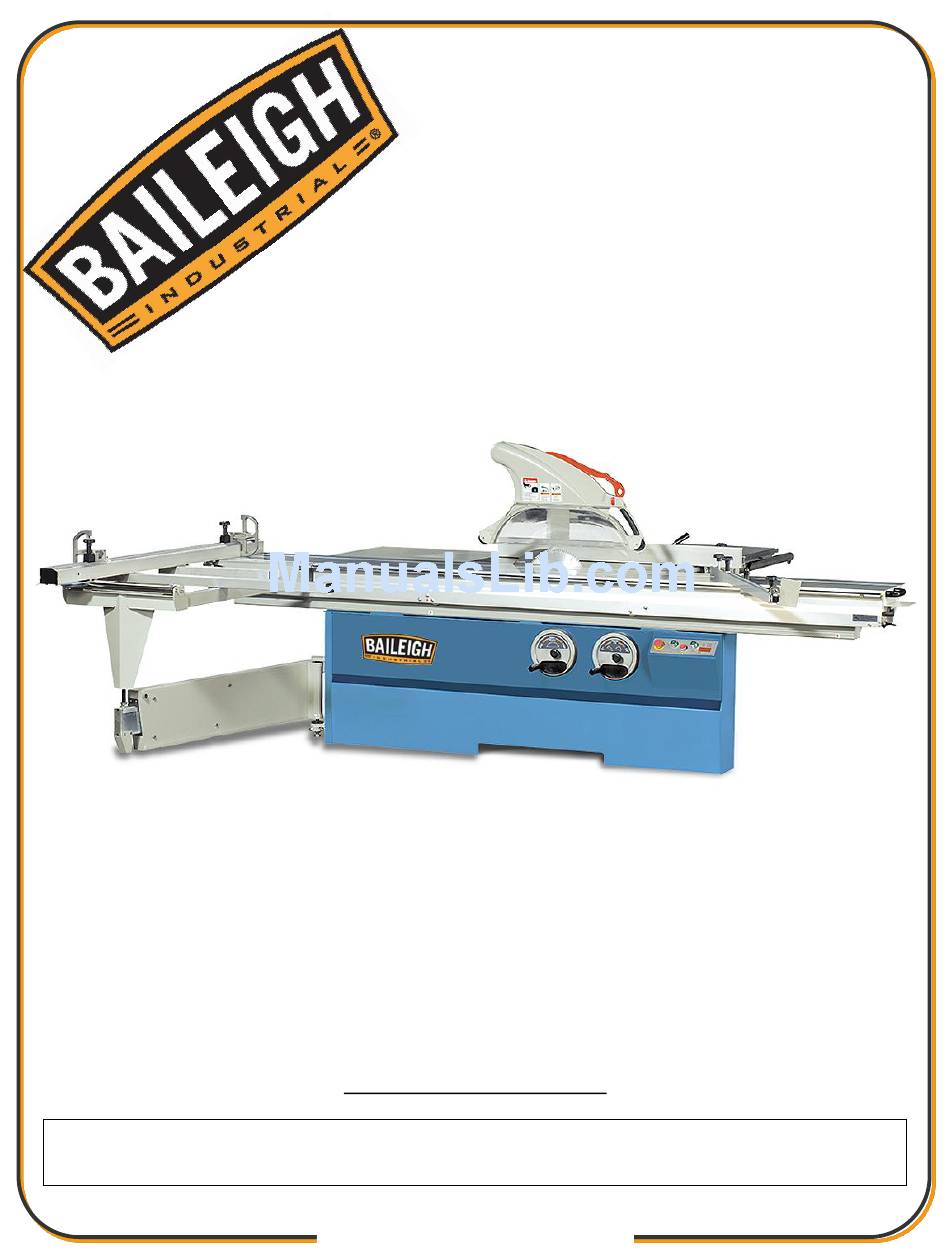

OPERATOR'S
MANUAL
SLIDING TABLE SAW
MODEL: STS-14120DRO
Baileigh Industrial, Inc.
P.O. Box 531
Manitowoc, WI 54221-0531
Phone: 920.684.4990
Fax: 920.684.3944
sales@baileighindustrial.com
REPRODUCTION OF THIS MANUAL IN ANY FORM WITHOUT WRITTEN APPROVAL OF BAILEIGH INDUSTRIAL, INC.
IS PROHIBITED. Baileigh Industrial, Inc. does not assume and hereby disclaims any liability for any damage or loss
caused by an omission or error in this Operator's Manual, resulting from accident, negligence, or other occurence.
Rev. 1/2013
© 2013 Baileigh Industrial, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STS-14120DRO and is the answer not in the manual?

Questions and answers

Related Manuals for Baileigh STS-14120DRO

Summary of Contents for Baileigh STS-14120DRO

  • Page 1 REPRODUCTION OF THIS MANUAL IN ANY FORM WITHOUT WRITTEN APPROVAL OF BAILEIGH INDUSTRIAL, INC. IS PROHIBITED. Baileigh Industrial, Inc. does not assume and hereby disclaims any liability for any damage or loss caused by an omission or error in this Operator’s Manual, resulting from accident, negligence, or other occurence.

  • Page 2: Table Of Contents

    Table of Contents THANK YOU & WARRANTY ..................1 INTRODUCTION ......................3 GENERAL NOTES......................3 SAFETY INSTRUCTIONS ....................4 SAFETY PRECAUTIONS ....................6 MACHINE NOISE ......................10 SPECIFICATIONS ......................11 Cutting Depths ......................12 Cutting Lenghts ......................12 Machine Weight ......................12 TECHNICAL SUPPORT ....................
  • Page 3 OPERATION OVERVIEW ..................... 44 OPERATIONAL SAFETY CHECK ................45 Emergency Stop Switch Check ................. 45 Safety Connection Switch Check ................45 Brake Check ......................45 CONTROL PANEL OPERATION ................46 CORRECTING CURRENT DIMENSION ..............47 SETTING PARAMETER ....................48 M-10-e CONTROLLER INTRODUCTION ..............49 Specifications: ......................
  • Page 4 Crosscut Table Parts List ..................97 EXTENSION TABLE PARTS DIAGRAM ..............98 Extension Table Parts List ..................98 RIP FENCE PARTS DIAGRAM ..................99 Rip Fence Parts List ....................100 RIP FENCE DIGITAL DISPLAY PARTS DIAGRAM ........... 101 Rip Fence Digital Display Parts List ................. 102 CROSSCUT FENCE TWO DIGITAL DISPLAY PARTS DIAGRAM ......

  • Page 5: Thank You & Warranty

    THANK YOU & WARRANTY Thank you for your purchase of a machine from Baileigh Industrial. We hope that you find it productive and useful to you for a long time to come. Inspection & Acceptance. Buyer shall inspect all Goods within ten (10) days after receipt thereof. Buyer’s payment shall constitute final acceptance of the Goods and shall act as a waiver of the Buyer’s rights to inspect or...
  • Page 6 Baileigh Industrial makes every effort to ensure that our posted specifications, images, pricing and product availability are as correct and timely as possible. We apologize for any discrepancies that may occur. Baileigh Industrial reserves the right to make any and all changes deemed necessary in the course of business including but not limited to pricing, product specifications, quantities, and product availability.

  • Page 7: Introduction

    After receiving your equipment remove the protective container. Do a complete visual inspection, and if damage is noted, photograph it for insurance claims and contact your carrier at once, requesting inspection. Also contact Baileigh Industrial and inform them of the unexpected occurrence. Temporarily suspend installation.

  • Page 8: Safety Instructions

    IMPORTANT PLEASE READ THIS OPERATORS MANUAL CAREFULLY It contains important safety information, instructions, and necessary operating procedures. The continual observance of these procedures will help increase your production and extend the life of the equipment. SAFETY INSTRUCTIONS LEARN TO RECOGNIZE SAFETY INFORMATION This is the safety alert symbol.
  • Page 9 SAVE THESE INSTRUCTIONS. Refer to them often and use them to instruct others. PROTECT EYES Wear safety glasses or suitable eye protection when working on or around machinery. DUST HAZARD Wear appropriate dust mask. Dust created while using machinery can cause cancer, birth defects, and long term respiratory damage.

  • Page 10: Safety Precautions

    PROTECT AGAINST NOISE Prolonged exposure to loud noise can cause impairment or loss of hearing. Wear suitable hearing protective devices such as ear muffs or earplugs to protect against objectionable or uncomfortable loud noises. HIGH VOLTAGE USE CAUTION IN HIGH VOLTAGE AREAS. DO NOT assume the power to be off.
  • Page 11 SAFETY PRECAUTIONS (cont.) Kickback. Kickback happens when the piece part is thrown back toward the operator at a high rate of speed. Before operating this saw, understand how kickback occurs, and how to prevent it. Reaching Over Saw Blade. NEVER reach behind or over the blade with either hand while the saw is operating.
  • Page 12 SAFETY PRECAUTIONS (cont.) Stay alert. Watch what you are doing and use common sense. DO NOT operate any tool or machine when you are tired. Check for damaged parts. Before using any tool or machine, carefully check any part that appears damaged.
  • Page 13 SAFETY PRECAUTIONS (cont.) Never leave machine running unattended. TURN POWER OFF. Don’t leave machine until it comes to a complete stop. Make sure machine is disconnected from power supply while motor is being mounted, connected or reconnected. Saw Appropriate Material. Only use this saw for natural wood stock and wood stock products such as particle board, plastics, laminates, and medium-density fiber board (MDF).

  • Page 14: Machine Noise

    MACHINE NOISE DECLARED NOISE EMISSION VALUES in accordance with ISO 7960. Idling Operating Declared A-weighted Sound Power Level Lward, in dB re 1 pW. Declared A-weighted Emission Sound Pressure Level, lpAd, in dB re 20 μPa, at the operator’s position. Values determined according to specific test code ISO 3746.

  • Page 15: Specifications

    SPECIFICATIONS 22.4” x 39.3” (570 x 1000mm) Cast Iron Fixed Table Dimension 15” x 102.3” (380 x 2600mm) Sliding Table Dimension 12” (305mm) Main Saw Blade Ø 14” (355mm) optional Main Saw Blade Ø Maximum 1” (25.4mm) Main Saw Bore 4.1”...

  • Page 16: Cutting Depths

    Cutting Depths 12” (305mm) 14” (355mm) Saw Blade Diameter 10" (225mm) 0 ~ 2.16” (0 ~ 55mm) 0 ~ 3.15” (0 ~ 80mm) 0 ~ 4.13” (0 ~ 105mm) Cutting Depths At 90° 0 ~ 1.5” (0 ~ 38mm) 0 ~ 2.2” (0 ~ 56mm) 0 ~ 2.87”...

  • Page 17: Riving Knife Specification

    RIVING KNIFE SPECIFICATION WARNING: Before setting the riving knife, verify that it matches the saw blade diameter and body thickness. Always disconnect power at the mainpower switch prior to setting the riving knife to prevent unintended machine start up. A: Main Saw Diameter Range. B: Riving Knife Depth.

  • Page 18: Transporting And Lifting

    TRANSPORTING AND LIFTING CAUTION: Lifting and carrying operations should be carried out by skilled workers, such as a truck operator, crane operator, etc. If a crane is used to lift the machine, attach the lifting chain carefully, making sure the machine is well balanced. Choose a location that will keep the machine free from vibration and dust from other machinery.
  • Page 19 Use Lift Truck To Transport Machine  The lift truck must be able to lift at least 1.5 – 2 times the machines gross weight.  Make sure the machine is balanced. While transporting, avoid rough or jerky motion, and maintain at least 6 ft.

  • Page 20: Installation

    INSTALLATION IMPORTANT: Consider the following when looking for a suitable location to place the machine:  Overall weight of the machine.  Weight of material being processed.  Sizes of material to be processed through the machine.  Space needed for auxiliary stands, work tables, or other machinery. ...

  • Page 21: Clearance Dimensions

    Clearance Dimensions 126” (3200mm) 33.5” (850mm) 59” (1500mm) 68” (1725mm) 71.75” (1820mm) 127” (3230mm) maximum 138.75” (3525mm) 136.5” (3470mm)

  • Page 22: Unpacking

    UNPACKING Remove saw from the shipping cartons. Check for damage and ensure all parts are intact. Any damage should be reported immediately to your distributor and shipping agent. Before assembling, read the manual thoroughly, familiarizing yourself with correct assembly and maintenance procedures and proper safety precautions.

  • Page 23: Intended Use

    INTENDED USE Table saw and the workpiece guide equipment supplied with it are intended to be used exclusively for the following purposes:  Laminated and unlaminated board materials (e.g. chipboard, coreboard, MDF board, ...)  Solid wood  Gypsum plasterboard, Cardboard, Veneer with a suitable clamping device. ...

  • Page 24: Getting To Know Your Machine

    GETTING TO KNOW YOUR MACHINE A B C Not only reduce dust produced by chips while Dust Guard cutting, but also warning the operator where the saw-blade position. Main Table Main working table. Rip Fence Reference positioning while ripping. Sliding Table Table for main feeding while cutting.

  • Page 25: Assembly

    ASSEMBLY WARNING: For your own safety, DO NOT connect the machine to the power source until the machine is completely assembled and you read and understand the entire instruction manual. Note Due to the size and weight of many of the saws components, the assembly of the complete saw will require the use of from 4 –...

  • Page 26: Sliding Table Installation

    SLIDING TABLE INSTALLATION The sliding table was installed and adjusted for parallelism at the factory. DO NOT change or damage the the adjusting bolts (A) during installation of the sliding table. Clean the rust preventative off of the contact surfaces (B) for the main cabinet and the sliding table (Total 3 contact surfaces).
  • Page 27 Check the parallelism of the sliding table to the main table. If the sliding table is parallel to the main table and has a maximum gap of 12mm between the tables and 3mm to the spindle face, final tighten the 3 mounting bolts verifying that the table does not move.
  • Page 28 Install the table lock (E) onto the right end of the sliding table using the M6 x 20 screw, washer, and M6 nut (F). The lock can fasten the sliding table in the middle and the end positions. Before the sliding table is moved, make sure the safety lock is unlocked.

  • Page 29: Width Cutting Extension Table Installation

    WIDTH CUTTING EXTENSION TABLE INSTALLATION Locate the two extension table supports. Remove the 4 cabinet mounting bolts (A) from the back of the main cabinet and install the supports with the leveling bolt (B) up and the adjustment opening toward the outside. Tighten the cabinet mounting bolts (A) enough to hold the supports stable but allow a little movement for alignment of the leveling bolt locating bolts (D) to...

  • Page 30: Crosscut Table Assembly

    CROSSCUT TABLE ASSEMBLY Lubricate the pivot pin (A) with light grease and place the stand end of the crosscut table onto the pivot pin. Lift and hold the lock handle (B) so that it is pointing straight up. Place the slide end of the crosscut table on the on the slide rod (C) of the sliding table.

  • Page 31: Crosscut Fence Assembly

    CROSSCUT FENCE ASSEMBLY The crosscut fence may be mounted in either the near or far set of mountings points on the crosscut table, or it may be removed from the table. This instruction specifically installs the crosscut fence in the far set of mounting points and uses the near set as indicators.

  • Page 32: Crosscut Fence Scale Adjustment

    If there is a gap at any point, adjust the outboard crosscut fence mounting cam to square the fence to the blade. Loosen the two retaining set screws (A) and adjust the cam adjustment bolt (B) to square the fence. When the fence is square, hold the cam in position and evenly tighten the two retaining set screws and lock in place with the jam nuts.

  • Page 33: Rip Fence Assembly

    RIP FENCE ASSEMBLY Install the screw on the round rod into the right side of the working table, put into the rip fence base, adjust three nuts on the round rod to make rip fence parallel to the saw blade. Use the gauge to measure the parallelism of the rip fence and the main saw blade.

  • Page 34: Rip Fence Adjustment

    Rip Fence Adjustment After the rip fence is moved, if the moving size and the target size have slight difference, the following is the operating way of the micro-knob: Pull the handle (A) upwards and move the rip fence to near the target size. Loosen knob (B).

  • Page 35: Miter Fence Assemble

    MITER FENCE ASSEMBLE Loosen the miter fence slide block clamp handle (A) a few turns. From the right end of the slide table, place the miter fence slide block over the round slide rod (B) on the front of the sliding table and slide it onto the table until it is over the angle scale.

  • Page 36: Dust Guard And Support Assembly

    DUST GUARD AND SUPPORT ASSEMBLY Before the machine is used to cut workpiece, make sure the dust collector work normally. Note: The required air speed at the end of flexible tube is 30 ~ 34m/sec. The required air volume of the machine is 1220 ~ 1390 m³/hr. (43,000~49,000 cu. ft./hr.). Note: Use antistatic and electrically conductive hoses only.

  • Page 37: Adjust Safety Guard

    ADJUST SAFETY GUARD Move the saw guard up or down slightly by hand. Adjust how tight the up/down movement of the saw guagr in by adjusting the bolt shown. This adjustment will loosen over time and must be adjusted at least tight enough to prevent the saw guard from moving when unintended.

  • Page 38: Change Safety Guard

    CHANGE SAFETY GUARD Disconnect and lockout power to the saw! Lower the saw blade fully under the saw table. Push up on the saw guard lock button to loosen the saw blade shield and move backward to remove. Fig. 1 Fig.2 Note: While cutting workpiece: At 90°...

  • Page 39: Riving Knife Adjustment

    RIVING KNIFE ADJUSTMENT Disconnect and lockout power to the saw! Open the saw blade guard. Loosen the retaining screw (A) on the riving knife base just enough to allow the riving knife to move. Adjust the 3 set screws (B) at the sides of the retaining screws as the projected place shown in the above drawing.

  • Page 40: Change Main Saw Blade

    CHANGE MAIN SAW BLADE WARNING: Blades are dangerously sharp. Use extreme caution when working with or around the blade. Wear proper safety protection such as heavy gloves. WARNING: Turn the power switch “OFF” and unplug the power cord from its power source when changing the saw blade. When replacing blades, check the thickness stamped onto the riving knife.
  • Page 41 Raise the main saw blade to the highest position. Turn the saw blade until the fixing pin is inserted into the spindle fixing hole. Loosen the nut (clockwise), clean the flange and new saw blade and then install them onto the spindle.

  • Page 42: Change Spindle Rotating Speed

    CHANGE SPINDLE ROTATING SPEED Disconnect and lockout power to the saw! Lower the main saw blade to the bottom position. Open the service door at the back of the machine, loosen the adjusting handle (A), press down on handle (B) to raise the motor. Main Blade Speed Lift the rotating speed knob upwards.

  • Page 43: Main Saw Height And Tilting Adjustment

    MAIN SAW HEIGHT AND TILTING ADJUSTMENT Hand wheel operation A. Hand wheel for main saw blade height adjustment. The arrow direction (Counterclockwise) is down. Clockwise is up. B. Hand wheel for main saw blade tilting adjustment. The arrow direction (Clockwise) increases the tilt angle. Counterclockwise decreases the tilting angle.

  • Page 44: Change Scoring Saw Blade

    CHANGE SCORING SAW BLADE WARNING: Blades are dangerously sharp. Use extreme caution when working with or around the blade. Wear proper safety protection such as heavy gloves. Turn the power switch “OFF” and unplug the power cord from its power source when changing the saw blade.

  • Page 45: Electrical

    ELECTRICAL CAUTION: HAVE ELECTRICAL UTILITIES CONNECTED TO MACHINE BY A CERTIFIED ELECTRICIAN! Check if the available power supply is the same as listed on the machine nameplate. WARNING: Make sure the grounding wire (green) is properly connected to avoid electric shock. DO NOT switch the position of the green grounding wire if any electrical plug wires are switched during hookup.

  • Page 46: Electrical Enclosure

    Electrical Enclosure Disconnect and lockout power to the saw! Use the specific key tools enclosed to unlock the electrical enclosure door. Notes for wiring: Power input: AC5V and AC12V / 50~60HZ. Signal input: Standard proximity sensor or encoder A, B phase signal (DC12V). Unit of measurement: Degrees.

  • Page 47: Power Supply Connection

    Power Supply Connection Verify that the voltage of the machine conforms to your company's power. Use the specific tool to open the power controlling box to connect power. Connect three power wires to terminal L1(R), L2(S), L3(T) as shown in the Fig. 1 and Fig. 3. Connect the earth wire (green-yellow) to PE terminal.

  • Page 48: Operation Overview

    OPERATION OVERVIEW Safety Precautions Before Operations The operation of power tools involves a certain amount of hazard for the operator. Before attempting regular work we recommend you get the feel of operations using scrap lumber to check settings. Read entire instructions before you start to cut workpiece. Always pay attention to safety precautions to avoid personal injury.

  • Page 49: Operational Safety Check

    Feed the workpiece all the way through the blade while maintaining firm pressure on the workpiece against the table and fence, and keeping hands and fingers out of the blade path and away from the blade. Stops the saw immediately after the cut is complete. OPERATIONAL SAFETY CHECK IMPORTANT: Perform these safety checks at least twice every week to ensure proper and secure emergency and interlock switch function.

  • Page 50: Control Panel Operation

    CONTROL PANEL OPERATION Explanation Of Main Keys Item Name Description Urgently shut down the machine’s power. Emergency stop button Main saw start button Start main saw. Scoring saw start button Start scoring saw. Saw blade stop button Stop the main saw and scoring saw. Explanation of Angle Machine's Keys Item Function...

  • Page 51: Correcting Current Dimension

    CORRECTING CURRENT DIMENSION  The figure shows 21.5 on the display. If for example, the correct position is 35.1. The following steps will change and set the correct position.

  • Page 52: Setting Parameter

    SETTING PARAMETER  The figure shows 3000 as the current parameter. If for example, the correct parameter is 4255. The following steps will change and set the new pararmeter. Notes: The operators must pay attention not to make any change. Otherwise, the controller operation may be unusual and damaged the machine.

  • Page 53: M-10-E Controller Introduction

    M-10-e CONTROLLER INTRODUCTION  Magnetic measuring  Programmable coefficient setting  The battery life: 1 year  Low battery alarm  Multifunction LCD display  Parameters stored in permanent memory  Resolution 5μm、10μm、100μm、1mm  Correct zero point  Max. gap: 2.5mm ...

  • Page 54: Abs/Rel Definition

    ABS/REL Definition ABS (absolute) REL (incremental)   Zero point: 0 mm   Zero point: 0 mm   1.000mm 1.000mm 1.000mm 2.000mm 2.000mm 4.000mm Front Panel and LCD Display...

  • Page 56: Load Datum Values (Only In Abs Mode)

    Load Datum Values (Only In ABS Mode) A. Description...
  • Page 58 B. Load Datum...
  • Page 59 C. Troubleshooting...

  • Page 60: Select Counting Direction (+/-)

    Select Counting Direction (+/-)

  • Page 62: Set Device Resolution

    Set Device Resolution...

  • Page 64: Enable And Disable Specified Parameter

    Enable and Disable Specified Parameter...

  • Page 67: Appendix A - Parameter

    Appendix A - Parameter Parameter Display Description Default Remarks Origin Load datum value Select counting direction(±) dir - - Off SETS Set tool diameter ANGULAR Enter semi diameter value SCALING Diameter / semi diameter Lin Corr Linear correction 1.00000 SETUP Fine adjustment distance Enable/disable Parameter 0000...

  • Page 68: Parameter Setting

    Parameter Setting...

  • Page 69: Installation Guide

    Installation Guide The magnetic tape consists of three components:  (A) magnetized, highly flexible synthetic tape.  Flexible steel tape. (A) and (B) are already factory-bonded.  To keep the flexibility for transport and installation, the third part (C), also a steel tape is delivered separately.
  • Page 70 Installation: Must be away from inductive and capacitive interference source as conductor, relays, engines, switch power pack clocked controllers, etc.. Must be wired separately from heavy-duty current wires. Must be kept a distance to interference sources. Ensure to apply tape on clean, dry and plain surface. For the best adhesion, please apply the tape with ambient temperature: 70-100°F.

  • Page 71: External Dimension

    External Dimension Mounting / Installation...

  • Page 72: Appendix B - Calibration

    Appendix B - Calibration A. For better accuracy, calibrate for the first time installation, or if the slider has been reinstalled. Gap: 1~2.5mm (Recommended: 1mm) Gap about 1mm...

  • Page 74: Troubleshooting

    B. Troubleshooting...

  • Page 76: Maintenance

    MAINTENANCE WARNING: Make sure the electrical disconnect is OFF before working on the machine. Maintenance should be performed on a regular basis following proper safety precautions. This table saw requires very little maintenance other than minor lubrication and cleaning. The following sections detail what will need to be done in order to assure continued operation of your saw.

  • Page 77: Lubrication

    Lubrication The table saw has sealed lubricated bearings in the motor housing and the arbor assembly, they will not require any additional lubrication. Use a wire brush to clean off the worm gears and trunnions and apply a white lithium grease to keep them lubricated. It is essential to clean components before lubricating them because dust and chips build up on lubricated components and make them hard to move.

  • Page 78: Troubleshooting

    TROUBLESHOOTING WARNING: Disconnect machine from the power source before attempting any troubleshooting. Trouble Check Cause Action Check if power AC 5V and AC 12V Input correct voltage. are normal. LED does not display If voltage is normal, that means Replace controller. controller is damaged.

  • Page 79: Main Cabinet Parts Diagram

    MAIN CABINET PARTS DIAGRAM 004 005 081 083 013 014 018 019 CE TYPE CE TYPE...
  • Page 80 073 072 072 073 021 020 061 063 044 045...

  • Page 81: Main Cabinet Parts List

    Main Cabinet Parts List Item Description Specifications Item Description Specifications 001 Body 045 Stop Pillar 002 Electron Part Box 046 Handle Wheel Φ8 003 Cap Screw M6 x 16 047 Washer 004 Control Faceplate 048 Cap Screw M8 x 16 005 Button Head Screw M4 x 8 049 Cover...
  • Page 82 Item Description Specifications Item Description Specifications Φ6 034 Countersink Head Screw M6 x 16 078 Lock Washer 035 Washer 079 Cap Screw M6 x 16 036 Thrust Bearing 51102 080 Cap Screw M4 x 10 037 Bearing Base 081 Safety Switch EK-1-15-R 038 Key 5 x 5 x 15...

  • Page 83: Support Arm Parts Diagram

    SUPPORT ARM PARTS DIAGRAM 001 002 003 025 024 007 014 012 016 016 017 011 010 002 001...

  • Page 84: Support Arm Parts List

    Support Arm Parts List Item Description Specification Button Head Screw M5 x 8 Fixed Board Clean Sheet 2.6m, 3.2m 1.9m Washer Setscrew M8 x 10 Cap Screw M8 x 16 Position Shaft Ball Bearing 6203 LLU Retain Ring STW-17 Ball Bearing 6003 ZZ Sliding Wheel Adjust Shaft...

  • Page 85: Rotary Base Parts Diagram

    ROTARY BASE PARTS DIAGRAM 007 008 CE TYPE 008 007 001 002 003 004 015 016 Electeon display 012 013 016 015 CE TYPE 024 023...

  • Page 86: Rotary Base Parts List

    Rotary Base Parts List Item Description Specification Item Description Specification Cap Screw M6 x 55 Setscrew M8 x 25 Φ6 Lock Washer Joint Bar Φ8 Washer Washer Rack Lock Nut Fixed Pole Fixed Rack Φ6 Rotary Base Washer Cap Screw M8 x 30 Cap Screw M6 x 16...

  • Page 87: Main Saw Blade Mount Parts Diagram

    MAIN SAW BLADE MOUNT PARTS DIAGRAM 015 016 017 010 018 008 009 020 021 022 024 025 026 024 037 042 043 038 039 040 041...

  • Page 88: Main Saw Blade Mount Parts List

    Main Saw Blade Mount Parts List Item Description Specification Item Description Specification Hex Head Bolt M12 x 40 8 x 7 x 20 Φ12 Lock Washer Spindle Fixed Block 8 x 7 x 32 Riving Knife (Simple) 12", 14" Button Head Screw M6 x 10 Riving Knife (Delux) 12", 14"...

  • Page 89: Main Blade Elevation And Tilt Parts Diagram

    MAIN BLADE ELEVATION AND TILT PARTS DIAGRAM 013 014 003 002 033 034 006 005 004 028 029 030 032 006 021 024 026 018 020...

  • Page 90: Main Blade Elevation And Tilt Parts List

    Main Blade Elevation and Tilt Parts List Item Description Specification Item Description Specification Hex Head Bolt M12 x 20 Gear Washer Setscrew M6 x 6 Join Block Driving Nut Fixed Base Setscrew M6 x 30 Countersink Head Screw M5 x 12 Φ6 Lock Washer Fixed Base...

  • Page 91: Scoring Saw Mounting Block Parts Diagram

    SCORING SAW MOUNTING BLOCK PARTS DIAGRAM 001 002 015 016 015 014 018 017 015 014 014 015 014 013 017 021 063 036 035 053 052 051 056 055 061 060 059 031 030 029 058 057 045 044 034 032 028 027 047 046 042...

  • Page 92: Scoring Saw Mounting Block Parts Diagram

    Scoring Saw Mounting Block Parts Diagram Item Description Specs. Item Description Specs. Control Knob 7051-42-B8 Cap Screw M8 x 30 Control Knob 7051-52-B8 Hex Nut M14 x P1.5 Fixed Block Cover Φ22 x 13t Emboss Screw 8010-25-M6-20 Cover Φ19.5 x 13t Button Head Screw M6 x 10 Cover...

  • Page 93: Main Saw Motor Parts Diagram

    MAIN SAW MOTOR PARTS DIAGRAM 033 020 034 008 009 035 036...

  • Page 94: Main Saw Motor Parts List

    Main Saw Motor Parts List Item Description Specs. Item Description Specs. Φ4 Φ10 Retain Ring Lock Washer Position Shaft Hex Nut Spring Pivot Axis Bush Spring Sheet Sensor PM08-02N-3m Hex Head Bolt M10 x 40 Cap Screw M6 x 12 Adjust Handle 95KA-M12-0 Φ6...

  • Page 95: Scoring Saw Motor Parts Diagram

    SCORING SAW MOTOR PARTS DIAGRAM 001 002 006 007 001 003 010 011 Scoring Saw Motor Parts List Item Description Specs. Item Description Specs. Hex Nut Spring Φ20 Lock Washer Pivot Axis Washer Stop Board Belt 15 x 690 x 1.8t Cap Screw M8 x 16 Φ12...

  • Page 96: Main Table Parts Diagram

    MAIN TABLE PARTS DIAGRAM 001 002 008 009 010 011 Main Table Parts List Item Description Specs. Item Description Specs. Cap Screw M8 x 20 Cap Screw M6 x 30 Protec Bar Scale Base Main Table Scale Base 1.3m Setscrew M16 x 120 Scale Base 1.5m...

  • Page 97: Sliding Table Parts Diagram

    SLIDING TABLE PARTS DIAGRAM 007 008 071 068 065 066 P-32 081 081 082 098 097...

  • Page 98: Sliding Table Parts List

    Sliding Table Parts List Item Description Specs. Item Description Specs. Sliding Table 1.9m Handle Counersink Head Sliding Table 2.6m M6 x 12 Screw Sliding Table 3.2m Retain Ring RTW-32 Scale Ball Bearing 6002 LLB Cap Screw M6 x 16 Slide Wheel Position Block Slide Wheel Shaft Button Head Screw...
  • Page 99 Item Description Specs. Item Description Specs. Cap Screw M8 x 20 Phillips Head Screw M5 x 8 Cap Screw M6 x 30 Cover Counersink Head Φ6 Washer M6 x 12 Screw Connect Block Position Block Connect Bar 1.9m Support Base 1.9m Connect Bar 2.6m...

  • Page 100: Crosscut Table Parts Diagram

    CROSSCUT TABLE PARTS DIAGRAM 001 003 017 018 001 002 019 020 011 012 028 029 029 028...

  • Page 101: Crosscut Table Parts List

    Crosscut Table Parts List Item Description Specs. Item Description Specs. Rectangle Insert Fixed Board Short Lock Bar Short Retain Ring STW-14 Fixed Base Hex Nut Hex Nut Setscrew M6 x 16 Setscrew M8 x 35 Retain RIng STW-20 Adjust Block Fixed Shaft Clamp Element Crosscut Table...

  • Page 102: Extension Table Parts Diagram

    EXTENSION TABLE PARTS DIAGRAM 005 006 008 009 005 004 008 009 Extension Table Parts List Item Description Specs. Item Description Specs. Φ6 Table Extension Normal Washer Table Extension Support Rack Hex Nut Support Rack 1.3, 1.5m Hex Head Bolt Hex Nut Φ12 Hex Head Bolt...

  • Page 103: Rip Fence Parts Diagram

    RIP FENCE PARTS DIAGRAM 007 008 005 006...

  • Page 104: Rip Fence Parts List

    Rip Fence Parts List Item Description Specs. Item Description Specs. Fixed Base Rip Fence Hex Head Bolt M8 x 40 Screw Adjust Block Guide Key Slide Wheel Fixed Ring Countersink Head Φ8 Washer M5 x 12 Screw Lock Washer Slide Rail Hex Head Bolt M6 x 16 Slide base...

  • Page 105: Rip Fence Digital Display Parts Diagram

    RIP FENCE DIGITAL DISPLAY PARTS DIAGRAM 017 018 013 014 015 016 028 029 029 028 028 030 032 033 034...

  • Page 106: Rip Fence Digital Display Parts List

    Rip Fence Digital Display Parts List Item Description Specs. Item Description Specs. Fixed Base Slide Rail Hex Head Bolt M6 x 40 Slide Rail 1.3m Guide Wheel Slide Rail 1.5m Hex Head Bolt M6 x 16 Stop Block Φ8 Adjust Block Lock Washer Slide Wheel Hex Head Bolt...

  • Page 107: Crosscut Fence Two Digital Display Parts Diagram

    CROSSCUT FENCE TWO DIGITAL DISPLAY PARTS DIAGRAM 012 011 010 081 082 083 066 085 070 091 072 073...

  • Page 108: Crosscut Fence Two Digital Display Parts List

    Crosscut Fence Two Digital Display Parts List Item Description Specs. Item Description Specs. Digital Display 50cm Cap Screw M8 x 16 Φ8 Cover Lock Washer Φ8 Cap Screw M5 x 12 Washer Φ5 Lock Washer Position Pipe 2.6m, 3.2m Φ5 Washer Position Pipe 1.9m...
  • Page 109 Item Description Specs. Item Description Specs. Spring Fixed Block Lock Slide Block Cap Screw M5 x 10 Setscrew M8 x 90 Retain Ring STW-08 Lock Bush Tighten Ring Star-Shaoed Knob Cap Screw M6 x 16 Cover Cap Screw M3 x 10 Lock Slide Base Tightening Base Φ5...

  • Page 110: Miter Fence Parts Diagram

    MITER FENCE PARTS DIAGRAM 016 015 Miter Fence Parts List Item Description Specification Star-Shaped Knob 1083-810-M10 Setscrew Positioning Ring Gap Ring Setscrew M10 x 60 Locking Bushing Washer Square Insert Displacement Pipe Adjust Handle DA7012-A10 Setscrew M10 x 40 C-Fastening Block Lock Nut Damper Φ8...

  • Page 111: Dust-Collecting Fastening Rack Parts Diagram

    DUST-COLLECTING FASTENING RACK PARTS DIAGRAM Dust-Collecting Fastening Rack Parts List Item Description Specs. Item Description Specs. Fixed Stand Fasten Base Fixed Stand(400type) Adjust Block Fixed Base Setscrew Fixed Base 1.3m Cap Screw M8 x 16 Φ8 Fixed Base 1.5m Lock Washer Fixed Base(400type) Hex Nut Fixed Base(400type)

  • Page 112: Safety Guard Connecting Arm Parts Diagram

    SAFETY GUARD CONNECTING ARM PARTS DIAGRAM Safety Guard Connecting Arm Parts List Item Description Specs. Rotary Arm Rotary Arm 1.3m Rotary Arm 1.5m Connect Block Bush Cap Screw M8 x 16 Lock Shaft Fixed Block Knob 7083.710-M8 Φ8 Lock Washer Cap Screw M8 x 30 Φ8...

  • Page 113: Delux Saw Guard Parts Diagram

    DELUX SAW GUARD PARTS DIAGRAM 038 025034 024 015 039 037 035 048 040 034 007 008 009007 010 006...

  • Page 114: Delux Saw Guard Parts List

    Delux Saw Guard Parts List Item Description Specs. Item Description Specs. Push Stick Cap Screw M6 x 35 Left Safety Guard Cap Screw M6 x 25 Open/Lock Button Cap Screw M8 x 40 Φ22 Right Safety Guard Retain Ring Chip Guard Cover Ball Bearing 6900 Φ6...
  • Page 115 NOTES...
  • Page 116 , WI 54220 UFEK RIVE ANITOWOC : 920. 684. 4990 F : 920. 684. 3944 HONE BAILEIGHINDUSTRIAL BAILEIGH INDUSTRIAL, INC. 1455 S. C , CA 91761 AMPUS VENUE NTARIO : 920. 684. 4990 F : 920. 684. 3944 HONE BAILEIGH INDUSTRIAL LTD. U...

Table of Contents
