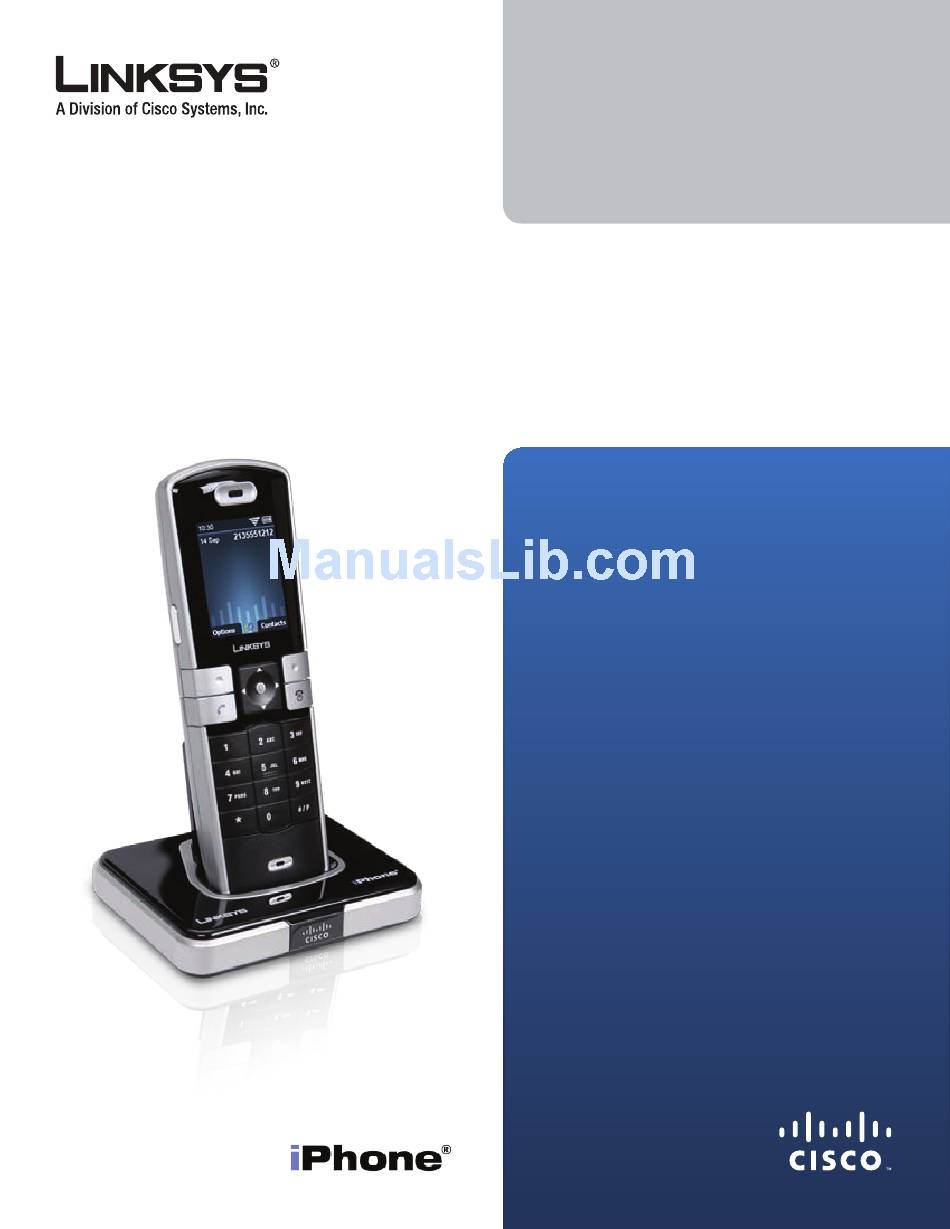

  • Page 1 USER GUIDE Wireless-G IP Phone WIP310 Model:...

  • Page 2: Table Of Contents

    Table of Contents About This Guide Icon Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Online Resources .

  • Page 3: About This Guide

    Linksys is a registered trademark or trademark of Cisco Systems, Inc . and/or its affiliates in the U .S . and certain other countries . Copyright © 2007 Cisco Systems, Inc . All rights reserved . Other brands and product names are trademarks or registered trademarks of their respective holders .

  • Page 4: Chapter 1: Product Overview

    Product Overview Chapter1 Chapter : Handset and Charger Product Overvew Battery Installation Open the handset’s back battery cover and place the battery so that the metal contacts on the battery touch the metal contacts in the battery compartment . Replace the cover after the battery is installed .
  • Page 5 Product Overview Chapter1 Select Buttons and Arrows (Navigation Pad) Press the zero (0) key to add a space . • Press the * key to display available symbols . Use the • arrow keys to highlight the symbol you want and press OK (select button) .
  • Page 6 Product Overview Chapter1 Ending a Call Making External Phone Calls To end a call, press the Power/End call key . Ringer Volume Press the left arrow to decrease, or the right arrow to increase the ringer volume, while you are in standby mode .

  • Page 7: Display Screen Icons

    Product Overview Chapter1 Display Screen Icons Handset is unlocked The display screen shows descriptive icons and Mute or unmute the handset menu setting options . A list of the current icons are shown below . Email address field Icon Description Home address field Handset is looking for the network Home phone number...

  • Page 8: Important Safety Instructions

    Product Overview Chapter1 IMPORTANT SAFETY INSTRUCTIONS Discard any “dead” batteries because they are likely to • leak into the product . BEFORE USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRE- • Do not store this product or the battery in a high CAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF temperature area .

  • Page 9: Chapter 2: Phone Menus

    Phone Menus Chapter2 Chapter : Press the select button to view the following information . Scroll through the menu by pressing the Phone Menus up or down arrow: Gateway address The handset features three different menus: Options (left Hardware version soft key), Main Menu (select button) and Contacts (right IP Address soft key) .

  • Page 10: Standby Mode > Options > Missed Calls

    Phone Menus Chapter2 Main Menu Standby Mode > Options > Missed Calls This selection allows you to quickly view any Missed Calls . The Main Menu gives you access to Settings, SMS (Short If there are no missed calls, this choice will not display . Message Service), Web Services, Call History and Contacts (also available by pressing the right soft key in standby When the handset is in the standby mode, press...
  • Page 11 Phone Menus Chapter2 When the handset is in the standby mode, press the or No (right soft key) to cancel . select button to see the Main Menu options . Press Main Menu > Settings > Clock the left or rght arrow to select Settings, if it is not on- screen .
  • Page 12 Phone Menus Chapter2 To change the year, press the up or down arrow to highlight the Year number field . Enter a 4 digit number from the keypad, or press the left or rght arrow to select the month . Press OK (the select button) to confirm your choice .
  • Page 13 Phone Menus Chapter2 To Add a Speed Dial Number When the handset is in the standby mode, press the select button to see the Main Menu options . Press the left or rght arrow to select Settings, if it is not on- screen .
  • Page 14 Phone Menus Chapter2 Main Menu > Settings > Supplementary Services want to wait until the call is forwarded, by selecting Cfwd No Answer Delay (delay in seconds until the call is Use this option to forward incoming calls to a different forwarded) .

  • Page 15: Main Menu > Sms

    Phone Menus Chapter2 menu . Main Menu > SMS To automatically set up the secure wireless connection, Use SMS to compose and send a text message up to 256 your Access Point must be allow WPS . characters . You can also save messages that you have Press the up or down arrow to highlight Run WPS .

  • Page 16: Main Menu > Web Services

    Phone Menus Chapter2 Main Menu > Web Services Use this option to download data services from the Web . When you have an internet connection enabled you can download information, including local area locations . This information may change as more or different Web Services are offered .

  • Page 17: Main Menu > Call History

    Phone Menus Chapter2 Use the handset’s keypad to enter the zip code of Main Menu > Call History the area you want to see the weather for . Use this option to view the recent Call History for the The handset will contact the web server and deliver handset .

  • Page 18: Main Menu > Contacts Or Contacts Menu

    Phone Menus Chapter2 Main Menu > Contacts or Contacts Menu Main Menu > Call History > Outgoing Calls > Outgoing Call Detail In addition to calling, you can save or delete the number . You can access the Contact menu through the Main Menu When the entry is highlighted, press Optons (left soft or by pressing the Contacts (right soft key) when in the key), to see the submenu options .
  • Page 19 Phone Menus Chapter2 current Contacts will display . Press the up or down arrow to highlight the entry you want to delete . Press Optons (left soft key) . A sub-screen will display, press the up or down arrow to highlight Remove Entry .

  • Page 20: AppendixA Troubleshooting

    Troubleshooting AppendixA Appendx A: Troubleshootng Frequently Asked Questions: How long do I have to charge the phone before initial use? A minimum of 8 hours . How long is the standby time for the handset? Approximately 50 hours . How long is the talk time on the handset? Approximately three (3) hours .

  • Page 21: Appendix B: Specifications

    Specifications AppendixB Appendx B: VAD - Voice Activity Detection Call Control Caller ID Specfcatons Call Mute Call Hold / Resume Model WIP310 Call Forward ( Conditional, Standards 802 .11b, 802 .11g Unconditional, Busy or No Band 2 .4Ghz Answer) Transmit Power 13 dBm for 802 .11g / 15 dBm Call Transfer (Attended or for 802 .11b...
  • Page 22 Specifications AppendixB Envronmental Handset Dimensions 1 .71” x 5 .85” x 1” W x H x D (446 x 149 x 25 mm) Weight .24 lbs, 3 .88 oz (110 g) Charger Mini USB AC adapter AC100 ~ 240V Input, 5V/1 .0A DC Output Power Li-Ion 3 .7V 860mAH Battery, AC Adapter *...

  • Page 23: Appendix C: Warranty And Regulatory Information

    Warranty and Regulatory Information AppendixC Appendx C: not warrant that the operation of the product or software will be uninterrupted or error free . Also, due to the Warranty and Regulatory continual development of new techniques for intruding upon and attacking networks, Linksys does not warrant Informaton that the product, software or any equipment, system or network on which the product or software is used will be...

  • Page 24: Fcc Statement

    Warranty and Regulatory Information AppendixC FCC Statement the product or Linksys Technical Support for instructions on how to obtain warranty service . The telephone number for Linksys Technical Support in your area can be found This device complies with Part 15 of the FCC Rules . in the product User Guide and at www .linksys .com .

  • Page 25: Safety Notices

    Warranty and Regulatory Information AppendixC Safety Notices Industry Canada Radiation Exposure Statement: Caution: To reduce the risk of fire, use only No .26 AWG or larger telecommunication line cord . This equipment complies with IC radiation exposure limits Do not use this product near water, for example, in a wet set forth for an uncontrolled environment .

  • Page 26: Waste Electric And Electronic Equipment (Weee)

    Warranty and Regulatory Information AppendixC User Information for Consumer Products Ceštna (Czech) - Informace o ochraně žvotního prostředí pro zákazníky v zemích Evropské une Covered by EU Directive 2002/96/EC on Evropská směrnice 2002/96/ES zakazuje, aby zařízení označené Waste Electric and Electronic Equipment tímto symbolem na produktu anebo na obalu bylo likvidováno s netříděným komunálním odpadem .
  • Page 27 Warranty and Regulatory Information AppendixC Eest (Estonan) - Keskkonnaalane nformatsoon Franças (French) - Informatons envronnementales Euroopa Ldus asuvatele klentdele pour les clents de l’Unon européenne Euroopa Liidu direktiivi 2002/96/EÜ nõuete kohaselt on La directive européenne 2002/96/CE exige que l’équipement seadmeid, millel on tootel või pakendil käesolev sümbol sur lequel est apposé...
  • Page 28 Warranty and Regulatory Information AppendixC Letuvška (Lthuanan) - Aplnkosaugos nformacja, Nederlands (Dutch) - Mleu-nformate voor klanten skrta Europos Sąjungos vartotojams n de Europese Une Europos direktyva 2002/96/EC numato, kad įrangos, kuri ir De Europese Richtlijn 2002/96/EC schrijft voor dat apparatuur die kurios pakuotė...
  • Page 29 Warranty and Regulatory Information AppendixC Português (Portuguese) - Informação ambental para Slovenčna (Slovene) - Okoljske nformacje za stranke clentes da Unão Europea v Evropsk unj A Directiva Europeia 2002/96/CE exige que o equipamento Evropska direktiva 2002/96/EC prepoveduje odlaganje opreme, que exibe este símbolo no produto e/ou na sua embalagem označene s tem simbolom –...

  • Page 30: (R&Tte Directive)

    Warranty and Regulatory Information AppendixC Declaration of Conformity with Regard Português Este equipamento está em conformidade [Portu- com os requisitos essenciais e outras pro- to the EU Directive 1999/5/EC (R&TTE guese]: visões relevantes da Directiva 1999/5/EC . Directive) Acest echipament este in conformitate cu Română...

  • Page 31: Ce Marking

    Warranty and Regulatory Information AppendixC NOTE: For all products, the Declaration of Conformity (DofC) is available through one or more of these options: • A pdf file is included on the product’s CD . A print copy is included with the product . •...

  • Page 32: National Restrictions

    Warranty and Regulatory Information AppendixC National Restrictions This product may be used in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Ce produit peut être utilisé dans tous les pays de l’UE (et dans tous les pays ayant transposés la directive 1999/5/CE) sans aucune limitation, excepté...
  • Page 33 Warranty and Regulatory Information AppendixC The following countries have restrictions and/or requirements in addition to those given in the Overview of Regulatory Requirements for Wireless LANs Table: Denmark In Denmark, the band 5150 - 5350 MHz is also allowed for outdoor usage . I Danmark må...

  • Page 34: Product Usage Restrictions

    Warranty and Regulatory Information AppendixC Product Usage Restrictions This product is designed for indoor usage only . Outdoor usage is not recommended, unless otherwise noted . 2,4 GHz Restrictions This product is designed for use with the standard, integral or dedicated (external) antenna(s) that is/are shipped together with the equipment .

  • Page 35: Technical Documents On Www .Linksys .Com/International

    Warranty and Regulatory Information AppendixC Wireless Access Points, Routers, or Other Wireless Products If you have a different wireless product, use its Web-based Utility to configure its power output setting (refer to the product’s documentation for more information) . Technical Documents on www.linksys.com/international Follow these steps to access technical documents: Enter http://www.lnksys.com/nternatonal in your web browser .
