Ages 14+
READ THE INSTRUCTION MANUAL CAREFULLY
PLEASE VISIT WWW.HUBSAN.COM TO UPGRADE

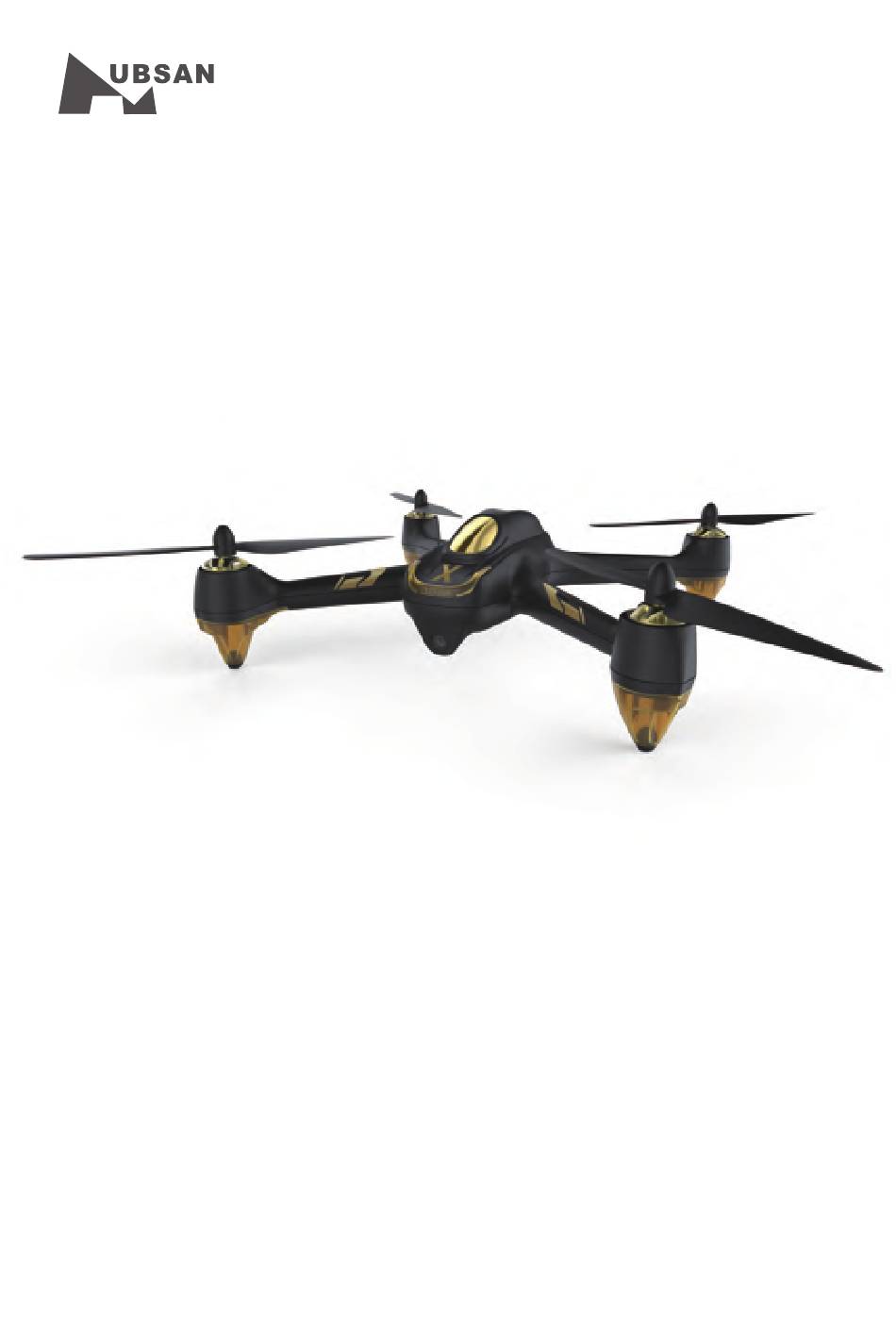

THE HUBSAN X4 CAM
BRUSHLESS WITH APP
ITEM NO: H501A
FLY WHEN NO GPS SETUP, SEE CAUTION ON PAGE 02
ARM/DISARM MOTORS, SEE PAGE 06
RTH FUNCTION, SEE PAGE 09-10
FOLLOW ME FUNCTION, SEE PAGE 10-11
COMPASS CALIBRATION, SEE PAGE 16
TRANSMITTER CALIBRATION, SEE PAGE 18
Transmitter FCC ID:2AEXY901ATX

Advertisement

Table of Contents
loading

Related Manuals for Hubsan H501A

Summary of Contents for Hubsan H501A

  • Page 1 ® Ages 14+ READ THE INSTRUCTION MANUAL CAREFULLY PLEASE VISIT WWW.HUBSAN.COM TO UPGRADE THE HUBSAN X4 CAM BRUSHLESS WITH APP ITEM NO: H501A FLY WHEN NO GPS SETUP, SEE CAUTION ON PAGE 02 ARM/DISARM MOTORS, SEE PAGE 06 RTH FUNCTION, SEE PAGE 09-10...

  • Page 3: Important Safety Notes

    THE HUBSAN X4 CAM BRUSHLESS WITH APP Please read the instruction manual carefully! CAUTION: For safety, the quadcopter is default set to CAN NOT FLY WHEN NO GPS. If you prefer to fly when GPS is not available, please reset the value as instructed below before using.

  • Page 4: Items Included In The Box

    INTRODUCTION Thank you for buying the HUBSAN products. It is designed as an easy-to-use, multi-functional RC model, capable of hovering, fast forward and acrobatic flight maneuvers. Please read the manual carefully and follow all the instructions. Be sure to keep the manual for future reference.

  • Page 5: Quad Copter Motor Led Indicator

    3. QUAD COPTER BATTERY 3.1 INTRODUCTION The quad copter battery is rechargeable with 2700mAh capacity and 7.4V voltage. The battery should ONLY be charged with the HUBSAN charger to avoid overcharge. 3.2 INSTALL THE BATTERY Push the battery into the battery compartment correctly and connect the battery plugs with the correct polarity.
  • Page 6 U wrench. ● Make sure that the A and B propellers are installed correctly. The X4 will not fly if propellers are improperly installed. ● Hazardous moving parts keep fingers and other body part away. © 2016 Hubsan...
  • Page 7 Do not stop the motors during the flight to avoid crashing. Push the sticks lightly. Release the sticks after the motors are armed or disarmed. © 2016 Hubsan...

  • Page 8: Basic Flight

    Push the stick to the right and the X4 will fly to the right. The X4 will keep the current status when the Left Right stick is in the center. The angle of stick movement corresponds to the angle of tilt and flight speed. © 2016 Hubsan...
  • Page 9 Insert the SD card into quadcopter before using Photo/Video function. Press the Photo/Video button for 0.5 second to take photos. Press the Photo/Video button for 0.5 second to take videos and press again to save the videos. Stop recording before the SD card is removed. © 2016 Hubsan...
  • Page 10 The flight control system will control the quad copter to fly back to the home point and land automatically. The RTH MODE only works when the GPS mode is activated with no less than 6 satellites. The Home Point is recorded when armed the motors with no less than 6 GPS satellites. © 2016 Hubsan...

  • Page 11: Headless Mode

    Press the stick again to exit Headless Mode, indicated by one "beep" sound and the ”HEADLESS OFF” displays on the LCD. 7.4 FOLLOW ME MODE Follow Me Mode means the drone follows the transmitter automatically as it has built-in GPS system. MODE 2 MODE 1 © 2016 Hubsan...

  • Page 12: Failsafe Mode

    X4 in safe flight area. If the quantity of GPS satellites drops below six for more than 20 seconds while the X4 is returning home, the X4 will descend automatically. The X4 will not avoid obstacles automatically while in failsafe mode. © 2016 Hubsan...
  • Page 13 11 GPS SW 12 RTH SW HOME 8 Photo 8 Video 6 Throttle Trim 4 Elevator Trim 1 Throttle /Rudder Stick 2 Elevator/Aileron Stick 7 Power SW 5 Rudder Trim 3 Aileron Trim LED SW (MODE 2) © 2016 Hubsan...

  • Page 14: Input Key Function

    Video Press video button to start recording and press again to stop. Video glasses socket Connect Hubsan video glasses (The video glass is not included) Push the switch up, the bulit-in GPS will calculate the quad GPS SW copter’s position and height and help to keep the quad copter in a...

  • Page 15: Install The Tx Battery

    Pull the throttle stick to the lowest position and long press the Elevator stick to enter into the MAIN MENU interface. Push the Elevator stick up/down to select “Set Sensitivity”, push the stick right to enter into the “ set sensitivity” interface, select “Expert mode” or “ Normal mode”. Select” Exit” to exit. © 2016 Hubsan...

  • Page 16: Manual Mode Setup

    2. If the batteries in the transmitter runs low while flying the X4, you can still control the X4, please land the X4 and then replace batteries. 3. The Transmitter can only use 2S Lipo batteries, 4XAA batteries or NI-MH AA batteries, other batteries will damage the Transmitter. © 2016 Hubsan...
