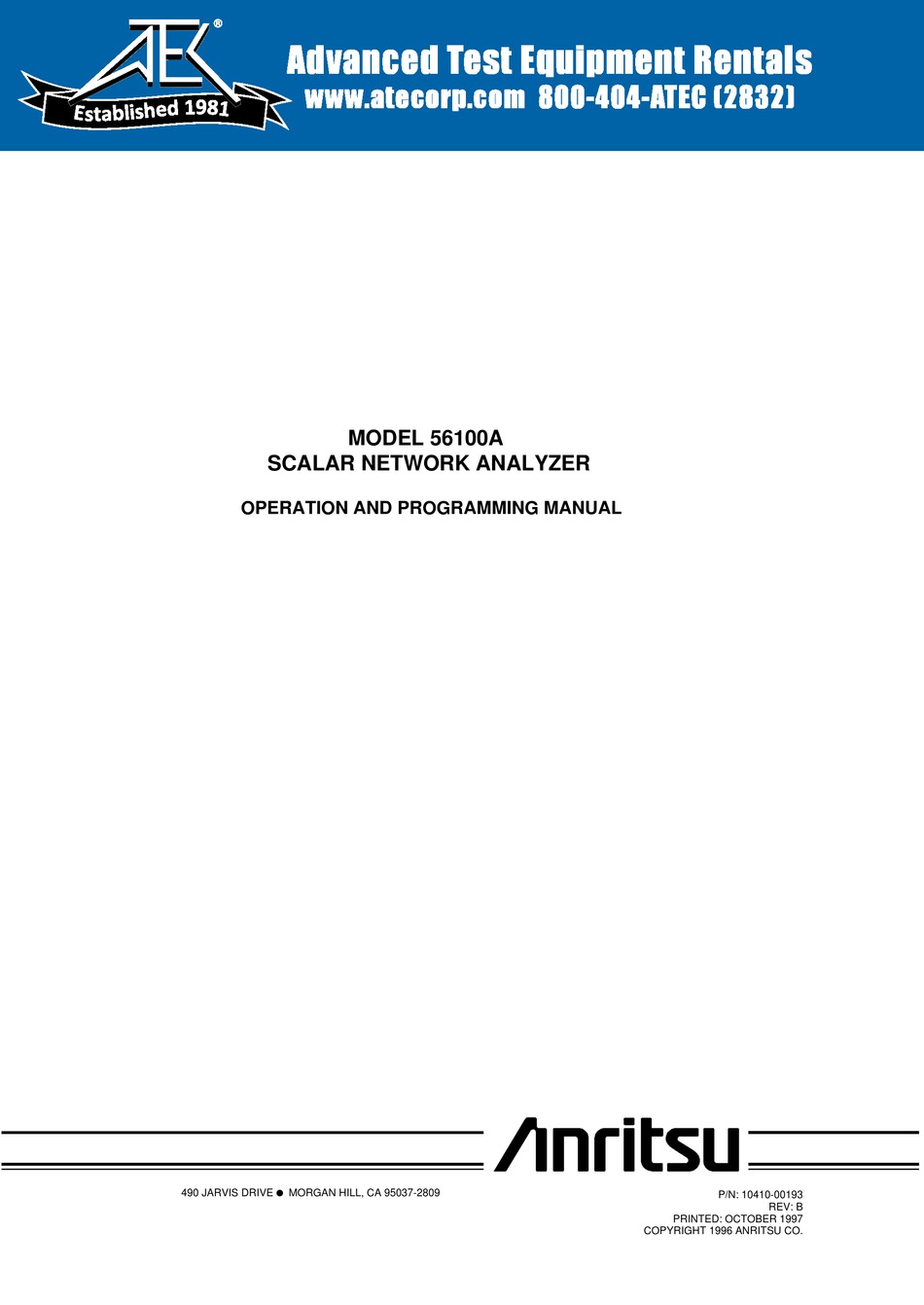

MODEL 56100A
SCALAR NETWORK ANALYZER
OPERATION AND PROGRAMMING MANUAL
490 JARVIS DRIVE
MORGAN HILL, CA 95037-2809
P/N: 10410-00193
REV: B
PRINTED: OCTOBER 1997
COPYRIGHT 1996 ANRITSU CO.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 56100A and is the answer not in the manual?

Questions and answers

Related Manuals for Anritsu 56100A

Summary of Contents for Anritsu 56100A

  • Page 1 ® Advanced Test Equipment Rentals www.atecorp.com 800-404-ATEC (2832) MODEL 56100A SCALAR NETWORK ANALYZER OPERATION AND PROGRAMMING MANUAL 490 JARVIS DRIVE MORGAN HILL, CA 95037-2809 P/N: 10410-00193 REV: B PRINTED: OCTOBER 1997 COPYRIGHT 1996 ANRITSU CO.

  • Page 2: Limitation Of Warranty

    WARRANTY LIMITATION OF WARRANTY TRADEMARK ACKNOWLEDGEMENTS ANRITSU NOTICE...

  • Page 3: Safety Symbols

    Safety Symbols BEFORE Symbols used in manuals DANGER WARNING CAUTION Safety Symbols Used on Equipment and in Manuals BEFORE 56100XA OPM SAFETY-1...

  • Page 4: For Safety

    For Safety WARNING WARNING WARNING DO NOT Repair WARNING SAFETY-2 56100XA OPM...
  • Page 6 Table Of Contents 56100A OM i/ii...

  • Page 7: Chapt Er 1 General Informat Ion

    Chapt er 1 General Informat ion Table of Cont ent s...
  • Page 8 NOTE: ANRITSU Company was formerly known as WILTRON Company.
  • Page 9 Chapt er 1 General Informat ion SCOPE OF THE MANUAL INTRODUCTION IDENTIFICATION NUMBER RELATED MANUALS NETWORK ANALYSIS DESCRIPTION 56100A OPM...
  • Page 10 MEASUREMENT SYSTEM GENERAL O VERVIEW INFO RMATIO N 56100A SCALAR NETWORK ANALYZER DESCRIPTION MEASUREMENT SYSTEM OVERVIEW 56100A OPM...

  • Page 11: General Information

    GENERAL NO RMALIZATIO N AND INFO RMATIO N MEASUREMENT NORMALIZATION AND MEASUREMENT ± 56100A OPM...
  • Page 12 56100A O M CURSO RS, MARKERS, GENERAL AND LIMIT LINES INFO RMATIO N 56100A OM CURSORS, MARKERS, AND LIMIT LINES 56100A OM AVERAGING AND SMOOTHING 56100A MEASUREMENT ACCURACY 56100A OPM...
  • Page 13 GENERAL RECO MMENDED INFO RMATIO N SIGNAL SO URCES RECOMMENDED SIGNAL SOURCES STORED TEST CONFIGURATION SETUPS GPIB COMPATIBILITY OPTIONS 56100A OPM...

  • Page 14: Additional Equipment Required

    O PTIO NS, GENERAL INFO RMATIO N ADDITIONAL EQUIPMENT REQUIRED ACCESSORIES 56100A OPM...
  • Page 15 15.2m (50 ft) 800-111 30.5m (100 ft) 800-112 61m (200 ft) Model Connector 560-10BX BNC Male 560-10BX-1 SMA Male 560-10BX-2 BNC Male 562-15BX BNC Male Model Usage 806-13 ANRITSU 56100A to HP 8350B, 8340B 806-14 ANRITSU 56100A to HP 8620C 56100A OPM...
  • Page 16 PERFO RMANCE GENERAL SPECIFICATIO NS INFO RMATIO N Model Cable Length 2100-1 1m (3.3 ft) 2100-2 2m (6.6 ft) 2100-4 4m (13.2 ft) 2100-5 0.5m (1.65 ft) PERFORMANCE SPECIFICATIONS SYSTEM RF COMPONENTS 560 SERIES SWR AUTOTESTERS (SPECIFICATIONS) 1-10 56100A OPM...
  • Page 17 WSMA (m) (f) K Female 0.071 0.02 3 dB 3.5 mm (m) (f) ± ρ ± 0.071 0.025 3 dB K Connector (m) (f) ± ρ ± 0.11 0.032 3 dB ± ρ ± 0.13 0.05 3 dB 56100A OPM 1-11...
  • Page 18 560-A-7219-A 560-7N50B 10 MHz to 20 GHz N Male 560-A-C-24441 560-7S50B 10 MHz to 20 GHz WSMA Male 560-A-C-24441 560-7S50-2 10 MHz to 26.5 GHz WSMA Male 560-A-7219-B 560-7K50 10 MHz to 40 GHz K Male ND19393 1-12 56100A OPM...
  • Page 19 PRECAUTIO NS FO R USE O F SW R INFO RMATIO N AUTO TESTERS AND RF DETECTO RS PRECAUTIONS FOR USE OF SWR AUTOTESTERS AND RF DETECTORS REFERENCE REFERENCE PLANE PLANE DEPTH DEPTH (INCHES) (INCHES) FEMALE MALE 56100A OPM 1-13...
  • Page 20 Reading SMA (f) –0.0005 to –0.0015 Same as Pin Depth SMA (m) –0.0005 to –0.0015 3.5 mm (f) –0.006 to –0.008 3.5 mm (m) –0.006 to –0.008 K (f) –0.0000 to –0.0005 K (m) –0.0000 to –0.0005 1-14 56100A OPM...
  • Page 21 PRECAUTIO NS FO R USE O F SW R INFO RMATIO N AUTO TESTERS AND RF DETECTO RS TEFLON WASHER NOTE The teflon washer is shown on a GPC-7 connector. A similar washer may be in- stalled on any ANRITSU precision con- nector. 56100A OPM 1-15...

  • Page 22: Preventive Maintenance

    PRECAUTIO NS FO R USE O F SW R GENERAL AUTO TESTERS AND RF DETECTO RS INFO RMATIO N STATIC HANDING PRECAUTIONS RECOMMENDED TEST EQUIPMENT PREVENTIVE MAINTENANCE 1-16 56100A OPM...
  • Page 23 GENERAL PRECAUTIO NS FO R USE O F SW R INFO RMATIO N AUTO TESTERS AND RF DETECTO RS 56100A OPM 1-17...

  • Page 24: Recommended Test Equipment

    Type N (male) to BNC (male) HP1250-0176 C, P Ω Type N (female) to BNC (male) HP1250-0082 impedance) Connector Cable Connects sweep generator signal for 56100A ANRITSU 806-7 C, P, O compatibility GPIB Cable Connects 56100A to 68147B via dedicated ANRITSU 2100-1 C, P, O RF Detector 0.01 to 20 GHz...
  • Page 25 ADDITIONAL PRECAUTIONS: • Keep workspaces clean and free of any objects capable of holding or storing a static charge. • Connect soldering tools to an earth ground. • Use only special anti-static suction or wick-type desoldering tools. 56100A OPM 1-19/1-20...

  • Page 26: Chapter 2 I Nstallation

    Chapter 2 I nstallation...

  • Page 27: Initial Inspection

    PREPARATION FOR USE WARNING Line Voltage Fuse Fuse ANRITSU P/N ANRITSU P/N Area Setting Rating Size Fuse Fuse Holder 100/120 Vac Japan/USA 2A, Antisurge 3 AG 631-62 553-221 220/240 Vac Europe 1A, Antisurge 5 x 20 mm 631-63 553-240 56100A OPM...

  • Page 28: Gpi B Setup Andi Nterconnecti On

    GPI B SETUP AND I NSTALLATI ON I NTERCONNECTI ON GPIB SETUP AND INTERCONNECTION SYSTEM GPIB GPIB IEEE-488 INTERCONNECTION 56100A OPM...
  • Page 29 PIN NO. FUNCTION/DESCRIPTION PIN NO. FUNCTION/DESCRIPTION DIO1 DIO5 DIO2 DIO6 DIO3 DIO7 DIO4 DIO8 Logic Ground NRFD Logic Ground NDAC Logic Ground Logic Ground Logic Ground Logic Ground Chassis Ground Logic Ground GPIB System Menu Return to Local keys 56100A OPM...
  • Page 30 EXTERNAL M ONI TOR I NSTALLATI ON CONNECTOR PREPARATION FOR STORAGE AND/OR SHIPMENT 56100A OPM...

  • Page 31: Rack Mount Installation

    I NSTALLATI ON RACK M OUNT I NSTALLATI ON RACK MOUNT (OPTION 1) INSTALLATION 56100A OPM...
  • Page 32 RACK M OUNT I NSTALLATI ON I NSTALLATI ON 56100A OPM...
  • Page 33 I NSTALLATI ON RACK M OUNT I NSTALLATI ON WARNING 56100A OPM...
  • Page 34 Telephone: 016-44-66-546 Telephone: 02-782-7156 FAX: 016-44-61-065 FAX: 02-782-4590 ANRITSU COMPANY GERMANY SINGAPORE 10 Kingsbridge Road ANRITSU GmbH ANRITSU (SINGAPORE) PTE LTD Fairfield, NJ 07004 Grafenberger Allee 54-56 3 Shenton Way #24-03 Telephone: (201) 227-8999 D-40237 Dusseldorf Shenton House FAX: 201-575-0092 Germany...
  • Page 35 Chapter 3 Front Panel Operation Table of Contents...
  • Page 36 ....
  • Page 38 Power On/Off: Turns the instrument on and off. When Hard Copy Keys: Initiates a hard-copy printout of pressed to ON, it initiates an instrument self test. measurement results to a printer or plotter in either graphic or tabular form. The MENU switch displays the R1 Connector: Provides input for Channel R1.

  • Page 39: Chapter 3 Front Panel Operation

    Chapter 3 Front Panel Operation INTRODUCTION CRT DISPLAY Source Mode Network Analyzer Settings Trace 2 Identifier Menu Area Trace 1 Identifier Source Settings 56100A OPM...
  • Page 40 SYSTEM FUNCTI ON FRONT PANEL KEYS AND M ENUS OPERATI ON HOLD SYSTEM FUNCTION System Function KEYS AND MENUS System Function 56100A OPM...
  • Page 41 RECALL ENTER MEMORY SAVE TRACE MEMORY NUMBER TRACE MEMORY SELECT TRACE MEMORY THEN TO RECALL PRESS SELECT SAVE TRACE MEMORY PRESS KEY 1 - 4 STORE CURRENT TRACE MEMORY PRESS CLEAR PRESS KEY 1 - 4 PRESS CLEAR 56100A OPM...
  • Page 42 SELF TEST FRONT PANEL KEYS OPERATI ON REMOTE INDICATOR AND RETURN TO LOCAL Remote Return To Lo- SELF TEST KEY 56100A OPM...
  • Page 43 FRONT PANEL SYSTEM M ENU KEY OPERATI ON AND M ENUS SYSTEM MENU KEY AND MENUS 56100A OPM...
  • Page 44 SYSTEM M ENU KEY FRONT PANEL AND M ENUS OPERATI ON System Menu 3-10 56100A OPM...
  • Page 45 FRONT PANEL SYSTEM M ENU KEY OPERATI ON AND M ENUS APPLICATION 56100A OPM 3-11...
  • Page 46 SYSTEM M ENU KEY FRONT PANEL AND M ENUS OPERATI ON 3-12 56100A OPM...
  • Page 47 FRONT PANEL SYSTEM M ENU KEY OPERATI ON AND M ENUS 56100A OPM 3-13...
  • Page 48 SYSTEM M ENU KEY FRONT PANEL AND M ENUS OPERATI ON 3-14 56100A OPM...
  • Page 49 FRONT PANEL DI SPLAY KEYS OPERATI ON AND I NDI CATORS DISPLAY KEYS, Display INDICATORS, AND Display On/Off MENUS Autoscale Clear Display MENU KEY MENUS Menu 56100A OPM 3-15...
  • Page 50 0.5, 1, 2, 5, and 10 dB values. REFERENCE LINE* SELECT: Pressing select with the cursor on moves the trace displayed at the cursor to the reference line. *Actual message displayed will depend on cursor functions selected. Offset/Resolution Limits 3-16 56100A OPM...
  • Page 51 FRONT PANEL DI SPLAY KEYS OPERATI ON AND M ENUS Display Menu 56100A OPM 3-17...
  • Page 52 M ENU KEY FRONT PANEL AND M ENUS OPERATI ON 3-18 56100A OPM...
  • Page 53 FRONT PANEL CALI BRATI ON KEY OPERATI ON AND M ENUS Data Entry/Cursor Data Entry Clear DISPLAY ENTRY/ CUR- CALIBRATION KEY AND MENUS 56100A OPM 3-19...
  • Page 54 In all future measurements (in this configuration) of test devices at this level of output power, these losses will be subtracted from measured losses; consequently, the results displayed will be those of the test device minus residuals. CALIBRATION 3-20 56100A OPM...
  • Page 55 FRONT PANEL DATA ENTRY/CURSOR OPERATI ON AND KNOB DATA ENTRY/CURSOR Data Entry KEYS AND KNOB D ata E ntry / C ursor DATA ENTRY Enter HARD COPY KEYS Hard Copy HARD COPY 56100A OPM 3-21...
  • Page 56 HARD COPY FRONT PANEL M ENU KEY OPERATI ON HARD COPY KEY MENUS Menu DISPLAY ENTRY/CURSOR ENTER ENTER tries can contain up to 12 characters, which can also be entered from the numeric keypad. 3-22 56100A OPM...
  • Page 57 FRONT PANEL HARD COPY OPERATI ON M ENU KEY HARD COPY 56100A OPM 3-23...
  • Page 58 HARD COPY FRONT PANEL M ENU KEY OPERATI ON 3-24 56100A OPM...
  • Page 59 FRONT PANEL HARD COPY OPERATI ON M ENU KEY 56100A OPM 3-25...
  • Page 60 CURSOR M EASUREM ENT FRONT PANEL KEYS AND I NDI CATORS OPERATI ON CURSOR Cursor Measurement MEASUREMENT KEYS, INDICATORS, AND MENUS C ursor M easurem ents Hold Hard Copy Start Cursor Measurement Keys and Indicators 3-26 56100A OPM...
  • Page 61 FRONT PANEL CURSOR M EASUREM ENT OPERATI ON KEY AND I NDI CATORS Cursor Measurements Relative Cursor 56100A OPM 3-27...

  • Page 62: Front Panel

    Set cursor within the search range of the "SEARCH NOTE VALUE" range. When Relative Cursor is on, all cursor searches are performed relative to the value at the current main cursor position Two cursors diverge to indicate the bandwidth. 3-28 56100A OPM...
  • Page 63 KEY AND M ENUS ENHANCEMENT KEYS, Enhancement INDICATORS, AND MENUS Averaging ENHANCEMENT NOTE When Averaging is enabled, both LEDs to the right of the key are lit. Averaging OPERATIONAL CHECKOUT Self Test REAR PANEL CONNECTORS ERROR MESSAGES Self Test Reset 56100A OPM 3-29...
  • Page 64 CONNECTI ONS TO FRONT PANEL ANRI TSU SWEEP GENERATORS OPERATI ON 56100A ANALYZER CONNECTIONS TO ANRITSU SWEEP GENERATORS 3-30 56100A OPM...

  • Page 65: Rear Panel Connectors

    FRONT PANEL REAR PANEL OPERATI ON CONNECTORS Ω ± ± Ω 56100A OPM 3-31...

  • Page 66: Operational Checkout

    FRONT PANEL CHECKOUT OPERATI ON 56100A 560-SERIES DETECTOR RF OUT 68B, 69A Series or 67XXA/B Series Power System Menu Menu Select Graticule Channel 2 Display On/Off Channel 1 Menu Menu Channel 1 Offset/Resolution Data Entry Enter Data Entry 3-32 56100A OPM...

  • Page 67: Error Codes

    Hold and Plotter Memory Test Result Top Averaging U36 RAM Failure A7 CPU PCB Bottom Averaging U30 EPROM Checksum A7 CPU PCB Top Smoothing U31 EPROM Checksum A7 CPU PCB Bottom Smoothing U32 EPROM Checksum A7 CPU PCB 56100A OPM 3-33...
  • Page 68 I NTERCONNECTI ONS FRONT PANEL TO OTHER I NSTRUM ENTS OPERATI ON 56100 Connector ANRITSU 6600/6700/68000/69000 Series Hewlett-Packard 8340/8350 Series Dedicated GPIB GPIB GPIB Auxiliary I/O AUX I/O ##PROGRAMMING (Using WPN 806-7 Interconnect Cable) (Using WPN 806-13 Interconnect Cable) ANRITSU 6700A/B, 68000A/B,...
  • Page 69 Chapter 4 M easurements Table of Contents...
  • Page 70 GPIB 56100A DEDICATED PLOTTER INTERFACE CABLE (AUX I/O) SWR AUTOTESTER RF OUT PRINTER CENTRONICS INTERFACE CALIBRATION 6600A/B OPEN/SHORT ADAPTER 68B Series or (IF NEEDED) 67XXA/B Series *CO NN E C T W H E N D IR E CT E D...

  • Page 71: Chapter 4 M Easurements

    Chapter 4 M easurements INTRODUCTION MEASUREMENTS WITH THE 56100A SCALAR NETWORK ANALYZER 56100A OPM...
  • Page 72 10.0 dB/DIV +0.0 dB SOURCE OFFSET 2: RETN LOSS (B) 10.0 dB/DIV +0.0 dB 68169B F1: 0.010 GHz 2 GHz/DIV F2: 20.000 GHz 401 pts LEVEL: +10.0 dBm Transmission Return Loss. Calibration Transmission Loss Measurement Display On/Off Autoscale 56100A OPM...
  • Page 73 M EASUREM ENTS TRANSM I SSI ON AND RETURN LOSS M EASUREM ENTS Cursor Measurements On/Off Cursor Measurements—Ch1 Menu Select Cursor Measurements—Ch1 Hard Copy Menu Reset Hard Copy Start Return Loss Measurement Display On/off Display On/Off Autoscale 56100A OPM...

  • Page 74: Absolute Power Measurement

    ABSOLUTE POWER M EASUREM ENTS M EASUREM ENTS ABSOLUTE POWER MEASUREMENT RF Out Power System Menu ,” Display On/Off Menu Menu Select Autoscale Cursor Measurements On/Off Data Entry Cursor Measurements-Ch1 Menu Select 56100A OPM...
  • Page 75 M EASUREM ENTS ALTERNATE SETUP M EASUREM ENTS ALTERNATE SETUP MEASUREMENTS Ch1 Menu Transmission Select Select Select Alt Setup F1-F2 Shift F3-F4 CW Sweep Select 56100A OPM...
  • Page 76 ALTERNATE SETUP M EASUREM ENTS M EASUREM ENTS Calibration Save/Recall Autoscale Hard Copy Menu Hard Copy Start 56100A OPM...
  • Page 77 M EASUREM ENTS ALTERNATE SETUP M EASUREM ENTS Return Loss Transmission. 56100A OPM...

  • Page 78: Rati O M Ode

    RATI O M ODE M EASUREM ENTS M EASUREM ENTS RATIO-MODE MEASUREMENTS INTERFACE CABLE (AUX I/O) Calibration 4-10 56100A OPM...
  • Page 79 M EASUREM ENTS RATI O M ODE M EASUREM ENTS Autoscale Cursor Measurements On/Off Cursor Measurements—Ch1 Menu Select Cursor Measurements—Ch1 56100A OPM 4-11/4-12...
  • Page 80 Chapter 5 GPI B Programming Table of Contents Paragraph Description Page No. Table No. Description Page No.

  • Page 82: Chapter 5 Gpi B Programming

    Chapter 5 GPI B Programming INTRODUCTION IEEE 488.1 BUS OVERVIEW 56100A OPM...
  • Page 83 I EEE 488 BUS GPI B FUNCTI ONAL ELEM ENTS PROGRAM M I NG IEEE 488 BUS FUNCTIONAL ELEMENTS IEEE 488 BUS STRUCTURE 56100A OPM...
  • Page 84 Data Input/Output, 1 thru 8 DIO 8 Data Byte Data Available Transfer and NRFD Not Ready For Data Control NDAC Not Data Accepted General Attention Interface Interface Clear Control Service Request Remote Enable End Or Identify IEEE 488 DATA BUS DESCRIPTION 56100A OPM...
  • Page 85 EOI - END OR IDENTIFY Negation is represented by low state on these two lines The configuration shown in this diagram depicts an external computer connected via GPIB to a 56100A Network Analyzer and other microwave instruments (if used). 56100A OPM...
  • Page 86 PROGRAM M I NG BUS DESCRI PTI ON DATA BYTE TRANSFER CONTROL BUS DESCRIPTION 1st Data Byte 2nd Data Byte DIO1-DIO8 (composite) Valid Valid Valid Valid None None Ready Ready Ready Ready NRFD None None Accept Accept Accept Accept NDAC 56100A OPM...
  • Page 87 I EEE-488 I NTERFACE GPI B M ANAGEM ENT BUS DESCRI PTI ON PROGRAM M I NG GENERAL INTERFACE MANAGEMENT BUS DESCRIPTION 56100A OPM...
  • Page 88 Listener No Listen Only (LON) Listener With Address Extension No Capability Service Request Complete Capability Remote Local Complete Capability Parallel Poll Complete Capability Device Clear Complete Capability Device Trigger No Capability Controller No Capability C0, C2, CF3, C28 56100A OPM...
  • Page 89 I EEE-488-1 GPI B M ESSAGE TYPES PROGRAM M I NG IEEE-488-1 MESSAGE TYPES 5-10 56100A OPM...
  • Page 90 GPI B I EEE-488-1 M ESSAGES PROGRAM M I NG AND THE 56100A RESPONSE ib c lr ib w rt IEEE 488. MESSAGES AND THE 56100A RESPONSE 56100A GPIB OPERATION, FUNCTIONAL GROUPS 56100A OPM 5-11...
  • Page 91 Disables the serial-poll function. Parallel-Poll Operation When queried by a parallel-poll message (PPOLL), the 56100A (if configured for parallel-poll operation) responds by setting its assigned data bus line to the logical state (1, 0) that indicates its correct SRQ status.
  • Page 92 N,(1 or 2). Following RON, the position is displayed by a chevron “<” “>” and a broken line drawn across the screen display. The default display is ROF which dis- plays the reference line position using only the chevron “<” or “>”. 56100A OPM 5-13...
  • Page 93 Offset will be a multiple of the selected resolution. ARF (S) Autozero Autozero occurs every retrace. This establishes if the 56100A is to expect the RF to still be on (in which case zeroing is performed using dummy loads) or off (zeroing is performed at the detectors). 5-14...
  • Page 94 If enabled (S = 1), a numeric identifier is displayed to identify each segment of complex limit lines; Disabling (S = 0) removes the identifiers. Display Limits Test Displays a menu that performs pass/fail testing on every sweep for pre-entered limits. 56100A OPM 5-15...
  • Page 95 Apply /Remove Trace Mem- S = 1: Apply Trace Memory subtraction to selected chan- nel (N) trace display. S = 0: Do not apply Trace Memory subtraction for se- lected channel (N) trace display. Trace memory subtrac- 5-16 56100A OPM...
  • Page 96 If a limit is requested with OCH or OCL when that limit is off or a Single Line Limit is currently used, the last known data or default values will be returned but all segment status characters will be lowercase (d or s). 56100A OPM 5-17...
  • Page 97 DESCRIPTION Perform 56100A Calibration Initiates the prompted calibration sequence for the 56100A. When a step has been completed the instru- ment will display a message prompting the user to set up the equipment ready for the next calibration step. It will also issue an SRQ (if SRQ is enabled and bit 2 is unmasked, i.e., ’SQ 1, PM 4’).
  • Page 98 (N). The cursor data readout is in- terpolated between actual data points, as necessary. Frequency is assumed to be in GHz, unless otherwise designated. EXAMPLE: “CRF 1 12000 MHz” Will move the cursor to Frequency 12.0GHz on the signal trace for channel 1. 56100A OPM 5-19...
  • Page 99 If the reference cursor is to be moved to marker 3, use “XCG CMK 3 XCG” to ex- change cursors before and after the move. Move Cursor to Active Move cursor to the active (last selected) frequency Marker marker. 5-20 56100A OPM...
  • Page 100 [(n) dB point]. The method of search is as described above (refer also to the manual mode of operation described in Chapter 3). The frequency data can be returned to the external computer using com- mands ORF, OCF and ODF (Table 5-16). 56100A OPM 5-21...
  • Page 101 DATA POINT AND FREQUENCY RESOLUTION COMMANDS DP (X) Set Number of Data Points Sets the screen display resolution in terms of number of data points: X=1, 101 points; X=2, 201 points; X=4, 401 points. 5-22 56100A OPM...
  • Page 102 RAMP INPUT/OUTPUT BNC connector.. CML (data) Configure Manual Labeling Allows 56100A display to be annotated when using a non-intelligent source, e.g., “2 GHz 8 GHz 10 dBm.” Turn Graticule On Turns the graticule grid display on. Lines are spaced at...
  • Page 103 Resets the instrument to factory default control panel set- tings. If an intelligent sweeper is connected to the 56100A, this too will be reset. The 56100A sends the Ramp On signal after RST, to en- sure that the sweeper has an active sweep. Continue Continue after self test finished.
  • Page 104 They must first be moved from the store locations to “current” using the RCC command. Then the data for each required channel must be transferred to the external controller using OCD or OTM commands. To transfer from the external controller to store locations, use the LCD or LTM commands, followed by the SVC command. 56100A OPM 5-25...
  • Page 105 P2. (Refer to the plotter’s documentation for the P1 and P2 commands.) SDP(X) Set Plotter Address Sets the plotter, sweeper, or 56100A address where X= SDS(X) Set Sweeper Address the new address of the instrument. Valid instrument ad- SDX(X) Set 56100A Address dresses for X are 0 to 30.
  • Page 106 The example program below loads the contents of the 68147B sweep generator setup memories 1, 2, & 3 into the Controller (via the 56100 A). It then sends this data back to the 68147B (via the 56100A) and loads it into setup memories 4, 5, &...
  • Page 107 1-12 seconds. If the buffer cannot store the amount of data requested or if the printer is not ready, the 56100A indicates an error by setting bit 2 of extended status byte and sending a SRQ (if enabled). Bit 0 of the Extended Status Byte indicates that a print is in progress. The printer is connected to the rear panel PARALLEL PRINTER INTERFACE connector.
  • Page 108 Provides a screen plot of the graticule and reference lines. Plot Cursor Provides a plot of the current cursor position. Output Custom Plot Always plots the user specified plot. If PC is used and not defined, the 56100A defaults to “Plot All.” 56100A OPM 5-29...
  • Page 109 The plot elements activated by the SCP command will be produced in the subsequent plot only if they are currently displayed on the 56100A. Also, if measurement limits are activated by the SCP com- mand, but have not been specified (or are not active), they will not be plotted. The SCP and PLT command mnemon- ics are described in Table 5-11.
  • Page 110 Relative Cursor on trace 1 or 2 to search for the minimum value. SF21 1: From Max. Cause the selected search to be made from the maximum value of trace 1 (for example bandwidth relative to peak). 56100A OPM 5-31...
  • Page 111 SF24 Repeat. Repeats the search. SF25 Normal. Returns 56100A to the single-search mode. SF40 User Titles. Changes the measurement name (type) as required by the user. For example, the titles could read “amp. gain,” or “bias volt.” The titles “IDENTIFY” and “TEST DEVICE”...
  • Page 112 SML(X) Max Level Tells the 56100A the maximum power level value that should be sent to the source.The argument (X) is a number from –120 to +30 dBm, based on the desired power level.
  • Page 113 Input Mask for Extended Same as IPM, but for the extended status byte. See 0-255 Status Byte Figure 5-6. Clear Primary Status Byte Clears the primary status byte. See related commands OEB, OPB, OSB, OID, in Table 5-14. 5-34 56100A OPM...
  • Page 114 CODES Service Request (SRQ) Generation Function The 56100A generates GPIB service requests (SRQs) to report instrument status and syntax errors, etc, to the external controller. When a SRQ is generated, the GPIB SRQ control line is set true (low) and the Primary Status Byte is returned to the controller on the GPIB data lines, DIO 1 thru DIO 8.
  • Page 115 Plot Failed = 0 (will generate an SRQ Plot failed = 1 Last print request failed (generates an SRQ) 56100A is uncalibrated 56100A is in Calibration mode 56100A is in Secure mode 56100A failed Self Test 56100A is in Preview mode...
  • Page 116 If the SRQ function has been enabled and the external controller has been set to respond to them, a controller response to a SRQ from the 56100A will clear the status byte. Therefore, there is no point in using OSB (or CSB) if SRQ’s are enabled.

  • Page 117: Status Bytes

    OSB == OPB Output Identify Returns identity string to controller, which includes model number and software version number. Output format is: “56100A, nn.nn", where "n" designates software version number Total string length is 12 characters. (Version field is padded with spaces.) OPM(X) Output Parameter X Returns parameter X to the controller.
  • Page 118 Plotter Address Parameter Reserved Graticule Spacing (GHz/Div) Reserved Reading At Cursor for Channel 1 Reading At Cursor for Channel 2 Alternate Start Frequency (GHz) Alternate Stop Frequency (GHz) Alternate Power Sweep Level (dB) Alternate Power Level (dBm) Reserved 56100A OPM 5-39...
  • Page 119 The instrument should be placed in HOLD (mnemonic HON) before this command is used, otherwise the restored (learned) data will be immediately overwritten with new data. 5-40 56100A OPM...
  • Page 120 CODE FUNCTION DESCRIPTION OUTPUT CURSOR READOUT DATA COMMANDS The following commands are used to return cursor readout data from the 56100A to the external computer/controller. (Refer to the Cursor Control Commands in Table 5-6.) OCF (N) Output Cursor Frequency Returns the frequency at the current cursor position for display channel (N).
  • Page 121 OUTPUT LIMITS FUNCTIONS DATA COMMANDS The following commands are used to return limits setup data from the 56100A to the external computer/controller. (Refer to the Limits Setup Commands in Table 5-4.) OLT (N) Output Limits Test Result Returns a pass/fail indication to the controller.
  • Page 122 Same as OCH, but for complex low limit for channel (N). NOTE When the 56100A is operated in the Secure Mode, the strings containing frequency information that are returned by commands OCH and OCL are replaced by the string “ – – – – – – – –”.
  • Page 123 <CR> <LF> and EOI true sent with LF character (0Ah). Data Format for LAT(N) , Learn Ascii Trace Command. The data format of the ASCII string used with this command is identical to that for command OAT. 5-44 56100A OPM...
  • Page 124 If the controller is expecting Binary data to be returned (OBT, OCD, OTM, etc), and an error condition is detected and reported by the 56100A, the controller’s received message buffer may be expected to include the (error) ASCII string termination characters (0Dh,0Ah).
  • Page 125 The 56100A must be put in the HOLD mode (using the HON command) before receipt of the LBT command; otherwise, the restored (learned) data will be overwritten with new data. Use care when manipulating this data as it is in minimal binary form; the 56100A is therefore unable to check it for errors or inconsistencies.
  • Page 126 They are not intended for amending setup data strings stored in external memory. Any attempt to do so may result in unpredictable 56100A operation. It is possible to correctly establish any front panel setup operation by first setting it (using appropriate GPIB commands), then outputting the complete stored setup.
  • Page 127 Trace Memory data. to BW are individual binary data signed words, using the same format and data weighting as for command OBT, above. The end of the binary data stream used with this command is designated by EOI true. 5-48 56100A OPM...
  • Page 128 The OSS and LSS commands are intended as a means of providing external storage of front panel setups. They are not intended for amending setup data streams stored in external memory. Any attempt to do so may result in unpredictable 56100A operation. The end of the (binary) stored setup data stream is designated by EOI true.
  • Page 129 This order is: Low Byte first, High Byte last. Commands HBF 1 and HBF 0 are provided for use with controller GPIB software that uses the reverse byte-order transfer mode. 5-50 56100A OPM...

  • Page 130: Miscellaneous Commands

    Note zeroing and locking are not active when the mode is operating. “FCW0" — Turn off Fast CW “FCW1" — Turn on Fast CW See Figure 5-12 (page 5-59) for a BASIC language ex- ample of FCW programming. 56100A OPM 5-51...
  • Page 131 The programming example shown below is a subroutine written in QuickBASIC that sets up and initializes the 56100A GPIB interface. It also displays the SRQ type for any service requests (SRQ’s) on the display screen of the external computer/c ontroller.

  • Page 132: Com M And Code

    5-22 DOB (n) Detector Offset B 5-18 BC(S) Blank CRT 5-24 Relative Mode Off 5-20 CAL (X) Calibrate the 56100A 5-18 Relative Mode On 5-20 Move Cursor To Active Marker 5-20 DP(X) Set Number of Data Points 5-22 Points CBW(N)(n)
  • Page 133 Set Plotter Address 5-26 Output Identify 5-38 SDS(X) Set Sweeper Address 5-26 OLT(N) Output Limits Test Result 5-42 SDX(X) Set 56100A GPIB Address 5-26 Output Primary Status Byte 5-38 SF10 1: Max Hold 5-31 OPM(X) Output Parameter X 5-38 SF11...
  • Page 134 5-22 Turn Off Manual Labelling 5-24 SON(X) Smoothing On 5-22 TSS “title” Title Stored Setups 5-29 SQ(S) Enable/Disable SRQs 5-34 Run Instrument Test Routine 5-24 SQS(X) Program Number of Sweeps 5-34 Exchange Cursor and Reference Cursor 5-20 56100A OPM 5-55/5-56...

  • Page 135: Appendix A Performance Specifications

    Appendix A Performance Specifications...
  • Page 136 Index 561X X A OPM Index 1...
  • Page 137 SUBJECT INDEX Index 2 561X X A OPM...
  • Page 138 SUBJECT INDEX 561X X A OPM Index 3...

Table of Contents
