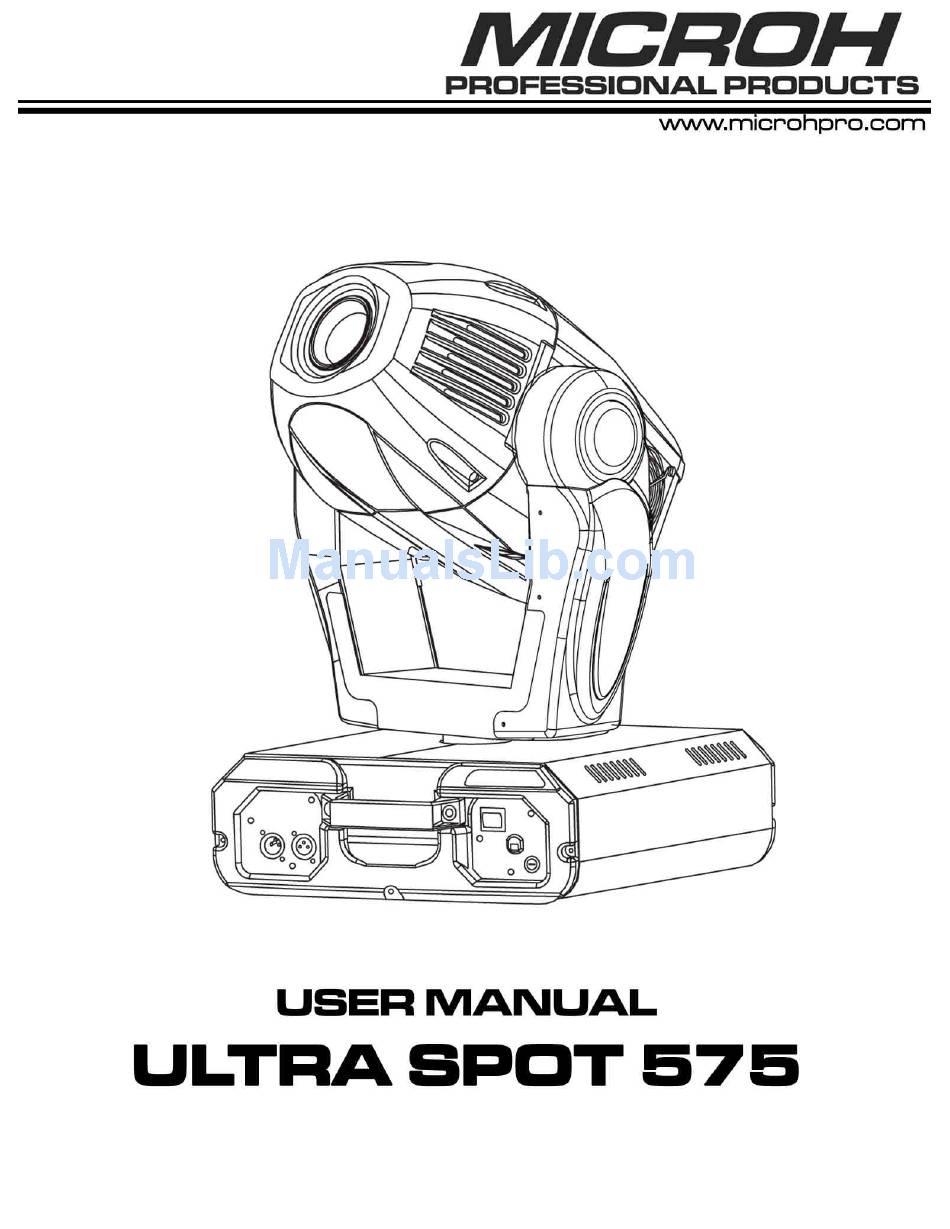

Microh ULTRA SPOT 575 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULTRA SPOT 575 and is the answer not in the manual?

Questions and answers

Related Manuals for Microh ULTRA SPOT 575

Summary of Contents for Microh ULTRA SPOT 575

  • Page 3: Safety Instructions

    1.Open the box and checking Congratulations on choosing our products! Please carefully read this instruction manual in its entirety and keep it well for using reference. This manual contained about the installation and the relative using information of this products. Please according to this manual's relative speaking when using this equipment.

  • Page 4: Operating Determinations

    Ø by the plug. Never pull out the plug by tugging the power-cord. Ø This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. Ø The electric connection, repairs and servicing must be carried out by a qualified employee.

  • Page 5: Description Of The Device

    4.Description of the device 1 - Moving head 2 - Y oke 3 - Carry handles 4 - Base Rear panel: 5 - Power switch 6 - DMX output Serial number: POWER POWER 7 - DMX input 8 - Power cord LIGHTING CONTROL PROTOCOL:DMX512 SERIAL DATA LINK 9 - Fuse holder...
  • Page 7 5.3 Inserting/Exchanging gobos DANGER:Install the gobos with the device switched off only. Unplug from mains before! If you wish to use other forms and patterns as the standard-gobos, or if gobos are to be exchanged, open the topcover of the head by loosening 2 screws on the top cover. Remove the fixation ring with an appropriate tool.

  • Page 8: Connection To The Mains

    Ø The projector can be placed directly on the stage floor or rigged in any orientation on a truss without altering its operation characteristics. Ø For overhead use, always install a safety-rope that can hold at least 10 times the weight of the fixture.
  • Page 9 Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another. Occupation of the XLR-connection: DMX-input DMX-OUTPUT XLR mounting-socket: XLR mounting-plug: 1- Ground 1 - Ground 2 - Signal (-) 2 - Signal (-) 3 - Signal (+)
  • Page 10 Control board operation way: MODE MODE ENTER ENTER DOWN DOWN 1.Select working mode by pressing MODE. 2.Press ENTER to confirm the selection. 3.Press UP and DOWN to select working condition. 4.Press ENTER to confirm the selection. DMX512 Channel Function CHANNEL FUNCTION TILT PAN movement fine adjust...
  • Page 11 CHANNEL 1: PAN Value Effect Clockwise rotate CHANNEL 2: TILT Value Effect Anti-clockwise rotate...
  • Page 12 CHANNEL 3: PAN movement fine adjust (16 BIT) Value Effect Fine control of tilt movement CHANNEL 4: TILT movement fine adjust(16 BIT) Value Effect Fine control of tilt movement...
  • Page 13 CHANNEL 5: Scan speed adjust Value Effect Slow Slow Fast fast CHANNEL 6: Focus Value Effect Near close distance far distance...
  • Page 14 CHANNEL 7: Rainbow color wheel Value Effect 79-100 Rainbow effect, 200-255 from slow to fast. 71-78 Dark orange 180-199 63-70 Firefly light 160-179 56-62 Pink 140-159 120-139 48-55 Blue 100-119 39-47 Orange 80-99 Green 32-38 60-79 24-31 Rose 40-59 Yellow 16-23 20-39 8-15...
  • Page 15 CHANNEL 9: Prism prism auto-rotation Value Effect 53-100 Three-facet prism 132-255 rotate from slow to fast. 128-131 51-52 Stop Three-facet prism 3-50 5-127 reverse rotate from slow to fast. Stop CHANNEL 10: Static gobo wheel Value Effect Gobo flow effect, 79-100 200-255 from slow to fast.
  • Page 16 CHANNEL 11: Rotating gobo wheel Value Effect 222-255 87-100 Glass gobo 6 185-221 73-86 Glass gobo 5 148-184 59-72 Glass gobo 4 Metal gobo 3 111-147 44-58 Metal gobo 2 74-110 30-43 Metal gobo 1 37-73 15-29 White beam 0-36 0-14 CHANNEL 12:Rotation Gobo Value...
  • Page 17 CHANNEL 13: Iris Value Effect Small Minimum Maximum CHANNEL 14: Zoom Value Effect Zoom22 180-255 155-179 Zoom18 129-154 Zoom15 KEEP 99-128 66-98 Zoom22 33-65 Zoom18 0-32 Zoom15...
  • Page 18 CHANNEL 15:Beam out / strobe Value Effect 251-255 99-100 Beam out strobe, from 20-250 8-98 slow to fast 0-19 0.0-7 Shutter CHANNEL 16: Dimmer (Lamp on / off) Value Effect Dimmer intensity 70~255 27.5~100 form 0% to 100% Lamp off & reset 60~69 23.5~27 No function...

  • Page 19: Technical Specifications

    8. Technical specifications Voltage AC210/230/240V ,50/60Hz Fuse T10 A @230V AC100/110/120V ,50/60Hz Fuse T15 A @110V Rated Power 850W DMX512 Channel 16CHS Color Temperature 7000K Luminous 49000 LUX Lamp: Philips MSR575/2 95V/575W GX 9,5 Optical System: - High luminous-efficiency parabolic reflector - Focus lens and multistep zoom lenses system -Beam angles: - All lenses are anti-reflection coated...
  • Page 20 9. Beampath 15 radiation angle 56 Foot-candles 9600 2400 1070 600 LUX 20 Distance(m) 2,63 3,95 5,27 Diameter(m) 18 radiation angle 48 Foot-candles 520 LUX 8320 2080 20 Distance(m) 1,58 3,17 6,34 Diameter(m) 4,75 22 radiation angle 36 Foot-candles 390 LUX 6270 1570 20 Distance(m)

  • Page 21: Maintenance And Cleaning

    10. Maintenance and cleaning It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not buildup on or within the fixture. Otherwise, the fixtures light-output will be significantly reduced. Regular cleaning willnot only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life.A soft lint-free cloth moistened with any good glass cleaning fluid is recommended, under no circumstances should alcohol or solvents be used!
  • Page 22 Structure of the fixture Light head fan Lamp hodler Front cover Back panel of lamp holder Static gobo wheel Lamp Rotating gobo wheel Reflector Top cover Color wheel B Color wheel A Tilt motor Driver Board L Belt Driver Board R Display Board Transformer Prtect board...

  • Page 23: Electrical Diagram

    12. Electrical diagram...
  • Page 24 13. Common faulty maintain FAULTY FAULTY PART PART No. FAULTY ANALYSIS PHENOMENON Plug cable for pc 27-00-0010-04 Power plug loose Whole light cann't work Fuse 09-00-1002-01 Damaged power switch Power switch 08-05-0400-03 Reach the lifespan or bed quality of bulb Msd575/2 lamp 07-11-0017-00 Damaged trigger...
  • Page 25 14.Component antitheses Name PART NO. REMARK Motor(focus) (main pcb) 15-00-0073-01 42BYGH004-02 Motor(aperture) (main pcb) 15-00-0073-01 42BYGH004-02 Motor(pan1/2) (main pcb) 15-00-0076-00 23HS0001-02 Motor(tilt1/2) (main pcb) 15-00-0076-00 23HS0001-02 U11-12 (main pcb) 00-6219-01 DRIVER CHIP U8-9 (main pcb) 00-77E58-00 SOFTWARE CHIP U15-18 (main pcb) 00-3772-00 DRIVER CHIP U13-14...
  • Page 26 15.MAIN PCB...

  • Page 27: Display Pcb

    16.DISPLAY PCB...

  • Page 28: Driver Pcb

    17.DRIVER PCB...
