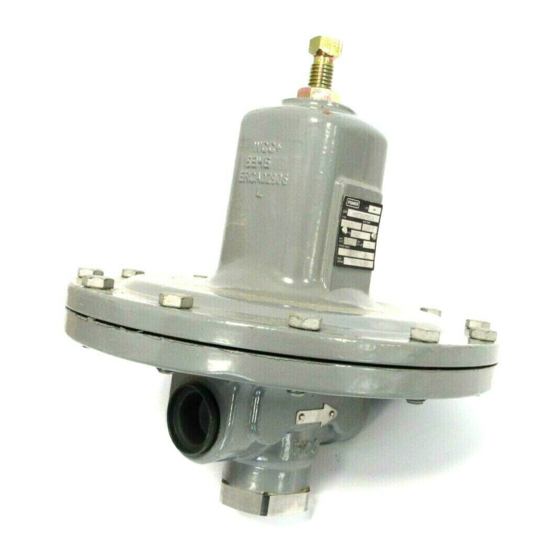

Fisher MR95L Installation Manual

Installation Guide
English – July 2014
Introduction
This Installation Guide provides instructions for installation, startup
and adjustment. To receive a copy of the Instruction Manual, contact
your local Sales Office or view a copy at www.fisherregulators.com.
For further information refer to MR95 Series Industrial Pressure
Regulators Instruction Manual, D103587X012
P.E.D. Category
This product may be used as a safety accessory with pressure
equipment in the following Pressure Equipment Directive 97/23/EC
categories. It may also be used outside of the Pressure Equipment
Directive using Sound Engineering Practice (SEP) per table below.
TYPE PRODUCT SIZE
MR95L/ 1/4 NPT, DN 15 to 25 /
MR95LD 1/2 to 1-inch
1/4 NPT, DN 15 to 25 /
1/2 to 1-inch
MR95H/
MR95HD
DN 40 and 50 /
1-1/2 and 2-inch
1/4 NPT, DN 15 to 25 /
1/2 to 1-inch
MR95HP/
MR95HT
DN 40 and 50 /
1-1/2 and 2-inch
Specifications
Available Constructions
Type mr95l: Low pressure regulator for 0.14 to 2.1 bar /
2 to 30 psig outlet pressures
Type MR95H: High pressure regulator for 0.34 to 10.3 bar /
5 to 150 psig outlet pressures
Type MR95HP: High pressure regulator for 1.0 to 27.6 bar /
15 to 400 psig outlet pressures (soft-seated)
Type MR95HT: High pressure/high temperature regulator for
1.0 to 20.7 bar / 15 to 300 psig outlet pressures (metal seat)
and up to 343°C / 650°F
Type mr95ld: Low pressure differential regulator for
0.14 to 2.1 bar / 2 to 30 psi differential pressures with
handwheel and packing box
Type MR95HD: High pressure differential regulator for
0.34 to 10.3 bar / 5 to 150 psi differential pressures with
handwheel and packing box
body and Orifice Sizes
1/4 NPT body: 7.22 mm / 0.284-inch orifice
dN 15 / 1/2-inch body: 10.56 mm / 0.416-inch orifice
dN 20 and 25 / 3/4 and 1-inch bodies:
16.02 mm / 0.631-inch orifice
dN 40 and 50 / 1-1/2 and 2-inch bodies (not available for
Types mr95l and mr95ld): 29 mm / 1.142-inch orifice
End Connection Styles
NPT, SWE and Welded and Integral CL150 RF,
CL300 RF, CL600 RF and PN 16/25/40 RF; all sizes are
fabricated with slip-on flanges (for welded end connections)
and are EN flanged 356-mm face-to-face (14-inch face-to-face)
maximum Cold Working Pressures of body Size and materials
See Table 2
Outlet and Differential Pressure Ranges
See Table 1
Monel is a mark owned by Special Metals Corporation.
®
Hastelloy ® C is a mark owned by Haynes International, Inc.
1. The pressure/temperature limits in this Installation Guide and any applicable standard or code limitation should not be exceeded.
2. The pressure limits given are based on the body size and body materials only. Actual pressure limits of the assembled regulator may decrease and vary depending on the
temperature, body end connection, diaphragm, seat and/or trim material of the regulator.
3. Fluorocarbon (FKM) is limited to 93°C / 200°F hot water.
.
bOdy mATErIAl CATEgOry
All SEP
All SEP
Cast Iron I
Steel and
II
Stainless Steel
All SEP
Steel and
II
Stainless Steel
(1)
www.fisherregulators.com
Temperature Capabilities
Diaphragm and Seat Materials:
Nitrile (NBR) and Neoprene (CR): -40 to 82°C / -40 to 180°F
Fluorocarbon (FKM)
Ethylenepropylene (EPDM): -7 to 135°C / 20 to 275°F
Perfluoroelastomer (FFKM): -18 to 218°C / 0 to 425°F
Polytetrafluoroethylene (PTFE): -40 to 204°C / -40 to 400°F
Stainless Steel (SST): -40 to 343°C / -40 to 650°F
Body Materials:
Gray Cast Iron: -29 to 208°C / -20 to 406°F
WCC Steel: -29 to 343°C / -20 to 650°F
LCC Steel: -40 to 343°C / -40 to 650°F
Stainless Steel, Monel
-40 to 288°C / -40 to 550°F
Aluminum-Bronze: -40 to 260°C / -40 to 500°F
Pressure Registration
Internal or External
Shutoff Classification Per ANSI/FCI 70-3-2004
Metal Seats: Class IV
PTFE: Class IV
Elastomer Seats: Class VI or better
Installation
Only qualified personnel shall install or service
a regulator. Regulators should be installed,
operated and maintained in accordance
with international and applicable codes and
regulations and Emerson Process Management
Regulator Technologies, Inc. instructions.
If the regulator vents fluid or a leak develops in
the system, it indicates that service is required.
Failure to take the regulator out of service
immediately may create a hazardous condition.
Personal injury, equipment damage or leakage
due to escaping fluid or bursting of pressure
containing parts may result if this regulator
is overpressured or is installed where service
conditions could exceed the limits given in
the Specifications section or where conditions
exceed any ratings of the adjacent piping or
piping connections.
To avoid such injury or damage, provide
pressure- relieving or pressure-limiting devices
(as required by the appropriate code, regulation
or standard) to prevent service conditions from
exceeding limits.
Additionally, physical damage to the regulator
could result in personal injury and property
damage due to escaping fluid. To avoid such
injury and damage, install the regulator in a
safe location.
(1)(2)
Clean out all pipelines before installation of the regulator and
check to be sure the regulator has not been damaged or has
collected foreign material during shipping. For NPT bodies,
apply pipe compound to the external pipe threads. For flanged
bodies, use suitable line gaskets and approved piping and bolting
practices. Install the regulator in any position desired, unless
otherwise specified, but be sure flow through the body is in the
direction indicated by the arrow on the body.
MR95 Series
(1)
: -18 to 149°C / 0 to 300°F
(3)
and Hastelloy C:
® ®
WArNINg
!
