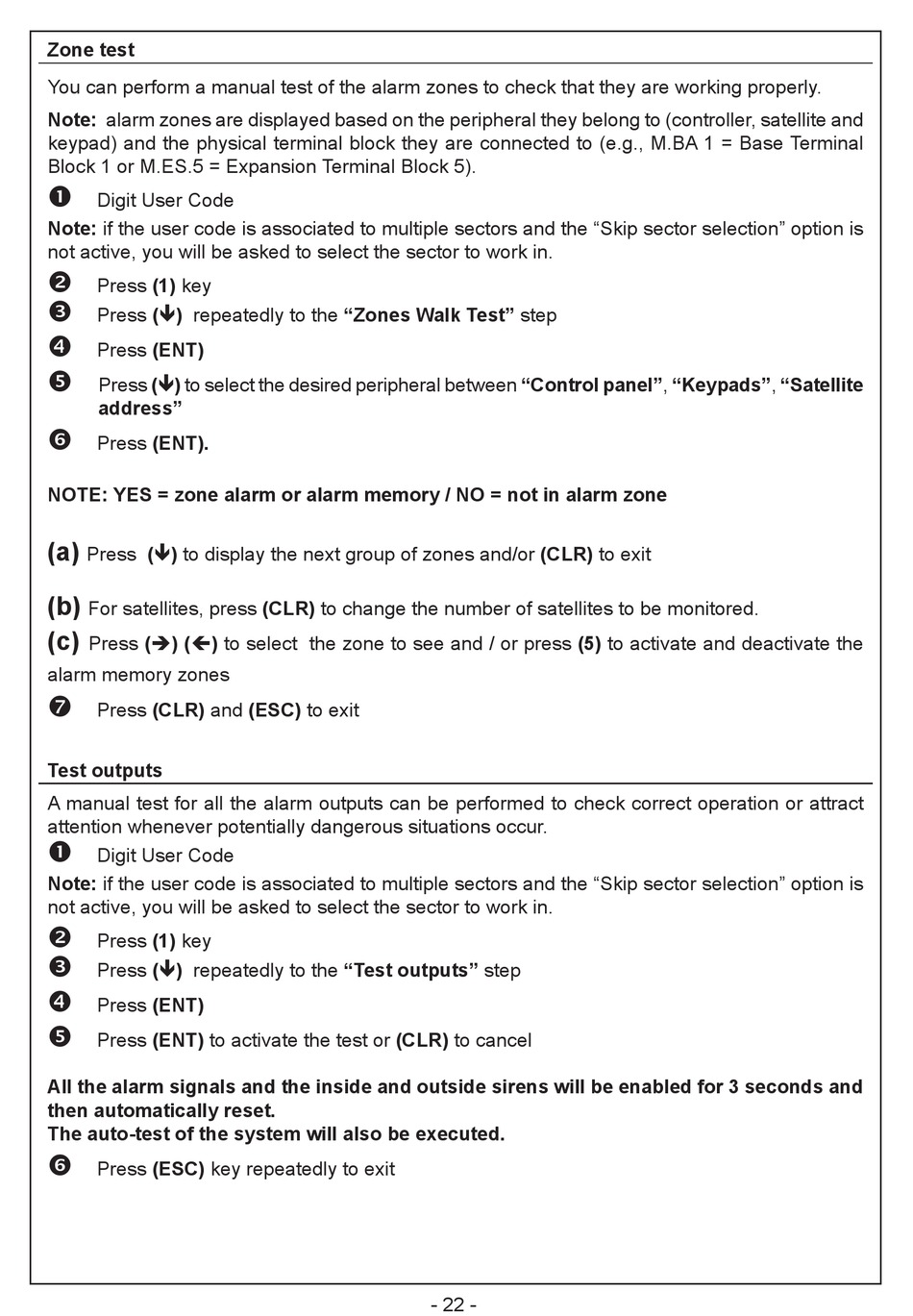

Zone test

You can perform a manual test of the alarm zones to check that they are working properly.
Note: alarm zones are displayed based on the peripheral they belong to (controller, satellite and
keypad) and the physical terminal block they are connected to (e.g., M.BA 1 = Base Terminal
Block 1 or M.ES.5 = Expansion Terminal Block 5).

Digit User Code
Note: if the user code is associated to multiple sectors and the "Skip sector selection" option is
not active, you will be asked to select the sector to work in.

Press (1) key

Press () repeatedly to the "Zones Walk Test" step

Press (ENT)

Press () to select the desired peripheral between "Control panel", "Keypads", "Satellite
address"

Press (ENT).
NOTE: YES = zone alarm or alarm memory / NO = not in alarm zone
(a)
Press () to display the next group of zones and/or (CLR) to exit
(b)
For satellites, press (CLR) to change the number of satellites to be monitored.
(c)
Press () () to select the zone to see and / or press (5) to activate and deactivate the
alarm memory zones
’
Press (CLR) and (ESC) to exit

Test outputs

A manual test for all the alarm outputs can be performed to check correct operation or attract
attention whenever potentially dangerous situations occur.

Digit User Code
Note: if the user code is associated to multiple sectors and the "Skip sector selection" option is
not active, you will be asked to select the sector to work in.

Press (1) key

Press () repeatedly to the "Test outputs" step

Press (ENT)

Press (ENT) to activate the test or (CLR) to cancel
All the alarm signals and the inside and outside sirens will be enabled for 3 seconds and
then automatically reset.
The auto-test of the system will also be executed.

Press (ESC) key repeatedly to exit
