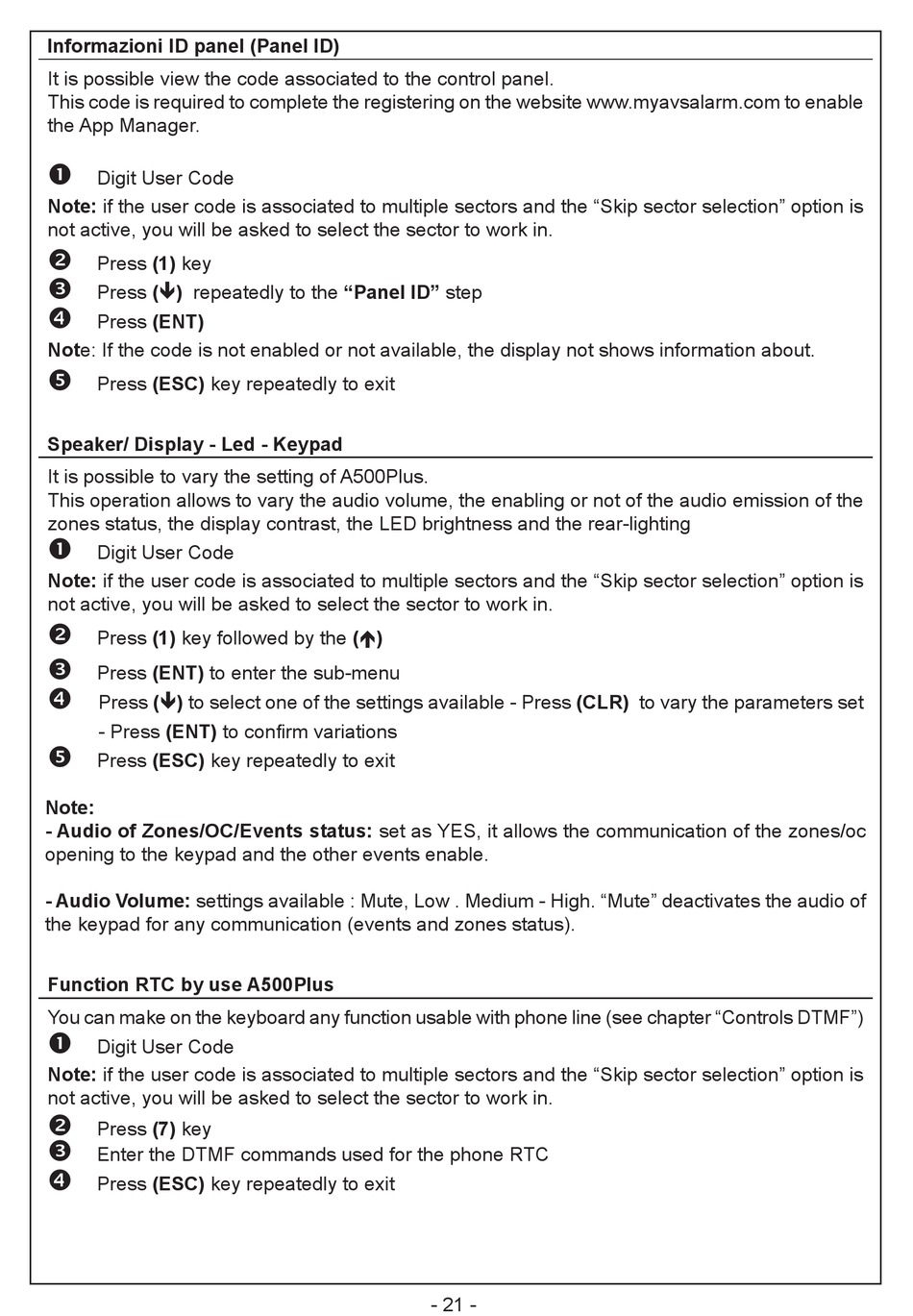

Informazioni ID panel (Panel ID)
It is possible view the code associated to the control panel.
This code is required to complete the registering on the website www.myavsalarm.com to enable
the App Manager.
Digit User Code
Note: if the user code is associated to multiple sectors and the "Skip sector selection" option is
not active, you will be asked to select the sector to work in.
Press (1) key
Press () repeatedly to the "Panel ID" step
Press (ENT)
Note: If the code is not enabled or not available, the display not shows information about.
Press (ESC) key repeatedly to exit
Speaker/ Display - Led - Keypad
It is possible to vary the setting of A500Plus.
This operation allows to vary the audio volume, the enabling or not of the audio emission of the
zones status, the display contrast, the LED brightness and the rear-lighting
Digit User Code
Note: if the user code is associated to multiple sectors and the "Skip sector selection" option is
not active, you will be asked to select the sector to work in.
Press (1) key followed by the ()
Press (ENT) to enter the sub-menu
Press () to select one of the settings available - Press (CLR) to vary the parameters set
- Press (ENT) to confirm variations
Press (ESC) key repeatedly to exit
Note:
- Audio of Zones/OC/Events status: set as YES, it allows the communication of the zones/oc
opening to the keypad and the other events enable.
- Audio Volume: settings available : Mute, Low . Medium - High. "Mute" deactivates the audio of
the keypad for any communication (events and zones status).
Function RTC by use A500Plus
You can make on the keyboard any function usable with phone line (see chapter "Controls DTMF")
Digit User Code
Note: if the user code is associated to multiple sectors and the "Skip sector selection" option is
not active, you will be asked to select the sector to work in.
Press (7) key
Enter the DTMF commands used for the phone RTC
Press (ESC) key repeatedly to exit
- 21 -
