Visualizzation / User Commands

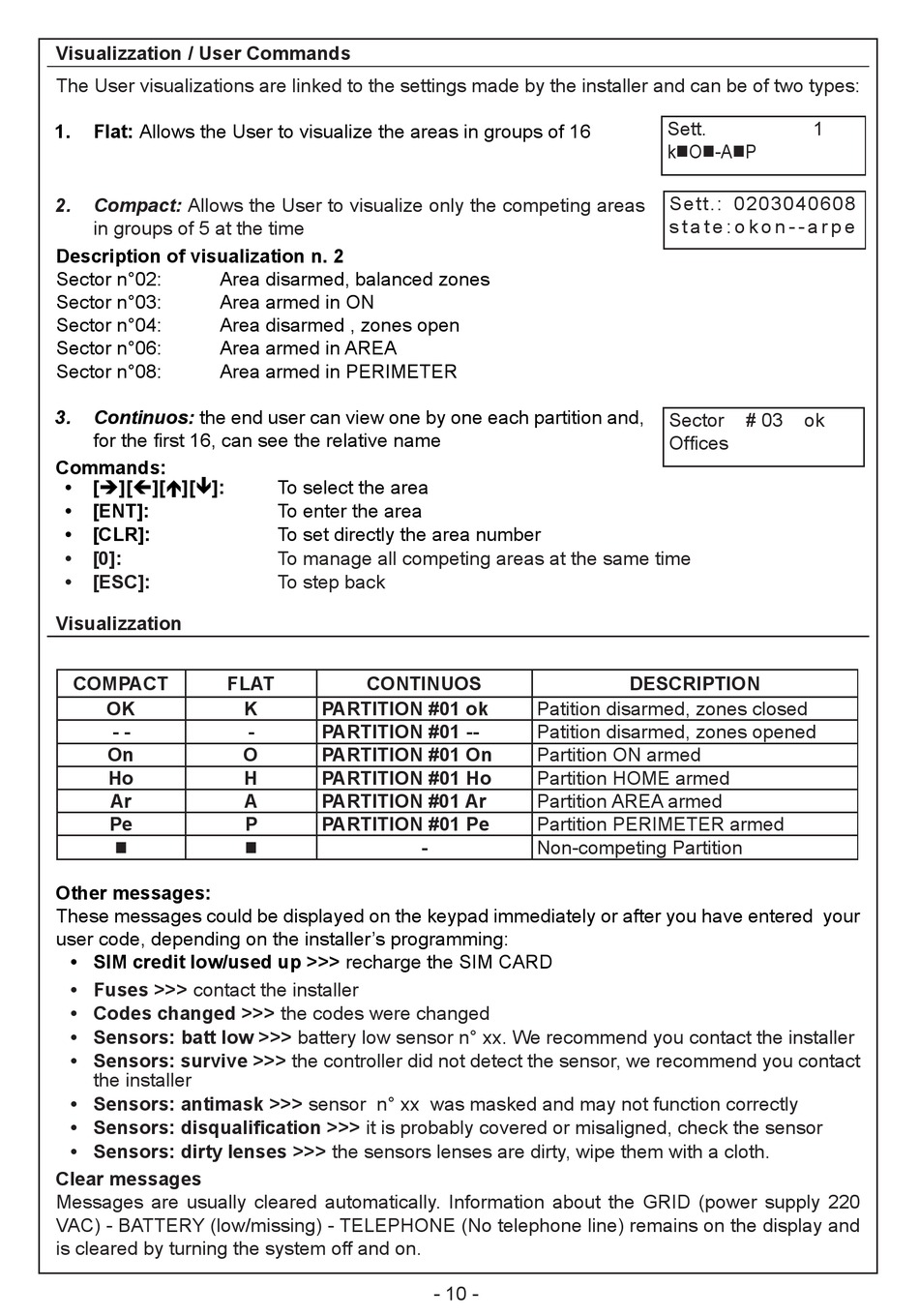

The User visualizations are linked to the settings made by the installer and can be of two types:
1. Flat: Allows the User to visualize the areas in groups of 16
2. Compact: Allows the User to visualize only the competing areas
in groups of 5 at the time
Description of visualization n. 2
Sector n°02: Area disarmed, balanced zones
Sector n°03: Area armed in ON
Sector n°04: Area disarmed , zones open
Sector n°06: Area armed in AREA
Sector n°08: Area armed in PERIMETER
3. Continuos: the end user can view one by one each partition and,
for the first 16, can see the relative name
Commands:
• [][][][]:
• [ENT]:
• [CLR]:
• [0]:
• [ESC]:

Visualizzation

COMPACT FLAT
OK
- -
On
Ho
Ar
Pe
n
Other messages:
These messages could be displayed on the keypad immediately or after you have entered your
user code, depending on the installer's programming:
• SIM credit low/used up >>> recharge the SIM CARD
• Fuses >>> contact the installer
• Codes changed >>> the codes were changed
• Sensors: batt low >>> battery low sensor n° xx. We recommend you contact the installer
• Sensors: survive >>> the controller did not detect the sensor, we recommend you contact
the installer
• Sensors: antimask >>> sensor n° xx was masked and may not function correctly
• Sensors: disqualification >>> it is probably covered or misaligned, check the sensor
• Sensors: dirty lenses >>> the sensors lenses are dirty, wipe them with a cloth.
Clear messages
Messages are usually cleared automatically. Information about the GRID (power supply 220
VAC) - BATTERY (low/missing) - TELEPHONE (No telephone line) remains on the display and
is cleared by turning the system off and on.
To select the area
To enter the area
To set directly the area number
To manage all competing areas at the same time
To step back
CONTINUOS
K PARTITION #01 ok
- PARTITION #01 --
O PARTITION #01 On
H PARTITION #01 Ho
A PARTITION #01 Ar
P PARTITION #01 Pe
n
Patition disarmed, zones closed
Patition disarmed, zones opened
Partition ON armed
Partition HOME armed
Partition AREA armed
Partition PERIMETER armed
- Non-competing Partition
