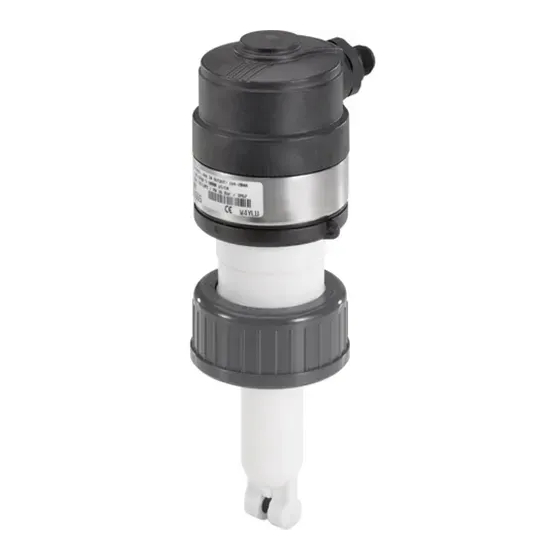

Burkert Type 8222 ELEMENT neutrino Operating Instructions Manual
From serial number 3000.
conductivity meter
Hide thumbs
Also See for Type 8222 ELEMENT neutrino:
- Operating instructions manual (110 pages) ,
- Quick start manual (118 pages) ,
- Operating instructions manual (72 pages)
Table of Contents
Related Manuals for Burkert Type 8222 ELEMENT neutrino
Summary of Contents for Burkert Type 8222 ELEMENT neutrino
- Page 1 Type 8222 ELEMENT neutrino Conductivity meter Leitfähigkeits-Messgerät Conductivimètre Operating Instructions (from serial number 3000) Bedienungsanleitung (ab Serien-Nummer 3000) Manuel d‘utilisation (à partir du numéro de série 3000)
- Page 2 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modifications techniques. © Bürkert SAS, 2010-2017 Operating Instructions 1708/03_EU-ML 00561659 Original_FR...
-
Page 3: Table Of Contents
Type 8222 ELEMENT neutrino 1. ABOUT THE OPERATING INSTRUCTIONS ........5 6.2. Conformity to standards and directives ......10 1.1. Symbols used ..................5 6.2.1. Conformity to the pressure equipment directive ..10 1.2. Definition of the word "device" ...........5 6.2.2. UL certification ..............10 1.3. Validity of these Operating Instructions ........6 6.3. Mechanical data ................11 6.4. Dimensions ..................11 2. INTENDED USE ....................6 6.5. Fluid data . - Page 4 Type 8222 ELEMENT neutrino 8.3. Wiring ....................20 13. STORAGE ..................... 33 8.3.1. Electrical connections ............20 14. DISPOSAL OF THE DEVICE ..............34 8.3.2. Wiring a version with cable gland ........20 8.3.3. Assembling and wiring the female connector, order code 917116 ............22 8.3.4. Wiring a version with an M12 fixed connector ....23 9. ADJUSTMENT AND COMMISSIONING .
-
Page 5: About The Operating Instructions
→ Indicates a procedure to be carried out. WARNING 1.2. Definition of the word "device" Warns you against a potentially dangerous situation. The word "device" used within these Operating Instructions refers to ▶ Failure to observe this warning can result in serious injury or the conductivity meter type 8222 ELEMENT neutrino. even death. English... -
Page 6: Validity Of These Operating Instructions
Type 8222 ELEMENT neutrino Basicsafetyinformation 1.3. Validity of these Operating 3. BASIC SAFETY INFORMATION Instructions This safety information does not take into account any contingencies or occurrences that may arise during installation, use and mainte- These Operating Instructions are valid for the devices type 8222 nance of the product. ELEMENT neutrino with a series number equal or higher than 3000. - Page 7 Type 8222 ELEMENT neutrino Basicsafetyinformation NOTICE Elements / Components sensitive to electrostatic discharges Various dangerous situations. This device contains electronic components sensitive to electro- To avoid injury take care: static discharges. They may be damaged if they are touched by an ▶ to observe the general technical rules during the planning and electrostatically charged person or object.
-
Page 8: General Information
- conversion of the measured impedance into conductivity units You can find the Operating Instructions and technical data sheets - acquisition of the resistance measured and conversion into regarding the type 8222 ELEMENT neutrino at: www.burkert.com temperature. The device operates on a 2 wire system and needs a 12...36 V DC power supply. -
Page 9: Conductivity Sensor
Type 8222 ELEMENT neutrino Description 5.2.2. Conductivity sensor 1. Power supply 2. Power consumption The sensor is pined together with the electronic module and cannot 3. Type of output be dismantled. 4. Sensor specifications The sensor itself comprises a Pt1000 temperature sensor and 2 electrodes. -
Page 10: Technical Data
Type 8222 ELEMENT neutrino Technicaldata 6. TECHNICAL DATA Type of fluid Conditions Fluid group 1, art. 4 §1.c.i DN25 only 6.1. Operating conditions DN ≤ 32 Fluid group 2, art. 4 §1.c.i or PNxDN ≤ 1000 Ambient temperature –10...+60 °C DN ≤ 25 Fluid group 1, art. 4 §1.c.ii Air humidity <... -
Page 11: Mechanical Data
• Materials in contact with the fluid: PVDF, stainless steel 1.4571 (316Ti), graphite, EPDM (only 6.4. Dimensions version with G 3/4'' external threaded sensor) → Please refer to the technical data sheets regarding the pH- or redox-meter type 8222 ELEMENT neutrino, available at: www.burkert.com English... -
Page 12: Fluid Data
Type 8222 ELEMENT neutrino Technicaldata 6.5. Fluid data Temperature measurement • –40...+130 °C • Measurement range Process connection • Accuracy • ±1 °C • Version with a G 1 1/2'' nut • Adapter or fitting S022 Temperature compensation • Automatic (integrated Pt1000) • Version with a G 3/4'' •... - Page 13 Type 8222 ELEMENT neutrino Technicaldata P (bar) P (psi) P (bar) P (psi) 217.6 Metal 188.6 217.6 Metal 159.6 188.6 130.6 159.6 101.6 PVC + PP 130.6 72.5 101.6 43.5 72.5 +20 +40 +60 T (°C) 43.5 Fig. 4: Fluid temperature / pressure dependency, for the device with a PVC nut and an S022 in metal, PVC or PP. +20 +40 +60 +80 +100 +120 T (°C) P (bar)
-
Page 14: Electrical Data
Type 8222 ELEMENT neutrino Technicaldata 6.6. Electrical data 6.8. Probe data Power supply 12...36 V DC, filtered and regulated Probe C=0,01 • Measurement range • 0,05...20 µS/cm ≤ 25 mA (12...36 V DC) Current consumption • Type of fluid • ultra-pure water, pure water Protection against polarity Probe C=0,1 reversal •... -
Page 15: Assembly
Type 8222 ELEMENT neutrino Assembly 7. ASSEMBLY 7.2. Unscrewing the cover on the connection box 7.1. Safety instructions NOTICE DANGER The tightness of the device is not guaranteed when the cover is removed. Risk of injury due to electrical voltage. ▶ Take all the precautions to prevent the projection of liquid inside ▶ If a 12...36 V DC powered version is installed either in a wet the housing. -
Page 16: Fitting The Cover To The Connection Box
Type 8222 ELEMENT neutrino Assembly → Position the polarising → Unscrew the cover on slots on the cover in the connection box by the axis of the slots on hand. the box: 3 positions are possible. polarising slots slots Fig. 7: Unscrewing the cover on the connection box → Tighten the cover on the connection box. -
Page 17: Installation And Wiring
Type 8222 ELEMENT neutrino Installationandwiring 8. INSTALLATION AND WIRING WARNING Risk of injury due to nonconforming installation. 8.1. Safety instructions ▶ The electrical and the fluid installation can only be carried out by qualified and skilled staff with the appropriate tools. DANGER ▶ Install appropriate safety devices (correctly rated fuse and/or Risk of injury due to high pressure in the installation. circuit-breaker). -
Page 18: Installation Onto The Pipe
Type 8222 ELEMENT neutrino Installationandwiring Protect this device against electromagnetic interference, ultraviolet rays and, when installed outdoors, the effects of the climatic conditions. 8.2. Installation onto the pipe If the conductivity is measured in liquids containing solids that may leave deposits in the bottom of the pipe, use instal- Direction of the fluid lation position 1 (see Fig. -
Page 19: Installation Of A Device With A G 3/4" External Threaded Sensor
Type 8222 ELEMENT neutrino Installationandwiring → Position the device in such Ø 27,5 a way that the G3/4'' markings (see zoom) located on either side of the elec- R 0,25 min. tronics box are parallel to the pipe. Ø 24 min. → Tighten by hand minimal internal thread depth the nut G 1 1/2"... -
Page 20: Wiring
Type 8222 ELEMENT neutrino Installationandwiring 8.3. Wiring Version Type of connection With a 5-pin terminal Shielded cable (not provided): DANGER block and a cable • diameter: 4...8 mm Risk of injury due to electrical voltage. gland • wires in compliance with the character- ▶ If a 12...36 V DC powered version is installed either in a wet istics of the Table 1 environment or outdoors, all the electrical voltages must be of max. - Page 21 Type 8222 ELEMENT neutrino Installationandwiring → Unscrew and remove the 4...20 mA input at external cable gland nut [A]. instrument → Remove the stopper [B] from the cable gland. out 2 → Unscrew the cover on out 1 the connection box (see chap. 7.2) →...
-
Page 22: Assembling And Wiring The Female Connector, Order Code 917116
Type 8222 ELEMENT neutrino Installationandwiring 8.3.3. Assembling and wiring the female connector, order code 917116 See chap. "11. Spare parts and accessories" → Completely unscrew nut [1]. → Remove the rear section of connector [2]. → Thread the cable through the nut and the rear part of the connector. → Strip 20 mm of the cable. →... -
Page 23: Wiring A Version With An M12 Fixed Connector
Type 8222 ELEMENT neutrino Installationandwiring 8.3.4. Wiring a version with an M12 fixed 4...20 mA input at connector external instrument Not connected brown V+ (12...36 V DC) green/yellow or grey blue Power supply Not connected 12...36 V DC Fig. 16: Pin assignment of the M12 fixed connector 4...20 mA input at Pin of the M12 female cable external instrument available as an accessory Signal Colour of the wire (order code 438680) brown... -
Page 24: Adjustment And Commissioning
Type 8222 ELEMENT neutrino Adjustmentandcommissioning Internal wiring of the M12 fixed connector on the terminal block 9. ADJUSTMENT AND COMMISSIONING Terminals Colour of the wire connecting the fixed connector to the terminal block 9.1. Safety instructions black DANGER green OUT1 grey Risk of injury due to electrical voltage. OUT2 orange ▶ Observe all applicable accident protection and safety regula- tions for electrical equipment. Risk of injury due to the nature of the fluid. ▶ Respect the regulations on accident prevention and safety relat- ing to the use of aggressive fluids. -
Page 25: Description Of The Connection Box
Type 8222 ELEMENT neutrino Adjustmentandcommissioning WARNING Red mark Danger due to nonconforming commissioning. Red LED Nonconforming commissioning could lead to injuries and damage Green LED the device and its surroundings. ▶ Before commissioning, make sure that the staff in charge Selector have read and fully understood the contents of the Operating Push-button (not used) Instructions. -
Page 26: Choosing The Conductivity Or Temperature Range Associated With The 4
Type 8222 ELEMENT neutrino Adjustmentandcommissioning 9.3. Choosing the conductivity or Table 2 : Sensor C=0,01 temperature range associated Selector 4...20 mA Temperature Recommended with the 4...20 mA output position output range compensation conductivity acc. to measurement The following procedure is valid for the devices with a series range number equal or higher than 3000. See the name plate of 0 (default 0...20 µS/cm NaCl... - Page 27 Type 8222 ELEMENT neutrino Adjustmentandcommissioning Table 3 : Sensor C=0,1 Table 4 : Sensor C=1 Selector 4...20 mA Temperature Recommended Selector 4...20 mA Temperature Recommended position output range compensation conductivity position output range compensation conductivity acc. to measurement acc. to measurement range range 0 (default 0...200 µS/cm NaCl 20...200 µS/cm 0 (default 0...10 mS/cm NaCl 1...10 mS/cm position) position)
-
Page 28: Checking The Cell Constant Of The Conductivity Sensor
Type 8222 ELEMENT neutrino Maintenanceandtroubleshooting 9.4. Checking the cell constant of the 10. MAINTENANCE AND conductivity sensor TROUBLESHOOTING Each sensor is delivered calibrated. 10.1. Safety instructions Take the temperature compensation into account. DANGER The following procedure makes it possible to check the exactness of Risk of injury due to high pressure in the installation. the device: ▶ Stop the circulation of fluid, cut off the pressure and drain the →... -
Page 29: Device And Conductivity Sensor Maintenance
Type 8222 ELEMENT neutrino Maintenanceandtroubleshooting 10.3. Replacing the cover seal on the WARNING connection box Risk of injury due to nonconforming maintenance. → Using a screwdriver ▶ Maintenance must only be carried out by qualified and skilled with a suitable head, staff with the appropriate tools. turn the latch to ▶ Ensure that the restart of the installation is controlled after any the unlock position interventions. - Page 30 Type 8222 ELEMENT neutrino Maintenanceandtroubleshooting → Put the cover in → On a version with place. cable gland, locate the colours of the → Fully tighten the wires connected to cover by hand to the terminal block. guarantee tightness. → Disconnect the wires from the terminal block by →...
-
Page 31: Replacing The Seal Of The G 3/4'' Threaded Sensor
Type 8222 ELEMENT neutrino Maintenanceandtroubleshooting 10.4. Replacing the seal of the G 3/4'' threaded sensor → Remove the worn seal "C" without damaging the groove nor the threads. → Put the new seal "C" in place in the groove. English... -
Page 32: If You Encounter Problems
Type 8222 ELEMENT neutrino Maintenanceandtroubleshooting 10.5. If you encounter problems Red LED status 4...20 mA output value Possible cause Recommended action → Check the fluid temperature. flashes (once per 4...20 mA Fluid temperature outside second) the operating range → Put the fluid temperature back to within the operating (–20...+100 °C). range (–20...+100 °C). →... -
Page 33: Storage
Type 8222 ELEMENT neutrino Sparepartsandaccessories 12. PACKAGING, TRANSPORT 11. SPARE PARTS AND ACCESSORIES NOTICE CAUTION Damage due to transport Transport may damage an insufficiently protected device. Risk of injury and/or damage caused by the use of unsuitable ▶ Transport the device in shock-resistant packaging and away parts. from humidity and dirt. Incorrect accessories and unsuitable replacement parts may ▶ Do not expose the device to temperatures that may exceed the cause injuries and damage the device and the surrounding area. -
Page 34: Disposal Of The Device
Type 8222 ELEMENT neutrino Disposalofthedevice 14. DISPOSAL OF THE DEVICE → Dispose of the device and its packaging in an environmentally- friendly way. NOTICE Damage to the environment caused by products contami- nated by fluids. ▶ Keep to the existing provisions on the subject of waste disposal and environmental protection. English... - Page 36 www.burkert.com...
