A coaxial cable jumper between the Tuner input and the Radial Plate ensures proper connection of
the radial field to the antenna system. The feedline coaxial cable going from the radial plate to the
Bias-T in the radio room connects to the other side of the connector on the Radial Plate. See the
Bias Tee Information - Appendix E and Appendix F- Coaxial Cable Connection to the optional
DXE-RADP-3 Radial Plate.

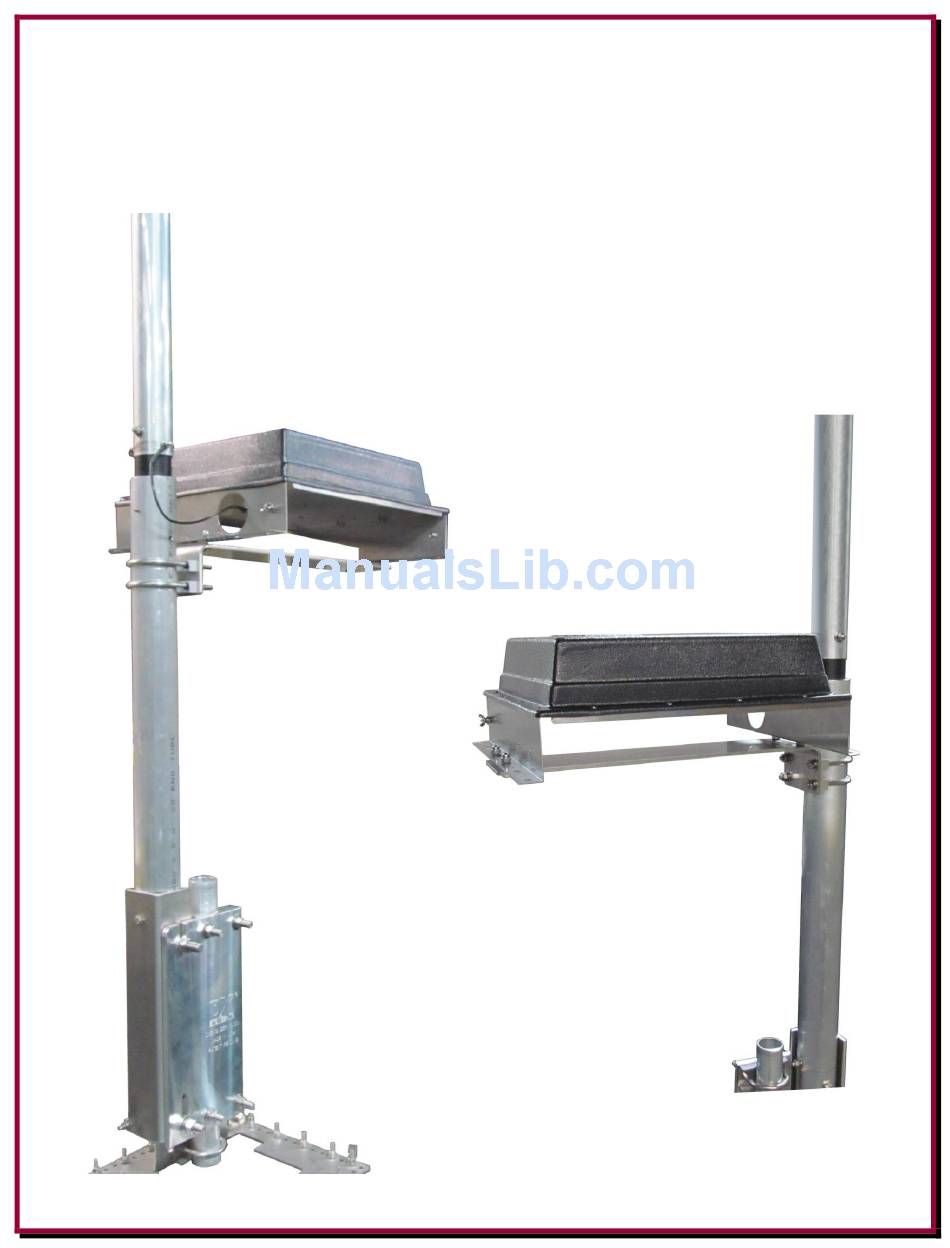

Two views showing the
MFJ-998RT installed on the
DXE-MBVE-5A antenna
