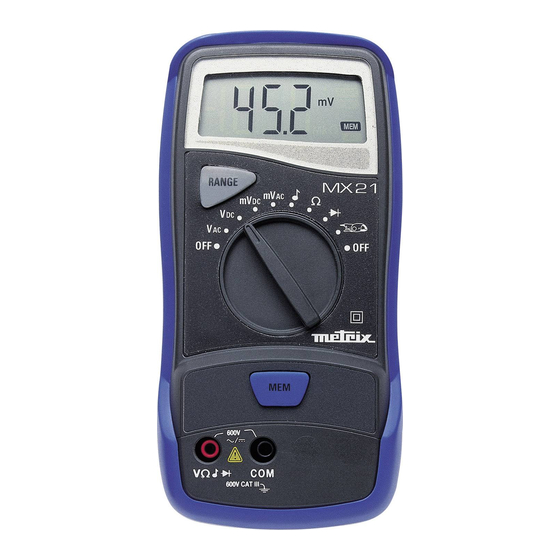

- Page 1 MX 21 MULTIMETRE NUMERIQUE 2000 points DIGITAL MULTIMETER 2000 counts DIGITAL MULTIMETER 2000 Punkte MULTIMETRO DIGITALE 2000 punti MULTIMETRO DIGITAL 2000 puntos Notice de fonctionnement User's manual Bedienungsanleitung Libretto d'istruzioni Manual de instrucciones...
- Page 2 MX 21 MULTIMETRE NUMERIQUE 2000 points DIGITAL MULTIMETER 2000 counts DIGITAL-MULTIMETER 2000 Punkte MULTIMETRO DIGITALE 2000 punti MULTIMETRO DIGITAL 2000 puntos User's manual page 13 Copyright © 906129639 - Ed. 6 - 01/13...
- Page 3 Multimètre digital portable 2000 pts...
- Page 4 LEGENDE Borne d’entrée Mesure de tension : 20 mV Entrée de référence du multimètre Mesure de tension : 200 mV Changement de gamme “ RANGE ” Test de continuité : Ω Maintien de l’affichage “ MEM ” Mesure de résistance : Mise hors tension “...
- Page 5 USER’S MANUAL CONTENTS 1. GENERAL INSTRUCTIONS ............14 1.1 Precautions and safety measures ..........14 1.1.1 Preliminary ................. 14 1.1.2 During use................15 1.1.3 Symbols ................15 1.1.4 Instructions................. 15 1.2 Protection mechanisms ............... 16 1.3 Safety mechanisms ..............16 1.4 Warranty ..................
- Page 6 1. GENERAL INSTRUCTIONS You are the new owner of a 2000 count portable digital multimeter and we thank you for your choice. This instrument complies with the specifications set out in the NF EN 61010-1, publication concerning safety requirements for electronic measuring apparatus.
- Page 7 1.1.2 During use ∗ Never exceed the protection limit values indicated in the specifications for each type of measurement. ∗ When the multimeter is linked to measurement circuits, do not touch unused terminals. ∗ When the range of the value to be measured is unknown, check that the range initially set on the multimeter is the highest possible or, wherever possible, choose the autoranging mode.
- Page 8 ∗ If any faults or abnormalities are observed, take the instrument out of service and ensure that it cannot be used until it has been checked out. ∗ It is recommended to remove the battery from the instrument if not used.
-
Page 9: Input Terminal
1.5 Maintenance and metrological verification Return your instrument to your distributor for any work to be done within or outside the guarantee. 1.6 Unpacking - Repackaging This equipment has been fully checked out mechanically and electrically before shipping. All precautions have been taken to ensure that the instrument arrives at its destination undamaged. -
Page 10: Description
2. DESCRIPTION This compact multimeter is a self-contained unit with an appropriate mechanical construction, enables hand-held use. It is designed for a high degree of safety use and comes with a maximum protection and unrivalled performance. 2.1 Display • Liquid crystal display 3 ½ digits (height of digits : 18 mm) •... -
Page 11: Function Description
3. FUNCTION DESCRIPTION 3.1 AC or DC voltages • Connect the leads to the multimeter (COM and V terminals) and connect it in parallel to the circuit to be tested. • Position the selector switch on the voltmeter function « V or mV ». •... -
Page 12: Battery Test
3.3 Continuity sound test • Connect the leads to the multimeter (COM and Ω terminals) and to the circuit or the component to be tested. • Position the selector switch on the continuity sound function : • The audible beep stops when R > 750 Ω. •... -
Page 13: General Specifications
4. GENERAL SPECIFICATIONS • Mechanical features : Dimensions : 170 x 80 x 35 mm Weight (with battery) : 285 g • Packing : Dimensions : 230 x 155 x 65 mm Weight : 385 g • Power supply : 1 battery 9 V (type 6LF22 or 6LR61) Battery life : approx. - Page 15 METRIX Parc des Glaisins 6, avenue du Pré de Challes F - 74940 ANNECY-LE-VIEUX Tél. 33 (0)4 50 64 22 22 - Fax 33 (0)4 50 64 22 00 906129639 - Ed. 6 - 01/13...
