WAFER-CV-D25501/N26001 3.5" SBC

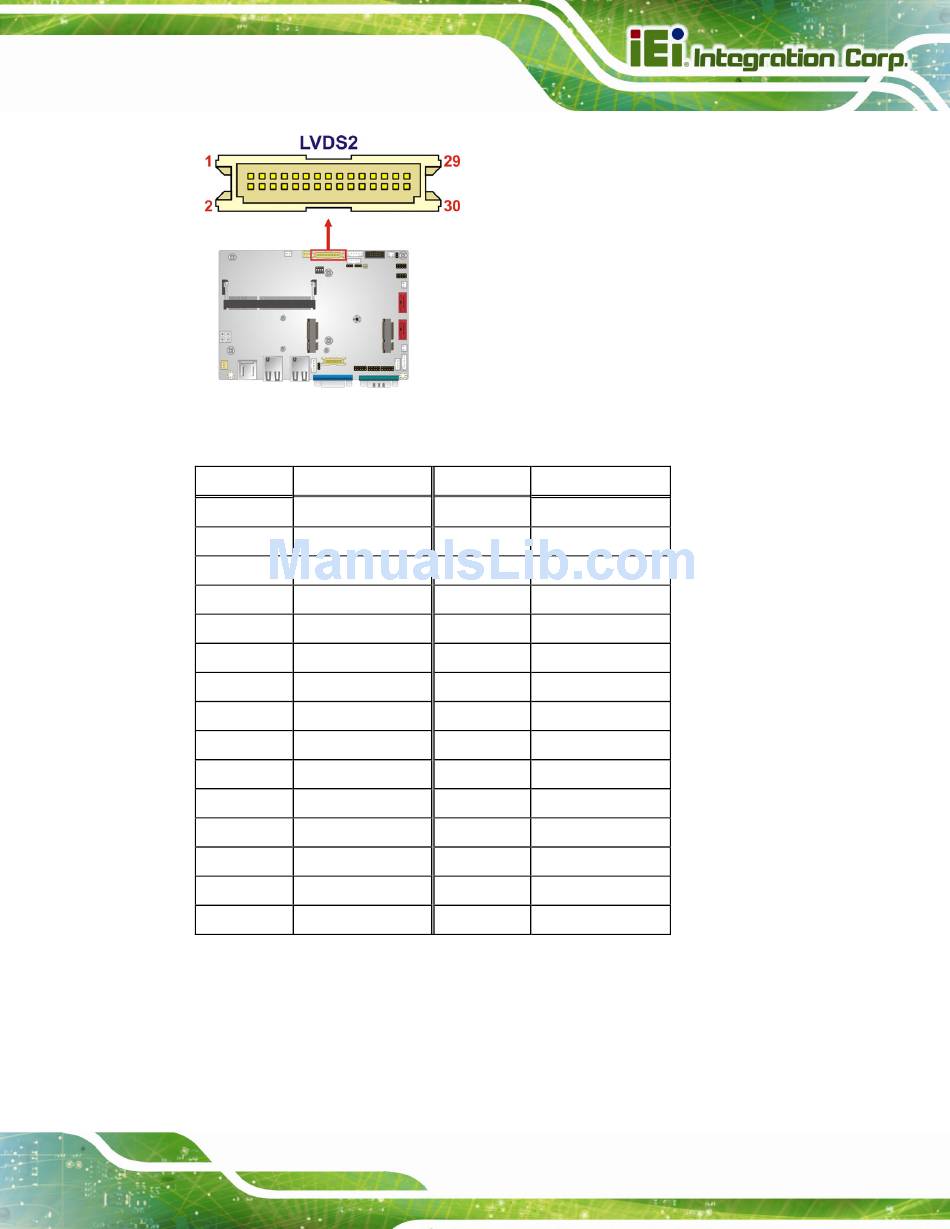

Figure 3-11: LVDS2 Connector Location

Pin Description
1 GND
3 LVDS_DATA0
5 LVDS_DATA1
7 LVDS_DATA2
9 LVDS_CLK1
11 LVDS_DATA3
13 GND
15 LVDS_DATA4
17 LVDS_DATA5
19 LVDS_DATA6
21 LVDS_CLK2
23 LVDS_DATA7
25 GND
27 VCC_LCD
29 VCC_LCD

Table 3-12: LVDS2 Connector Pinouts

Pin Description
2 GND
4 LVDS_DATA0#
6 LVDS_DATA1#
8 LVDS_DATA2#
10 LVDS_CLK1#
12 LVDS_DATA3#
14 GND
16 LVDS_DATA4#
18 LVDS_DATA5#
20 LVDS_DATA6#
22 LVDS_CLK2#
24 LVDS_DATA7#
26 GND
28 VCC_LCD
30 VCC_LCD
Page 25
