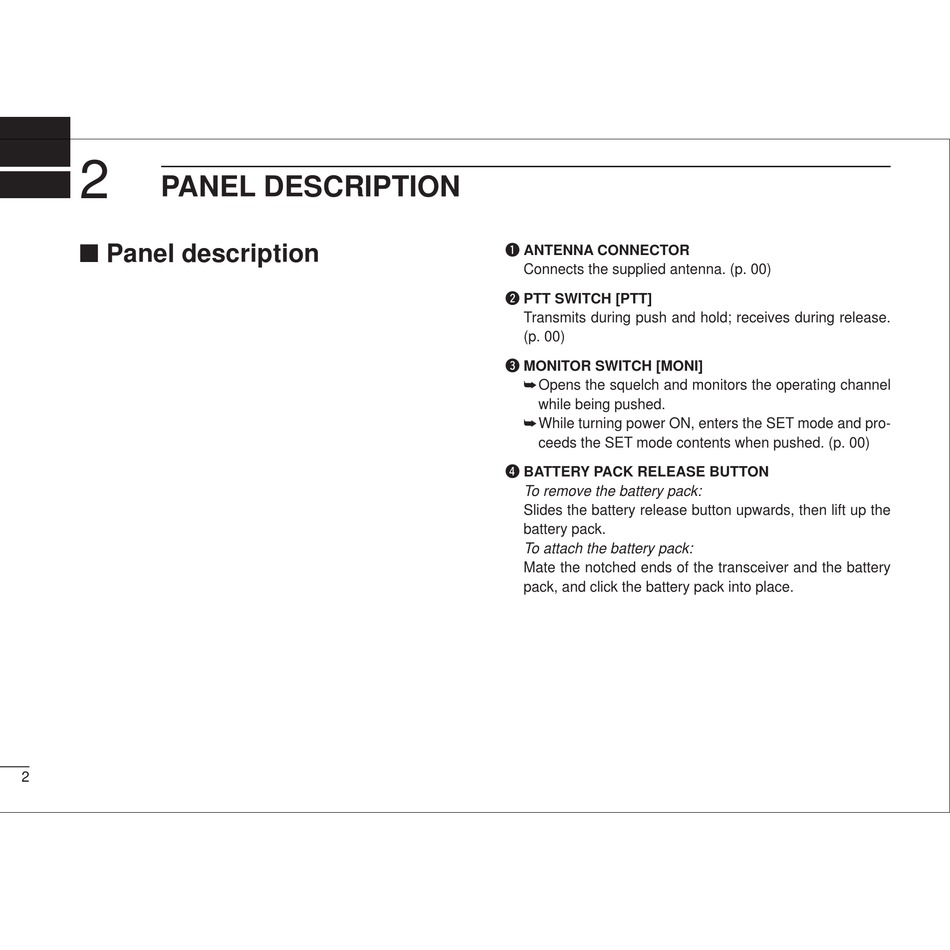

PANEL DESCRIPTION

Panel description
2
q ANTENNA CONNECTOR
Connects the supplied antenna. (p. 00)
w PTT SWITCH [PTT]
Transmits during push and hold; receives during release.
(p. 00)
e MONITOR SWITCH [MONI]
Opens the squelch and monitors the operating channel
while being pushed.
While turning power ON, enters the SET mode and pro-
ceeds the SET mode contents when pushed. (p. 00)
r BATTERY PACK RELEASE BUTTON
To remove the battery pack:
Slides the battery release button upwards, then lift up the
battery pack.
To attach the battery pack:
Mate the notched ends of the transceiver and the battery
pack, and click the battery pack into place.
