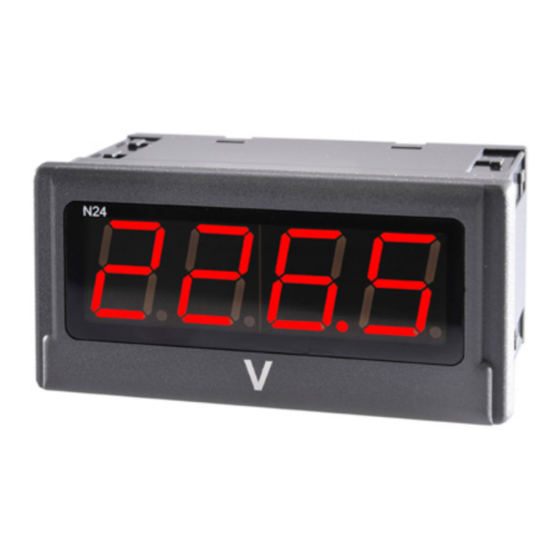

Digital panel meter, meter series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

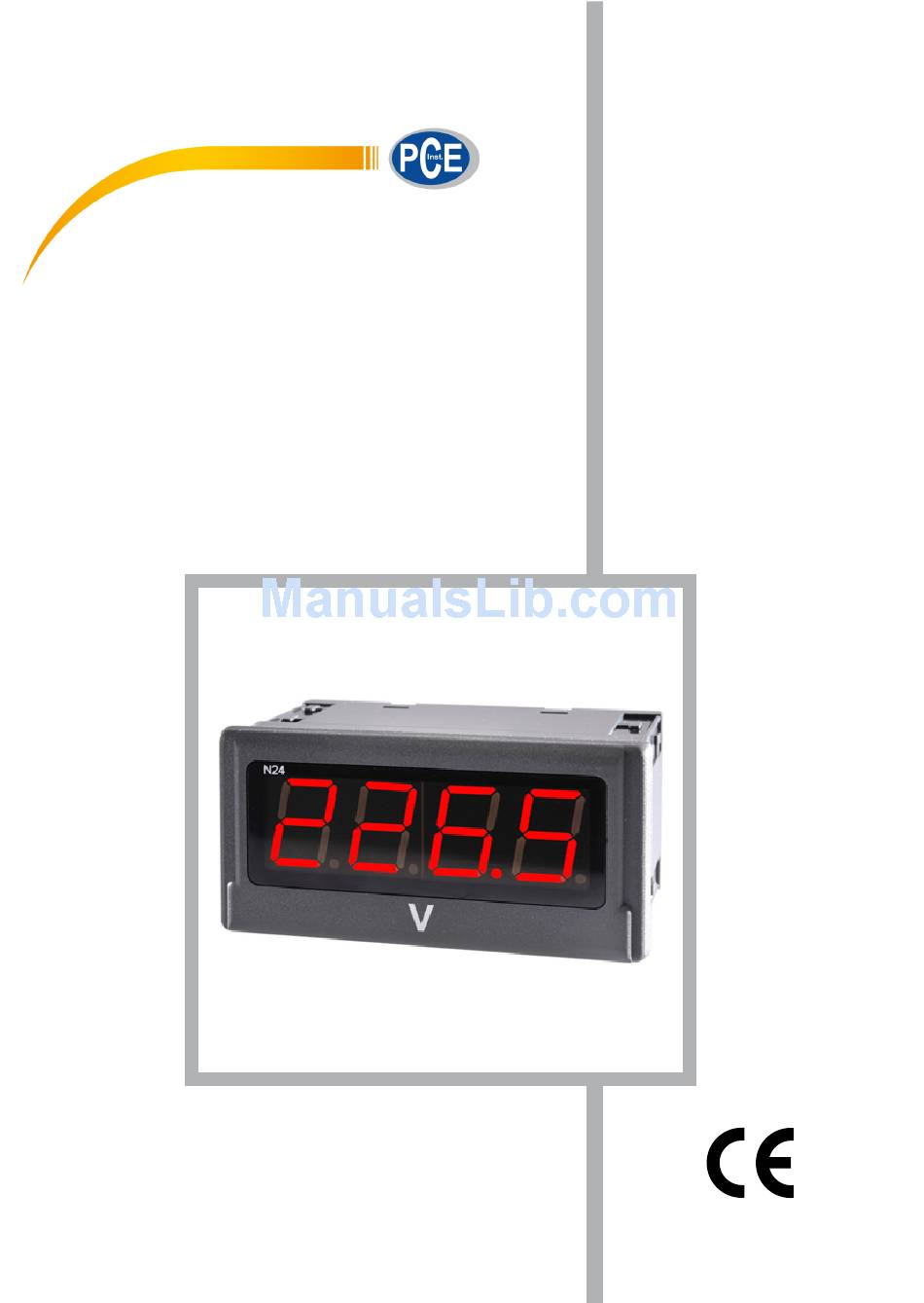

DIGITAL PANEL METER
N24 AND N25
METER SERIES
USER'S MANUAL


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N24 and is the answer not in the manual?

Questions and answers

Related Manuals for PCE Health and Fitness N24

Summary of Contents for PCE Health and Fitness N24

  • Page 1 DIGITAL PANEL METER N24 AND N25 METER SERIES USER’S MANUAL...

  • Page 3: Table Of Contents

    5.4 Manufacturer’s Parameters of N24S, N25S ......12 5.5 Manufacturer’s parameters of N24T, N25T ......12 5.6 Manufacturer’s Parameters of N24Z, N25Z ......13 5.7 Manufacturer’s Parameters of N24H, N25H .......14 6. ERROR CODES ................15 7. TECHNICAL DATA ..............15 7.1 Technical Data of N24S, N25S ...........15 7.2 Technical Data of N24T, N25T ...........16 7.3 Technical Data of N24Z, N25Z ...........17 7.4 Technical Data of N24H, N25H ...........17 7.5 Common Technical Data for the Whole N24 and N25 Series ........18 8. ORDER CODES ................20 9. SERVICE AND MAINTENANCE ..........23...

  • Page 5: Application

    1. APPLICATION Meters of the N24 and N25 series are digital instruments destined for the measurement of d.c. voltage or d.c. current: uni or bipolar, temperature through J, K thermocouples, Pt100 resistance thermometers and for the measurement of a.c. voltage and a.c. current. A LED display (4 digits for N24 and 5 digits for N25 meter series) constitutes the readout field.

  • Page 6: Operational Safety

    · The programming of N24 and N25 meter series parameters must be carried out after disconnecting measuring circuits · Before switching the meter on, one must check the correctness of connections to the network.

  • Page 7: Installation

    4. INSTALLATION 4.1. Fixing Way The meter has separable strips with screw terminals which enable the connection of external wires of 2.5 mm cross-section. In execution for current measurement, the plug enables a permanent fixing to the so- cket by means of screws. The meter is adapted to be mounted in a panel by means of clamps, acc.

  • Page 8: External Connection Diagrams

    4.2. External Connection Diagrams 4.2.1 Electrical Connections of the N24S and N25S Meters Fig. . Electrical connection of the NS, NS meters 4.2.2 Electrical Connection of the N24T and N25T Meter Fig. . Electrical connection of the NT, NT meters...
  • Page 9 Thermocouple J, K Resistance thermometer in a Resistance thermometer in a two-wire system and with three-wire system and with manual compensation automatic compensation Fig. . Connections of the NT and N T measuring inputs 4.2.3 Electrical Connections N24Z, N24H and N25Z, N25H Meters Fig.

  • Page 10: Service

    5. SERVICE 5.1. Display Description Measured value Fig. . Frontal panel 5.2. Messages after Switching the Supply on After switching the supply on, the meter displays the meter name ap- propriate to the kind of measured signal: N24e, N25E where E is the appropriate execution of the s,t,2,h. meter and next, the program version in the shape r x.xx –...

  • Page 11: Meter Configuration By Means Of Lpcon Program

    The free delivered LPCon program, available on the www.lumel.com.pl page, is destined for the N24 and N25 meter series configuration. The configuration user’s manual for N24 and 25 meters by means of the LPCon program is also available on the www.lumel.com.pl page.

  • Page 12: Manufacturer's Parameters Of N24S, N25S

    5.4. Manufacturer’s Parameters of N24S and N25S Meters Table 3 Range/value Manufacturer’s Manufacturer’s Parameter description (N24/N25) value N24S value N25S 0000, 000.0, 00.00, 00.00 for U,I 000.00 for U,I 0.000/00000, 0000.0, unipolar; unipolar; Decimal point 000.00, 00.000, 000.0 for U 0000.0 for U 0.0000 bipolar; bipolar;...

  • Page 13: Manufacturer's Parameters Of N24Z, N25Z

    -1999 -19999 measurement -19999...99999 5.6. Manufacturer’s Parameters of N24Z and N25Z Meters Table 5 Range/value Manufacturer’s Manufacturer’s Parameter description (N24/N25) value N24Z value N25Z 0000, 000.0, 00.00, 0.000/00000, 0000.0, 000.0 for U,f 0000.0 for U,f Decimal point 000.00, 00.000, 0.000 for I 0000.0 for I 0.0000 0.5 s;...

  • Page 14: Manufacturer's Parameters Of N24H, N25H

    5.7. Manufacturer’s Parameters of N24H and N25H Meters Table 6 Range/value Manufacturer’s Manufacturer’s Parameter description (N24/N25) value N24H value N25H 0000 for U 0000, 000.0, 00.00, or 00.00 for I 0.000/00000, 0000.0, 0000.0 for U Decimal point bipolar 000.00, 00.000, or 000.00 for I 000.0 for U 0.0000...

  • Page 15: Error Codes

    6. ERROR CODES After switching the meter to the network on, messages about errors can appear. Messages about errors and their reasons are presented below. Overflow of the upper value of programmed indication range. In the option with Pt100, this message also signals incorrect connections of the wire to the terminal 4.

  • Page 16: Technical Data Of N24T, N25T

    Output for supply external 24 V ± 5% 30 mA transducers 110% Un, 110% In Sustained overload voltage input 10 Un Short duration overload (1 s): current input 5 In 7.2. Technical Data of N24T and N25T Meters Measuring range: INPUTS: Pomiar temperatury Pt100: - 50°C...150°C current flowing through the sensor < 300 mA - 50°C...400°C Resistance of wires connecting ...

  • Page 17: Technical Data Of N24Z, N25Z

    7.3. Technical Data of N24Z and N25Z meters Measuring range: INPUTS: Measuring range of voltage Un: 1...100...120 V a.c. 2.5...250...300 V a.c. input resistance > 2 MΩ 4...400...600 V a.c. Measuring range of current In: input resistance 10 mΩ ±10% 0.01...1...1,2 A a.c. input resistance 2 mΩ ±10% 0.05...5...6 A a.c.

  • Page 18: Common Technical Data For The Whole N24 And N25 Series

    120% In voltage input 2 Un (<1000 V) Short duration overload (1s) current input 10 In 7.5. Common Technical Data for the Whole N24 and N25 Series Rated operating conditions: 230 V ± 10% a.c. (45...65 Hz) - supply voltage 110 V ± 10% a.c. (45...65 Hz) 24 V ± 10% a.c. (45...65 Hz) 85...253 V a.c.

  • Page 19: Electromagnetic Compatibility

    30 minutes Preheating time Readout field: 4-digit LED display (N24 series) 5-digit LED display (N25 series) - digit height 20 mm (N24)/14 mm (N25 series) - colour - indication range: -1999...9999 (N24 series) -19999...99999 (N25 series) Ensured protection grade IP 65 acc. to EN 60529...

  • Page 20: Order Codes

    Table 7 DIGITAL PANEL METER X- X X XX XX X X Number of display digits: four (N24 series) ..........4 five (N25 series) ........... 5 Kind of input signal: standard: voltage, current ........... S temperature: thermocouples, resist. thermometers ..T a.c.
  • Page 21 Table 8 METER TYPE Item N24S/N25S N24T/N25T N24Z/N25Z N24H/N25H 0...20 mA PT100: -50...150°C 100 V a.c. +/- 100 V d.c. 4...20 mA PT100: -50...400°C 250 V a.c. +/- 250 V d.c. Thermocouple J: 0...60 mV 400 V a.c. +/- 400 V d.c. -50 ...
  • Page 22 EXAMPLES OF ORDER: Example 1 The code: N24Z - 2 1 04 00 E 0 means: N24Z – digital meter with four digits for a.c. signals, 2 – input signal: 250 V a.c. (acc. to the table 8), 1 – supply voltage: 230 V a.c., 04 –...

  • Page 23: Service And Maintenance

    9. MAINTENANCE AND GUARANTEE The N24 and N25 digital panel meter series do not require any periodi- cal maintenance. In case of some incorrect operations: 1. During the Guarantee Period Defined in the Guarantee Card: One should take the meter down from the installation and return it to the Manufacturer’s Quality Control Dept.
  • Page 24 PCE Brookhuis B.V. Institutenweg 15 7521 PH Enschede The Netherlands sales@pcebenelux.nl +31 (0)900 - 120 00 03 (15 ct./p.m.) www.pcebrookhuis.nl N24-09B/1 20.04.2011...

This manual is also suitable for:

N25
