Manual

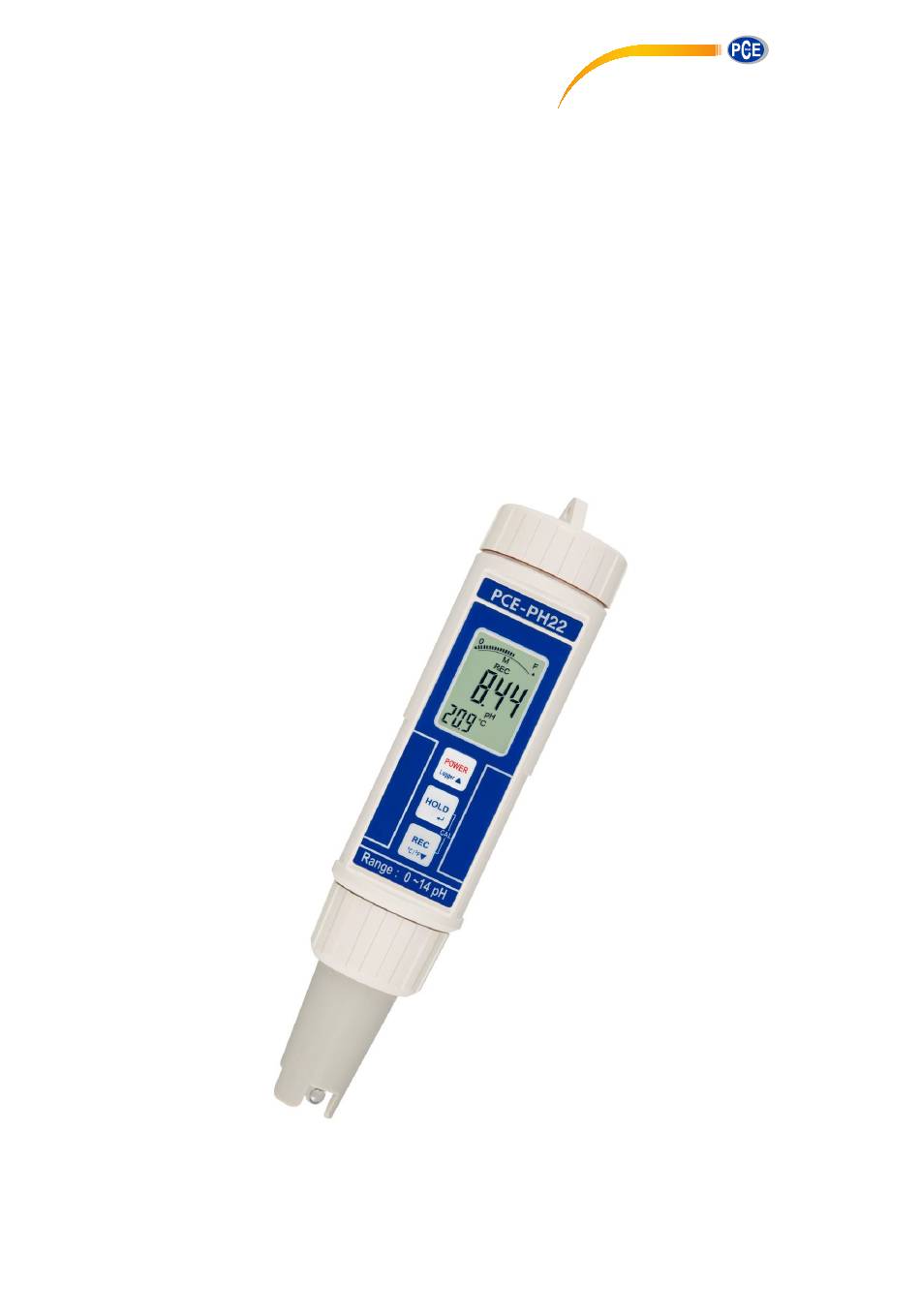

pH-Meter PCE-PH 22
Date of last change: 07.07.2016
PCE Americas Inc.
711 Commerce Way
Suite 8
Jupiter
FL-33458
USA
From outside US: +1
Tel: (561) 320-9162
Fax: (561) 320-9176
info@pce-americas.com
www.pce-instruments.com/english
www.pce-instruments.com
PCE Instruments UK Ltd.
Units 12/13
Southpoint Business Park
Ensign way
Hampshire / Southampton
United Kingdom, SO31 4RF
From outside UK: +44
Tel: (0) 2380 98703 0
Fax: (0) 2380 98703 9
info@pce-instruments.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE-PH 22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PCE Health and Fitness PCE-PH 22

Summary of Contents for PCE Health and Fitness PCE-PH 22

  • Page 1 United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@pce-instruments.com www.pce-instruments.com/english www.pce-instruments.com Manual pH-Meter PCE-PH 22 Date of last change: 07.07.2016...

  • Page 2: Table Of Contents

    Manual Contents Introduction ......................3 Safety notes ......................3 Specification ......................4 System description ....................5 pH Calibrating procedure ..................6 Calibrating Consideration ......................6 Requiring Equipment for Calibration ..................6 Calibration procedures ....................... 6 Measuring Procedure....................7 pH measurement ........................7 Data Hold ............................

  • Page 3: Introduction

    Thank you for purchasing a PH-Meter from PCE Instruments. The water resistant PCE-PH 22 pH meter quickly detects the pH value and temperature. Thanks to its split display it can show the pH value and temperature reading simultaneous with this pH meter. Its durable enclosure is water resistant up to IP 67 and can be used in adverse weather conditions.

  • Page 4: Specification

    Manual Specification Display LCD, size : 20 mm x 28 mm. * With bar graph indicator. Measurement Range 0 to 14 pH. -5 to 80 °C (23 to 176 ℉). Temp. Resolution 0.01 pH. 0.1 ℃/ 0.1 ℉. Temp. ± 0.02 pH * After calibration.

  • Page 5: System Description

    Manual System description 3-1 Display 3-2 Power (Logger, ▲) Button 3-3 Hold (Enter, CAL) button 3-4 REC (℃/℉ button, ▼) Button 3-5 pH electrode (Temp. sensor) 3-6 Battery compartment/Cover 3-7 Protection cover...

  • Page 6: Ph Calibrating Procedure

    Manual pH Calibrating procedure Calibrating Consideration The pH meter already calibrated by mV signal that simulated from the ideal pH ELECTRODE mV output (base on 25 ℃ environment). However due to (a) An ideal electrode will produce 0 mV at pH 7.00, but most electrodes are slightly off.

  • Page 7: Measuring Procedure

    Manual pH 4 calibration 1) Rinse the electrode in distilled water. Place electrode into buffer pH 4.00 solution. 2) All the calibration procedures are same as the above pH calibration, except: a. Change the buffer solution to pH 4.00 ( PH-04A ) b.

  • Page 8: Data Logger

    Manual Data Logger The meter can save max. 100 point data into the memory circuit Save data 1) Turn on the meter. 2) Press the "REC Button" momentarily, shows "REC" on the display. 3) Press the "Logger Button" momentarily will save one measuring value to memory, display will show : 4) To exit the memory data logger (record) function, press the "REC"...

  • Page 9: Delete Data (Empty The Memory)

    Manual Delete data (Empty the memory) 1) Turn off the meter first. 2) Press the "REC Button" continuously and not release, at the same time press the "Power Button" momentarily, the display will show following screen, then release both fingers from the buttons. 3) Press "▼...

  • Page 10: Replacement Of Ph Electrode

    Manual Replacement of pH Electrode 1) Take away the pH electrode and change the new unit 2) The pH electrode, PE-12 is the standard accessory of the meter. However the PE-12 is also the consumer parts, its life is depend the working period and the maintenance.

  • Page 11: Disposal

    Manual 10 Disposal For the disposal of batteries, the 2006/66/EC directive of the European Parliament applies. Due to the contained pollutants, batteries must not be disposed of as household waste. They must be given to collection points designed for that purpose. In order to comply with the EU directive 2012/19/EU we take our devices back.
