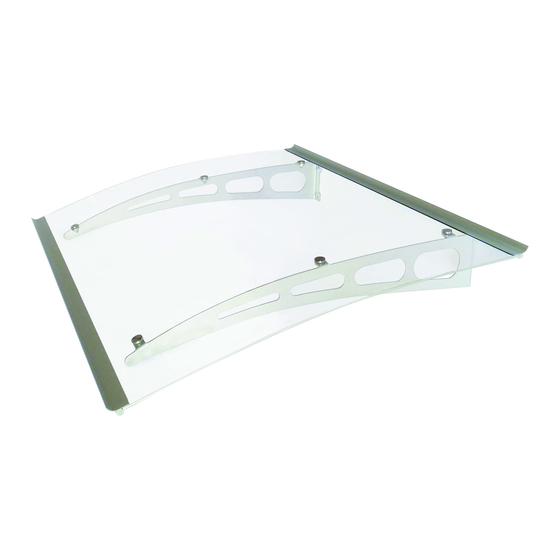

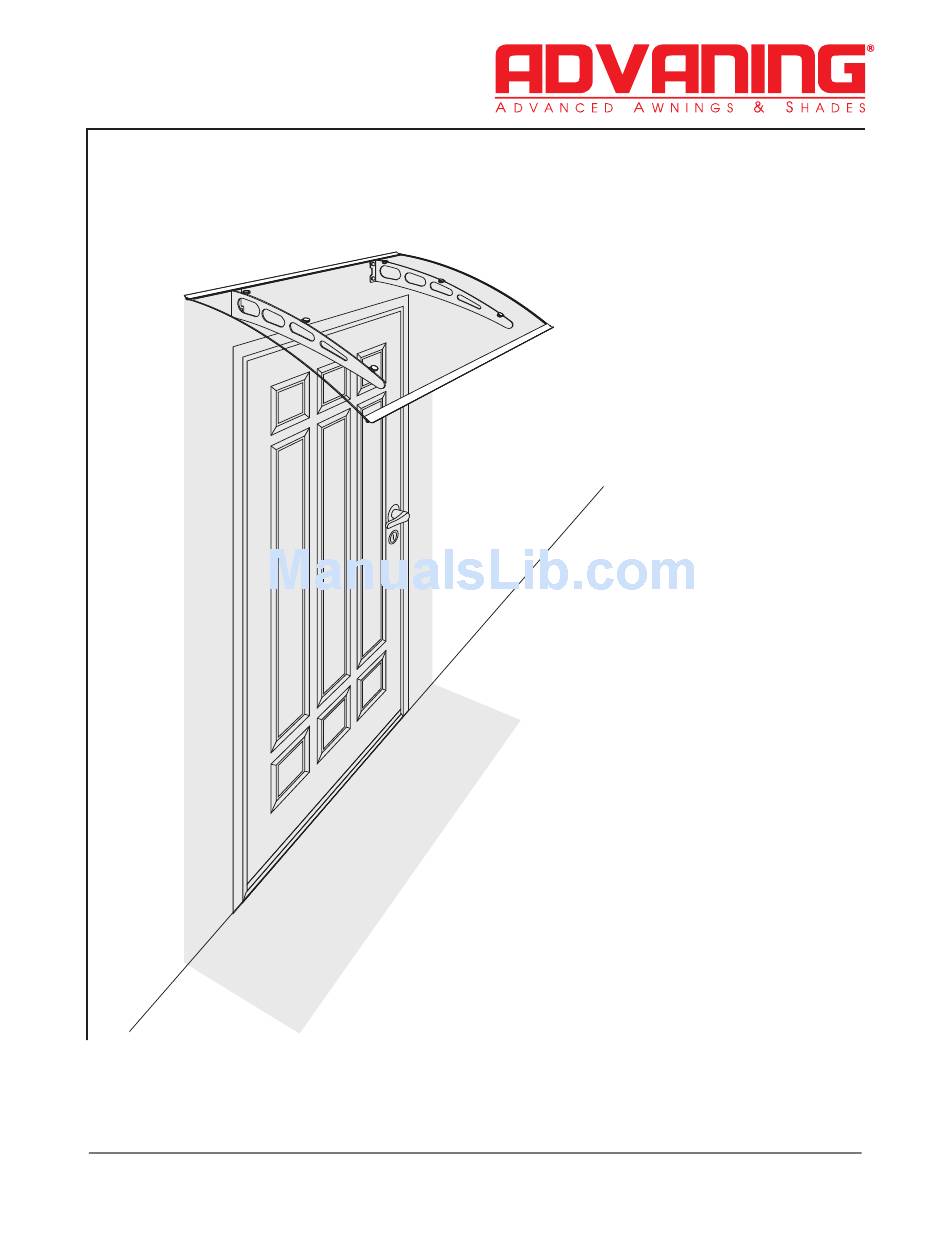

- Page 1 DOOR AWNING : PA SERIES Owner’s Manual For safety reasons, please carefully read and understand all written instructions and warnings in this manual prior to assembling or installing this product.
-
Page 2: Table Of Contents
Warranty............. 13 www.advaning.com... -
Page 3: Safety Instructions And Warnings
You are solely responsible for the proper handling, storage, assembly, installation and use of this product in a safe and appropriate location and given application. Advaning is not responsible for any damages or injury to you, any other parties, or property resulting from improper handling, storage, assembly, installation or misuse of the product. -
Page 4: Package Contents And Parts
Nut (6) Lag screw & washer set (4) Lag screw cap (4) Fig.3 The EXPANSION BOLT available purchase for use with concrete or brick walls. Expansion bolt (4) Washer (4) Hex bolt (4) Fig 4 www.advaning.com Toll Free (US): (855) 574-0158... -
Page 5: Tool Requirements
TOOL REQUIREMENTS RECOMMENDATION Minimum 2 people to install. SUGGESTED TOOLS Marker / pencil Scissors Level 24 HOUR Wrench SILICONE Rubber hammer Small wood block 24 Hour silicone Drill bit Drill Ladder Fig.6 Toll Free (US): (855) 574-0158 www.advaning.com... -
Page 6: Product Features
PRODUCT FEATURES Awning sheet (1) Fig.5 Awning bracket (2) Awning bar (2) Rubber strip (2) Wall rubber strip (1) Bracket screw set (6) Lag screw & washer set (4) Lag screw cap (4) www.advaning.com Toll Free (US): (855) 574-0158... -
Page 7: Installation
At least 10 inch of ver- tical clear space. Minimum depth of Side view Roof, eave or overhang 36 inches. Minimum 2 inch Minimum 10 inch clear space 36 inches Fig 8 Toll Free (US): (855) 574-0158 www.advaning.com... -
Page 8: Assemble The Door Awning
Using a small wooden block and a rubber hammer, gently tap along entire length of the awning Fig 11 bars to firmly secure bars awning sheet www.advaning.com Toll Free (US): (855) 574-0158... -
Page 9: Bracket Screw
Secure the awning sheet to the brackets with the (6) bracket Fig 13 screw sets. Apply the wall rubber strip to the wall side awning bar. Fig 14 Toll Free (US): (855) 574-0158 www.advaning.com... -
Page 10: Install The Door Awning
CAUTION: Make sure to use the appropriate sized drill bit for the mounting screws. Wall Do not drill where elec- trical wires or gas and water pipes may exist. Fig 17 www.advaning.com Toll Free (US): (855) 574-0158... - Page 11 Tighten screws with a wrench. Once the door awning been securely mounted to the wall, apply 24 hour silicone around all screws to create a watertight seal. Fig 20 Fig 21 Toll Free (US): (855) 574-0158 www.advaning.com...
-
Page 12: Lag Screw
Apply 24 hour silicone to the wall edge of the Door Awning. NOTE: Please allow 24 hours for the silicone to fully set. Fig 22 Press the screw caps onto the lag screw heads. Wall Fig 23 www.advaning.com Toll Free (US): (855) 574-0158... -
Page 13: Maintenance
Perform periodic inspections to ensure that all the screws are properly tightened MAINTENANCE and that the silicone seals are in good conditions. Re-tighten all screws and re- apply silicone as needed to prevent water leakage. Toll Free (US): (855) 574-0158 www.advaning.com... -
Page 14: Warranty
Entire awning framework, including polycarbonate sheet and brackets are covered under the limited warranty. Should the purchaser notify Advaning within the twelve (12) months or one (1) year period from the date of the original purchase, defective component will be replaced in full or repaired by Advaning at no charge. - Page 15 Shipping Damage Claim: On the occasion of a damage claim, the end user must contact Advaning and the delivering freight carrier within 3 days of signing for the delivery in order to make a claim. Failure to report freight damage and missing parts in a timely manner and in accordance to the carrier’s guidelines may result in you incurring all costs.
-
Page 16: Contact Information
CONTACT Service Questions: service@advaning.com Toll Free (US): 855–574-0158 INFORMATION Fax: 877-310-3832 12282 Knott Street, Garden Grove, CA 92841 www.advaning.com OM_PA Series_V01_R02_2017.11.30...
