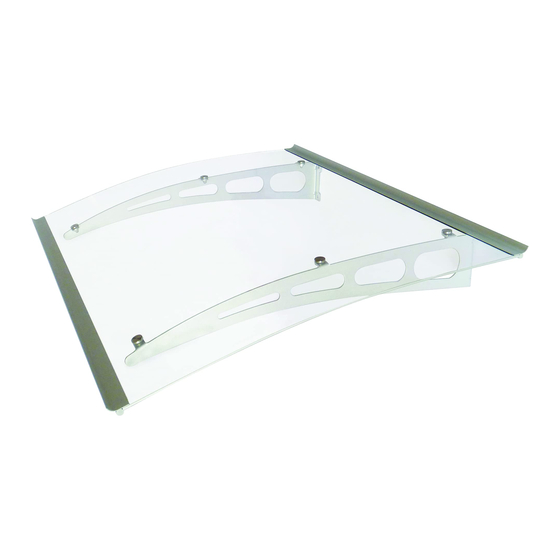

Masonry installation
For installing Advaning's
PA series onto solid brick
or solid concrete wall/
surface.
CAUTION:
To
avoid
potential collapse and
personal
injury,
only
install brackets securely
to solid brick and not in
the grout.
NOTE: Minimum of 2 or
more people to install
Hold the assembled
1
Door Awning in the
area you want to in-
stall it and use a level
to ensure that the
Door Awning is lev-
eled.
With a Marker or Pen-
2
cil mark the hole posi-
tions.
With a 3/8" x 4"
3
masonry drill bit, drill
holes between 3" to
3 ¼" deep for each
bracket.
Remove excess dust
4
and debris from holes
with a tube brush or
vacuum.
1
www.advaning.com

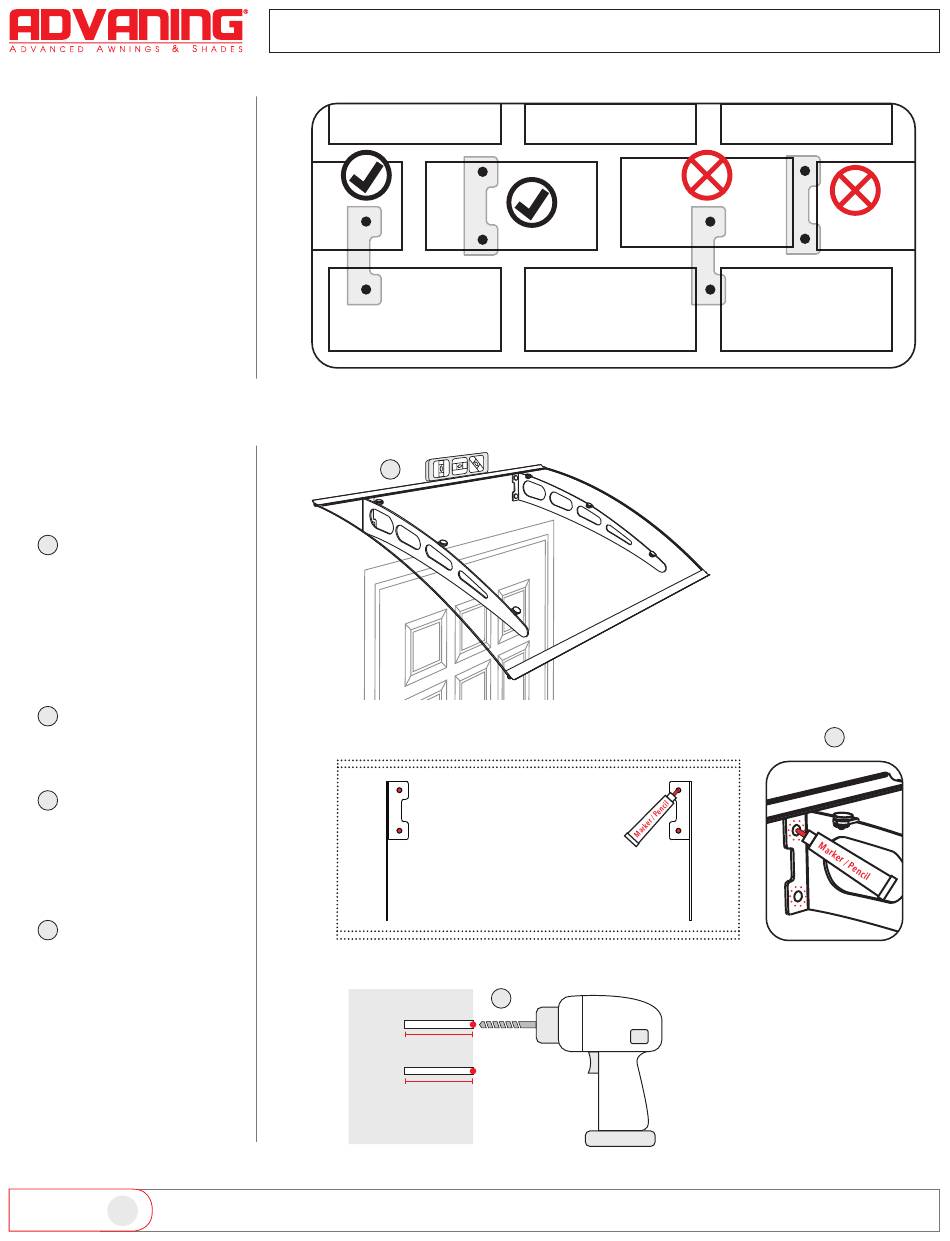

PA SERIES: SOLID MASONRY EXPANSION BOLT INSTALLATION
Fig 1
1
Fig 2
Fig 3
3" to 3¼"
Solid Masonry
Fig 4
3
2
Toll Free (US): (855) 574-0158
Advertisement
Table of Contents
Related Manuals for Advaning PA Series
Summary of Contents for Advaning PA Series
- Page 1 PA SERIES: SOLID MASONRY EXPANSION BOLT INSTALLATION Masonry installation For installing Advaning’s PA series onto solid brick or solid concrete wall/ surface. CAUTION: avoid potential collapse and personal injury, only install brackets securely to solid brick and not in the grout.
- Page 2 Fig 6 CAUTION: Overtighten as this can damage the bracket. Repeat step for all brackets and tighten to secure as needed. Replace the bracket screw set. Solid Masonry Tighten Fig 7 Fig 8 www.advaning.com V.01_R2020.03.25...
