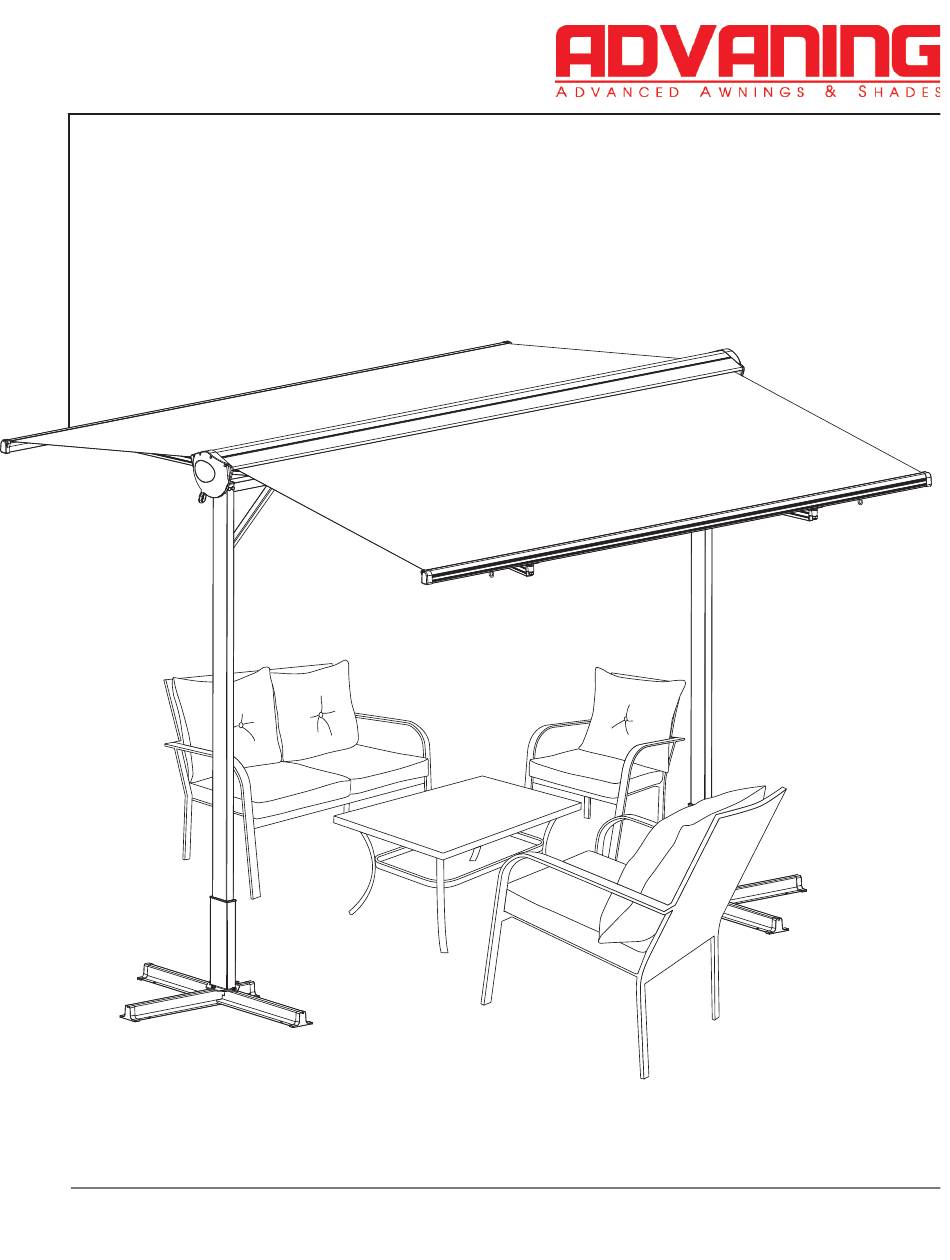

- Page 1 FS SERIES Free Standing Awning Owner’s Manual For safety reasons, please read the instructions and warnings in this manual carefully before installing the awning.
-
Page 2: Table Of Contents
The awning arms contain tensioned cables. Always use caution, securely tie the awnings arms to the awning when performing installation, adjustments, or repairs. Sudden movement of tension arms can result in serious personal injury, product and/or property damage. www.advaning.com Toll Free (US): (855) 574-0158... -
Page 3: Safety Instructions And Warnings
Please keep unsupervised children away from playing with the awning or its parts. • The product should be used only as described in this Advaning Owner’s manual. Do not carry out any maintenance other than what is shown in this manual. For any issues that are not covered in this manual, please seek support from Advaning Customer Service. -
Page 4: Package Contents And Parts
Lower Leg (2) Supporting Brace (2) Short Base (2) Long Base (2) M8x90 Upright Leg Bolt Set (4) Lower Leg Screw and Washer Set (8) M6x16 Supporting Brace Screw and Washer Set (8) Fig.4 www.advaning.com Toll Free (US): (855) 574-0158... -
Page 5: Tool Requirements
Drill bit Masonry drill bit Fig.5 Drill with bits PRODUCT FEATURES Arm shoulder Awning module Crank loop Awning fabric Front bar Retractable arms Supporting brace Upright leg Lower leg Fig.6 Long base Short base Toll Free (US): (855) 574-0158 www.advaning.com... -
Page 6: Assembly
Fig 7 For 14 x 10 foot model Locate a clear area, on level ground / surface, that is at least 10 feet wide by 14 feet length by 8 feet height. 99” Fig 8 www.advaning.com Toll Free (US): (855) 574-0158... -
Page 7: Assemble The Awning Support Structure
NOTE: Make sure the screw holes upright leg are facing the short segment of the assembled cross base. Repeat step 1-3 to assemble the second leg base. Fig 11 Fig 12 Toll Free (US): (855) 574-0158 www.advaning.com... -
Page 8: Secure The Awning To Support Structure
Fig 13 Adjust awning and the legs to align the screw holes. Attach the awning to the legs using 2 upright leg bolt sets on each leg. Fig 14 www.advaning.com Toll Free (US): (855) 574-0158... -
Page 9: Secure Awning To Ground
Fig 15 SECURING THE AWNING TO THE GROUND CAUTION: Make sure the FS Series awning is placed on level ground. Uneven ground will cause the awning to tilt. Option A Use screws / bolts stakes, appropriate to the... -
Page 10: Operation
CAUTION: To keep the fabric taut, alway reserve a small protion of the awning fabric in the roller tube. NOTE: The arms are designed completely straight in the fully extended position. Fig 18 www.advaning.com Toll Free (US): (855) 574-0158... -
Page 12: Maintenance
Retract the awning to prevent damage YOUR AWNING from accumulated water, snow or from strong gusts of wind. FOR INCLEMENT The fabric is water repellent and is not intended to protect against the water WEATHER elements. www.advaning.com Toll Free (US): (855) 574-0158... -
Page 13: Warranty
Advaning at no charge. All claims submitted after twelve (12) months or one (1) year but within sixty (60) months or five (5) years from the date of the original purchase, the defective component will be replaced upon the purchaser’s payment of 1/60th of the full retail cost of the component for each month of use prior to... - Page 14 Shipping Damage Claim: On the occasion of a damage claim, the end user must contact Advaning and the delivering freight carrier within 3 days of signing for the delivery in order to make a claim. Failure to report freight damage and missing parts in a timely manner and in accordance to the carrier’s guidelines may result in you incurring all costs.
- Page 16 CONTACT Service Questions: service@advaning.com Toll Free (US): 855–574-0158 INFORMATION Fax: 877-310-3832 12282 Knott Street, Garden Grove, CA 92841 www.advaning.com OM_FS Series_V03_R01_2018.08.12...
