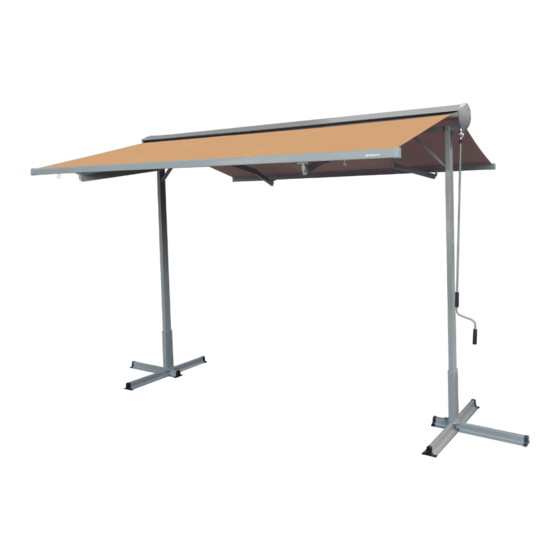

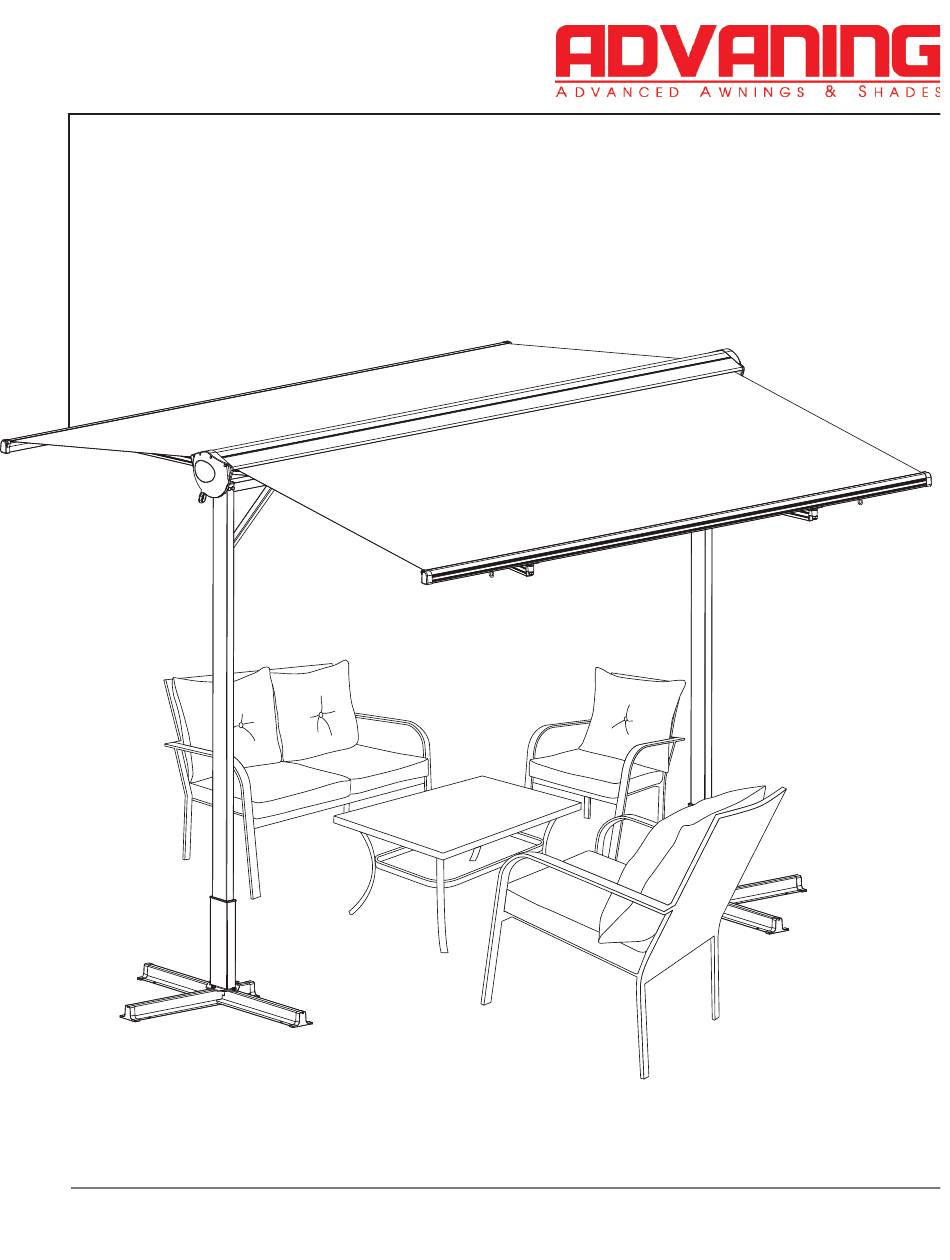

- Page 1 FS SERIES Free Standing Awning Owner’s Manual For your safety and the safety of others, please read all of the instructions and warnings in this manual carefully before proceeding with assembly and usage.
-
Page 2: Table Of Contents
CAUTION The awning arms contain tensioned cables. Always use caution, securely tie the awnings arms to the awning when performing installation, adjustments, or repairs. Sudden movement of tension arms can result in serious personal injury, product and/or property damage. www.advaning.com... -
Page 3: Safety Instructions And Warnings
PERSONAL INJURY. Installation • Pay close attention throughout the assembly and installation process to ensure that the Advaning awning is assembled and installed properly and according to the safety guidelines outlined herein. • Do not attempt assembly or installation while under the influence of alcohol or drug substances. -
Page 4: Package Contents And Parts
[Qty: 2] Support Brace [Qty: 2] Short Foot/ Base [Qty: 2] Long Foot/ Base [Qty: 4] Upright Leg Bolt Set [Qty: 8] Lower Leg Bolt Set [Qty: 8] Support Brace Bolt Set [Qty: 2] Hand Crank Clip Set Fig.4 www.advaning.com... -
Page 5: Tool Requirements
OTHER SUGGESTED TOOLS Power Drill Fig.5 Metal Drill Bits/Screws AWNING TERMINOLOGY AND LOCATION Awning Module Arm Shoulder Awning’s Torsion Bar Crank Loop Awnings Fabric Front Bar Retractable Arm Supporting Brace Upright Leg Lower Leg Short Foot/Base Fig.6 Long Foot/Base www.advaning.com... -
Page 6: Assembled Dimensions
ASSEMBLED DIMENSIONS SIZE: 11FT X 10FT 99” Fig 7 SIZE: 14FT X 10FT 99” Fig 8 www.advaning.com... -
Page 7: Foot/Base And Leg Assembly
Repeat steps for ad- ditional leg support. *NOTE: For best stability ensure the long section of cross base is facing outward and short sec- tion is aligned with the Upright Leg’s horizontal pre-drilled brace holes. Reference Fig.12. Fig 11 Fig 12 www.advaning.com... -
Page 8: Securing Awning Module
Align the pre-drilled screw holes of Aw- ning Module’s torsion bar and Upright Leg. Insert Upright Leg Bolt Set (Part K = Bolt, Washer, Nut) and securely tighten with a ½” Socket Wrench or Wrench. Fig 14 www.advaning.com... -
Page 9: Bracing The Awning
Option A *NOT INCLUDED, Please consult with your hard- ware store specialist to Fig 16 determine the best size/ depth for your specific ground/deck type. www.advaning.com... -
Page 10: Ready The Awning
Avoid damaging the aw- quickly. ning – Do Not Use a Knife or Blade to cut restraints. Fig 18 www.advaning.com... -
Page 11: Operating And Adjustments
Fig 19 ADJUSTING THE AWNING The FS Series awning al- lows for pitch tilt adjust- ments to the canopy. For detailed instructions please visit www.advan- ing.com FS Series down- loads. -
Page 12: Accessories
ACCESSORIES ACCESSORIES The FS Series awning in- cludes adjustable hooks on both front bars. These hooks allow for 3rd Party Accessories to be hung. • Shade/Privacy Screen • Lights • Party Streamers/ban- ners Before hanging any ac- cessory from the hooks ensure it does not ex- ceed the 10 lbs. -
Page 13: Maintenance
To dust the awning, a damp cloth, chamois, or soft bristle brush is recommended. The FS Series awning is made of powder-coated steel and aluminum and, with PROTECTING THE care, can last for many years. It is important to regularly (seasonally) inspect the FRAME fasteners and connections and the condition of the metal components. -
Page 14: Warranty And Support
This warranty only applies to the original owner/purchaser of the product and is only effective on a basis of thirty six (36) months or three (3) years from the date of purchase. Any defects or issues presented to Advaning within the warranty period will be promptly handled by Advaning customer service and resolved within a reasonable timeframe. - Page 15 Register your awning purchase within 60 days of purchase along with **installation photos to receive an *Extra 8 months of warranty coverage. www.advaning.com/warranty-registration *parts only, shipping not included. / **submitting photos grants Advaning permission to reproduce any portion of the photo image for print, web, or any other marketing purpose including social media outlets. www.advaning.com...
- Page 16 CONTACT Product Questions? Please contact Advaning via email at service@advaning.com, INFORMATION by phone at 714-622-2600, or by chat on our website; www.advaning.com Advaning Customer Service is available Monday through Friday from 8:30 a.m. to 4:00 p.m. PST www.advaning.com FS.OM.V04.2209...
