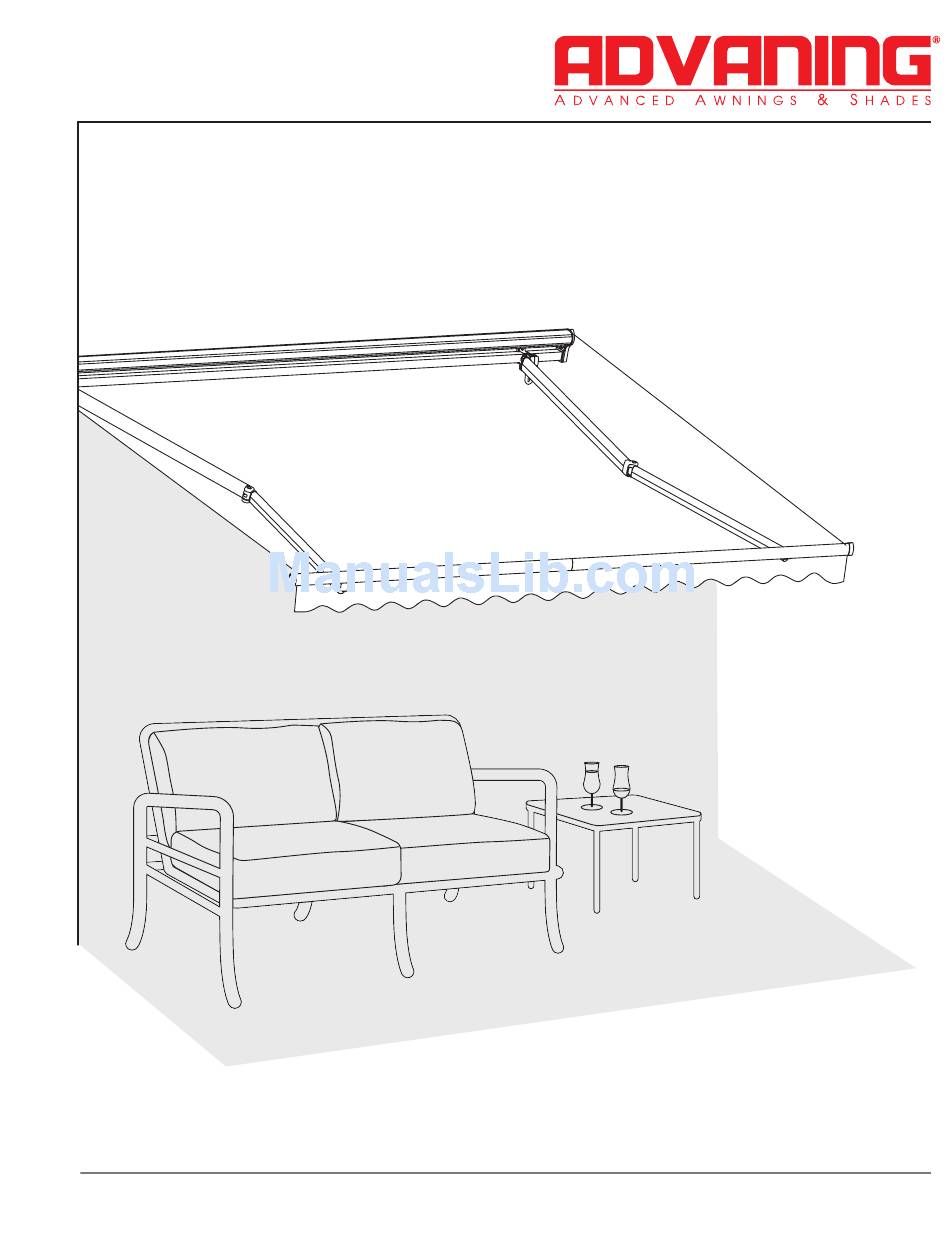

- Page 1 S SERIES Retractable Awning Owner’s Manual For safety reasons, please read the instructions and warnings in this manual carefully before installing the awning.
-
Page 2: Table Of Contents
Warranty............. 16 SAFETY INSTRUCTIONS In order to avoid accidental injury or damage, DO NOT remove any awning arm safety restrains until instructed to Fig.1 do so. www.advaning.com Toll Free (US): (855) 574-0158... -
Page 3: Safety Instructions And Warnings
Please keep unsupervised children away from playing with the awning or its parts. • The product should be used only as described in this Advaning Owner’s manual. Do not carry out any main- tenance other than what is shown in this manual. For any issues that are not covered in this manual, please seek support from Advaning Customer Service. -
Page 4: Package Contents And Parts
OPTIONAL Model 8’~10’ 12’ 14’ 16’ CEILING MOUNT Parts name Quantity PARTS (Additional parts purchase needed.) Ceiling bracket Wall mount to ceiling bolt Wall mount to ceiling washer Wall mount to ceiling nut Fig.3 www.advaning.com Toll Free (US): (855) 574-0158... -
Page 5: Tool Requirements
Masonry drill bit Drill with bits Fig.4 Ladders (2) PRODUCT FEATURES Arm shoulder Valance Crank loop Retractable arms Fig.5 Torsion bar Easy Pitch loop Roller tube Wall bracket Awning fabric Lag screw Front bar Retaining bolt Toll Free (US): (855) 574-0158 www.advaning.com... -
Page 6: Installation
ALL brackets must be placed Left awning shoulder and mounted onto wall studs or other major support structure. Right awning shoulder 8 ~ 10 feet awning 12 feet awning 14 feet awning 16 feet awning Fig.6 www.advaning.com Toll Free (US): (855) 574-0158... -
Page 7: Determine Where To Install Your Awning
Side view Minimum feet Roof, eave or overhang width. Minimum 1 inch Minimum 12 inch clear space Recommended 11 feet projection 8~10 feet Fig 8 Ground, floor or deck Toll Free (US): (855) 574-0158 www.advaning.com... -
Page 8: Install Wall Brackets
Use a level to make 3.5” sure the bracket is straight mark the center of the mounting holes. Drill mounting holes Wall using a drill bit. Fig 11 Fig 12 www.advaning.com Toll Free (US): (855) 574-0158... -
Page 9: Masonry Installation
Wall Siding Fig 15 Masonry installation For installing Advaning awning onto brick or solid concrete wall/surface. CAUTION: Always install brackets securely to the brick or concrete and not in the grout to avoid... - Page 10 Mark the center of the bracket mounting holes. Drill mounting holes using a masonry drill bit. Bracket Center Fig 18 Fig 19 3.5” Wall Fig 20 www.advaning.com Toll Free (US): (855) 574-0158...
- Page 11 Fig 23 Fig 24 Re-insert bolts into the holes through wall bracket. Tighten the hex bolts Tighten to secure wall bracket to surface. Hex bolt Wall Wall Bracket Bracket Fig 25 Fig 26 Toll Free (US): (855) 574-0158 www.advaning.com...
-
Page 12: Install Ceiling Brackets
Level appropriate locations. Use a level to make sure the bracket is straight mark the center of the mounting holes. Ceiling Drill mounting holes bracket using a drill bit. Fig 29 Fig 30 www.advaning.com Toll Free (US): (855) 574-0158... -
Page 13: Install Awning Onto Brackets
Place retaining bolt into bracket and use the nut and washer to secure bolt into place. Torsion bar Tighten the bolt with a socket wrench. Socket wrench Fig 33 Toll Free (US): (855) 574-0158 www.advaning.com... -
Page 14: Ready Your Awning
Arms will not fully straighten awning fabric in the roller when extended tube. NOTE: The arms are designed completely straight in the Fig 37 fully extended position. www.advaning.com Toll Free (US): (855) 574-0158... -
Page 15: Adjust Awning Pitch
OPERATION ADJUST AWNING 8-12ft awning: 2 Easy Pitch loops PITCH NOTE: Advaning awning models come Fig 39 with the Easy Pitch adjustment system. 8-12ft awning models have two (2) Easy Pitch loops for adjustment. Open the awning. With the aid of a... -
Page 16: Maintenance
Retract the awning to prevent damage from accumulated water, snow or from strong gusts of wind. The fabric is water repellent and is not intended to protect against the water elements. www.advaning.com Toll Free (US): (855) 574-0158... -
Page 17: Warranty
Entire awning framework, including extruded and die cast component parts, springs and cables are covered under the limited warranty. Should the purchaser notify Advaning within the twelve (12) months or one (1) year period from the date of the original purchase, defective component will be replaced in full or repaired by Advaning at no charge. -
Page 18: Model
Return Policy or contact Advaning Customer Service Department at (855) 574-0158. • All Work will be carried out by Advaning or its authorized agents and will not extend the warranty coverage period beyond the sixty (60) months from the original date of purchase. Any work done by a third party or non-authorized Advaning agent will void this warranty. - Page 19 Shipping Damage Claim: On the occasion of a damage claim, the end user must contact Advaning and the delivering freight carrier within 3 days of signing for the delivery in order to make a claim. Failure to report freight damage and missing parts in a timely manner and in accordance to the carrier’s guidelines may result in you incurring...
-
Page 20: Contact Information
CONTACT Sales & Technical Questions: techsupport@advaning.com Warranty Claim: service@advaning.com INFORMATION Toll Free (US): 855–574-0158 Fax: 877-310-3832 West Coast: 12282 Knott Street, Garden Grove, CA 92841 East Coast: 151 Airport Drive, Westminster, MD 21157 www.advaning.com OM_S Series_V01_R02.2017.08.08...
