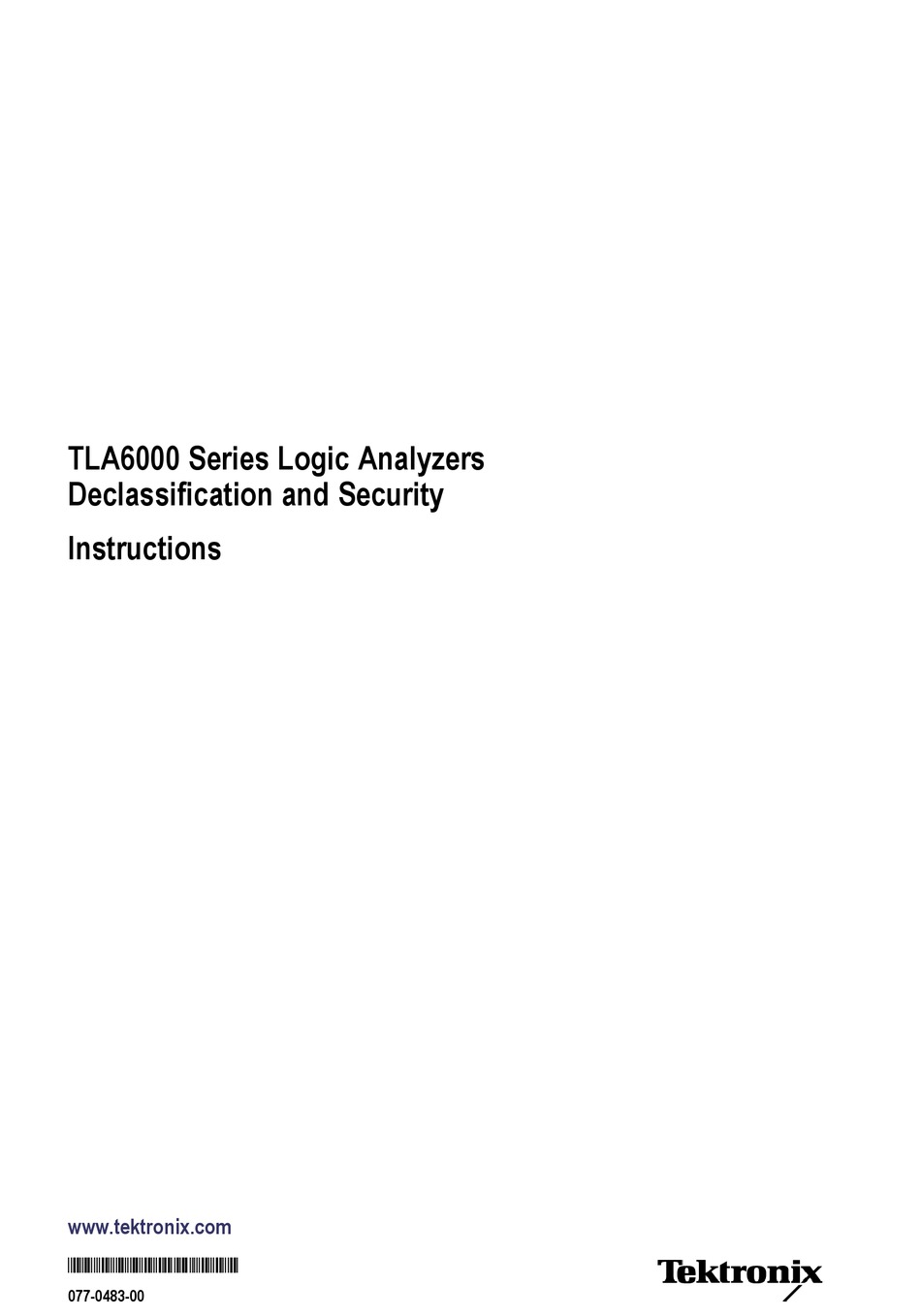

- Page 1 TLA6000 Series Logic Analyzers Declassification and Security Instructions www.tektronix.com *P077048300* 077-0483-00...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 3: Table Of Contents
Table of Contents Preface ......................Clear and Sanitize Procedures..................Memory Devices....................Data Export Devices................... Built-In Security Features..................Troubleshooting..................... How to Clear or Sanitize a Nonfunctional Instrument............. How to Recover from Clearing or Removing the Instrument’s Memory ........ TLA6000 Declassification and Security Instructions... - Page 4 Table of Contents TLA6000 Declassification and Security Instructions...
-
Page 5: Preface
TLA6203 and all options TLA6204 and all options Related Documents Refer to the following service-related documents available on the Tektronix Web site at www.tektronix.com/manuals or to the TLA Documentation CD that is available with your product: TLA6000 Series Logic Analyzer Installation Manual... - Page 6 Preface Sanitize. This eradicates the data from media/memory so that the data cannot be recovered by other means or technology. This is typically used when the device will be moved (temporarily or permanently) from a secured area to a non-secured area.
-
Page 7: Clear And Sanitize Procedures
Clear and Sanitize Procedures Memory Devices The following tables list the volatile and nonvolatile memory devices in the standard instrument and options. Table 1: Volatile memory devices Type and User Data input minimum size Function modifiable method Location To clear To sanitize DRAM, Firmware... - Page 8 Clear and Sanitize Procedures Table 1: Volatile memory devices (cont.) Type and User Data input minimum size Function modifiable method Location To clear To sanitize Firmware Written by the LPU board Remove power Remove power SRAM, 128 K X 8 execution code processor system source from the...
-
Page 9: Data Export Devices
Clear and Sanitize Procedures Table 2: Nonvolatile memory devices (cont.) Data Type and User input minimum size Function modifiable method Location Process to clear To sanitize PROM Contains FPGA Programmed Interface board N/A. No user data stored N/A. No user at the image for in this device. - Page 10 13. Right-click the drive, and select Disable. 14. Restart the instrument to make the changes effective. 15. Tektronix suggests that you password-protect the Windows Administrator account and set up Guest accounts for end users so that these changes cannot be easily reversed.
- Page 11 Before scrubbing the hard disk drive, make certain that you created OS Restore CD-ROMs. For more information, see Creating Operating System Restore CD-ROMs in the TLA6000 Series Logic Analyzer Installation Manual. After the hard disk drive has been scrubbed, the operating system and TLA application software can be reinstalled.
-
Page 12: Built-In Security Features
If the hard disk drive has been removed and a new hard disk drive is installed, you need to install the operating system and the TLA application software. Refer to the TLA6000 Series Logic Analyzer Installation Manual for instructions for restoring the Windows XP Operating System and the TLA application software. -
Page 13: Troubleshooting
Hard Disk Drive Remove the hard disk drive before returning the instrument to Tektronix for repair. CD-RW/DVD ROM Drive Remove all CDs and DVDs. If it is not possible to remove the disk, you might need to remove the disk drive.
